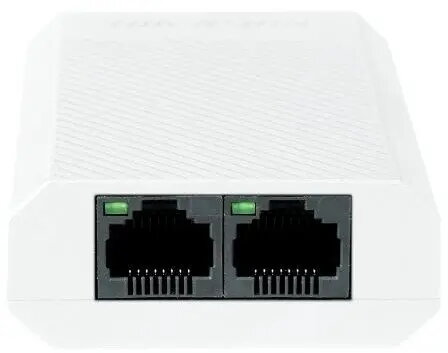

Switch Hikvision DS-3E0503DP-E/R 5-port PoE network switch

Hikvision DS-3E0503DP-E/R 5-port PoE network switch is a compact, entry-level switch designed for small network installations and IP camera systems. It offers five Ethernet ports with integrated Power over Ethernet (PoE) on multiple ports, enabling both data transfer and power delivery over a single cable. The device is intended for straightforward deployment in compact surveillance setups, small offices, or remote network nodes where space and cabling simplicity are important.

Advantages

The switch combines Ethernet connectivity and PoE power delivery in a small footprint, reducing the need for separate power sources for connected devices. Its plug-and-play operation simplifies installation without requiring advanced network configuration. Built-in PoE support allows direct connection of IP cameras and wireless access points, consolidating network and power cabling. The robust metal casing and fanless design support quiet, low-maintenance operation in constrained environments.

Suitable for

• Small CCTV and IP camera deployments
• Small office networks and workgroup connectivity
• Wireless access point installations requiring PoE
• Edge network nodes in retail or commercial spaces

Key specifications

• Number of ports: five 10/100 Mbps Ethernet ports with PoE on designated ports
• PoE capability: support for powering PoE-enabled devices directly from the switch
• Form factor: compact, desktop or wall-mountable metal enclosure
• Power: external power input providing PoE budget for connected devices
• Operation: plug-and-play with auto MDI/MDIX and auto-negotiation
• Cooling: fanless design for quiet operation

How to use

Install the switch in a dry, ventilated location close to the network devices to minimize cable runs. Connect the switch to your network router or NVR using a standard Ethernet cable on the uplink port. Plug PoE-enabled devices such as IP cameras or access points into the PoE-capable ports; the switch will provide power and data over the same cable. Configure connected devices through their respective management interfaces; the switch itself requires no additional configuration for basic operation.

Usage recommendations

For reliable operation, ensure the total power consumption of connected PoE devices does not exceed the switch's PoE budget. Use quality Ethernet cables (Cat5e or higher) and keep cable lengths within standard Ethernet limits. Place the switch in a location that avoids extreme temperatures and moisture, and consider surge protection for installations exposed to electrical disturbances.
