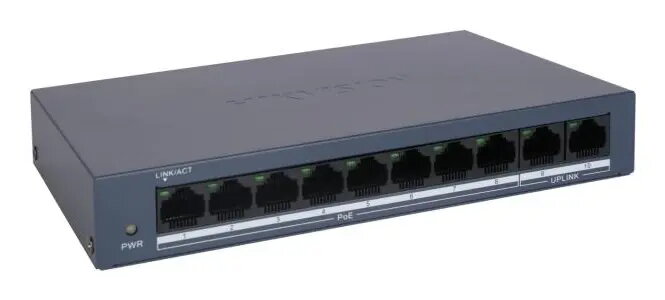

Unmanaged Switch Hikvision DS-XS0110-P

Name: Unmanaged Switch Hikvision DS-XS0110-P 10 52452
Brand: Hikvision
SKU: 11105865
Price: 44.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Unmanaged Switch Hikvision DS-XS0110-P 10 Ports PoE Fast Ethernet

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Hikvision DS-XS0110-P is an unmanaged switch with 10 Fast Ethernet ports, supporting Power over Ethernet (PoE). It features a switching capacity of 1.6 Gbit/s and a MAC address table of 2000 entries. Designed for easy wall mounting, it operates on a DC input voltage of 48 V, making it ideal for powering devices like IP cameras and access points.

Available at price 44.99 €: 471 pcs.

Total available for order: 671 pcs.

Warranty: 2 Years

SKU: 11105865

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

06.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

09.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.19 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

09.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Hikvision DS-XS0110-P is an unmanaged layer-2 10/100 Mbps PoE switch with 10 Fast Ethernet RJ45 ports, including 8 PoE-enabled ports. It delivers a switching capacity of 1.6 Gbit/s and a MAC address table of 2000 entries, and is designed for stable data upload and easy wall mounting. The switch operates from a 48 V DC input and provides Power over Ethernet to compatible devices such as IP cameras and access points.

Advantages

This unmanaged PoE switch provides simple plug-and-play network expansion with auto MDI/MDIX on all ports and store-and-forward switching for reliable frame forwarding. Intelligent cache optimization and automatic MAC address learning and aging reduce manual configuration needs. The integrated PoE function supplies power to connected devices over Ethernet cabling, removing the need for separate power adapters for PoE-capable equipment.

Suitable for

Small office networks requiring PoE for IP cameras
Retail or hospitality sites with access points or VoIP phones
Surveillance and security camera deployments
Edge network segments where unmanaged, reliable switching is needed

Key specifications

Model: Hikvision DS-XS0110-P (MPN: 52452, EAN: 6942160481982)
Switch type: Unmanaged layer-2
Ports: 8 × 10/100 Mbps PoE RJ45 + 2 × 10/100 Mbps RJ45 (total 10 Fast Ethernet ports)
Switching capacity: 1.6 Gbit/s
MAC address table: 2000 entries
PoE: Power over Ethernet supported; DC input voltage: 48 V
Weight: 0.29 kg; Colour: Grey

How to use

Mount the DS-XS0110-P on a wall or place it on a flat surface. Connect your network devices to the RJ45 ports using Cat5e or Cat6 cables; PoE-capable devices should be connected to one of the eight PoE ports to receive power and data over the same cable. Connect the DC 48 V power supply to the unit and verify link/activity LEDs for each port to confirm connectivity. No management configuration is required for basic operation.

Usage recommendations

Use quality Ethernet cabling (Cat5e or higher) and verify total PoE power budget against the combined power requirements of connected devices. Place the switch in a ventilated location and avoid exposure to extreme temperatures or moisture. For surveillance systems, connect cameras and recording equipment to minimize cable runs and centralize power over PoE where possible.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 10
Weight:: 0.29 kg
Product colour:: Grey

All features

Design

Rack mounting:: No
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Grey
Housing material:: Metal

Performance

Buffer size:: 768 KB
Fanless:: Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 2.8 W
Power source:: DC
Input current:: 1.35
Surge protection voltage:: 2 kV
Surge protection:: Yes
DC input voltage:: 48
Power consumption (max):: 65 W
Power supply included:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 8
Total Power over Ethernet (PoE) budget:: 60 W

Management features

Switch type:: Unmanaged

Ports & interfaces

Fast Ethernet (copper) ports quantity:: 10
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 10

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 95

Packaging data

Package weight:: 840 g
Package type:: Box

Technical details

Safety warning:: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 1.6 Gbit/s
Store-and-forward:: Yes
Forwarding rate:: 1.19 Mpps

Weight & dimensions

Weight:: 0.29 kg
Height:: 27.6 mm
Width:: 170 mm
Depth:: 93.1 mm

Network

Auto MDI/MDI-X:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes

Security

MAC address filtering:: Yes

Certificates

Compliance certificates:: REACH, CE, RoHS, WEEE
