Hikvision DS-3E0505D-E 5-port Gigabit switch

Name: Network switch Hikvision DS-3E0505D-E — DS-3E0505D-E
Brand: Hikvision
SKU: 6256731
Price: 15.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Network switch Hikvision DS-3E0505D-E — 5-port Gigabit Ethernet (10/100/1000), 5 V DC, wall-mountable

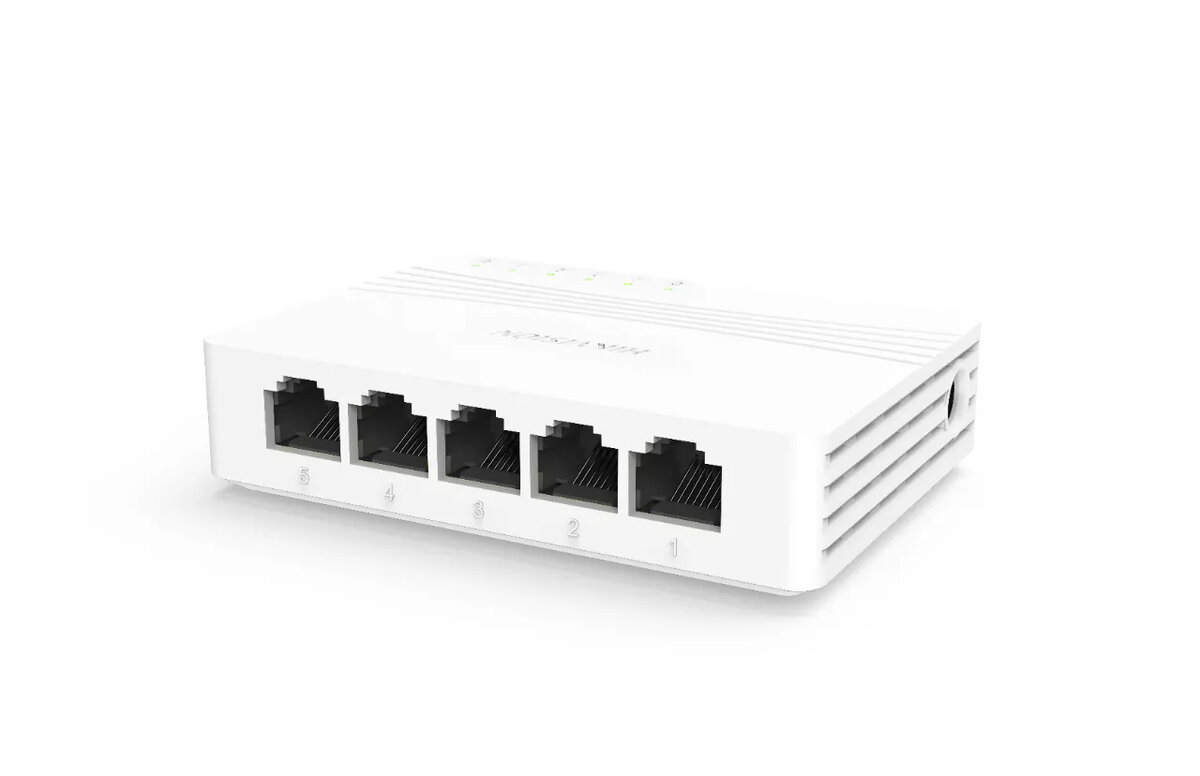

Hikvision DS-3E0505D-E 5-port Gigabit switch Photo 1

Hikvision DS-3E0505D-E 5-port Gigabit switch Photo 2

Hikvision DS-3E0505D-E 5-port Gigabit switch Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Hikvision DS-3E0505D-E is a compact 5-port Gigabit Ethernet switch with RJ-45 ports supporting 10/100/1000 Mbps. It offers a 2,000-entry MAC address table and 10 Gbit/s switching capacity, complies with IEEE 802.3/802.3u/802.3ab/802.3x standards, and is powered via 5 V DC (DC-in jack). Suitable for small office/home networks and IP camera deployments; wall-mountable for flexible placement.

Available for order: 57 pcs.

Warranty: 2 Years

SKU: 6256731

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Hikvision DS-3E0505D-E is a compact 5-port Gigabit Ethernet switch designed for small office, home network and IP camera installations. The switch provides five RJ-45 ports that support 10/100/1000 Mbps, a 2,000-entry MAC address table and a switching capacity of 10 Gbit/s. Compliant with IEEE 802.3/802.3u/802.3ab/802.3x standards and powered by a 5 V DC input, this wall-mountable unit is intended for straightforward, space-saving network expansion where reliable wired connectivity is required.

Advantages

The switch offers full Gigabit support on all ports for high-speed wired connections and low-latency data transfer. Its 2,000-entry MAC table improves local forwarding efficiency, while the 10 Gbit/s switching capacity supports concurrent traffic across multiple ports. Compliance with common Ethernet standards ensures compatibility with a wide range of network devices. The compact, wall-mountable housing and external 5 V DC power input allow flexible placement in constrained environments.

Suitable for

Small office or home wired networks requiring multiple Gigabit ports
IP camera systems and CCTV networks needing stable data links
Connecting networked printers, NAS, and desktop computers in compact setups
Edge switching where wall mounting and limited space are factors

Key specifications

Number of ports: 5 × RJ-45 Gigabit (10/100/1000 Mbps)
Switching capacity: 10 Gbit/s
MAC address table size: 2,000 entries
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
Power input: 5 V DC via DC-in jack
Mounting: wall-mountable compact enclosure

How to use

Mount the switch on a suitable vertical surface using the mounting provisions, or place it on a shelf in a ventilated location. Connect end devices—such as IP cameras, computers, printers or NAS—using standard Cat5e or Cat6 cables to the RJ-45 ports. Provide power by connecting a compatible 5 V DC adapter to the DC-in jack. Devices will communicate over the wired Ethernet links with plug-and-play operation; no configuration is required for basic switching and forwarding functions.

Usage recommendations

Use quality shielded or unshielded twisted-pair cables (Cat5e or Cat6) and a properly rated 5 V DC power adapter. Place the switch where airflow is not obstructed and away from direct heat sources. For IP camera deployments, distribute cameras across ports to balance traffic load and monitor link indicators to verify connection status. Avoid exposing the unit to moisture and excessive dust to maintain long-term reliability.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5
10G support:: No
Weight:: 0.03 kg
Product colour:: White
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

All features

Design

Rack mounting:: No
Wall mountable:: Yes
Product colour:: White
Housing material:: Acrylonitrile butadiene styrene (ABS)

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90

Power

Input current:: 0.6
DC input voltage:: 5
Power supply included:: Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 5
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5
Power connector:: DC-in jack

Data transmission

MAC address table:: 2000 entries
Switching capacity:: 10 Gbit/s
Store-and-forward:: Yes
Forwarding rate:: 7.44 Mpps

Network

Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3
Auto MDI/MDI-X:: Yes
10G support:: No
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes

Weight & dimensions

Weight:: 0.03 kg
Height:: 65.8 mm
Width:: 92.8 mm
Depth:: 22.8 mm
