header-product PV Combiner Box HiSmart NV820153 DC 4in-4out IP66
356.99 €

PV Combiner Box HiSmart NV820153 DC 4in-4out IP66

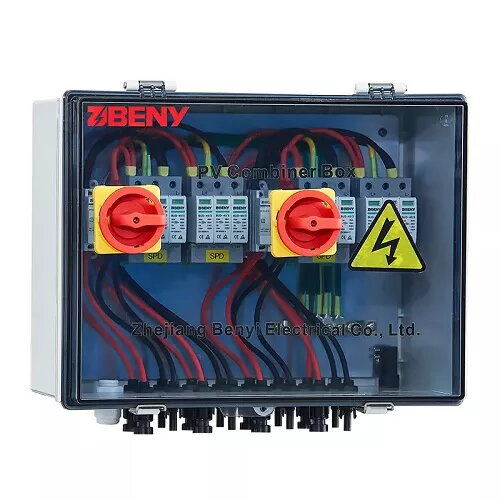

PV Combiner Box HiSmart NV820153 Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

PV Combiner Box HiSmart NV820153 DC 4in-4out IP66

{{email}}
You keep track of price changes

PV Combiner Box HiSmart NV820153 DC 4in-4out IP66

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

HiSmart NV820153 is a PV combiner box for DC photovoltaic systems with 4 inputs and 4 outputs, rated to IP66 protection. It consolidates multiple PV strings for safer distribution and simplifies wiring to inverters or charge controllers. The enclosure provides weather and dust resistance for outdoor use and aids in overcurrent protection and circuit organization during installation and maintenance.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 5257626
Manufacturer: HiSmart
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
02.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
07.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
07.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 119 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 9.92 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

HiSmart NV820153 is a PV combiner box designed for DC photovoltaic systems with 4 inputs and 4 outputs, providing consolidated string connection, surge protection and isolation on the solar DC side. The IP66, IK10 and V0-rated polycarbonate enclosure is UV-resistant and suitable for outdoor installations. The set includes MC4 connectors and cable glands for straightforward wiring to inverters or charge controllers.

Advantages

The combiner box supports up to 1000 V DC and accommodates changeable short-circuit current per input from 15 A to 30 A. It integrates two 4-pole DC switches (1000 V, 50 A) with a patented DC arc extinguishing chamber and magnetic steels for rapid, safe interruption. Four 3-pole DC surge protective devices (1000 V, 40 kA) with a response time <25 ns are built in for PV-specific lightning and surge protection. The enclosure’s flame-retardant, UV-resistant material and IP66/IK10 ratings ensure robust protection in external environments.

Suitable for

  • Small to medium rooftop and ground-mounted PV arrays with four strings
  • Systems requiring centralized DC string consolidation before the inverter
  • Outdoor installations needing weatherproof and impact-resistant enclosures
  • Installations where integrated surge protection and DC isolation are required

Key specifications

  • Inputs: 4 strings
  • Outputs: 4 strings
  • Maximum voltage: 1000 V DC
  • Short-circuit current per input (Isc): 15 A–30 A (changeable)
  • Maximum output current: 50 A
  • DC switches: 4P, 1000 V, 50 A (2 pcs)
  • DC SPD: 3P, 1000 V, 40 kA (4 pcs), response time <25 ns
  • Enclosure material: polycarbonate; protection class IP66, IK10, V0
  • Dimensions: 300 x 400 x 180 mm
  • Cable glands: input PG09 (2.5–16 mm), output PG21 (2.5–16 mm)
  • Operating temperature: -25 °C to +60 °C
  • Warranty: 24 months

How to use

Mount the combiner box on a suitable flat surface using the recommended clearances, ensure correct orientation and secure wiring glands. Connect each PV string to the designated input terminals using MC4 connectors or appropriate cabling, set the short-circuit current per input if required, and route the combined outputs to the inverter or charge controller. Use the lockable DC switch handles to isolate circuits during maintenance; verify SPD status periodically and follow local electrical codes during installation.

Usage recommendations

Install and maintain the HiSmart NV820153 combiner box according to applicable national electrical regulations and manufacturer instructions. Verify compatibility of string currents and system voltage (up to 1000 V DC), regularly inspect seals and SPDs after severe weather, and use qualified personnel for installation and servicing.
