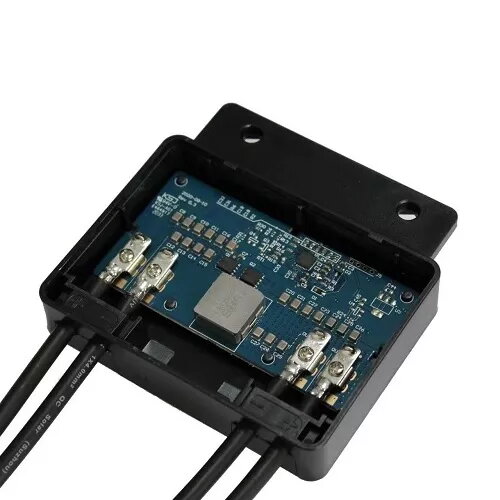

Solar optimizer junction box HiSmart NV820177 for 600W panels

HiSmart NV820177 is a solar optimizer junction box designed to work with 600W photovoltaic panels. It provides module-level optimization to improve energy harvest by minimizing mismatch losses and enabling per-panel monitoring. The unit offers a safe DC connection interface compatible with common inverter systems and simplifies wiring during installation on residential and commercial solar arrays.

Advantages

The junction box integrates optimization electronics directly at the module, which helps maintain higher output under partial shading and uneven soiling. Built for compatibility with high-power 600W panels, it supports reliable DC switching and secure electrical connections while reducing the complexity of field wiring. The built-in monitoring capability enables diagnostics at module level, assisting in faster fault identification and system maintenance.

Suitable for

• Residential rooftop solar systems using 600W modules
• Commercial and industrial PV arrays requiring module-level optimization
• Installations with partial shading or mixed-orientation panels
• Systems where per-module monitoring and faster troubleshooting are required

Key specifications

• Designed for 600W photovoltaic modules
• Module-level power optimization functionality
• Safe DC connection interface for integration with inverters
• Integrated monitoring capability for individual panel output
• Rugged enclosure suitable for outdoor PV module mounting

How to use

Mount the junction box to the back of a compatible 600W solar module following the module and optimizer manufacturer's mechanical instructions. Connect the module’s internal wiring to the optimizer’s input terminals and route the optimizer’s DC output to the string-level wiring that leads to the inverter, observing correct polarity and connector locking procedures. Configure any communications link between the optimizer and the inverter or monitoring gateway according to the system integration guidelines to enable module-level data reporting and optimization features.

Usage recommendations

Installers should verify compatibility with the chosen 600W panels and inverter system, ensure proper torque settings on electrical connections, and follow local electrical codes. Regular visual inspections and periodic data checks via the monitoring interface will help maintain optimal performance and identify potential issues promptly.
