Managed L3 Switch HP Aruba 2930M 24G

Name: Managed L3 Switch HP Aruba JL319A
Brand: HP Enterprise
SKU: 425414
Price: 1425.49 EUR
Availability: OutOfStock

Aquaphor

Filters you can trust. Pure water every day.

Managed L3 Switch HP Aruba 2930M 24G 1-slot

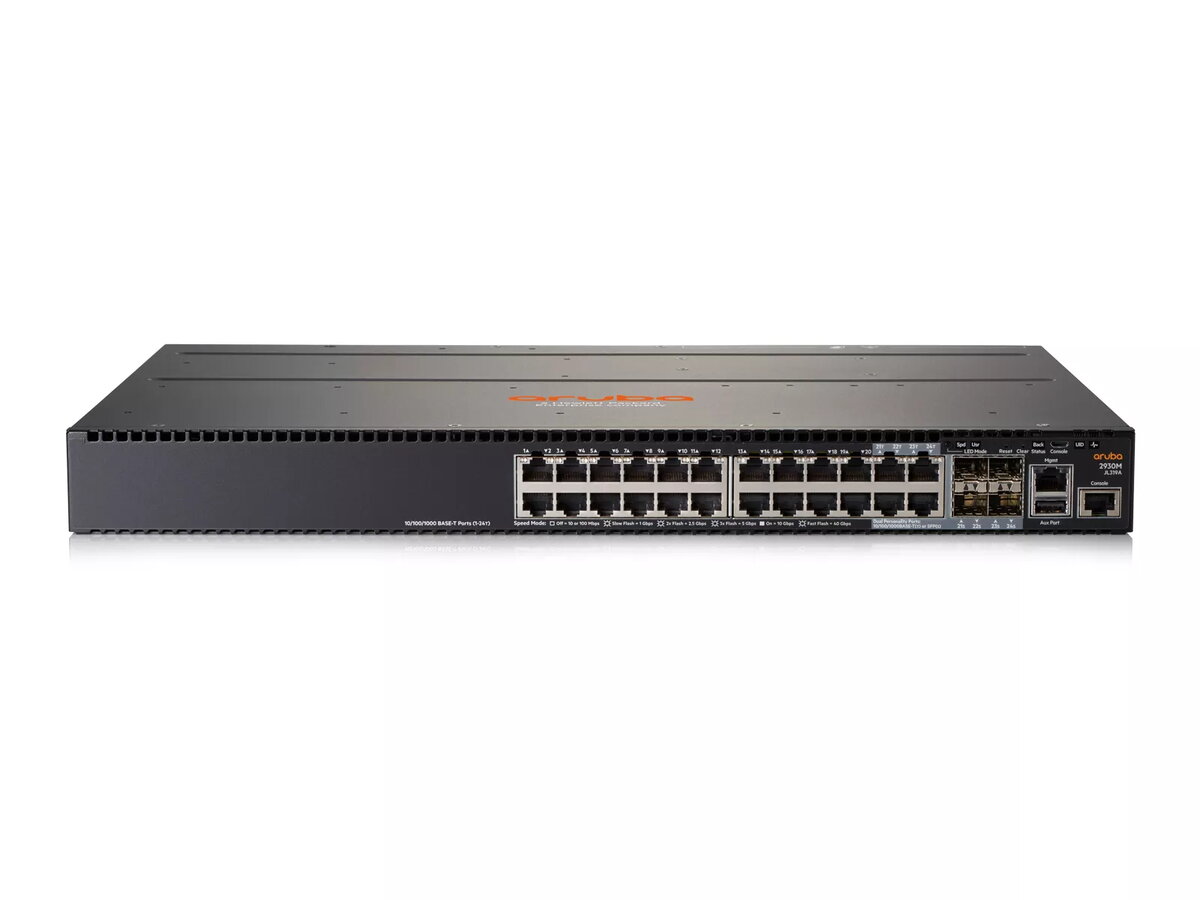

Managed L3 Switch HP Aruba 2930M 24G Photo 1

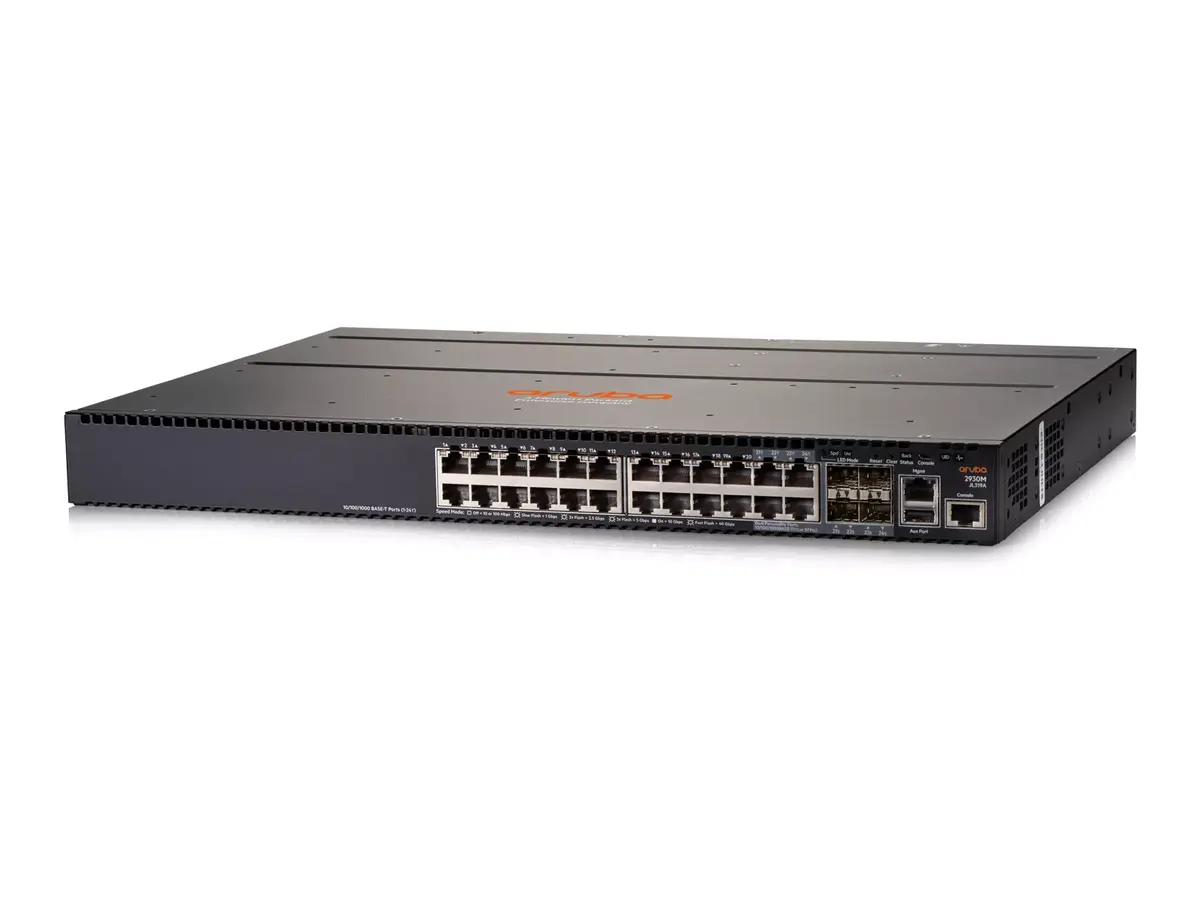

Managed L3 Switch HP Aruba 2930M 24G Photo 2

Managed L3 Switch HP Aruba 2930M 24G Photo 3

Short description

The HP Aruba 2930M 24G 1-slot Managed L3 Switch offers 24 Gigabit Ethernet ports, a switching capacity of 128 Gbit/s, and supports IEEE networking standards. With a MAC address table of 32768 entries, it ensures efficient data handling. Designed for rack mounting in a 1U form factor, this switch is ideal for high-performance networking environments.

Warranty: 2 Years

SKU: 425414

Manufacturer: HP Enterprise

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Managed L3 Switch HP Aruba 2930M 24G 1-slot (JL319A) is a Layer 3 access switch designed for digital workplaces and mobile users. It provides 24 Gigabit Ethernet ports, modular uplinks and stacking, PoE+ power for edge devices, and integration with Aruba management tools such as ClearPass, AirWave and Aruba Central. The switch supports static, RIP and Access OSPF routing, 10GbE/40GbE uplinks (SFP+/QSFP+), HPE Smart Rate multi‑gigabit, robust QoS and security features, and requires no additional software licensing.

Advantages

The Aruba 2930M combines enterprise-class Layer 3 features with simple deployment and centralized management. Modular stacking up to 10 chassis and modular 10GbE/40GbE uplink options enable scalable growth. Integrated PoE+ (internal power up to 740W, expandable) and HPE Smart Rate support high-speed access points over existing cabling. The ProVision ASIC delivers low latency, enhanced buffering and SDN readiness, while security functions such as 802.1X, MAC/Web authentication, ACLs and RADIUS/TACACS+ provide multi-level protection.

Suitable for

Enterprise edge and campus access
Small and medium business (SMB) networks
Branch offices and distributed sites
Wired/wireless converged deployments with PoE+ devices (APs, phones, cameras)

Key specifications

Model: HP Aruba 2930M 24G 1-slot (JL319A)
Ports: 24 x Gigabit Ethernet (10/100/1000) RJ-45; 1 slot for modular uplink
Switching capacity: 128 Gbit/s
MAC address table: 32,768 entries
10G/40G uplink support: SFP+ (10GbE), QSFP+ (40GbE)
Routing: static, RIP, Access OSPF (Layer 3)
PoE: PoE+ support, internal power up to 740W (scalable)
Standards: IEEE 802.3, 802.3u, 802.3ab
Form factor: 1U rack-mount
Weight: 4.45 kg
Color: Grey
MPN / EAN: JL319A / 190017071190

How to use

Mount the switch in a standard 19-inch rack (1U) and connect the power and network cabling. Use the modular uplink slot to install SFP+/QSFP+ modules when 10GbE or 40GbE uplinks are required. Configure initial settings via the CLI, web GUI or Aruba Central for cloud provisioning. Integrate with Aruba ClearPass or AirWave for unified policy, authentication and monitoring. Enable PoE+ on required ports to power access points, IP phones or cameras and configure VLANs, QoS and routing according to your network design.

Usage recommendations

For reliable performance in converged wired/wireless environments, deploy the 2930M with Aruba ClearPass or Aruba Central for centralized policy and monitoring, use modular 10GbE/40GbE uplinks for aggregation, and plan power capacity (internal PoE budget or external PSU) according to the number and type of PoE devices.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No
Power supply included: There is a power supply with this product.: No
Power source: What is providing power for the product e.g. mains electricity.: AC
Stackable: Devices can be placed on top of each other.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 128 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 32768 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: Yes
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 20
Switch type: What switch device has, managed or unmanaged.: Managed
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

All features

Logistics data

Harmonized System (HS) code:: 85176990

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 4.45 kg
Height: The measurement of the product from head to foot or from base to top.: 43.9 mm
Depth: The distance from the front to the back of something.: 324.3 mm
Width: The measurement or extent of something from side to side.: 442.5 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.: 145 BTU/h
Operating relative humidity (H-H):: 15 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 55

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No

Power

AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240
Power supply included: There is a power supply with this product.: No
Power source: What is providing power for the product e.g. mains electricity.: AC

Performance

Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.: 1024 MB
Memory type: Type of memory in the device e.g. DDR3, SRAM (Static RAM).: DDR3-SDRAM
Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.: 1016 MHz
Built-in processor: Whether or not a processor is built into the device.: Yes

Design

Product colour: The colour e.g. red, blue, green, black, white.: Grey
Form factor: The shape or design of the product.: 1U
Stackable: Devices can be placed on top of each other.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Multicast features

Multicast support:: Yes

Security

SSH/SSL support:: Yes
Authentication:: Web-based authentication, MAC-based authentication
IGMP snooping:: Yes
Access Control List (ACL):: Yes
DHCP features:: DHCP server

Data transmission

Packet buffer memory:: 12.38 MB
Latency (10 Gbps):: 3.4 µs
Latency (1 Gbps):: 3.1 µs
Latency (10-100 Mbps):: 11.8 µs
Throughput:: 95.2 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 128 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 32768 entries

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.: Yes
Flow control support:: Yes
Link aggregation:: Yes
Rate limiting:: Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Spanning tree protocol:: Yes
Auto-sensing:: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
IP routing:: Yes
Copper ethernet cabling technology:: 10BASE-T, 1000BASE-T, 100BASE-TX
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: Yes
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3

Ports & interfaces

Combo SFP ports quantity:: 4
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 20

Management features

Web-based management: Using a website/web application to manage something.: Yes
Quality of Service (QoS) support:: Yes
Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).: L3
Switch type: What switch device has, managed or unmanaged.: Managed
