header-product Managed L3 Gigabit Ethernet Switch HP Enterprise Aruba 6000 24G 4SFP, 24×10/100/1000 RJ‑45, 4 SFP, 1U

Managed L3 Gigabit Ethernet Switch HP Enterprise Aruba 6000 24G 4SFP, 24×10/100/1000 RJ‑45, 4 SFP, 1U

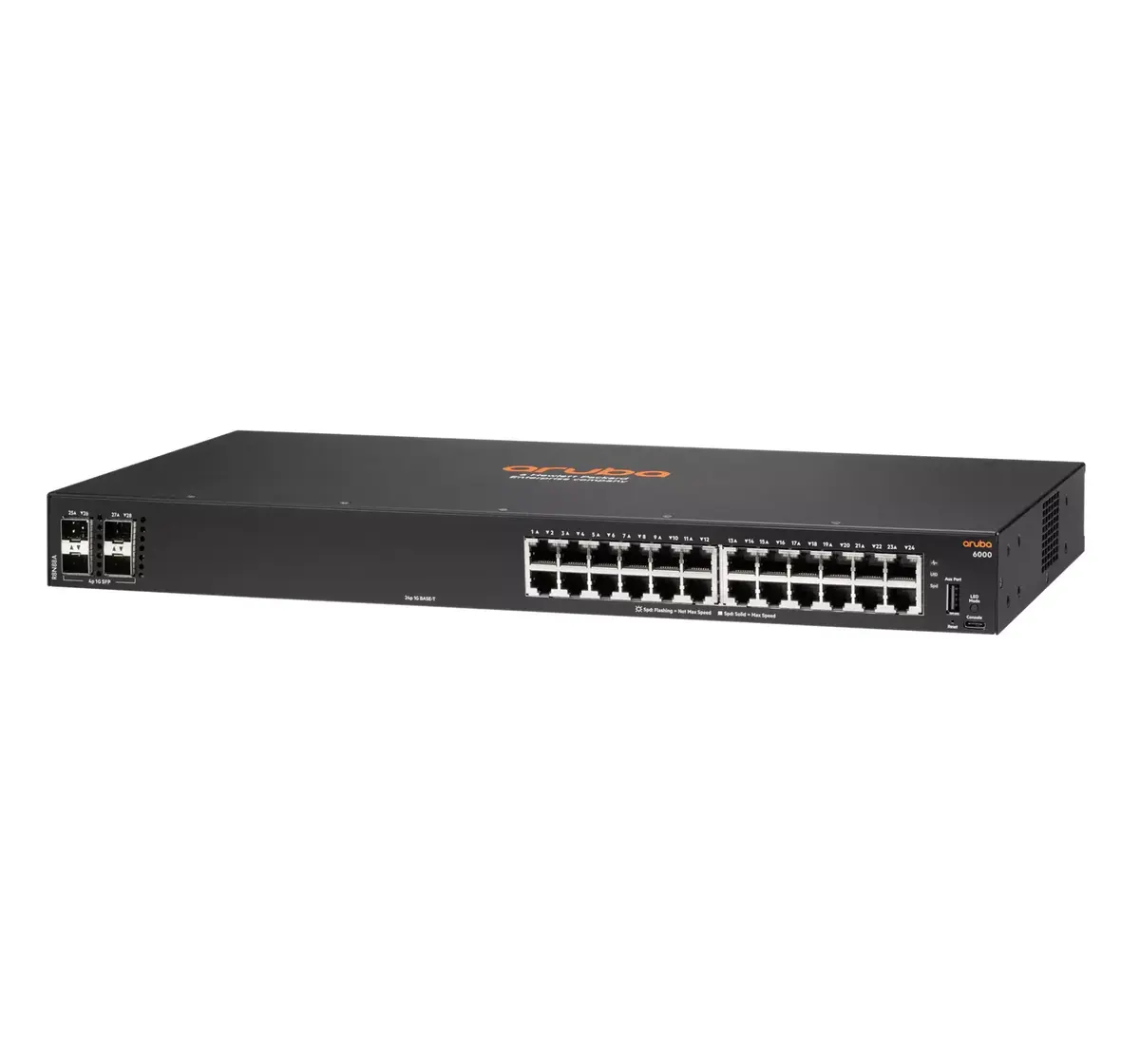

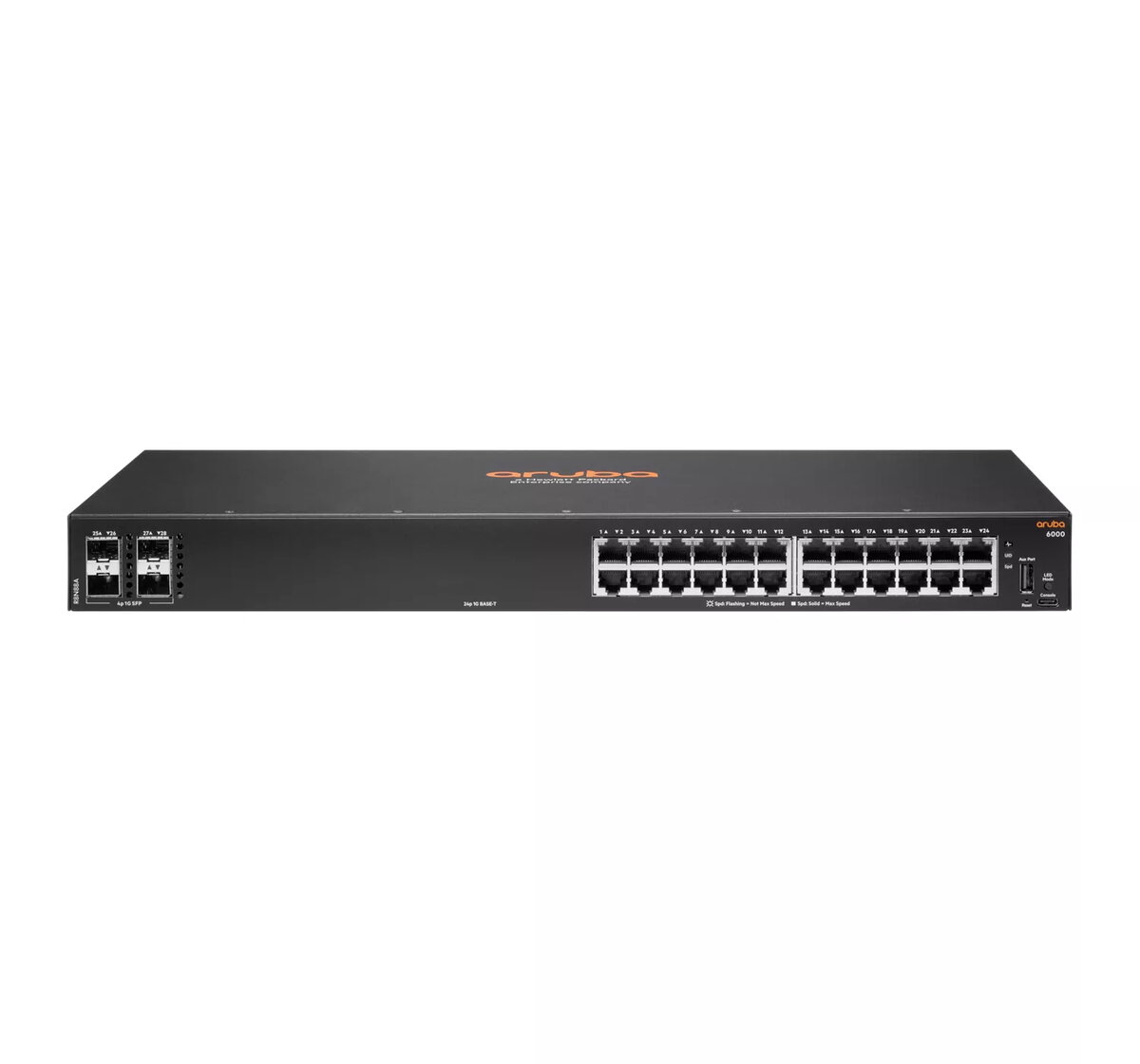

HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 1
HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 2
HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 3
HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 1
HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 2
HP Enterprise Aruba 6000 24G 4SFP Managed L3 Switch Photo 3
Out of stock.
View similar!

Short description

Aruba 6000 24G 4SFP is a managed Layer 3 Gigabit Ethernet switch from HP Enterprise with 24 RJ‑45 Gigabit ports (10/100/1000) and 4 SFP uplink slots in a 1U rack form factor. It supports MAC address table of 8192 entries and 56 Gbit/s switching capacity, common IEEE switching standards (802.1D/Q/p/s/w, 802.3/802.3ab) and rack mounting — suitable for access or distribution use in small to medium networks.
Warranty: 2 Years
SKU: 11029006
Manufacturer: HP Enterprise
delivery
Information regarding the items availability for purchase will be posted on this site
price
Item cost information will be published on this site
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The HP Enterprise Aruba 6000 24G 4SFP is a managed Layer 3 Gigabit Ethernet switch in a 1U rack form factor offering 24 10/100/1000 RJ‑45 access ports and four SFP uplink slots. Designed as an entry-level Aruba CX access-layer device, it runs the AOS‑CX operating system and provides enterprise-class switching features including Layer 2 functionality with static routing, ACLs, QoS, IPv6 support and a MAC address table sized for typical small to medium network environments. The switch delivers a switching capacity suited to access or distribution roles and supports standard IEEE protocols for interoperability and reliable wired connectivity in branch offices, midsize businesses and small enterprises.

Advantages

The Aruba 6000 24G 4SFP combines compact 1U rack compatibility with a fully managed AOS‑CX software stack to simplify deployment and operations. Built-in gigabit uplinks and SFP slots reduce the need for separate uplink modules, while the ASIC-based design provides low latency and efficient packet buffering. The model supports common enterprise features such as ACLs, QoS and IPv6, and can supply Power over Ethernet on PoE-capable variants to power access points and IoT devices. Management options include a web GUI, standard CLI, REST APIs and Aruba NetEdit automation for consistent configuration across multiple devices.

Suitable for

  • Access-layer switching in branch offices and remote sites
  • Small to medium business distribution and aggregation
  • Wired connectivity for office users, VoIP phones and networked printers
  • Connecting wireless access points and IoT devices via PoE-capable models
  • Environments requiring centralized or automated configuration management

Key specifications

  • Ports: 24 × 10/100/1000 RJ‑45 access ports; 4 × SFP uplink slots
  • Switching capacity: 56 Gbit/s
  • MAC address table: 8,192 entries
  • Layer capabilities: Layer 2 switching with static Layer 3 routing support
  • Standards: IEEE 802.1D/Q/p/s/w, IEEE 802.3/802.3ab and related Ethernet standards
  • Form factor: 1U rack-mountable design
  • Management: AOS‑CX operating system, Web GUI, CLI, REST APIs and Aruba NetEdit support

How to use

Install the switch in a standard 19-inch 1U rack or place it on a stable surface if rack mounting is not required. Connect SFP modules to the uplink slots when fiber or uplink modules are needed, and connect RJ‑45 Ethernet cables from endpoints to the access ports. Use the AOS‑CX web GUI, CLI or Aruba NetEdit tools to perform initial configuration: set management IP addresses, configure VLANs, apply ACLs and enable any required static routes. If PoE is required, verify the selected model and configure power allocation per port. Monitor performance and logs via the built-in management interfaces and integrate automation or REST API calls for ongoing configuration tasks.

Usage recommendations

For stable performance, place the switch in a temperature-controlled rack environment with adequate ventilation and use SFP transceivers and cabling that match the desired uplink speed and distance. When deploying in multi-switch topologies, plan VLAN and routing domains to limit broadcast domains and use ACLs and QoS to prioritize critical traffic such as VoIP and management. Use Aruba NetEdit or scripted CLI changes for consistent configuration across multiple Aruba CX switches to reduce manual errors.

Specifications

Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Weight:
2.3 kg
Basic switching RJ-45 Ethernet ports quantity:
24
10G support:
No
Networking standards:
IEEE 802.3az, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x
All features

Design

Rack mounting:
Yes
Form factor:
1U
Stackable:
No

Performance

Processor frequency:
1016 MHz
Internal memory:
8192 MB
Processor model:
ARM Cortex-A9
Flash memory:
16384 MB
Memory type:
DDR3-SDRAM
Built-in processor:
Yes

Power

Power source:
AC
AC input frequency:
50 - 60
AC input voltage:
100 - 240
Power consumption (max):
33 W
Power supply included:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
Switch type:
Managed
Cloud-managed:
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
24
SFP module slots quantity:
4

Operational conditions

Operating relative humidity (H-H):
15 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 45
Storage relative humidity (H-H):
15 - 90

Logistics data

Harmonized System (HS) code:
85176990

Weight & dimensions

Weight:
2.3 kg
Height:
44 mm
Width:
442.5 mm
Depth:
201.2 mm

Data transmission

MAC address table:
8192 entries
Switching capacity:
56 Gbit/s
Jumbo frames support:
Yes
Packet buffer memory:
12.38 MB
Latency (1 Gbps):
1.5 µs
Throughput:
41.6 Mpps

Protocols

IPv4 FIB entries:
256
IPv6 FIB entries:
128
IPv4 & IPv6 features:
IPv4/IPv6 access-control list (ACL)

Network

Networking standards:
IEEE 802.3az, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No

Security

Access Control List (ACL):
Yes
IGMP snooping:
Yes
Authentication:
MAC-based authentication
DHCP features:
DHCP client

Multicast features

Multicast support:
Yes
