Unmanaged Switch Aruba Instant On 1430 5G

Name: Unmanaged Switch Aruba Instant On R8R44A#ABB
Brand: HP Enterprise
SKU: 5069039
Price: 31.99 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

Unmanaged Switch Aruba Instant On 1430 5G L2 Gigabit Ethernet 5 Ports

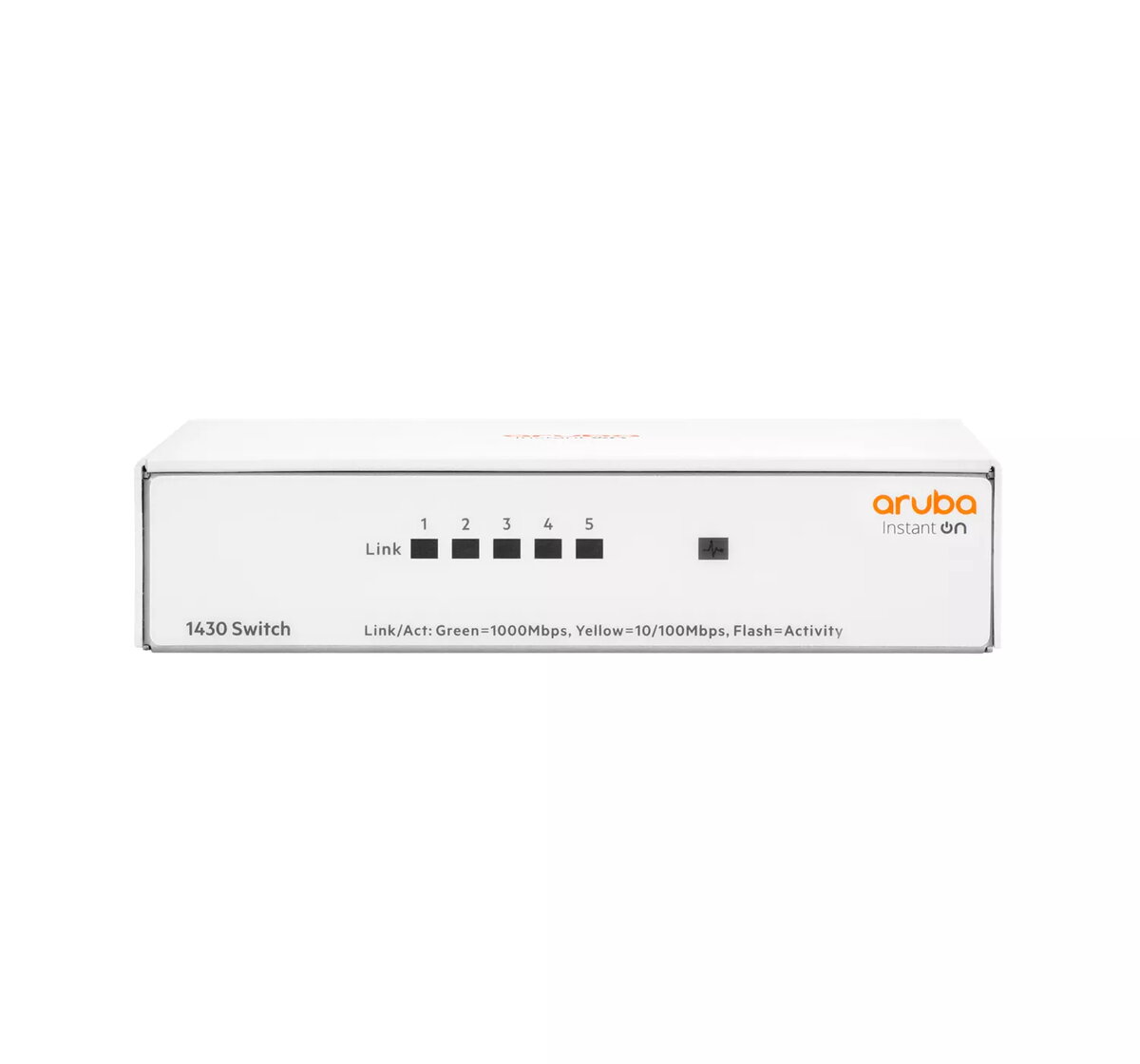

Unmanaged Switch Aruba Instant On 1430 5G Photo 1

Unmanaged Switch Aruba Instant On 1430 5G Photo 2

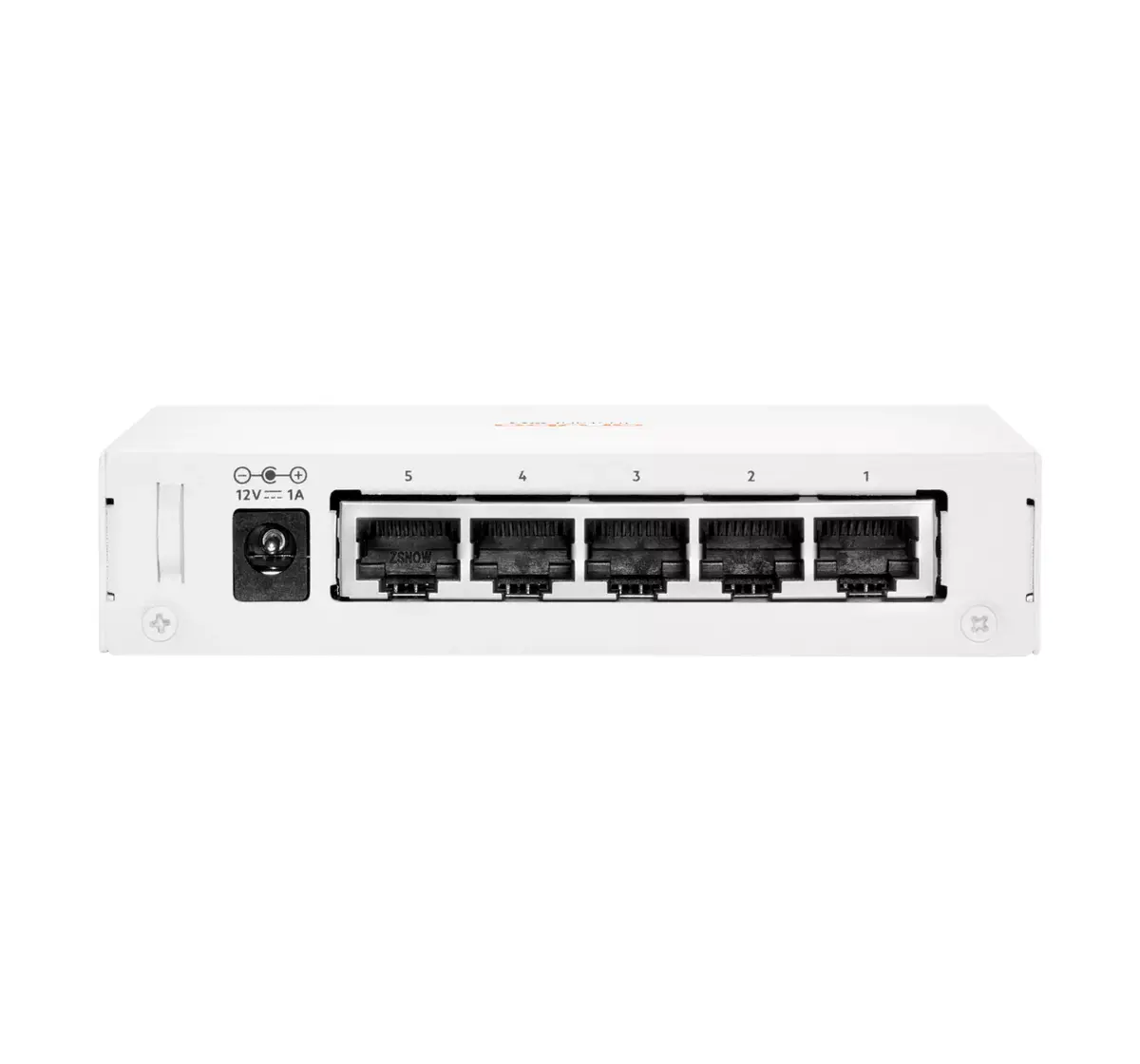

Unmanaged Switch Aruba Instant On 1430 5G Photo 3

Short description

The Aruba Instant On 1430 5G is an unmanaged L2 switch featuring 5 Gigabit Ethernet ports, full duplex capability, and a switching capacity of 10 Gbit/s. It supports various IEEE networking standards and is designed for reliable and efficient networking in small to medium-sized environments.

Warranty: 2 Years

SKU: 5069039

Manufacturer: HP Enterprise

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Aruba Instant On 1430 5G is an unmanaged Layer 2 Gigabit Ethernet switch with five 10/100/1000 RJ-45 ports, designed for small offices and small businesses that need simple, reliable network connectivity without configuration. It provides full-duplex switching with a 10 Gbit/s switching capacity, supports standard IEEE networking protocols, and is available in PoE and non-PoE series variants to connect printers, access points, IP phones and other network devices.

Advantages

This unmanaged switch offers plug-and-play operation with zero ongoing administration and automated functions on PoE models to power compatible devices. It is fan-less for silent operation, supports Energy Efficient Ethernet (802.3az) to reduce power use during low activity, and provides QoS and jumbo frame support for better handling of voice, video and large data transfers. The compact white design and multiple mounting options make it easy to deploy on a desk, under a table, on a wall or in a rack (model-dependent).

Suitable for

Small offices and home offices requiring basic wired connectivity
Connecting printers, access points and IP cameras
Powering PoE devices (when using PoE models) such as VoIP phones and wireless APs
Simple networks where no configuration or management is needed

Key specifications

Switch type: Unmanaged Layer 2
Ports: 5 x Gigabit Ethernet (10/100/1000) RJ-45
Switching capacity: 10 Gbit/s
PoE: Available in PoE and non-PoE series (this 5-port model is non-PoE unless specified otherwise)
Standards: IEEE 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x, 802.3z
Jumbo frame support: up to 9216 bytes
Energy efficiency: 802.3az (Energy Efficient Ethernet)
Noise: Fan-less design
Colour: White
Weight: 0.27 kg

How to use

Place the switch in a suitable location using desk, wall or rack mounting as supported by the model. Connect your Ethernet devices using standard Cat5e/Cat6 cables to the RJ-45 ports; the switch automatically adjusts for straight-through or crossover cables via Auto MDI/MDI-X. If using a PoE model, connect powered devices to the PoE ports and verify power budget requirements. For models with SFP uplinks, install compatible 1GbE SFP transceivers into the SFP slots to extend connectivity over fiber. No configuration is required for basic operation—power on the switch and connected devices will communicate over the local network.

Usage recommendations

For reliable performance, use certified Cat5e or Cat6 cables, place the switch in a well-ventilated area (even though it is fan-less), and verify PoE power budgets before connecting multiple high-power devices. Keep firmware and documentation from the manufacturer for reference and support.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5
Weight:: 0.27 kg
10G support:: No
Switch type:: Unmanaged
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:: White

All features

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5

Management features

Switch layer:: L2
Quality of Service (QoS) support:: Yes
Switch type:: Unmanaged

Power

Number of power supply units:: 1
Power source:: AC
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power consumption (max):: 12 W
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 15 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 15 - 90

Weight & dimensions

Weight:: 0.27 kg
Height:: 93 mm
Width:: 116 mm
Depth:: 26 mm

Data transmission

MAC address table:: 8192 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Packet buffer memory:: 1 MB
Latency (10-100 Mbps):: 3.81 µs
Latency (1 Gbps):: 0.93 µs
Throughput:: 7.44 Mpps

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:: Yes
Ethernet LAN data rates:: 10, 100, 1000
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-sensing:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Design

Product colour:: White
