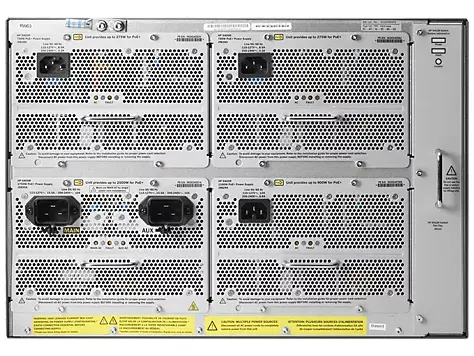

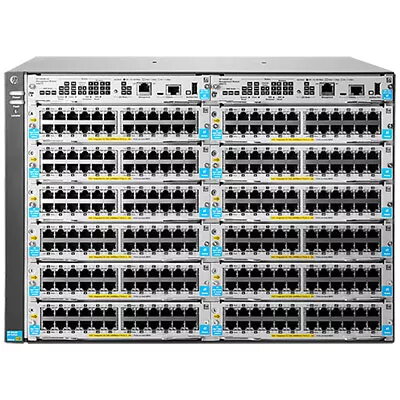

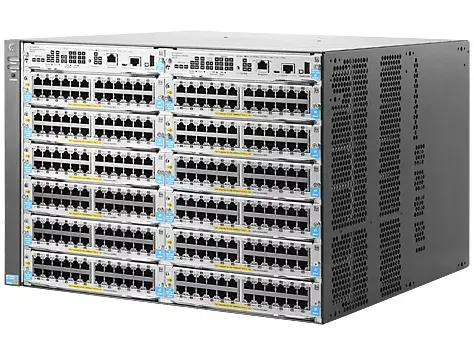

Network chassis HP 5412R zl2 rack chassis with 12 module slots, supports up to 96 10GbE or 288 10/100/1000 ports (J9822A)

The HP 5412R zl2 rack chassis (J9822A) is a modular network chassis that provides 12 open module slots for flexible port configurations. Designed for data center and enterprise campus environments, it supports high-density aggregation and core switching by accommodating up to 96 10GbE ports or up to 288 autosensing 10/100/1000 ports. The chassis is part of the HP 5400R zl2 Switch Series and is intended to enable scalable connectivity, simplified management and enterprise-class resiliency for aggregation, core or distribution layers.

Advantages

The chassis offers a compact, modular platform that allows administrators to mix and match interface modules to meet varied port and speed requirements without replacing the entire system. It supports high-density 10GbE and 1GbE deployments, providing capacity for aggregation and core switching while maintaining centralized chassis-level management and redundancy options available in the 5400R zl2 series. Built with a high-capacity switching architecture in the same series, the chassis is suitable for environments that require flexible scalability and uninterrupted operation.

Suitable for

• Data center aggregation and core switching where flexible module density is required
• Enterprise campus core or distribution layers needing mixed 10GbE and 1GbE connectivity
• SMB and branch office core deployments that benefit from modular scalability
• Environments requiring simplified chassis-level management and high-density port consolidation

When it may not be suitable

This chassis is optimized for deployments that need modular, high-density physical port capacity and centralized chassis management. It may not be the best fit for very small networks or single-rack edge deployments that do not require multiple modules or high port counts, where a fixed-configuration switch could be more cost-effective and simpler to deploy. Also, specific module compatibility and power requirements should be verified for specialized use cases such as extreme PoE budgets or unique service modules.

Key specifications

• Chassis module slots: 12 open module slots for hot-swappable interface modules
• Maximum supported ports: up to 96 10GbE ports or up to 288 autosensing 10/100/1000 ports (dependent on module population)
• Form factor: 19-inch rack chassis suitable for rack-mount installation
• Use cases: aggregation, core and distribution layer switching in data centers and enterprise campuses
• Software and features: advanced Layer 2 and Layer 3 feature set included in the series (no additional software license required)

How to use

Install the HP 5412R zl2 chassis into a standard 19-inch rack and populate the 12 module slots with compatible interface modules to achieve the desired mix of 10GbE and 1GbE ports. Connect redundant management and power modules where required to enable higher availability. Configure network services, L2/L3 protocols and security policies using the platform’s management interfaces or HP Intelligent Management Center for centralized management. Hot-swap modules as needed to expand capacity or replace modules with no network-wide downtime when redundant power and management options are in place.

What to consider before purchase

• Plan the required mix of 10GbE and 1GbE ports and ensure availability of compatible interface modules
• Verify rack space, power and cooling capacity in the intended installation location
• Confirm redundancy needs for management and power modules based on availability requirements
• Assess integration with existing network management tools and feature requirements (L2/L3, QoS, security)

Usage recommendations

For best results, size the chassis with a combination of modules that matches current port density needs while leaving slots available for growth. Use redundant power and management modules where high availability is required, and integrate with centralized management to streamline configuration, monitoring and firmware updates.
