header-product Managed L3 Switch HP Aruba Networking CX 6300M — 24× SFP+ and 4× SFP56, 880 Gbit/s, 32k MAC, USB console, rack-mount
16,551.99 €

Managed L3 Switch HP Aruba Networking CX 6300M — 24× SFP+ and 4× SFP56, 880 Gbit/s, 32k MAC, USB console, rack-mount

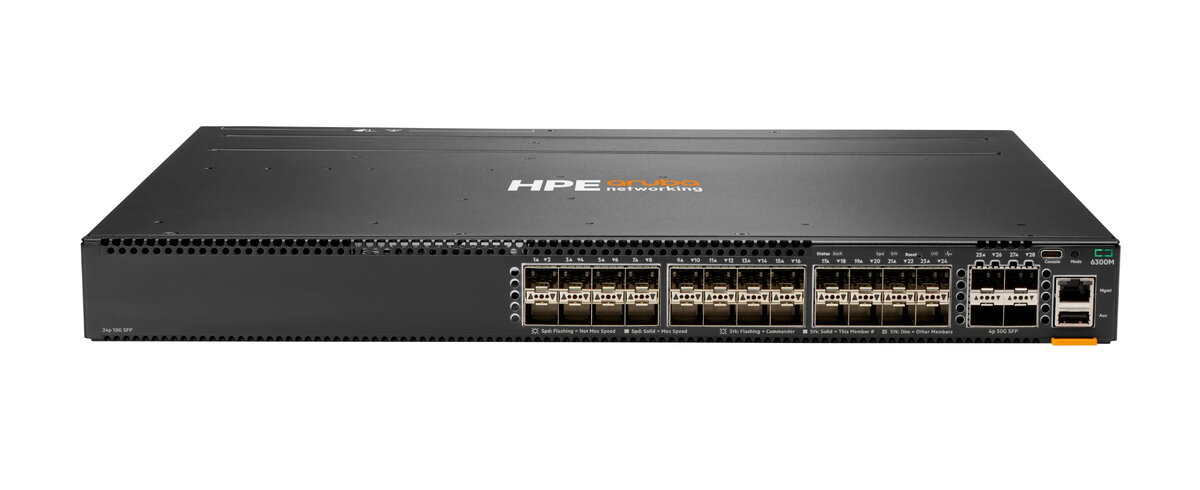

HP Aruba CX 6300M L3 24×SFP+ 4×SFP56 switch Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L3 Switch HP Aruba Networking CX 6300M — 24× SFP+ and 4× SFP56, 880 Gbit/s, 32k MAC, USB console, rack-mount

{{email}}
You keep track of price changes

Managed L3 Switch HP Aruba Networking CX 6300M — 24× SFP+ and 4× SFP56, 880 Gbit/s, 32k MAC, USB console, rack-mount

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

HPE Aruba Networking CX 6300M is a managed Layer 3 switch designed for campus and data center access aggregation. It provides 24 SFP+ ports and 4 SFP56 ports, 880 Gbit/s switching capacity, a MAC address table of 32,000 entries, USB 2.0 console and rack-mount form factor. Supports IEEE switching standards and 10G connectivity for high-density fiber deployments and resilient routed networks.
Available for order: 138 pcs.
Warranty: 2 Years
SKU: 12051821
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
17.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
22.07.2026 {{selectedOffer.courierDeliveryString}}
From 5.07 € (Weight: 5.11 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
22.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 576.01 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The HPE Aruba Networking CX 6300M is a managed Layer 3 switch designed for campus access aggregation and top-of-rack deployments. This rack-mountable 1U switch offers 24 SFP+ fiber ports and 4 SFP56 ports, supporting 10G and higher-speed fiber connectivity. With a non-blocking switching capacity of 880 Gbit/s and a MAC address table of 32,000 entries, the CX 6300M provides the switching and routing features required for resilient routed networks, high-density fiber access, and integration with modern orchestration and analytics tools.

Advantages

The switch combines a Gen7 ASIC architecture and a fully programmable OS to deliver deterministic performance, real-time telemetry and automation capabilities. It supports advanced Layer 3 routing protocols, quality of service, MACsec 256 for enhanced link security, and flexible stacking options through Virtual Switching Framework (VSF) to simplify management and scale. A USB console port, industry-standard IEEE switching features and a compact rack-mount form factor make the CX 6300M suitable for professional network environments that require fiber-first connectivity and centralized control.

Suitable for

  • Campus access aggregation and distribution switches
  • Top-of-rack (ToR) data center access for fiber-connected servers
  • High-density fiber deployments requiring 10G uplinks and SFP56 ports
  • Environments needing resilient routed networks and advanced routing (OSPF, BGP, EVPN)
  • Networks using centralized management, telemetry and automation

Key specifications

  • Managed Layer 3 switch with support for OSPF, BGP, EVPN and VRF
  • 24 SFP+ ports and 4 SFP56 ports for 10G and higher-speed fiber connectivity
  • System switching capacity: 880 Gbit/s
  • MAC address table: 32,000 entries
  • USB 2.0 console port for local management
  • Support for IEEE switching standards including 802.1w, 802.1v, 802.1s, 802.1p, 802.1ak, 802.1ab, 802.1D, 802.1AX, 802.3ad, 802.3ae, 802.3bt
  • Rack-mountable 1U form factor, weight approximately 5.11 kg
  • Black product color, stackable with Virtual Switching Framework (VSF)

How to use

Install the CX 6300M in a standard 19-inch rack using the supplied mounting kit and connect fiber uplinks to the SFP+ and SFP56 ports according to your network design. Use the USB console port for initial CLI configuration or manage the device remotely through Aruba Central, the CX operating system or NetEdit for automated configuration and validation. Configure VLANs, interface addressing, routing protocols and QoS policies as required, and enable telemetry and analytics to monitor performance and health. For stacked deployments, follow the vendor procedures to form a VSF or VSX cluster to achieve scale and redundancy.

Usage recommendations

Place the switch in a temperature-controlled equipment rack with proper airflow, use transceivers and patching hardware that meet vendor specifications, and keep firmware up to date to maintain security and stability. For larger deployments, plan stacking or clustering and integrate the switch with Aruba Central for consistent policy management and network analytics.

Specifications

Switch type:
Managed
10G support:
Yes
Basic switching RJ-45 Ethernet ports quantity:
0
Weight:
5.11 kg
Networking standards:
IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3bt, IEEE 802.3ae
Product colour:
Black
All features

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
System event log:
Yes
Switch type:
Managed
Configuring Location Settings (CLI):
Yes

Ports & interfaces

USB 2.0 ports quantity:
1
Console port:
USB
Installed SFP+ modules quantity:
0
Installed SFP modules quantity:
0
Basic switching RJ-45 Ethernet ports quantity:
0
SFP module slots quantity:
4
SFP+ module slots quantity:
24

Packaging content

Rack mount kit:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Performance

Processor frequency:
1800 MHz
Internal memory:
8000 MB
Processor model:
ARM Cortex-A72
Flash memory:
32000 MB
Memory type:
DDR4-SDRAM
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.
31 dB
Built-in processor:
Yes
Physical stacking (units):
10

Design

Rack mounting:
Yes
Product colour:
Black
Stackable:
Yes
Number of fans:
2 fan(s)
Airflow direction:
Front-to-back airflow

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
8000
MLD entries:
4000
IPv4 multicast entries:
8000
IPv6 multicast entries:
8000

Security

Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP entries:
8000
DHCP features:
DHCP server, DHCP relay

Logistics data

Harmonized System (HS) code:
85176990

Certificates

Certification:
EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010

Operational conditions

Operating altitude:
0 - 3040
Operating relative humidity (H-H):
15 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 45
Storage relative humidity (H-H):
15 - 90
Non-operating altitude:
0 - 4600

Power

AC input voltage:
100 - 240
Power consumption (max):
85 W

Network

Networking standards:
IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3bt, IEEE 802.3ae
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Policy-based routing:
Yes

Data transmission

MAC address table:
32000 entries
Switching capacity:
880 Gbit/s
Number of queues:
8
Packet buffer memory:
8 MB
Latency (1 Gbps):
1.99 µs
Latency (10 Gbps):
1.49 µs
Throughput:
654 Mpps

Optical fiber

Transmission distance (max):
10 km

Weight & dimensions

Weight:
5.11 kg
Height:
385 mm
Width:
44 mm
Depth:
442 mm

Protocols

Routing protocols:
OSPFv3, OSPF

Description

Machine translation. Load original

Reasons to buy

High-performance, Low-latency Switching for Demanding Networks

HPE Aruba CX 6300 delivers wire-speed switching and routing with Gen7 ASICs and a fully distributed architecture to support bandwidth-intensive applications with very low latency and increased packet buffering. Designed for campus access and aggregation, this managed L3 switch offers high-density fiber connectivity—24 SFP+ ports plus 4 SFP56 ports—and an 880 Gbit/s switching capacity to keep traffic flowing smoothly in resilient routed networks.

Scale Easily with Stacking and High-availability Designs

Grow your network quickly using Virtual Switching Framework (VSF) front-plane stacking with four built-in uplinks supporting 10/25/50/100 GbE for up to 200–400 Gbps stacking throughput per switch. For high availability, deploy a 2-member active-active design with VSX and an inter-switch link (ISL) to maintain state synchronization and independent control planes across switches.

Power and PoE Options to Support APs and IoT

Support dense wireless access points and IoT deployments with Smart Rate Multi-Gigabit Ethernet and flexible PoE options. CX 6300 models offer per-port Class 4 (30W), Class 6 (60W), and Class 8 (90W) PoE with selectable total power budgets, enabling you to power a wide variety of edge devices while optimizing power consumption.

Built-in Automation, Analytics, and Troubleshooting

Built-in telemetry and a Time Series Database provide real-time visibility into configuration and operational state for rapid issue resolution. Use the Network Analytics Engine (NAE) for automated event interrogation and advanced troubleshooting, plus REST API, CLI, and Python agent support for automation workflows and integrations.

Streamlined Configuration Management and Policy Assurance

Use Switch Multi-Edit for rapid, network-wide configuration changes with validation and audit capabilities to ensure policy conformance after updates. Import switch data to simplify configuration management and maintain continuous conformance validation across your access layer.

Unified Management and Intelligent Segmentation

Manage your deployment from a single pane with HPE Aruba Central for enhanced visibility and AI-driven insights. Dynamic Segmentation, automated device profiling, role-based access control, and Layer 7 firewall features help enforce user- and device-aware policies across wired and wireless infrastructure for improved security and user experience.

Data Center-ready Integration and Pre-engineered Solutions

HPE offers pre-engineered integrated solutions that combine compute, storage, and networking where CX 6300 switches (including 10/25/40/100G models) can be deployed as part of mixed configurations to simplify and accelerate IT service delivery. These solutions reduce deployment time and risk when building complex data center and campus infrastructures.
