header-product Managed HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE, 4× SFP56, L3, 1U rack
19,669.99 €

Managed HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE, 4× SFP56, L3, 1U rack

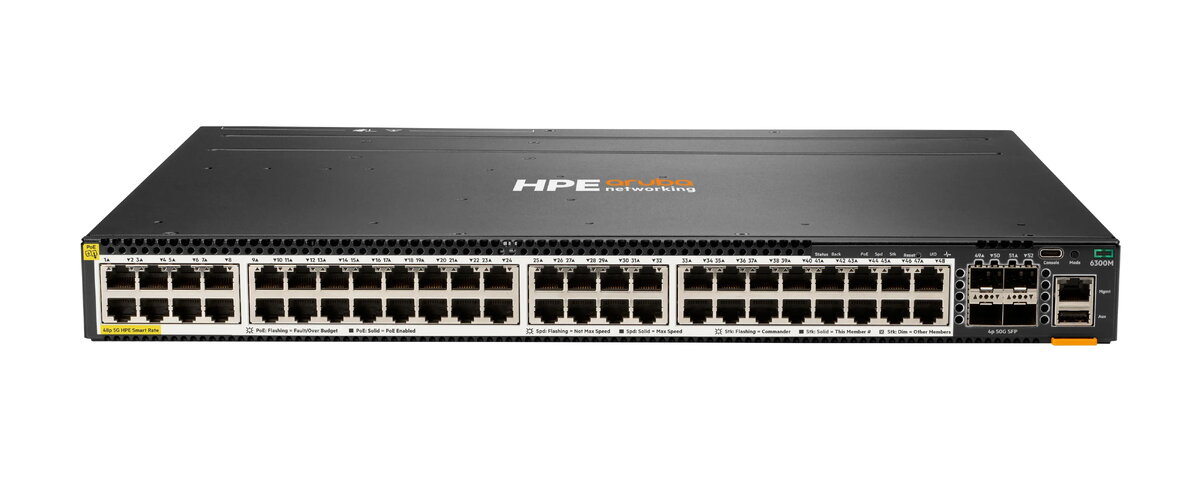

HPE Aruba CX 6300M 48‑port L3 Managed Switch Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE, 4× SFP56, L3, 1U rack

{{email}}
You keep track of price changes

Managed HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE, 4× SFP56, L3, 1U rack

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Rack-mountable managed switch HPE Aruba CX 6300M with 48 Smart Rate RJ‑45 ports supporting 1/2.5/5 GbE, Class 6 PoE for powered devices and four SFP56 uplink ports. Layer‑3 switching with 880 Gbit/s capacity, MAC table for 29,490 entries, IEEE networking standards compliance and 10Gb support for aggregation and enterprise access deployments.
Available for order: 48 pcs.
Warranty: 2 Years
SKU: 12094734
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.07.2026 {{selectedOffer.courierDeliveryString}}
From 5.70 € (Weight: 6.02 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
20.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 684.52 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The HPE Aruba Networking CX 6300M 48-port Smart Rate 1/2.5/5GbE Class 6 PoE, 4× SFP56, L3, 1U rack is a rack-mountable managed Layer‑3 switch designed for enterprise access and aggregation. It provides 48 Smart Rate RJ‑45 ports that support 1/2.5/5 GbE speeds, Class 6 PoE for powering devices, and four SFP56 uplink ports for high‑speed fiber connectivity. Built on HPE’s Gen7 ASIC architecture and the CX operating system, the switch delivers non‑blocking performance, real‑time analytics, and programmable management suitable for modern wired and converged networks.

Advantages

This model offers multi‑gigabit Smart Rate ports and high‑power PoE to support demanding endpoints such as Wi‑Fi access points and IoT devices while maintaining simplified management through HPE Aruba management tools. Layer‑3 routing capabilities, a large MAC address table, and a high switching capacity enable scalable access and aggregation deployments. The switch supports standard IEEE networking protocols and offers flexible stacking and uplink options for resilient network topologies.

Suitable for

  • Enterprise access switches for offices and campus networks
  • Aggregation and top‑of‑rack (ToR) deployments in data centers
  • Environments requiring multi‑gigabit connectivity for Wi‑Fi 6/7 access points
  • PoE deployments powering high‑performance wireless APs, IP phones, and IoT devices
  • Network designs needing Layer‑3 features such as routing, VRF, BGP or OSPF

Key specifications

  • Switch type: Managed Layer‑3 switch
  • Ports: 48 Smart Rate RJ‑45 ports supporting 1/2.5/5 GbE
  • Uplinks: 4 × SFP56 fiber ports
  • PoE: Class 6 PoE (high‑power PoE support, including IEEE 802.3bt ranges)
  • Switching capacity: 880 Gbit/s (Gen7 ASIC performance)
  • MAC address table: 29,490 entries
  • Standards: Comprehensive IEEE networking standards support for VLANs, QoS, link aggregation, security and flow control
  • Form factor: 1U rackmount, stackable with Virtual Stacking Framework (VSF)
  • Weight: 6.02 kg
  • Color: Grey

How to use

Install the switch in a standard 19‑inch rack using the included 1U rackmount hardware. Connect access devices to the Smart Rate RJ‑45 ports and fiber uplinks to aggregation or core switches via the SFP56 ports. Configure management, routing and PoE settings through the HPE Aruba CX operating system using the CLI, web interface or HPE Aruba Central for centralized control. Use built‑in telemetry and the CX Network Analytics Engine to monitor performance, validate configurations and troubleshoot in real time.

Usage recommendations

For reliable operation, deploy with appropriate cooling and redundant uplinks or stacking for high availability. Verify PoE power budgeting when connecting multiple high‑power devices and use HPE Aruba management tools to apply consistent policies, firmware updates and telemetry collection across your network.

Specifications

Switch type:
Managed
Basic switching RJ-45 Ethernet ports quantity:
48
10G support:
Yes
Weight:
6.02 kg
Networking standards:
IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1AX, IEEE 802.3z, IEEE 802.3x, IEEE 802.3bt, IEEE 802.3at
Product colour:
Grey
All features

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
Switch type:
Managed

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Total Power over Ethernet (PoE) budget:
2880 W

Performance

Processor frequency:
1800 MHz
Internal memory:
8000 MB
Processor model:
ARM Cortex-A72
Flash memory:
32000 MB
Memory type:
DDR4-SDRAM
Built-in processor:
Yes
Physical stacking (units):
10

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating temperature (T-T):
0 - 45

Power

AC input voltage:
100 - 240

Design

Rack mounting:
Yes
Form factor:
1U
Product colour:
Grey
Stackable:
Yes

Data transmission

MAC address table:
29490 entries
Switching capacity:
880 Gbit/s
Jumbo frames support:
Yes
Packet buffer memory:
8 MB
Latency (1 Gbps):
4.24 µs
Latency (10 Gbps):
1.5 µs
Throughput:
654 Mpps

Weight & dimensions

Weight:
6.02 kg
Height:
385 mm
Width:
44 mm
Depth:
442 mm

Optical fiber

Transmission distance (max):
10 km

Ports & interfaces

Installed SFP+ modules quantity:
0
Installed SFP modules quantity:
0
Basic switching RJ-45 Ethernet ports quantity:
48
SFP module slots quantity:
4

Network

Networking standards:
IEEE 802.1ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1AX, IEEE 802.3z, IEEE 802.3x, IEEE 802.3bt, IEEE 802.3at
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes

Security

Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
DHCP features:
DHCP server

Protocols

Routing protocols:
IP, OSPF, BGP4, BGP

Description

Machine translation. Load original

Reasons to buy

High performance switching and flexible power

The HPE Aruba CX 6300 Series delivers wire‑speed switching and routing with a distributed Gen7 ASIC architecture that minimizes latency and boosts packet buffering for demanding, bandwidth‑intensive applications. Front‑plane stacking via Virtual Switching Framework (VSF) and four built‑in uplinks provide high‑throughput stacking (10/25/50/100 GbE), while VSX supports 2‑member active‑active deployments for stateful high availability and independent control planes. Models in the series support high‑density Smart Rate multi‑Gigabit RJ‑45 ports and Class 4/6/8 PoE options to power wireless access points and IoT devices, making the CX 6300 family ideal for scalable access and aggregation layers.
