header-product Managed L3 Switch HPE Aruba Networking CX 6300M — 48x 1GbE RJ‑45, 4x SFP56, 32000 MAC, 496 Gbit/s
16,231.49 €

Managed L3 Switch HPE Aruba Networking CX 6300M — 48x 1GbE RJ‑45, 4x SFP56, 32000 MAC, 496 Gbit/s

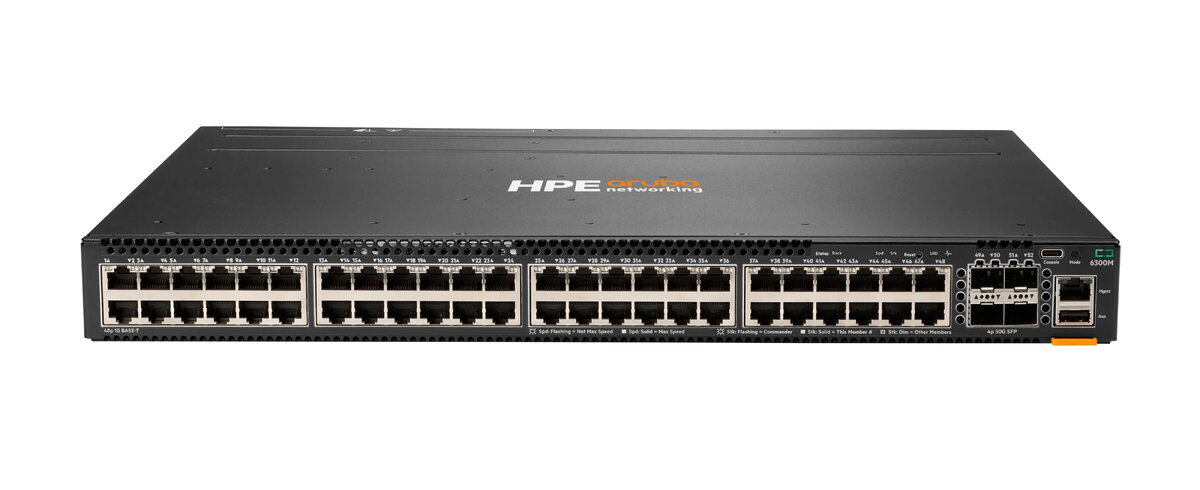

HPE Aruba CX 6300M 48x1GbE 4xSFP56 L3 Managed Switch Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L3 Switch HPE Aruba Networking CX 6300M — 48x 1GbE RJ‑45, 4x SFP56, 32000 MAC, 496 Gbit/s

{{email}}
You keep track of price changes

Managed L3 Switch HPE Aruba Networking CX 6300M — 48x 1GbE RJ‑45, 4x SFP56, 32000 MAC, 496 Gbit/s

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

HPE Aruba Networking CX 6300M is a managed Layer 3 switch with 48 Gigabit Ethernet (10/100/1000) RJ‑45 ports and 4 SFP56 ports for uplinks. It supports 10G uplinks, a 32,000‑entry MAC address table and 496 Gbit/s switching capacity. Equipped with USB console, USB 2.0 port and rack‑mount design, it suits campus, branch and data‑edge deployments.
Available for order: 3 pcs.
Warranty: 2 Years
SKU: 12071071
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
17.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
22.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 4.95 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
22.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Leasing for legal entities
Leasing for legal entities: from 564.86 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

HPE Aruba Networking CX 6300M is a managed Layer 3 switch designed for campus, branch and data‑edge deployments. This 1U rack‑mountable switch provides 48 Gigabit Ethernet (10/100/1000) RJ‑45 access ports and four SFP56 uplink ports, delivering a 496 Gbit/s switching capacity and a MAC address table of up to 32,000 entries. The device includes a USB console and a USB 2.0 port and runs the CX programmable operating system with advanced telemetry and analytics for monitoring and troubleshooting.

Advantages

The CX 6300M combines high port density with a modern Gen7 ASIC architecture that ensures non‑blocking performance and low latency. It supports Layer 3 routing features such as OSPF, BGP and VRF and includes hardware and software capabilities for flexible uplinks and stacking. Integrated monitoring and automation features simplify configuration and operations while the platform’s support for advanced protocols and QoS enables stable, predictable traffic handling.

Suitable for (tasks / use cases)

  • Access layer switch in campus networks and branch offices
  • Data‑edge or top‑of‑rack deployments in small to medium data centres
  • Environments requiring Layer 3 routing, QoS and network segmentation
  • Deployments needing centralized management and telemetry for troubleshooting

Key specifications

  • Switch type: Managed Layer 3
  • Access ports: 48 x Gigabit Ethernet (10/100/1000) RJ‑45
  • Uplink ports: 4 x SFP56 (supports 10G uplinks)
  • Switching capacity: 496 Gbit/s
  • MAC address table: 32,000 entries
  • Networking standards: IEEE 802.1w, 802.1v, 802.1s, 802.1p, 802.1ak, 802.1ab, 802.1D, 802.3ad, 802.3bt, 802.3ae
  • Console and management: USB console port and USB 2.0 port
  • Form factor: 1U rack‑mountable, stackable with Virtual Stacking Framework
  • Weight: 4.95 kg
  • Product colour: Black

How to use

Install the HPE Aruba CX 6300M into a standard 19" rack using the supplied mounting brackets. Connect access devices to the RJ‑45 ports and link the switch to aggregation or core devices via the SFP56 uplinks. Use the USB console or network management tools to perform initial configuration, enable required routing protocols (OSPF, BGP, VRF) and set up VLANs, ACLs and QoS policies. For multi‑switch deployments, configure Virtual Stacking Framework (VSF) or other supported stacking/cluster features to simplify management and increase redundancy.

Usage recommendations

Use the CX 6300M in combination with Aruba management tools and the CX Network Analytics Engine to collect telemetry, validate configurations and automate repetitive tasks. For high‑availability scenarios, deploy VSF stacking or clustering and enable QoS and ACLs to prioritise critical traffic. Verify SFP56 transceiver compatibility when configuring uplinks and follow rack cooling and power best practices to maintain optimal performance.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
10G support:
Yes
Basic switching RJ-45 Ethernet ports quantity:
48
Weight:
4.95 kg
Networking standards:
IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3ad, IEEE 802.3bt, IEEE 802.3ae
Product colour:
Black
All features

Management features

Switch layer:
L3
Quality of Service (QoS) support:
Yes
System event log:
Yes
Switch type:
Managed
Configuring Location Settings (CLI):
Yes

Ports & interfaces

USB 2.0 ports quantity:
1
Console port:
USB
Installed SFP+ modules quantity:
0
Installed SFP modules quantity:
0
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
48
SFP module slots quantity:
4

Packaging content

Rack mount kit:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Performance

Processor frequency:
1800 MHz
Internal memory:
8000 MB
Processor model:
ARM Cortex-A72
Flash memory:
32000 MB
Memory type:
DDR4-SDRAM
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.
28.7 dB
Built-in processor:
Yes
Physical stacking (units):
10

Design

Rack mounting:
Yes
Product colour:
Black
Stackable:
Yes
Number of fans:
2 fan(s)
Airflow direction:
Front-to-back airflow

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
8000
MLD entries:
4000
IPv4 multicast entries:
8000
IPv6 multicast entries:
8000

Security

Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP entries:
8000
DHCP features:
DHCP server, DHCP relay

Logistics data

Harmonized System (HS) code:
85176990

Certificates

Certification:
EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 UL 60950-1 2nd Ed CAN/CSA-C22.2; No. 60950-1-07 IEC 60950-1:2005 EN 55022:2010, A; EN 55032:2012, A; EN 55024:2010; EN 61000-3-2:2014; EN 61000-3-3:2013 FCC 15 A ICES-003 A VCCI A; CISPR 22 A; CISPR 32 A; CISPR 24:2010

Operational conditions

Operating altitude:
0 - 3040
Operating relative humidity (H-H):
15 - 95
Storage temperature (T-T):
-40 - 70
Operating temperature (T-T):
0 - 45
Storage relative humidity (H-H):
15 - 90
Non-operating altitude:
0 - 4600

Power

AC input voltage:
100 - 240
Power consumption (max):
75 W

Network

Networking standards:
IEEE 802.1w, IEEE 802.1v, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ak, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3ad, IEEE 802.3bt, IEEE 802.3ae
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
Yes
Policy-based routing:
Yes

Data transmission

MAC address table:
32000 entries
Switching capacity:
496 Gbit/s
Number of queues:
8
Packet buffer memory:
8 MB
Latency (1 Gbps):
2.28 µs
Latency (10 Gbps):
1.46 µs
Throughput:
369 Mpps

Optical fiber

Transmission distance (max):
10 km

Weight & dimensions

Weight:
4.95 kg
Height:
385 mm
Width:
44 mm
Depth:
442 mm

Protocols

Routing protocols:
OSPFv3, OSPF

Description

Machine translation. Load original

Reasons to buy

High performance and scalable power

HPE Aruba Networking CX 6300 Series delivers wire‑speed switching and routing with a fully distributed Gen7 ASIC architecture for low latency, larger packet buffers, and adaptive power usage — ideal for bandwidth‑intensive campus and edge applications. Built‑in uplinks support 10/25/50/100 GbE stacking throughput, and VSF front‑plane stacking or VSX active‑active designs provide high availability and state synchronization across switches. Select models also offer high‑density Smart Rate Multi‑Gigabit Ethernet and per‑port PoE up to Class 8 (90W) with multiple PoE budget options to power access points and IoT devices.

Advanced automation and actionable analytics

The CX 6300 Series includes integrated telemetry and a Time Series Database for real‑time visibility and simplified troubleshooting. Use the Network Analytics Engine (NAE), CLI, Python agents and REST API to automate interrogation and remediation of network, system, application and security events. Multi‑Edit and orchestration tools enable rapid, validated network‑wide changes and continuous conformance checks to reduce configuration errors and speed operations.

Unified management and smarter segmentation

Manage the CX 6300 Series centrally with HPE Aruba Central for a single pane of control, expanded AI insights and consistent policy enforcement across wired and wireless infrastructure. Dynamic Segmentation, device profiling, role‑based access control and Layer‑7 firewall features deliver improved visibility, security and end‑user experience. VXLAN/VRF and switch‑to‑switch tunneling enable scalable multi‑tenancy while local user roles and local MAC authentication simplify moves, adds and changes.

Integrated data center and deployment readiness

The CX 6300 switches are supported in HPE pre‑engineered infrastructure solutions and can be mixed into integrated compute, storage and networking deployments to speed service delivery and reduce deployment risk. Models with 10/25 and 40/100G uplinks are suitable for leaf/spine or aggregation roles in converged campus and data‑edge environments. Use the HPE tracking SKUs when including CX switches in broader HPE integrated solutions.
