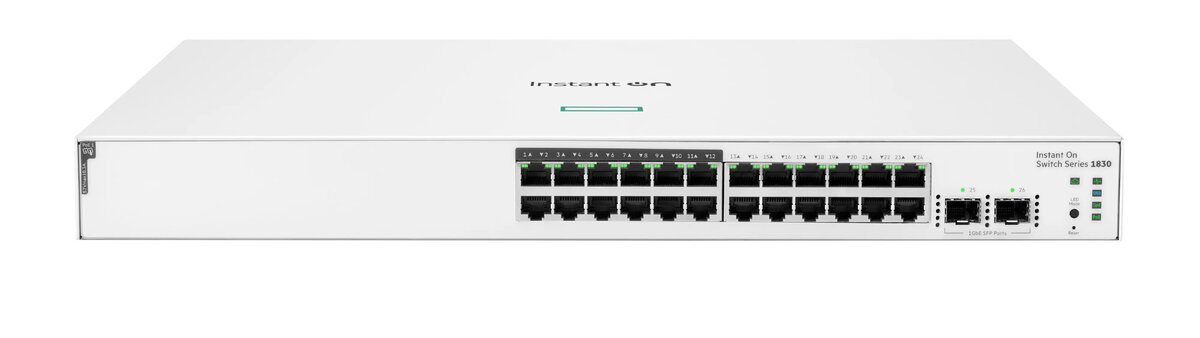

HP Aruba Instant On 1830 24p Gigabit PoE Managed Switch

Name: Managed Switch HP Aruba Instant JL813A
Brand: HP
SKU: 11292943
Price: 312.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Managed Switch HP Aruba Instant On 1830 24-port Gigabit PoE CL4 with 2 SFP, 195W, L2, 1U

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

HP Aruba Instant On 1830 is a managed L2 switch with 24 Gigabit Ethernet RJ‑45 ports and 2 SFP uplink slots, supporting full duplex operation and PoE with a 195W power budget. It offers a 16,000‑entry MAC table, 52 Gbit/s switching capacity and standards support (VLAN, STP, 802.1x). Rack‑mountable 1U form factor for small business LAN access, PoE‑powered devices and backbone connections.

Available for order: 82 pcs.

Warranty: 2 Years

SKU: 11292943

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Delivery country: {{ userCountryName }}
- {{ country.name }}

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.11.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 3.47 kg)

Parcel couriers

Unisend LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

03.11.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. × 104.33 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 8.69 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

HP Aruba Instant On 1830 24-port Gigabit PoE CL4 with 2 SFP, 195W, L2, 1U is a managed Layer 2 switch designed for small business access networks. It provides 24 Gigabit RJ‑45 ports with full duplex operation, two SFP uplink slots for fiber or gigabit uplinks and an integrated Power over Ethernet (PoE) budget of 195 W to power endpoints such as access points and IP phones. The switch delivers a 16,000‑entry MAC table and 52 Gbit/s switching capacity in a 1U rack‑mountable, energy‑efficient enclosure, supporting common standards including VLAN, STP and 802.1X for access control and segmentation.

Advantages

The Instant On 1830 offers managed Layer 2 features with a web‑based management interface and optional cloud or mobile app management for flexible administration. Built‑in PoE capability across half of the ports simplifies deployment of powered devices without separate power injectors. Fan‑less and energy‑efficient design reduces operating noise and power consumption in many deployment scenarios, while rack‑mount form factor allows integration into standard server racks. The switch supports QoS and basic security features to prioritize traffic and control access.

Suitable for

Small office LANs requiring Gigabit connectivity and PoE to access points and IP phones
Retail or hospitality networks with central wiring and fiber uplinks to core switches
Workspaces needing segmented VLANs and basic network access control (802.1X)
Environments where a compact 1U rack‑mount PoE switch with low noise is preferred

Key specifications

Ports: 24 x Gigabit RJ‑45 Ethernet ports, 2 x 1G SFP uplink slots
PoE budget: 195 W total for powering PoE devices
Switching capacity: 52 Gbit/s
MAC address table: 16,000 entries
Layer: Managed Layer 2 switching with VLAN, STP and 802.1X support
Form factor: 1U rack‑mountable, fan‑less/low‑noise design
Management: Web GUI, optional cloud/mobile app management

How to use

Install the switch in a standard 19" rack using the included kit or place it on a stable surface. Connect uplink fiber or copper to the SFP slots or RJ‑45 uplink ports and plug Ethernet cables from endpoints into the RJ‑45 ports. Power the unit with the included AC power supply. Use the local web GUI for initial configuration: assign VLANs, configure PoE settings per port, enable QoS policies and set 802.1X authentication if required. Optionally link the switch to the HP Aruba Instant On cloud portal or mobile app for remote monitoring and management.

Usage recommendations

For reliable PoE delivery, calculate total device power draw and ensure the aggregate does not exceed the 195 W budget. Use the SFP uplinks to offload aggregate traffic to a core switch or router to avoid bottlenecks. Keep firmware updated and configure basic security (VLAN segmentation, 802.1X, and port security) to protect the network. In acoustically sensitive areas, verify the specific model’s fan configuration and choose fan‑less variants if low noise is required.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
Power supply included: There is a power supply with this product.: Yes
Power source: What is providing power for the product e.g. mains electricity.: AC
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 52 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 16000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.: 0
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24
Switch type: What switch device has, managed or unmanaged.: Managed
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.3, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3ad

All features

Logistics data

Harmonized System (HS) code:: 85176990

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 3.47 kg
Height: The measurement of the product from head to foot or from base to top.: 43.9 mm
Depth: The distance from the front to the back of something.: 443 mm
Width: The measurement or extent of something from side to side.: 253 mm

Operational conditions

Storage relative humidity (H-H):: 15 - 95
Operating relative humidity (H-H):: 15 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:: 195 W
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes

Power

AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240
Power supply included: There is a power supply with this product.: Yes
Power source: What is providing power for the product e.g. mains electricity.: AC

Performance

Flash memory:: 256 MB
Internal memory: The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.: 512 MB
Memory type: Type of memory in the device e.g. DDR3, SRAM (Static RAM).: RDRAM
Processor frequency: The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.: 800 MHz
Processor model: The model number for the processor in a computer.: ARM Cortex-A9
Built-in processor: Whether or not a processor is built into the device.: Yes

Design

Form factor: The shape or design of the product.: 1U
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Security

SSH/SSL support:: Yes
IGMP snooping:: Yes
DHCP features:: DHCP client

Data transmission

Packet buffer memory:: 1.5 MB
Jumbo frames:: 9216
Jumbo frames support:: Yes
Latency (1 Gbps):: 2.8 µs
Latency (10-100 Mbps):: 5.2 µs
Throughput:: 38.68 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 52 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 16000 entries

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.: Yes
Flow control support:: Yes
Link aggregation:: Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Spanning tree protocol:: Yes
Auto-sensing:: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Port mirroring:: Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ac, IEEE 802.3ab, IEEE 802.3, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3ad

Ports & interfaces

SFP module slots quantity:: 2
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.: 0
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24

Management features

System event log:: Yes
Web-based management: Using a website/web application to manage something.: Yes
Cloud-managed:: Yes
Quality of Service (QoS) support:: Yes
Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).: L2
Switch type: What switch device has, managed or unmanaged.: Managed
