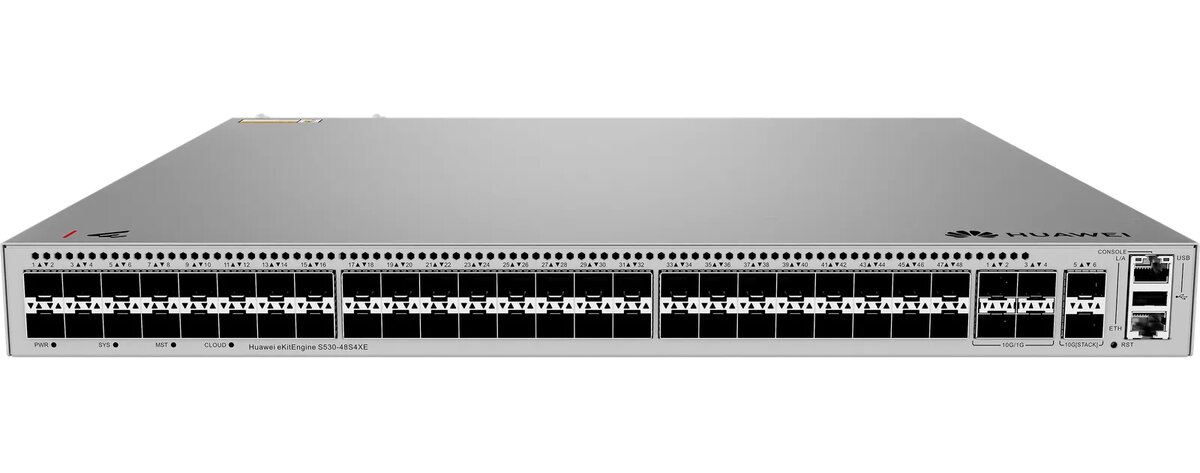

Managed Switch Huawei S530-48S4XE

Name: Managed Switch Huawei S530-48S4XE L3 98012558
Brand: HUAWEI
SKU: 11024528
Price: 168.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Managed Switch Huawei S530-48S4XE L3 1U 224 Gbit/s USB 2.0

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Huawei S530-48S4XE is a managed L3 switch designed for efficient network management. It features a switching capacity of 224 Gbit/s, one USB 2.0 port, and a console port (RJ-45). With a DC input voltage range of 38 - 72 V, it is suitable for rack mounting in a 1U form factor, making it ideal for data centers and enterprise networks.

Available at price 168.49 €: 34 pcs.

Total available for order: 71 pcs.

Warranty: 2 Years

SKU: 11024528

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 4.29 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 937.99 €: 2 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Managed Switch Huawei S530-48S4XE L3 1U 224 Gbit/s USB 2.0 is a rack-mountable, layer-3 network switch engineered for enterprise and data center environments. It provides a switching capacity of 224 Gbit/s, a single USB 2.0 port for configuration or storage tasks, and a console port (RJ-45) for local management. The switch accepts a DC input voltage range of 38–72 V and comes in a 1U form factor with a compact footprint and a grey chassis. As a managed switch, it supports advanced routing, traffic control and network monitoring functions required for medium to large network deployments.

Advantages

The HUAWEI S530-48S4XE offers high switching throughput and L3 routing capabilities in a 1U chassis, enabling efficient use of rack space. Its managed feature set supports VLAN, QoS, and network security policies to help maintain predictable performance. The presence of a USB 2.0 port simplifies tasks such as firmware updates, configuration backup and file transfers. With 10G support and a solid switching capacity, the device is suitable for aggregation and access roles where high throughput and advanced management are needed.

Suitable for

Enterprise aggregation switches in campus networks
Top-of-rack deployment in data centers
Service provider access and edge routing
Networks requiring VLAN segmentation and QoS

Key specifications

Switch type: Managed, Layer 3
Switching capacity: 224 Gbit/s
Form factor: 1U rack-mount
Ports: USB 2.0 port and console (RJ-45) port; multiple 10G-capable interfaces
Power input: DC range 38–72 V
Product colour: Grey
Weight: 6 kg

How to use

Install the switch into a standard 19-inch equipment rack using the included mounting brackets and secure it in a 1U space. Connect DC power within the specified 38–72 V range, and link network uplinks and access ports using the appropriate fiber or copper transceivers and cabling. Use the console port (RJ-45) for initial setup or the USB 2.0 port to load firmware and configuration files. Access the web management interface, CLI or SNMP to configure routing, VLANs, QoS and security policies according to the network design. Monitor performance and logs to verify correct operation and to identify any required adjustments.

Usage recommendations

Place the switch in a temperature-controlled rack with proper airflow and cable management. Use compatible SFP/SFP+ modules for 10G connections and ensure power redundancy where high availability is required. Regularly back up configuration files to the USB port or an external management server and apply firmware updates during maintenance windows to minimize service impact.

Specifications

Switch type:: Managed
Weight:: 6 kg
10G support:: Yes
Product colour:: Grey

All features

Design

Rack mounting:: Yes
Form factor:: 1U
LED indicators:: Y
Product colour:: Grey
Reset button:: Yes
Number of fans:: 2 fan(s)
Housing material:: Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Airflow direction:: Front-to-back airflow

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 72.3 W
Number of power supply units:: 2
Power source:: AC
Input current:: 6
Power protection features:: Surge protection
AC input frequency:: 50/60
AC input voltage:: 100 - 240
DC input voltage:: 38 - 72
Power consumption (max):: 130.05 W
Power supply included:: Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Management features

Switch layer:: L3
Switch type:: Managed
iStack technology:: Yes
Configuring Location Settings (CLI):: Yes
Cloud-managed:: Yes

Ports & interfaces

USB 2.0 ports quantity:: 1
Console port:: RJ-45
SFP module slots quantity:: 48
SFP+ module slots quantity:: 4
Uplink ports quantity:: 2
USB Type-A ports quantity:: 1

Operational conditions

Operating altitude:: 0 - 5000
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: -5 - 50
Non-operating altitude:: 0 - 5000
Heat dissipation:: 246.69 BTU/h

Data transmission

Switching capacity:: 224 Gbit/s
Forwarding rate:: 168 Mpps
Static route:: Yes
Packet forwarding:: Yes

Performance

Internal memory:: 2000 MB
Mean time between failures (MTBF):: 692075.7 h
Flash memory:: 1000 MB
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 43.8 dB
Mean time to repair (MTTR):: 2 h

Weight & dimensions

Weight:: 6 kg
Height:: 43.6 mm
Width:: 442 mm
Depth:: 420 mm

Packaging data

Package weight:: 7900 g

Other features

Power availability:: 1 W

Network

10G support:: Yes

Multicast features

Multicast support:: Yes

Security

Security algorithms:: SNMP

Protocols

Routing protocols:: BGP, BGP4+, IS-IS, OSPF, OSPFv3, VRRP
