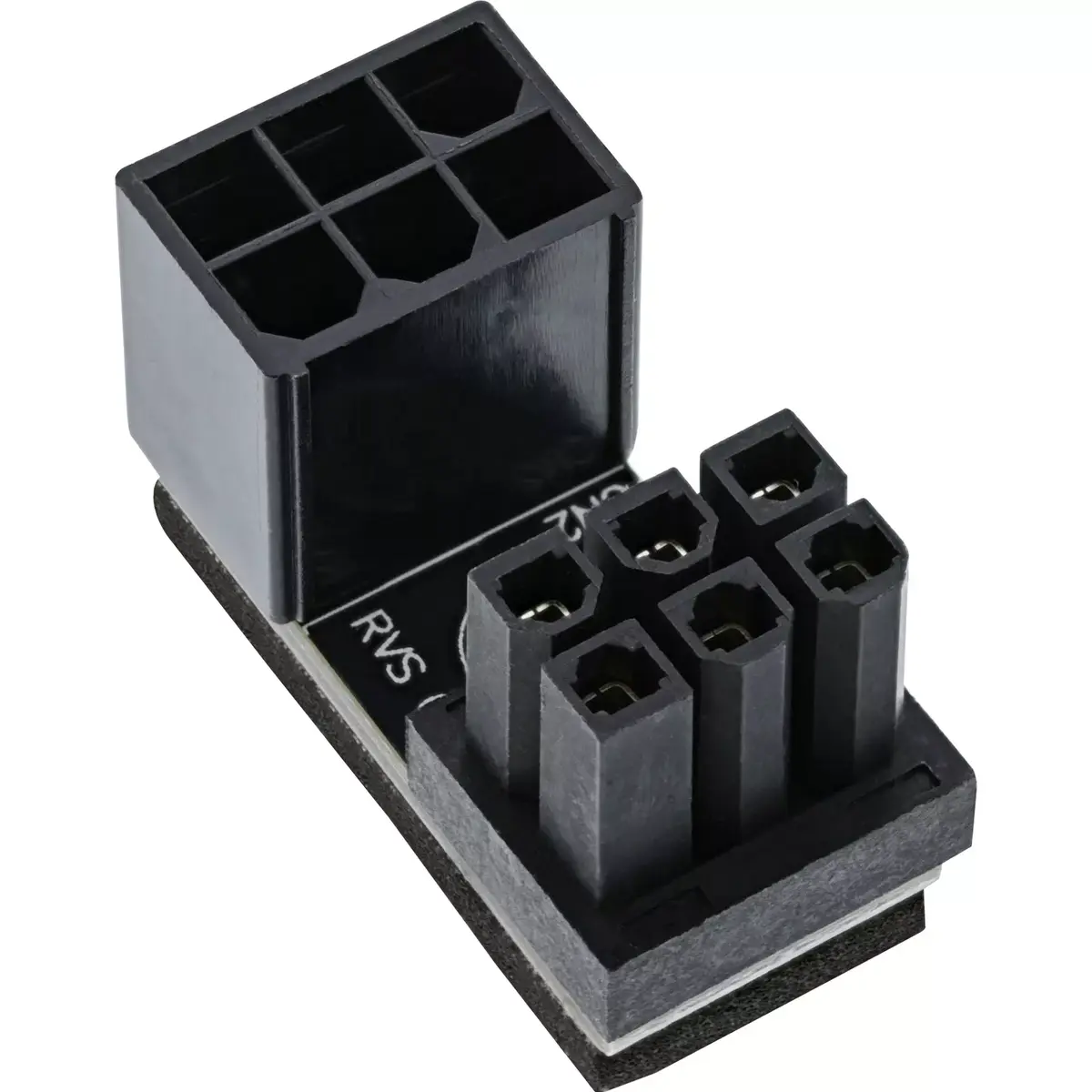

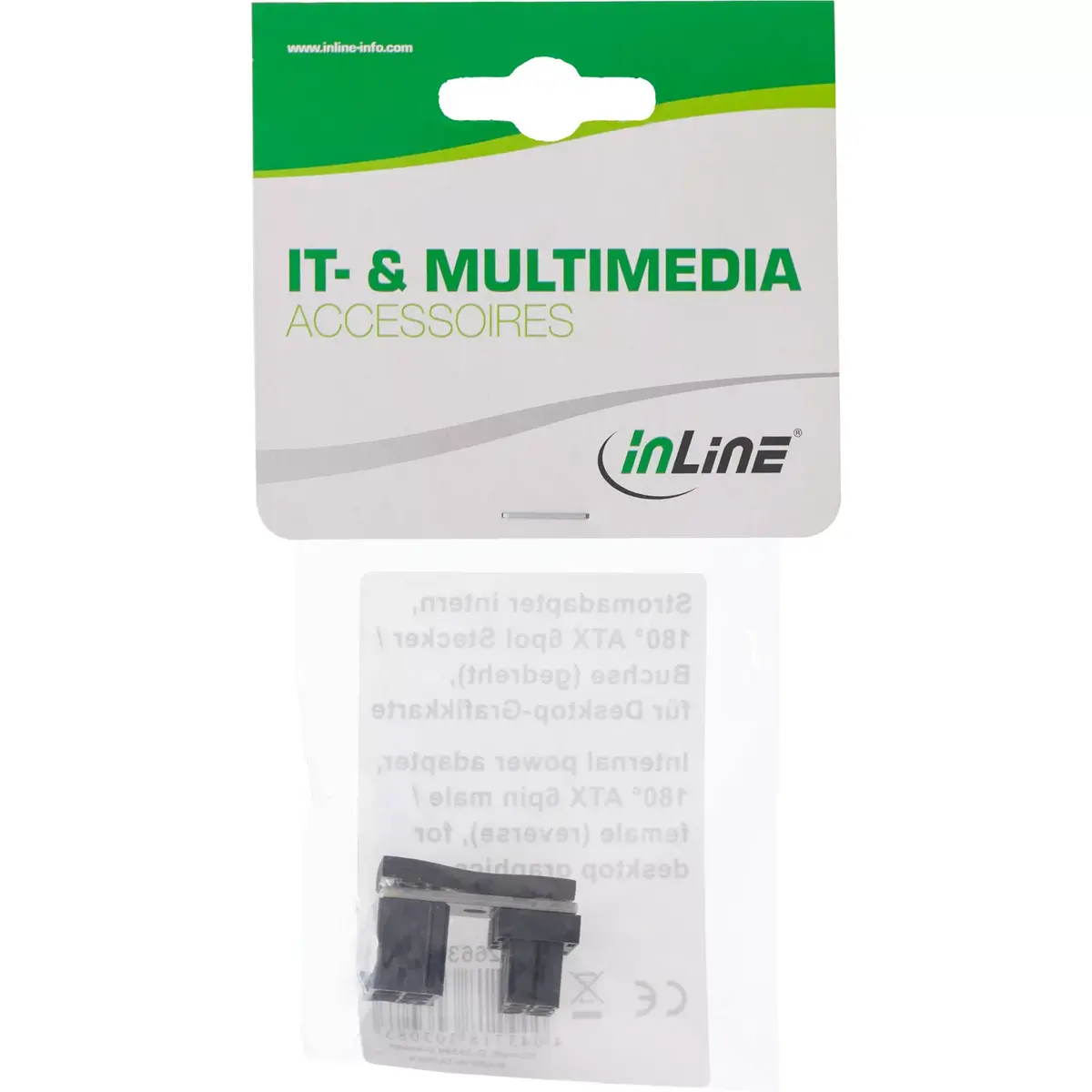

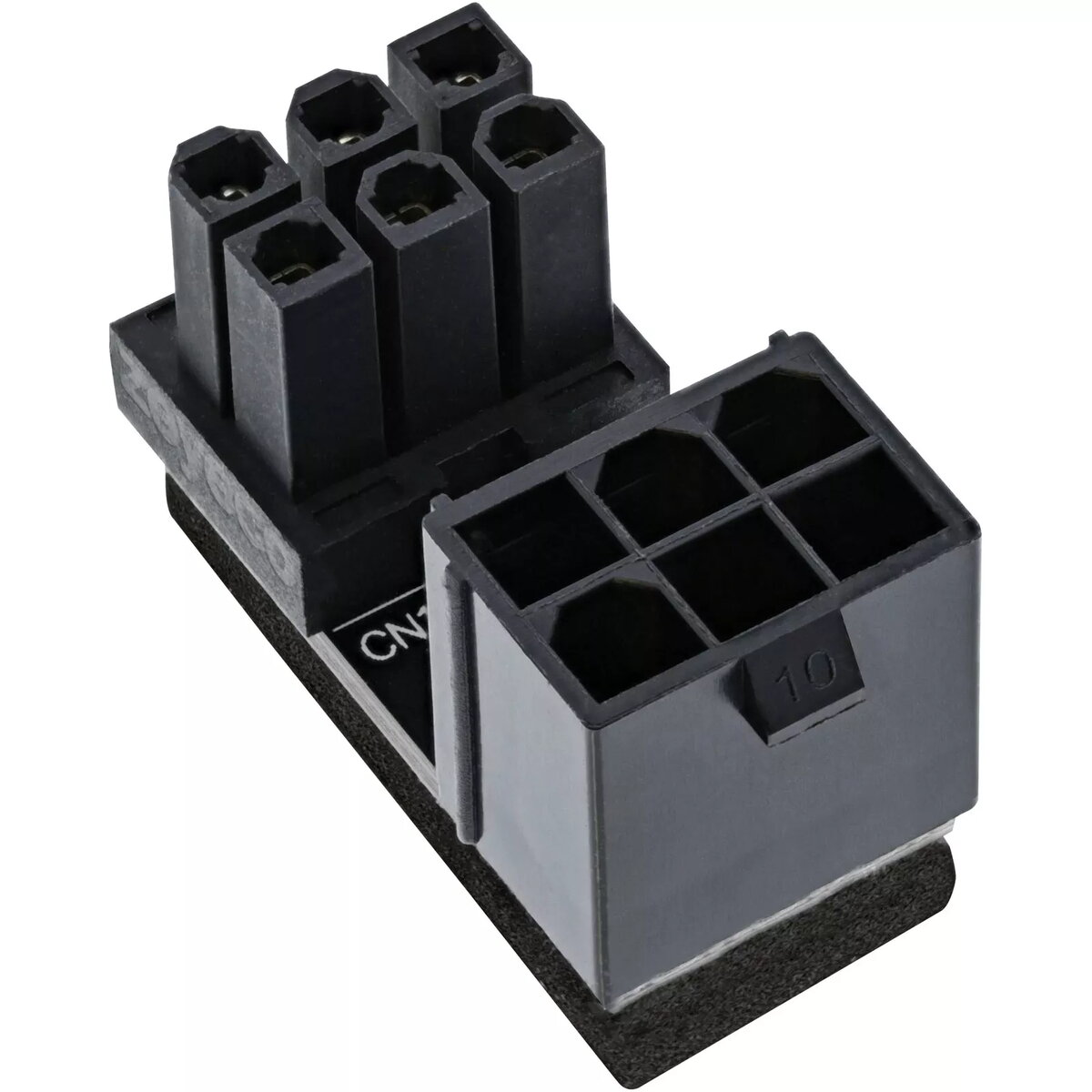

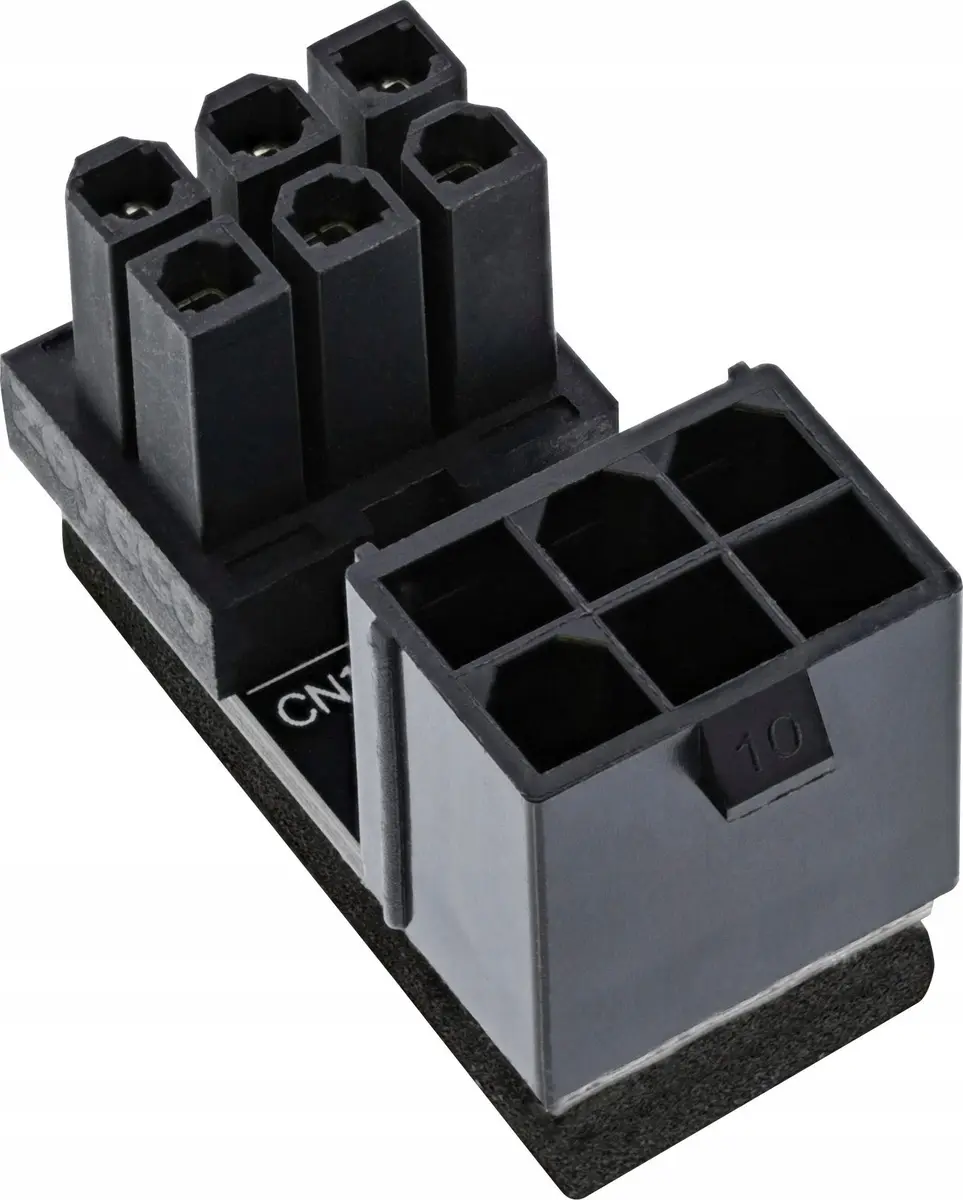

InLine Internal power adapter 180° ATX 6-pin male to female reverse black

The InLine internal power adapter features a 180-degree ATX 6-pin male to female reverse design in black color, created to support internal PC power management and cable routing connections. This component assists in optimizing airflow and organizing cables neatly within computer systems by reorienting the 6-pin PCIe power connector. It is designed to reduce the space required behind the graphics card, lower stress on the cable and connection through a gentle bend radius, and maintain a tidy interior by allowing cables to be routed cleanly along components.

Advantages

The 180-degree rotated orientation significantly reduces the space required behind the graphics card, making it ideal for compact builds. By redirecting the connection, it relieves physical tension on both the cable and the 6-pin PCIe connector. Furthermore, it allows cables to be routed cleanly along other internal components, which helps maintain a neat system interior and prevents cable clutter that could otherwise obstruct airflow.

Suitable for

• Optimizing cable management in desktop computer systems
• Connecting internal power to graphics cards with 6-pin PCIe ports
• Improving airflow inside compact PC cases
• Reducing mechanical strain on power cables near connectors

When it may not be suitable

This adapter may not be suitable if your specific graphics card or power supply uses an 8-pin or 16-pin connector instead of a 6-pin interface. It is also important to verify the physical clearance around your hardware, as the reversed 180-degree orientation might not align correctly with every motherboard layout or graphics card shroud design.

Key specifications

• Connector type: 6-pin PCIe male plug to 6-pin PCIe female socket
• Orientation: 180-degree rotated reverse design
• Application: Internal PC power management
• Product color: Black

How to use

To use the adapter, first ensure that your computer system is powered off and unplugged from the electrical outlet. Inspect the keying and alignment of the adapter's 6-pin male plug and match it with the existing 6-pin power socket on your graphics card. Carefully insert the adapter into the graphics card connector until it is fully seated. Next, plug your power supply's 6-pin cable into the female socket of the adapter, making sure the orientation is correct to prevent improper mating. Verify all connections are secure before restoring power to the system.

What to consider before purchase

• Verify that your power supply and graphics card utilize a standard 6-pin PCIe connection
• Check the spatial clearance around your graphics card power port to ensure the 180-degree adapter will fit without obstruction
• Confirm the correct orientation and keying match your hardware layout

Always inspect the connector alignment and keying carefully before installation to prevent incorrect mating and potential damage to your internal computer components.
