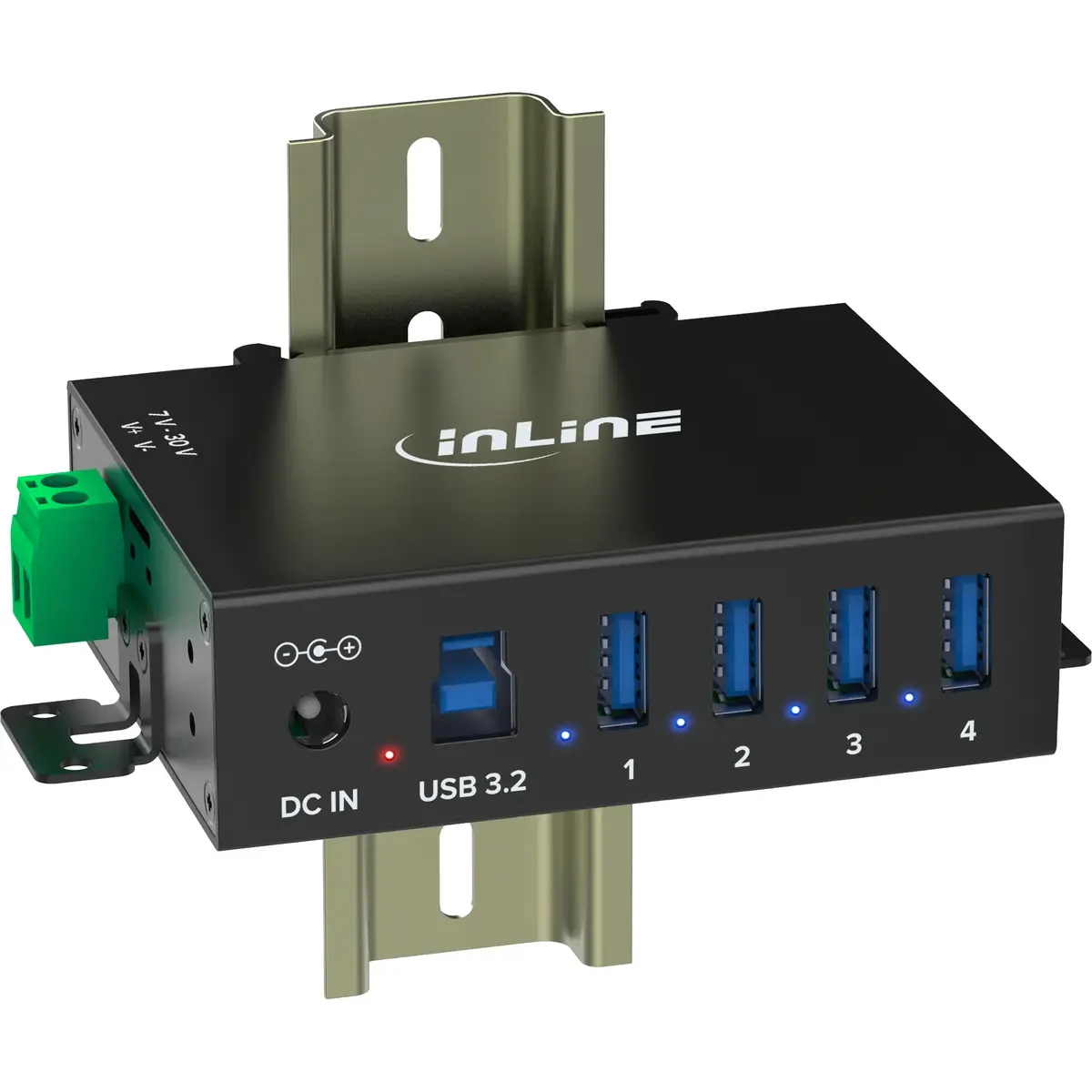

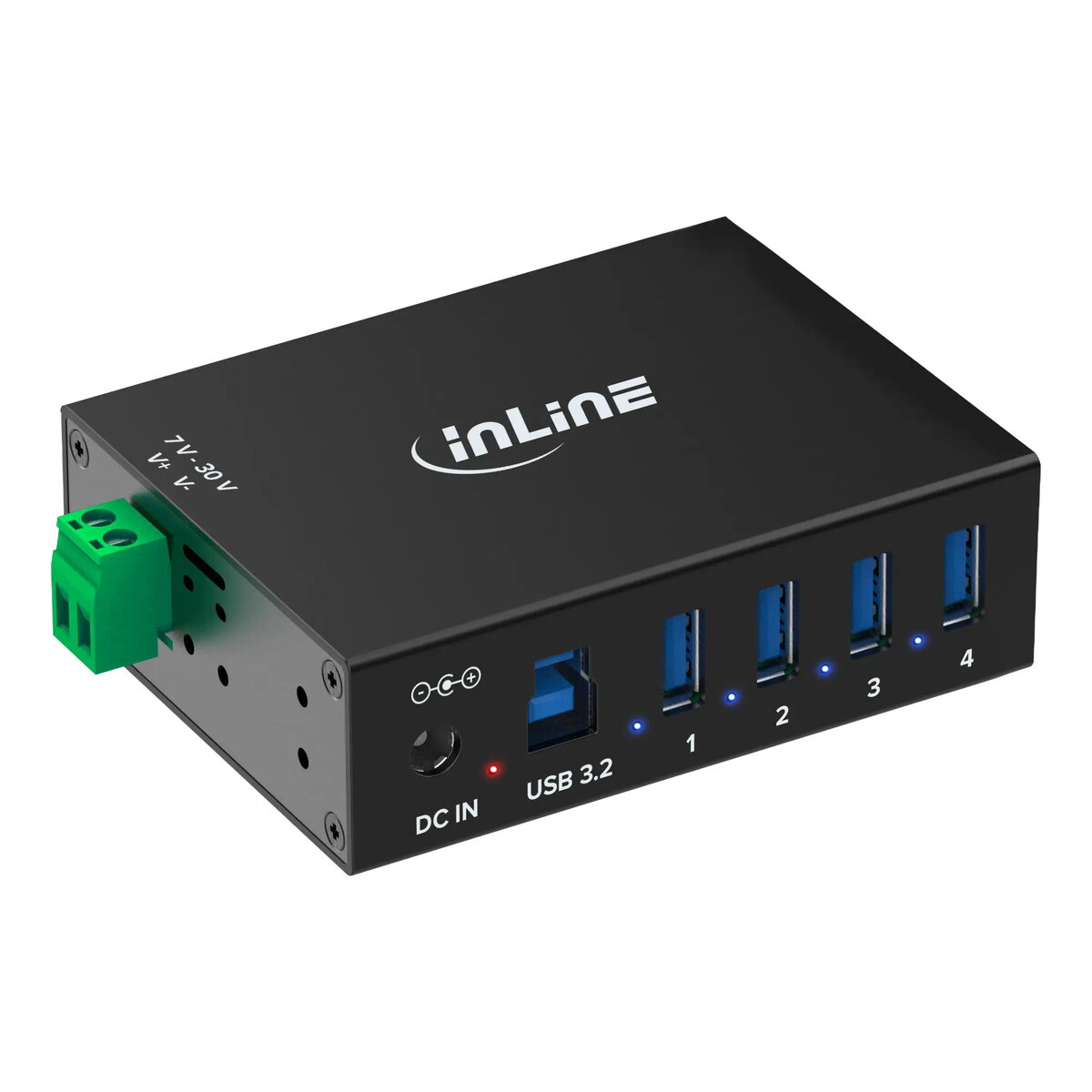

Interface hub InLine 35396A

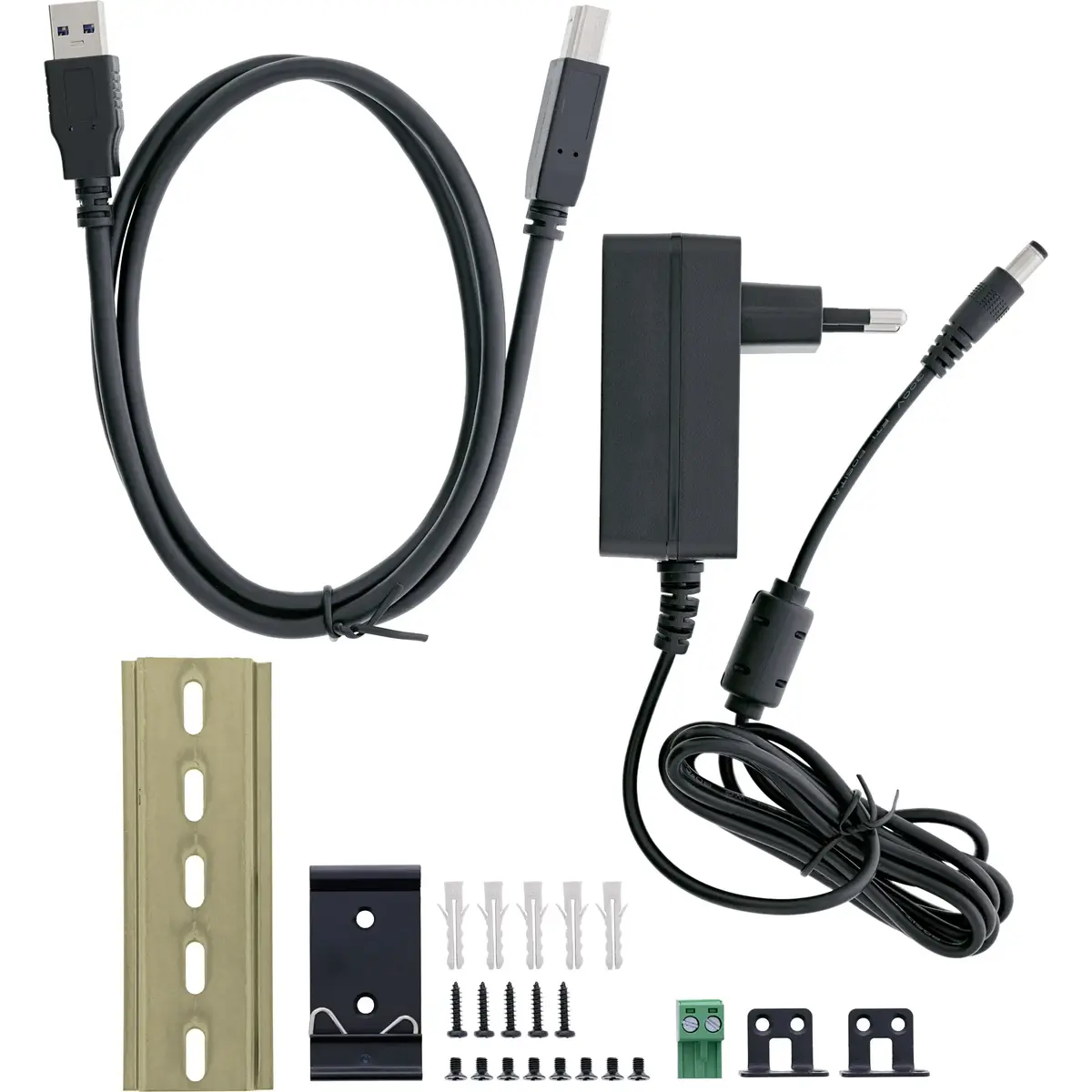

The InLine 35396A interface hub is a compact industrial USB 3.2 Gen.1 hub with an aluminium housing and four USB-A ports. It provides up to 5 Gb/s data transfer per port, integrated protective circuitry and flexible mounting options (DIN rail or wall bracket). The hub supports operation in wide temperature ranges and is compatible with Windows, MacOS and Linux. It is supplied with a 12 V / 2 A external power supply, cables and a mounting kit for quick integration into control cabinets and technical rooms.

Advantages

The aluminium housing offers mechanical robustness and thermal stability for professional and industrial environments. Four USB 3.2 Gen.1 ports deliver reliable high-speed data transfer up to 5 Gb/s and support BC1.2 charging (max. 5 V / 2 A per port). Integrated protections for short circuit, overcurrent, overvoltage and ESD increase operational reliability. Flexible power options allow supply via the included external power supply or an alternative 2‑pin terminal connection. DIN rail and wall mounting enable space-saving installation in cabinets or on walls.

Suitable for

• Industrial control cabinets and machine control systems
• Technical rooms and IT infrastructure racks
• Workstations requiring multiple USB‑A connections for peripherals
• Environments with wide temperature ranges and increased mechanical stress

Key specifications

• Chipset: VL817S
• Inputs: 1× USB‑B (host), 1× DC IN (5.5×2.5 mm), 1× 2‑pin terminal (alternative)
• Outputs: 4× USB‑A 3.2 Gen.1 (5 Gb/s)
• Charging: BC1.2, max. 5 V / 2 A per port
• Protection: short circuit, overcurrent, overvoltage, ESD/antistatic 350 W
• Housing: aluminium, black

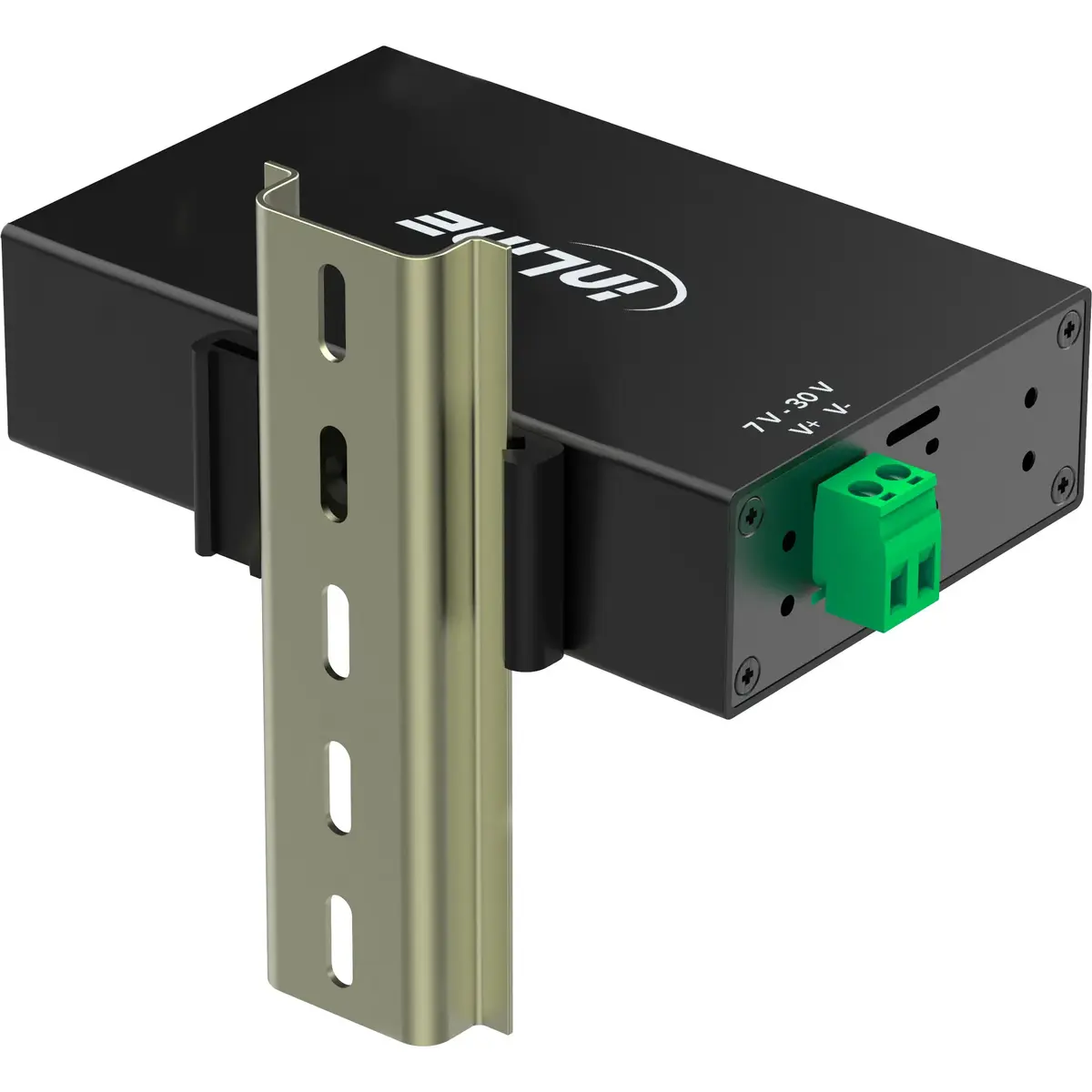

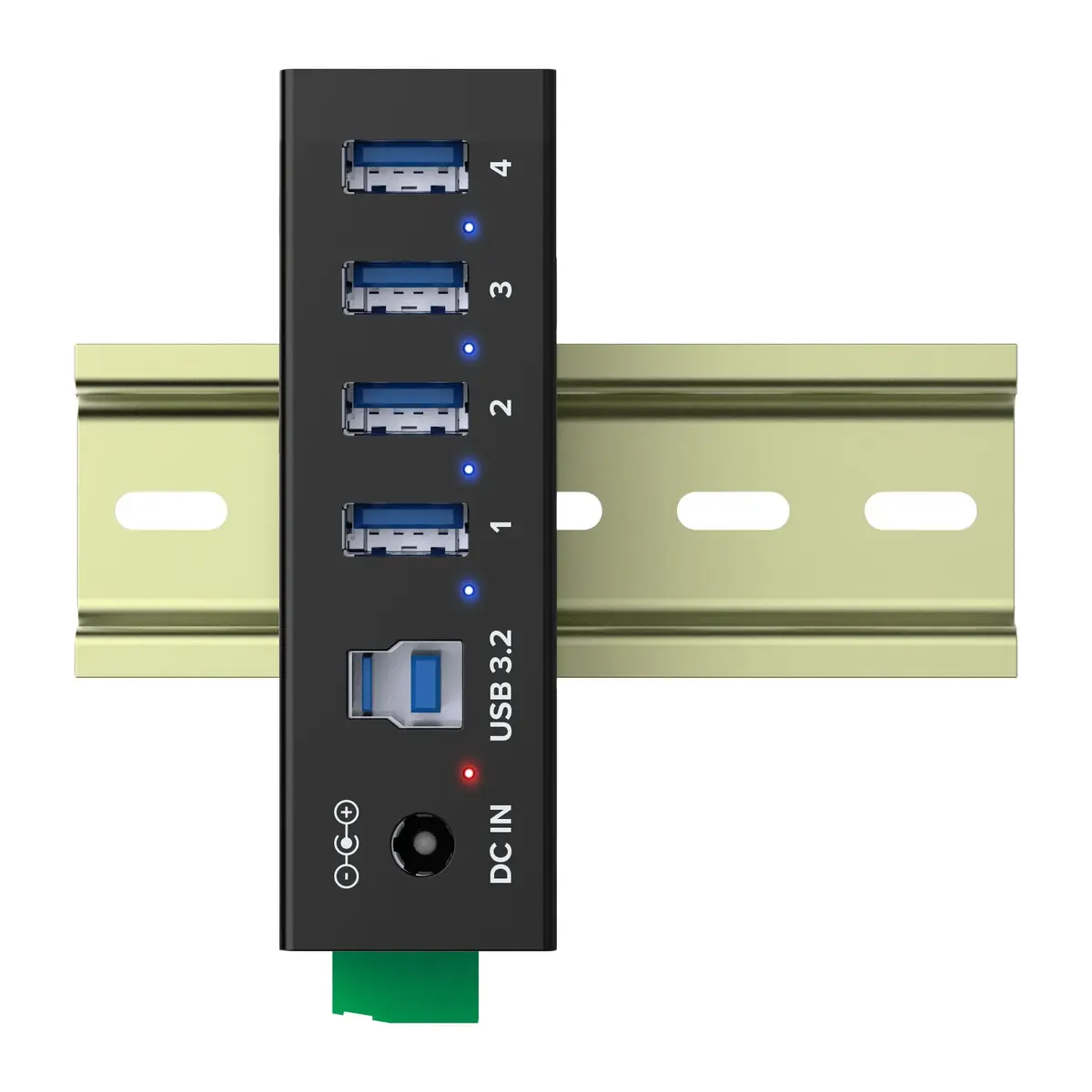

• Mounting: DIN rail or wall bracket
• LED display: yes
• Plug & Play: no drivers required
• Standby power consumption: 0.07 W
• Operating temperature: -40 °C to +85 °C
• Storage temperature: -40 °C to +125 °C
• Humidity: 10–85% non‑condensing
• Operating systems: Windows, MacOS, Linux
• Dimensions: 91 × 68 × 28 mm
• Weight: 131 g

How to use

Mount the hub on a DIN rail or fix it to a wall using the supplied mounting kit. Connect the hub to the host computer using the included USB‑A to USB‑B cable. Provide power either by plugging in the supplied 12 V / 2 A external power supply or by wiring a 2‑pin terminal connection according to the installation requirements. Attach USB devices to the four USB‑A ports; devices will be recognised automatically under Windows, MacOS and Linux without additional drivers. Observe the specified operating temperatures and humidity limits to ensure reliable operation.

Usage recommendations

Use the provided external power supply for predictable port current and enable the terminal connection only when the installation requires centralised power. Avoid exposure to condensation and ensure correct grounding to maintain ESD protection.
