header-product InLine Industrial network cable 40310 M12 4-pin D-coded male/male PUR 10m CAT 5e IP67 SF/UTP
61.49 €

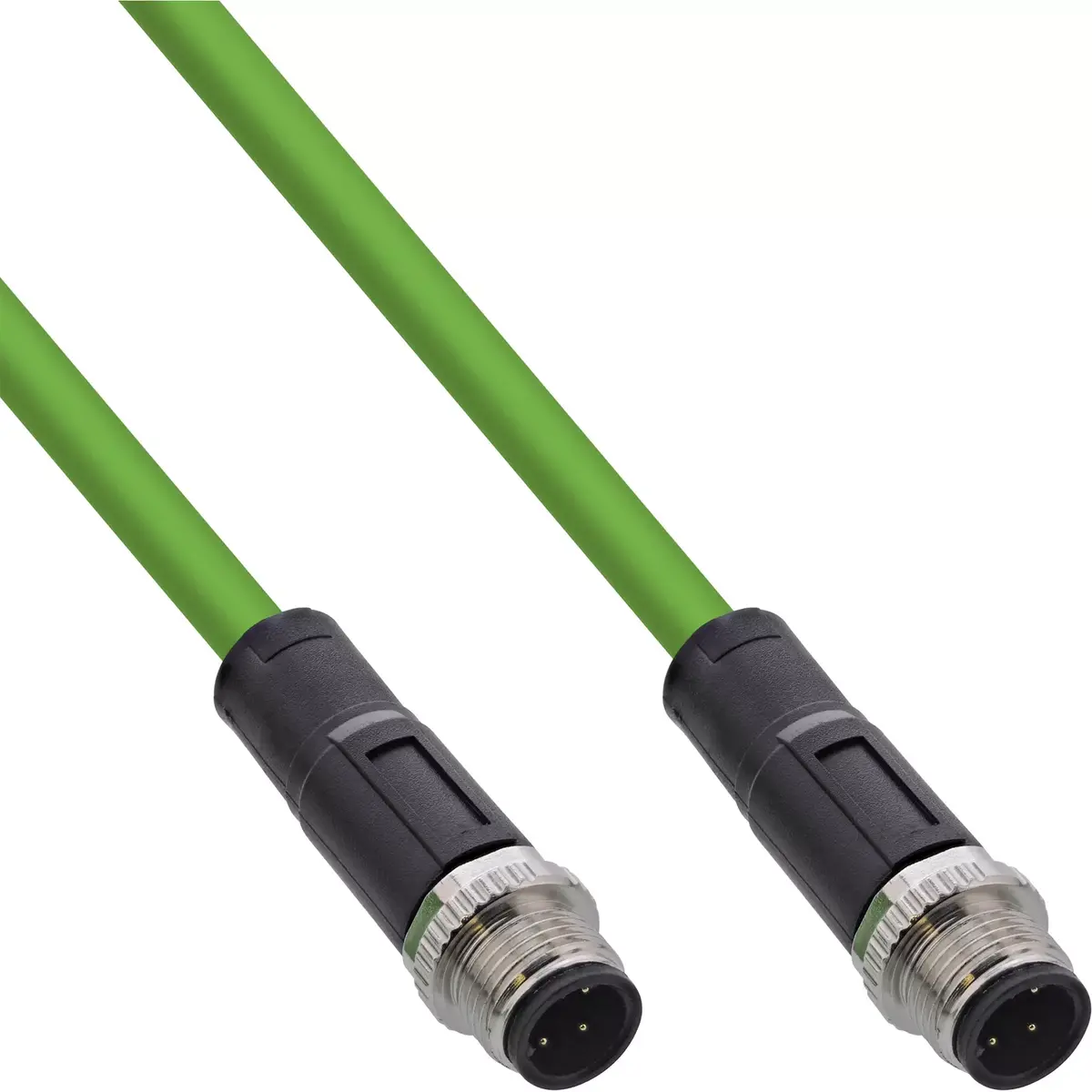

InLine Industrial network cable 40310 M12 4-pin D-coded male/male PUR 10m CAT 5e IP67 SF/UTP

InLine Industrial Network Cable M12 40310 Photo 1
InLine Industrial Network Cable M12 40310 Photo 2
InLine Industrial Network Cable M12 40310 Photo 3
InLine Industrial Network Cable M12 40310 Photo 4
InLine Industrial Network Cable M12 40310 Photo 5
InLine Industrial Network Cable M12 40310 Photo 1
InLine Industrial Network Cable M12 40310 Photo 2
InLine Industrial Network Cable M12 40310 Photo 3
InLine Industrial Network Cable M12 40310 Photo 4
InLine Industrial Network Cable M12 40310 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Industrial network cable 40310 M12 4-pin D-coded male/male PUR 10m CAT 5e IP67 SF/UTP

{{email}}
You keep track of price changes

InLine Industrial network cable 40310 M12 4-pin D-coded male/male PUR 10m CAT 5e IP67 SF/UTP

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The InLine industrial network cable features M12 4-pin D-coded male connectors on both ends and a length of 10 meters. Designed for demanding industrial environments, automation, and machine building, it delivers CAT 5e performance up to 100 Mbit/s. The halogen-free PUR jacket is oil, UV, and abrasion resistant, while SF/UTP shielding and IP67 protection ensure reliable signal transmission in harsh conditions.
Available at price 61.49 €: 38 pcs.
Total available for order: 71 pcs.
Warranty: 2 Years
SKU: 10887554
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
01.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.58 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
04.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

Esto — pay in 6 equal parts

today

0 €

afterward

6 mth. × 10.25 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Industrial network cable 40310 M12 4-pin D-coded male/male PUR 10m CAT 5e IP67 SF/UTP is designed for demanding industrial environments where a stable and secure data connection is essential. Featuring M12 4-pin D-coded male connectors on both ends and a length of 10 meters, this network cable provides reliable connectivity for automation systems and machine building. It supports CAT 5e performance with data rates up to 100 Mbit/s, making it suitable for standard industrial network communication.

Advantages

This industrial network cable features a durable PUR jacket that offers high resistance to oil, UV radiation, and abrasion, while remaining halogen-free and flame-retardant. The integrated SF/UTP shielding combined with a copper inner conductor ensures stable signal transmission free from electromagnetic interference. Built for continuous movement, the cable is drag chain compatible for up to 10 million bends and torsion resistant for up to 3 million cycles. Furthermore, the IP67 protection class of the connectors safeguards against dust and moisture ingress in harsh operational conditions.

Suitable for

  • Production lines and manufacturing plants
  • Industrial automation and control networks
  • Fieldbus technology and machinery
  • Environments requiring exposure to oils, UV light, and mechanical stress

When it may not be suitable

This network cable is not designed for standard office environments or residential Ethernet installations where M12 connectors are not utilized. Additionally, applications requiring gigabit or higher data rates exceeding 100 Mbit/s will exceed the CAT 5e specification limits of this cable.

Key specifications

  • Cable length: 10 meters
  • Connectors: M12 4-pin D-coded male to M12 4-pin D-coded male
  • Performance: CAT 5e up to 100 Mbit/s
  • Shielding: SF/UTP
  • Conductor material: Copper
  • Outer jacket: PUR (halogen-free, oil-resistant, UV-resistant, flame-retardant)
  • Protection rating: IP67
  • Outer diameter: 6.5 mm
  • Operating temperature range: -25 to +70 degrees Celsius
  • Mechanical durability: Up to 10 million bends in drag chains and 3 million torsion cycles

How to use

To install the cable, align the D-coded M12 connectors with the corresponding ports on your industrial devices or machinery. Push the connectors firmly into place and thread the coupling rings securely until the IP67 seal is properly engaged. Route the cable carefully along its intended path, respecting the specified bending radii to prevent internal damage during movement in drag chains or fixed installations.

What to consider before purchase

  • Verify that your industrial equipment utilizes 4-pin D-coded M12 ports
  • Ensure that a 10-meter length is sufficient for your routing layout without excessive slack
  • Confirm that a data transmission speed of up to 100 Mbit/s meets your network requirements
  • Check that the operating temperature and environmental conditions fall within the specified limits

Always secure the cable properly to prevent excessive strain on the M12 connectors and ensure that the minimum bending radius is maintained during installation and dynamic operation.

Specifications

Connector 2: This is the second connector in the device.
M12
Connector 1: This is the first connector in the device.
M12
Cable length: How long the cable is.
10 m
All features
Ultraviolet (UV) resistant:
Yes
Bending radius (max):
98 mm

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
15 x 15 x 5.61
Quantity: The number of products there are.
1

Packaging data

Package type: The type of product package e.g. box.
Polybag
Package volume:
3300 cm³
Package weight: Weight of the packaged product.
581 g
Package height: The distance from the top to the bottom of the packaging.
36 mm
Package depth: The distance from the front to the back of the packaging.
345 mm
Package width: The distance from one side of the packaging to the other.
260 mm

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
UL

Sustainability

Doesn't contain:
Halogen

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 80
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-25 - 70

Features

Cable colour: Colour of the cable e.g. white, gray.
Green
Country of origin: Country where the device is made. Aka Country of manufacture (COM).
China
Oil-resistant:
Yes
AWG wire size:
22
Conductor material:
Copper
Jacket material:
Polyurethane (PUR)
Connector gender: To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.
Male/Male
Connector 2: This is the second connector in the device.
M12
Connector 1: This is the first connector in the device.
M12
Cable length: How long the cable is.
10 m
