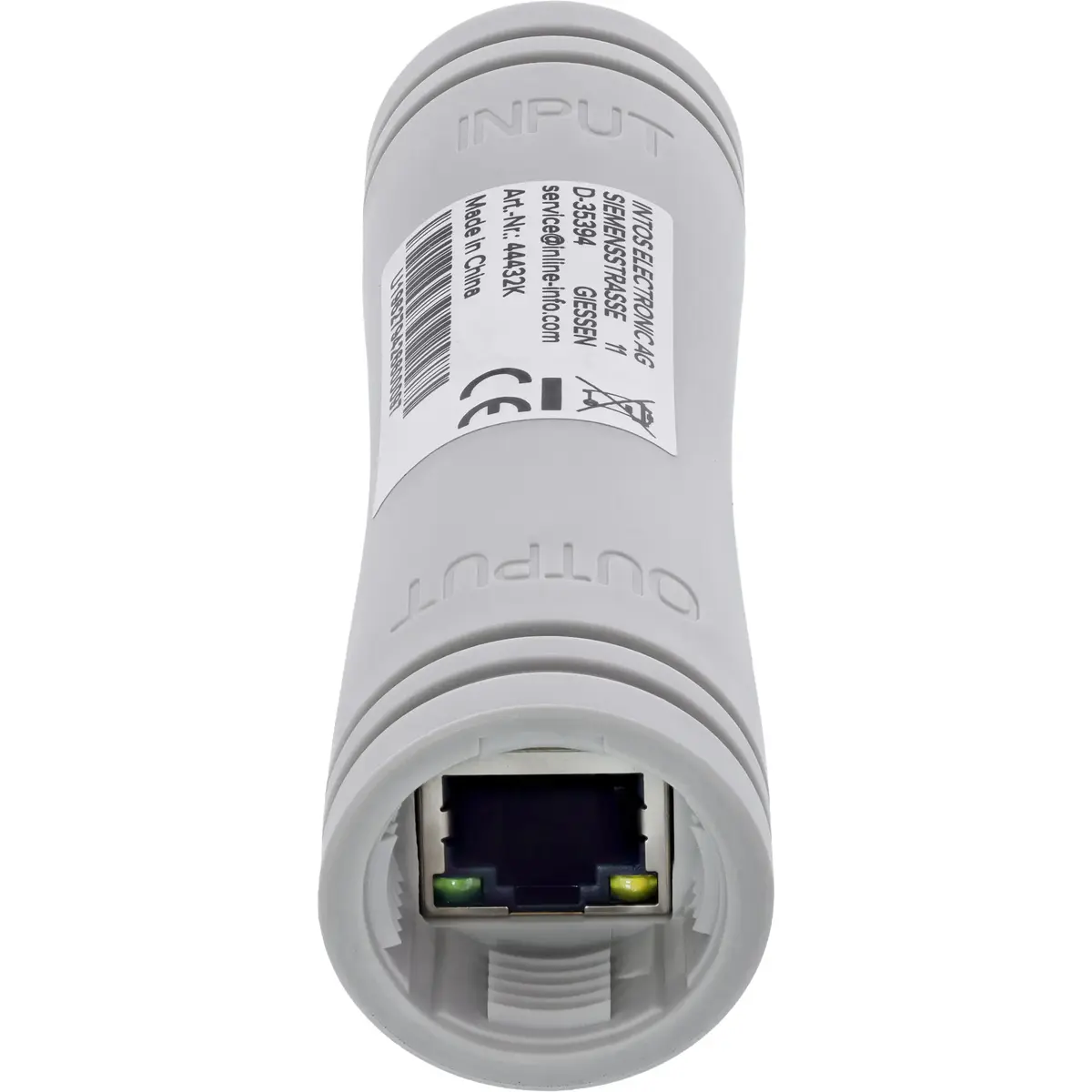

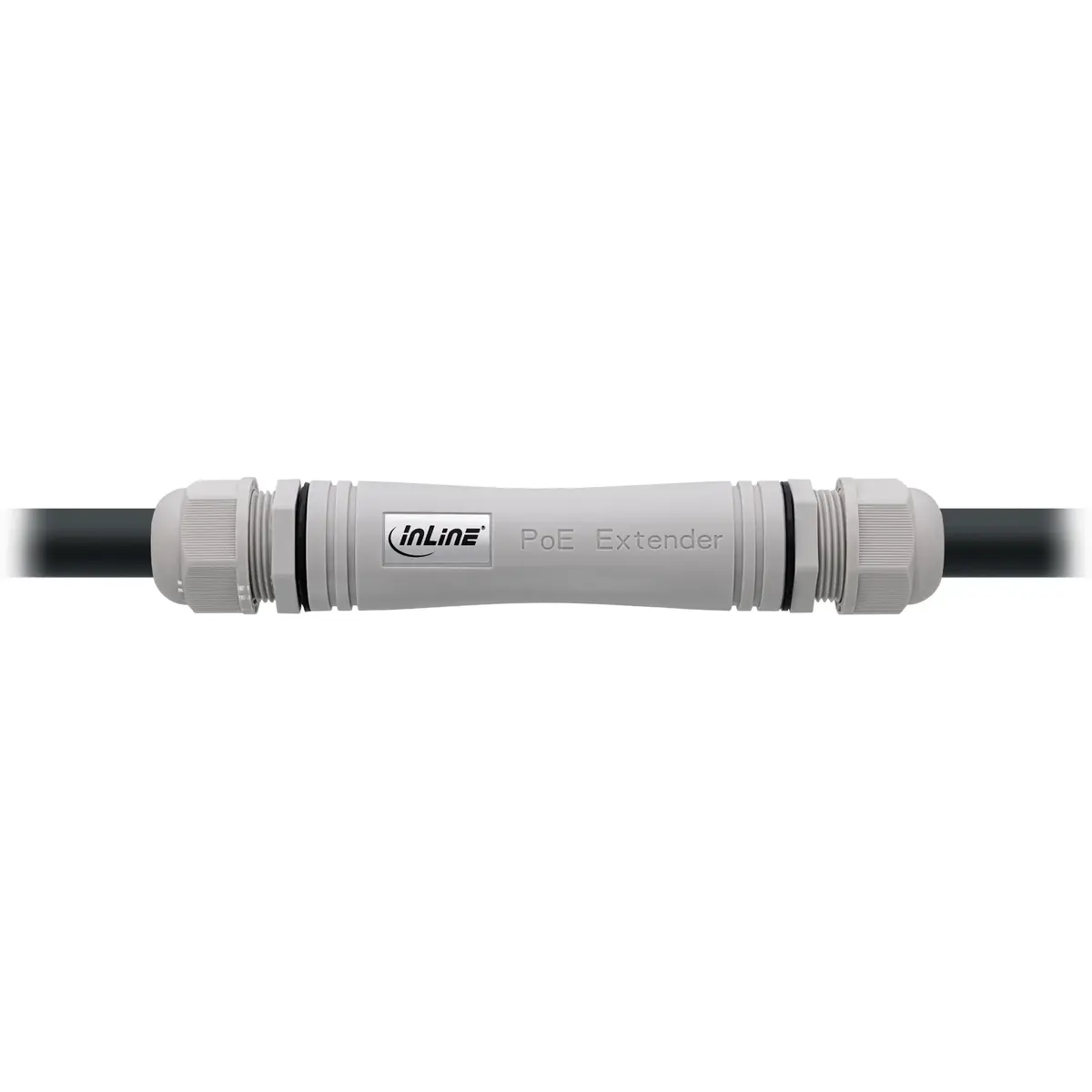

InLine 44432K PoE adapter Gigabit Ethernet with 10/100/1000 Cabling technology, 2 RJ-45 ports, 30 W Output power and IP67 Certification

The InLine 44432K PoE adapter Gigabit Ethernet with 10/100/1000 cabling technology is designed to extend network and power connections over long distances in outdoor and indoor environments. This device features 2 RJ-45 ports and delivers up to 30 W of output power per port, supporting Power over Ethernet standards for compatible connected hardware. Built with a durable IP67 certified casing, it operates reliably in demanding weather conditions and challenging industrial environments. The adapter supports data rates of 10, 100, and 1000 Mbit/s, ensuring high-performance network connectivity for bandwidth-demanding equipment.

Advantages

The InLine 44432K Gigabit Ethernet PoE adapter provides a robust solution for extending network reach up to 800 meters through a cascadable design, allowing multiple extenders to be connected in series depending on the installation and cable type. It operates without a separate power supply unit by utilizing power over the network cable based on IEEE 802.3af and IEEE 802.3at standards, which minimizes cabling requirements and simplifies deployment. The robust IP67-rated housing protects internal components from dust and moisture, ensuring stable operation across an operating temperature range from minus 10 degrees Celsius to 50 degrees Celsius. Plug and play installation eliminates the need for complex software configuration, enabling immediate integration into existing network infrastructures.

Suitable for

• Connecting outdoor IP security cameras over long distances
• Extending wired local area networks across large outdoor properties
• Supplying power and data to remote network devices without local power outlets
• Industrial and building automation applications requiring weather-resistant hardware

When it may not be suitable

This device may not be suitable for network setups that require continuous high-power delivery exceeding 30 watts per port or for environments where maximum operating temperatures fall outside the specified range of minus 10 degrees Celsius to 50 degrees Celsius. Additionally, achieving the maximum transmission distance of 800 meters depends heavily on the specific cable type and installation environment, meaning standard distances may be shorter under suboptimal cabling conditions.

Key specifications

• Gigabit Ethernet interface type
• 10, 100, and 1000 Mbit/s Ethernet LAN data rates
• 2 RJ-45 ports
• 30 W Power over Ethernet power per port
• IEEE 802.3af and IEEE 802.3at PoE standards
• Input voltage range of 48 to 57 V
• IP67 certification rating
• Cascadable design with a maximum reach of up to 800 m
• Operating temperature range from -10 °C to 50 °C
• Grey colour

How to use

To use the InLine 44432K PoE adapter, connect your incoming Ethernet cable carrying both data and power to the input port, and attach an outgoing network cable to the second port to reach your remote powered device. Ensure that your power source supplies an input voltage between 48 and 57 volts matching the supported range. The unit operates via plug and play, requiring no software configuration or separate power supply unit. For extended transmission distances, multiple compatible extenders can be cascaded in series following appropriate cabling guidelines.

What to consider before purchase

• Verify that your existing network switch or injector supports IEEE 802.3af or IEEE 802.3at PoE standards and supplies adequate voltage within the 48 to 57 V range
• Check the power consumption of your connected end devices to ensure they do not exceed the 30 W output limit per port
• Evaluate your cabling infrastructure, as total achievable distance up to 800 meters depends on the quality of the cable and installation environment
• Confirm that the IP67 weather-resistant rating meets the environmental demands of your intended outdoor or industrial deployment location

Usage recommendations

For optimal performance, install the InLine 44432K PoE adapter within its specified operating temperature range of minus 10 degrees Celsius to 50 degrees Celsius and ensure that all cable connections are securely sealed to maintain the IP67 protection rating against moisture and dust.
