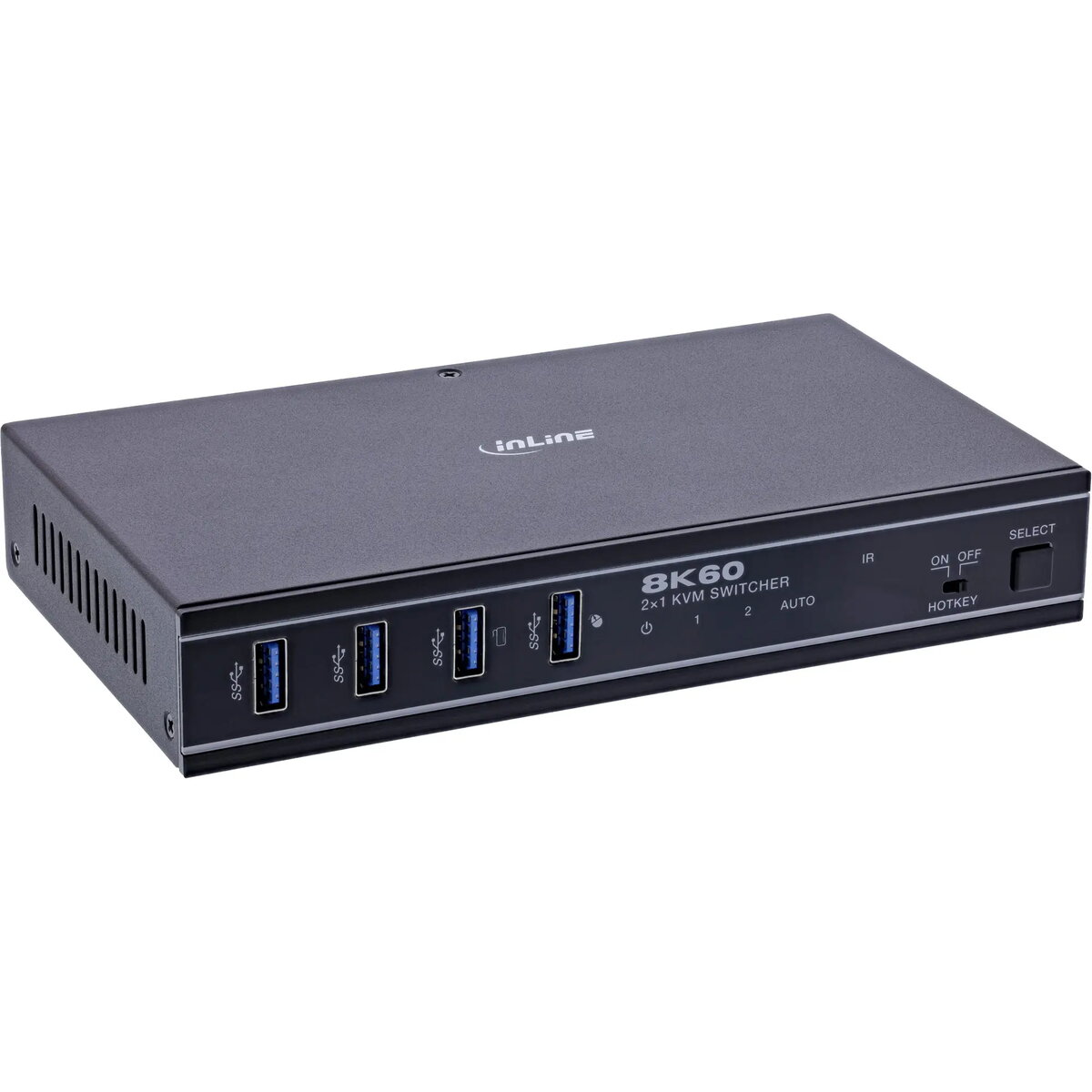

KVM switch InLine 57885C 2 ports USB VGA

The InLine KVM switch connects two computers to a single HDMI monitor, keyboard and mouse, enabling control of two PCs from one workspace. This 2-port HDMI 2.1 KVM supports high-resolution video up to 8K@60Hz and 4K@144Hz, modern HDR formats and shares USB 3.2 Gen 1 peripherals between both systems. It is designed for office, home office and professional IT environments and includes required cables, power supply and mounting accessories.

Advantages

The device provides up to 8K@60Hz and 4K@144Hz image quality with HDMI 2.1, Dolby Vision and HDR10+ support while maintaining HDCP 2.3 compatibility. Four USB 3.2 Gen 1 ports allow shared use of printers, storage devices and webcams at up to 5 Gb/s. Switching methods include front-panel buttons, keyboard hotkeys, IR remote or RS-232 control for flexible operation. Additional features such as CEC support, no noticeable audio/video latency, robust metal housing and high ESD protection improve reliability in continuous use.

Suitable for

• Office and home office setups where two computers are managed from one workstation
• IT, server rooms and training rooms requiring reliable signal management and HDCP 2.3 support
• Gaming or image/video editing that benefit from high refresh rates and HDR (up to 4K@144Hz, 8K@60Hz)
• Shared peripheral environments—printers, webcams, external drives—via USB 3.2 Gen 1

Key specifications

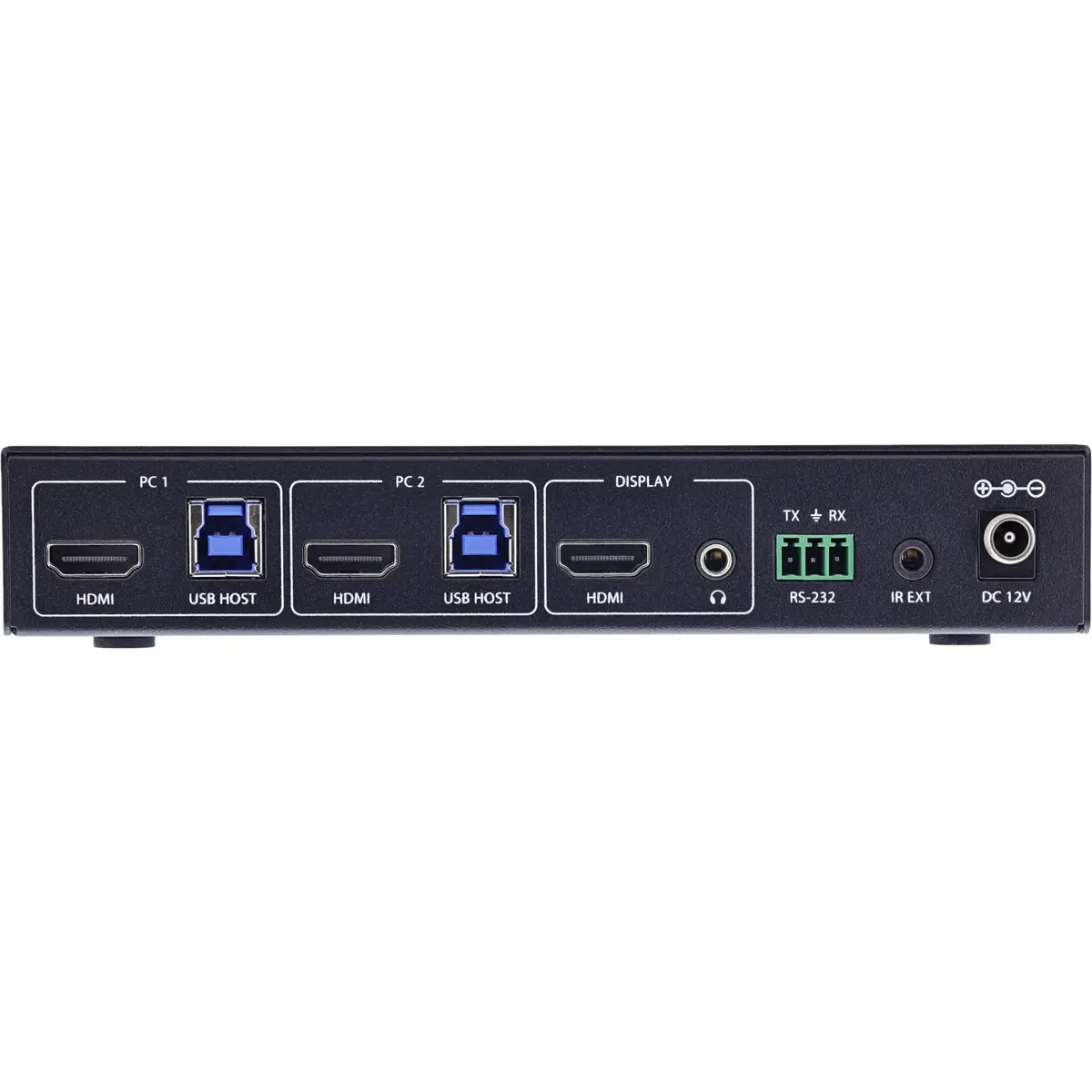

• HDMI inputs: 2 × HDMI Type A (19-pin); HDMI output: 1 × HDMI Type A (19-pin)
• Video resolutions: up to 8K@60Hz, 4K@120–144Hz, 1080p@240Hz
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• HDMI standard / HDCP: HDMI 2.1 / HDCP 2.3
• Colour spaces & depth: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0; 8/10/12 bits
• Audio: LPCM and advanced codecs including Dolby Atmos, DTS-HD and others; L/R analog out PCM 2.0 (3.5 mm)
• USB: 4 × USB 3.2 Gen 1 (USB-A), 2 × USB-B hosts; supported speeds USB 3.2 Gen 1 (hotkey OFF) and USB 1.1 (hotkey ON)

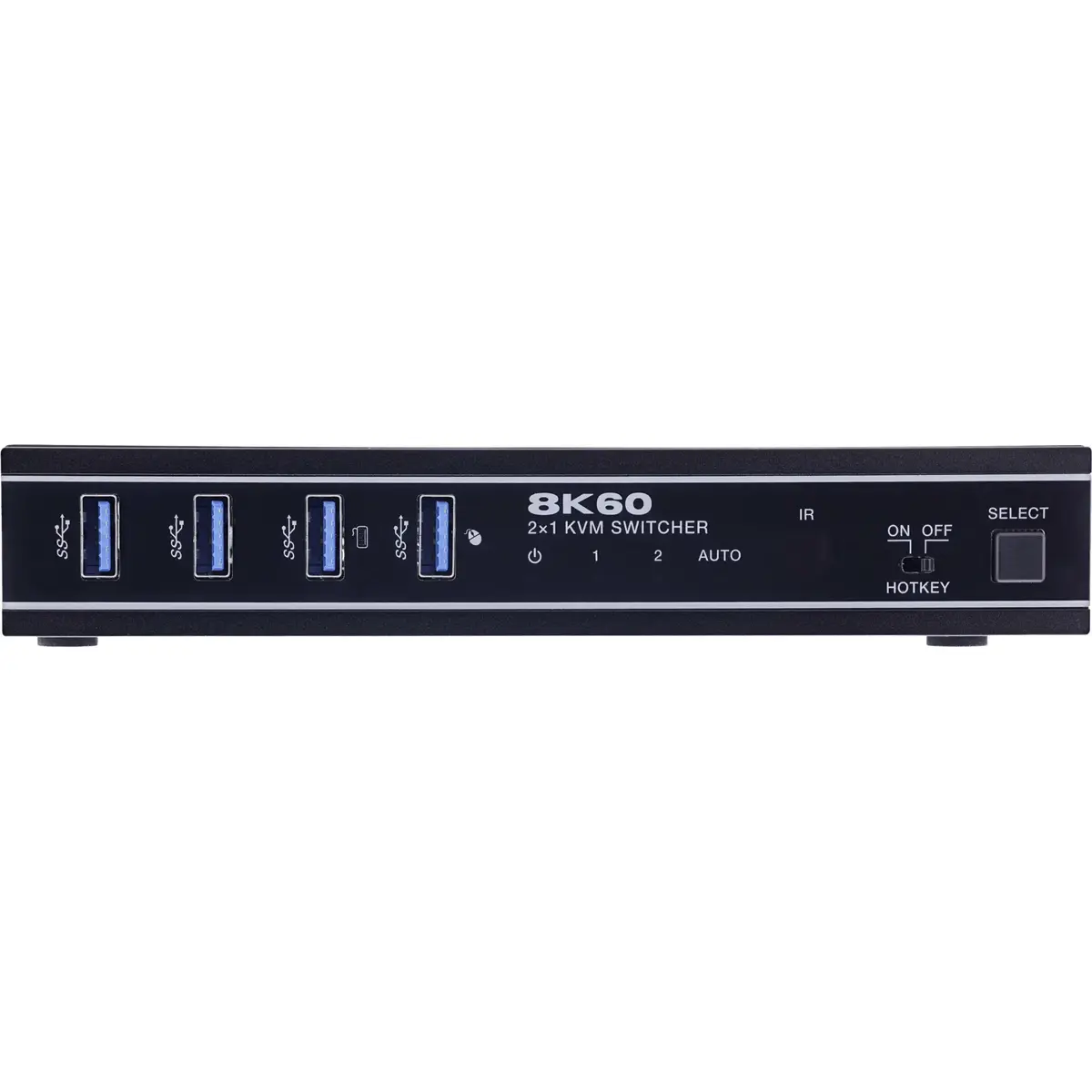

• Control interfaces: front buttons, keyboard hotkey, IR (38 kHz) and RS-232 (3-pin)
• Physical: 175 × 100 × 30 mm, weight 506 g, metal housing, operating temp. 0–40 °C
• ESD protection: ±8 kV air / ±4 kV contact

How to use

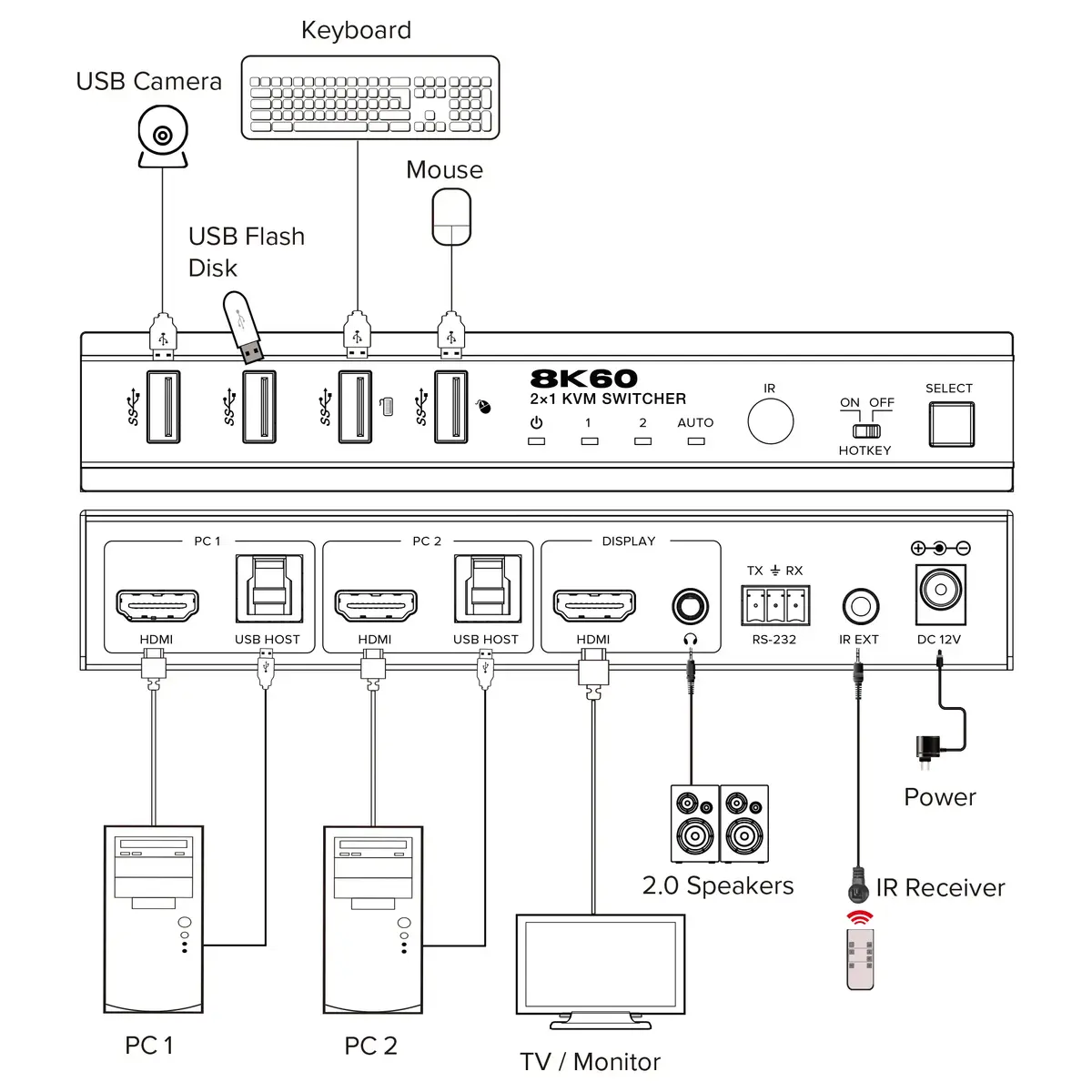

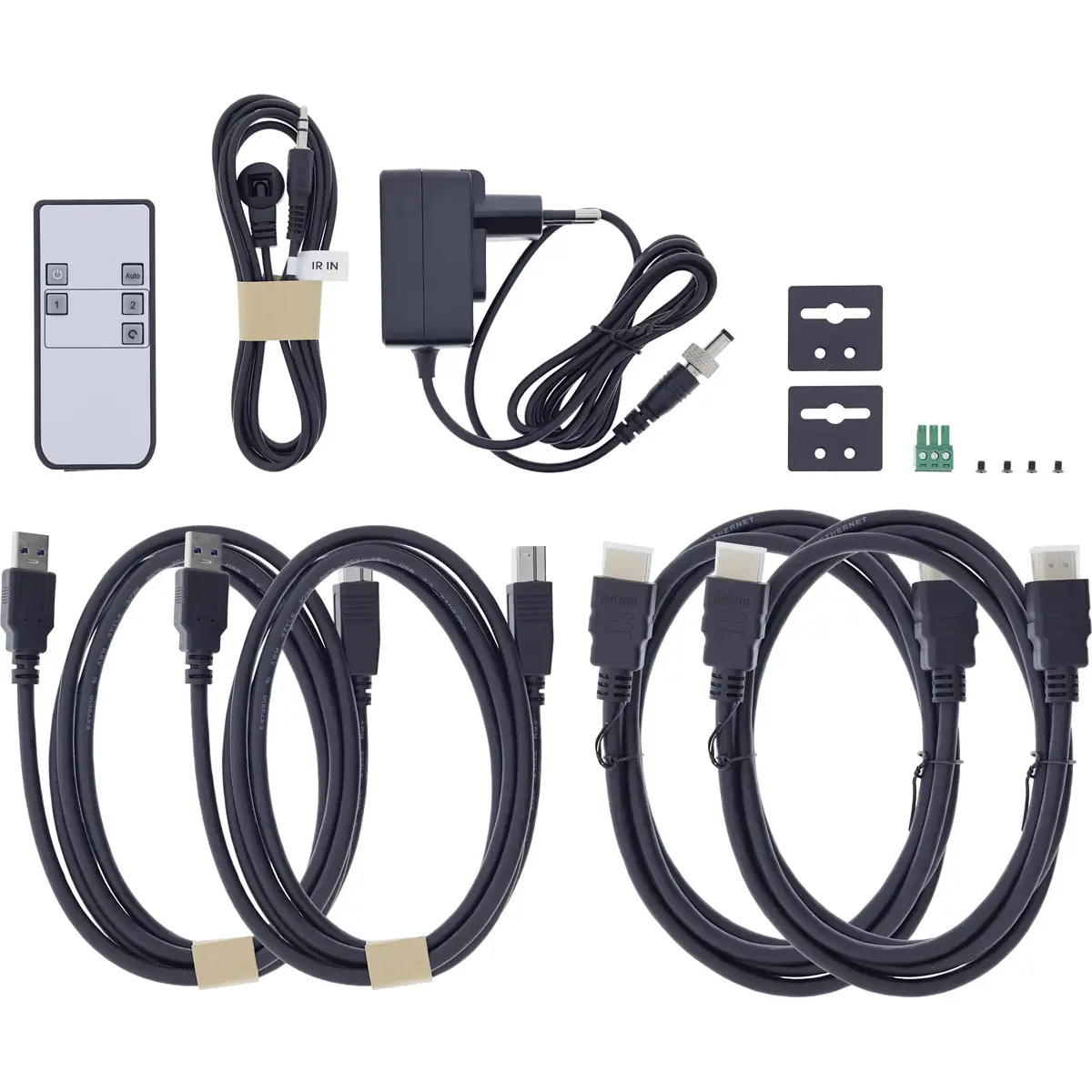

Connect both computers to the KVM using the supplied HDMI and USB-A-to-USB-B cables, and connect the monitor, keyboard and mouse to the HDMI output and USB host ports. Use the supplied external 12 V/1 A power adapter to power the unit. Switch between connected computers using the front-panel buttons, keyboard hotkeys, the included IR remote control with the IR receiver cable, or via RS-232 commands when integrated into a control system. Attach mounting brackets if rack or desk mounting is required; the package includes necessary screws and a terminal connector.

Usage recommendations

For best video performance use high-quality HDMI 2.1 cables and keep cable lengths according to recommendations: up to 2 m for full 8K/4K@120Hz, up to 5 m for Ultra HDMI 2.1, and up to 10 m for 1080p with standard cable. Disable hotkey USB mode if full USB 3.2 Gen 1 speeds are required for shared peripherals.
