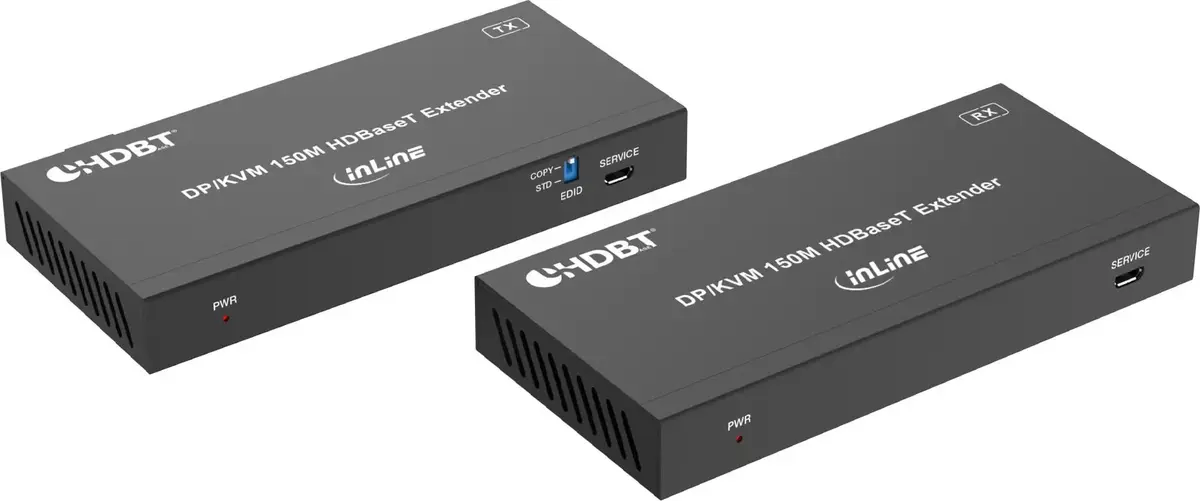

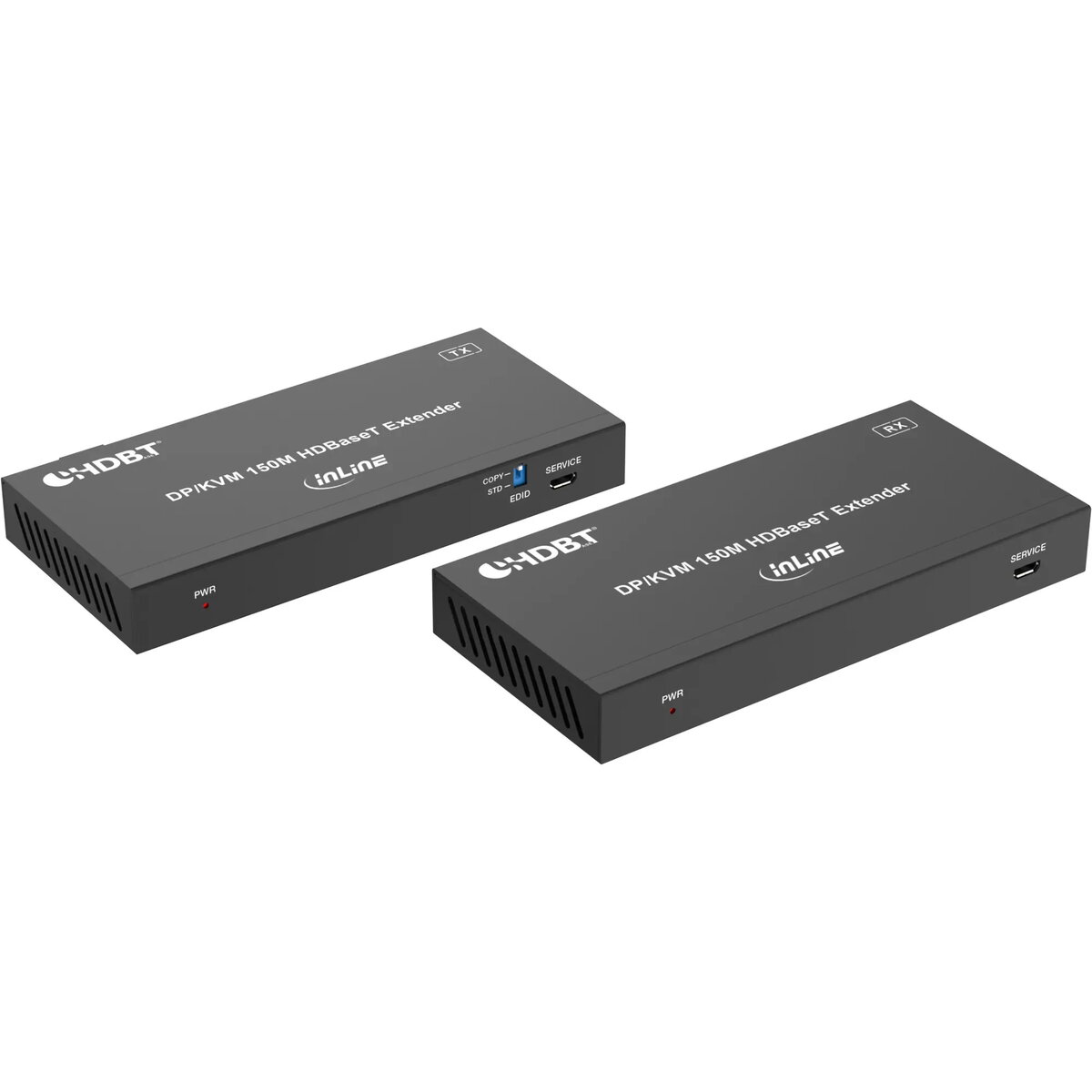

InLine 57885N KVM Extender, DisplayPort 4K 60Hz, HDBaseT, 100m

The InLine 57885N is a professional KVM extender set engineered to transmit high-quality DisplayPort signals over long distances using HDBaseT technology. This system allows for the seamless extension of video, keyboard, mouse, and control signals via a single Cat.5e or Cat.6 network cable, ensuring that computers and operating stations can be placed in separate locations without any loss in performance or image quality.

Advantages

This extender set provides exceptional signal stability and reliability, supporting resolutions up to 4K at 60Hz with full 4:4:4 color depth. By utilizing HDBaseT technology, it maintains high-fidelity video and responsive KVM control over distances reaching 100 meters for 4K content or up to 150 meters for Full HD signals. The inclusion of IR and RS-232 pass-through capabilities allows for integrated remote management of external hardware, making it a versatile solution for complex AV and IT setups. Designed for continuous professional use, the device features a robust build, lockable power connections, and included mounting brackets for secure and flexible installation in various environments.

Suitable for

• Remote computer management in office environments
• Industrial control rooms and monitoring stations
• Professional AV installations and digital signage
• Separating workstations from server hardware for noise and heat reduction

When it may not be suitable

This device is designed specifically for DisplayPort signals and is not compatible with HDMI or VGA sources without active adapters. It is intended for use in dry indoor environments and should not be installed in areas with high humidity, extreme temperatures, or outdoor conditions where the equipment could be exposed to moisture or dust.

Key specifications

• Supports DisplayPort 1.2a with HDCP 2.2 compliance
• Maximum resolution: 3840 x 2160 at 60Hz (4:4:4)
• Transmission medium: Single Cat.5e or Cat.6 network cable
• Maximum range: 100m for 4K/60Hz, 150m for 1080p
• Integrated KVM functionality: USB-B host and USB-A device ports
• Control signal support: IR and RS-232
• Audio support: LPCM, Dolby Digital Plus, DTS-HD Master Audio
• Operating temperature: 0 °C to +40 °C

How to use

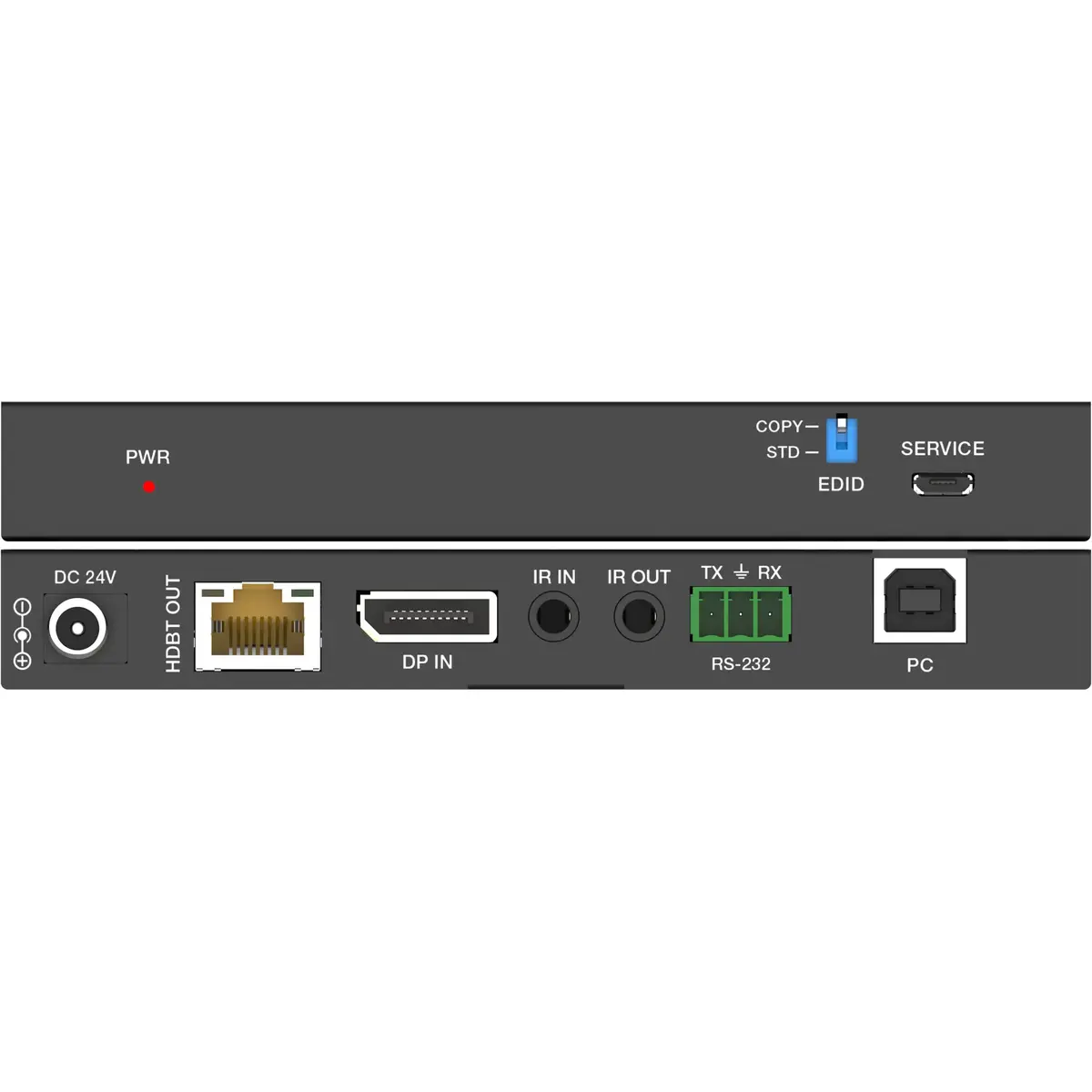

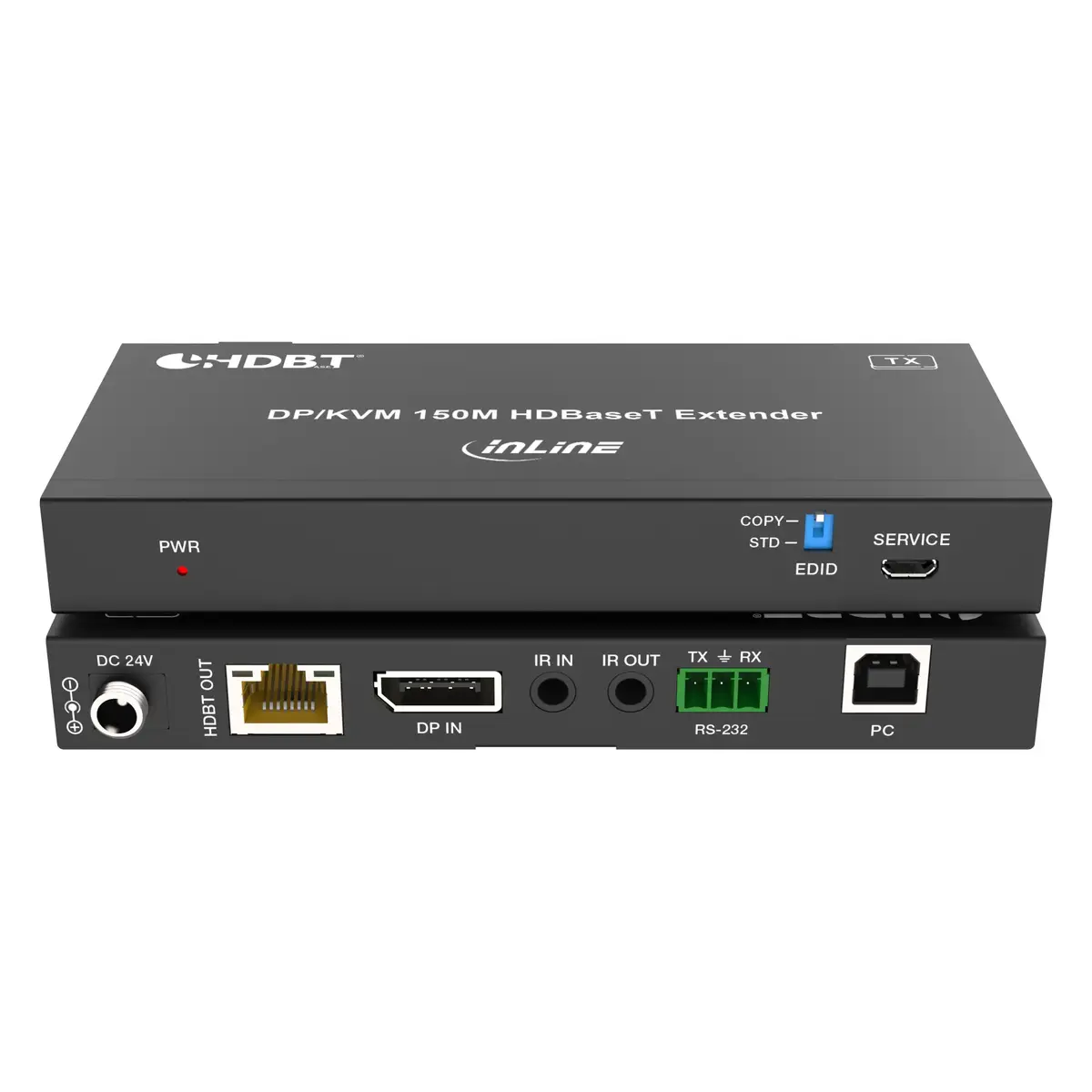

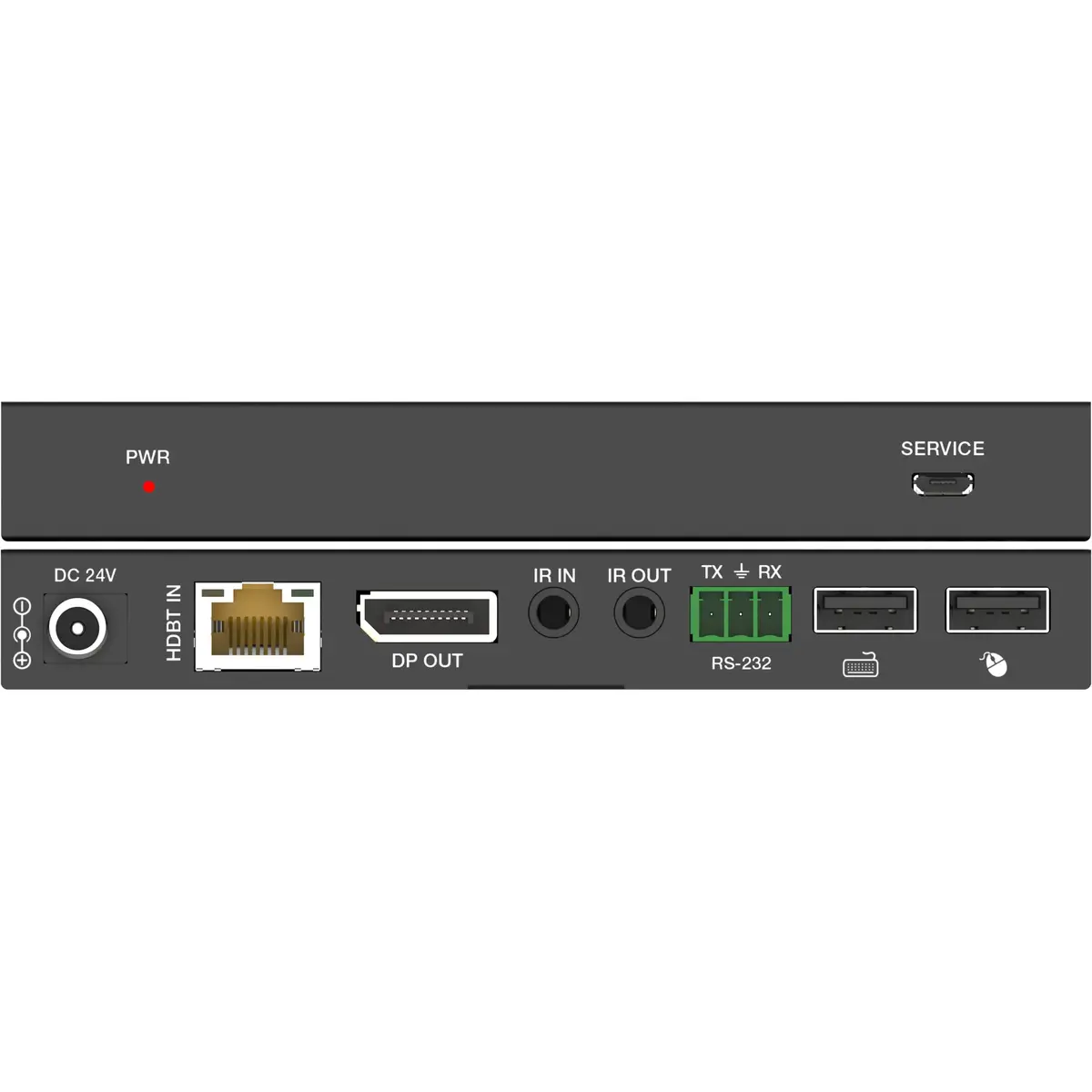

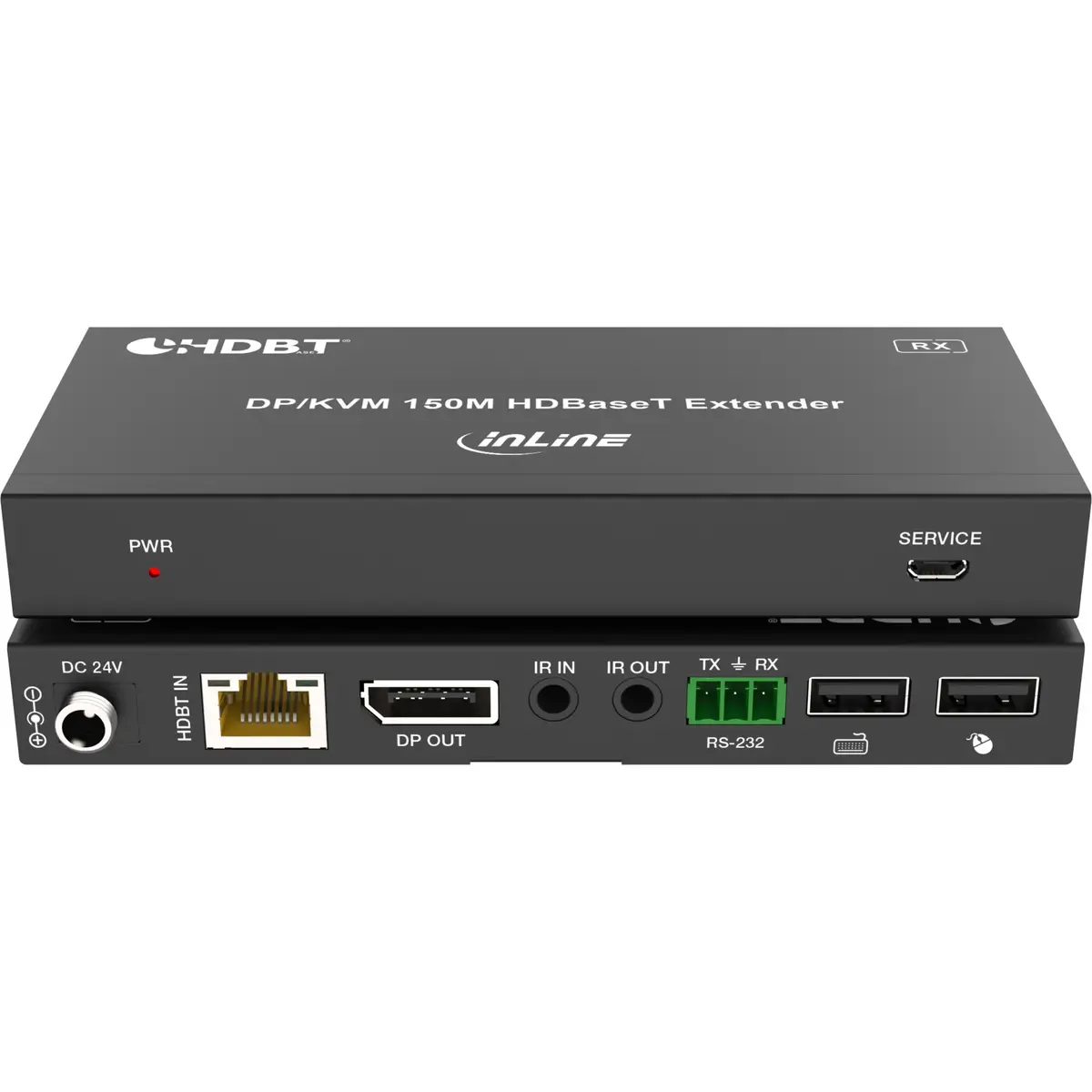

To set up the system, connect your DisplayPort source and USB host device to the transmitter unit using the provided cables. Connect the receiver unit to your display and peripheral devices such as a keyboard and mouse. Link the transmitter and receiver using a high-quality Cat.5e or Cat.6 network cable. Once all connections are secure, connect the included lockable power supplies to both units. The system will automatically establish the HDBaseT link, allowing for immediate transmission of video and control signals.

What to consider before purchase

• Ensure your network cabling meets the required specifications for HDBaseT transmission.
• Verify that your source device supports DisplayPort 1.2a output.
• Check the physical space requirements for both the transmitter and receiver units.
• Confirm that the intended environment is dry and within the specified operating temperature range.

Usage recommendations

For optimal performance and signal integrity, always use high-quality, shielded Cat.6 network cables. Avoid coiling excess cable tightly, as this can interfere with signal transmission over long distances. Ensure the units are mounted in a well-ventilated area to maintain the specified operating temperature range during continuous use.
