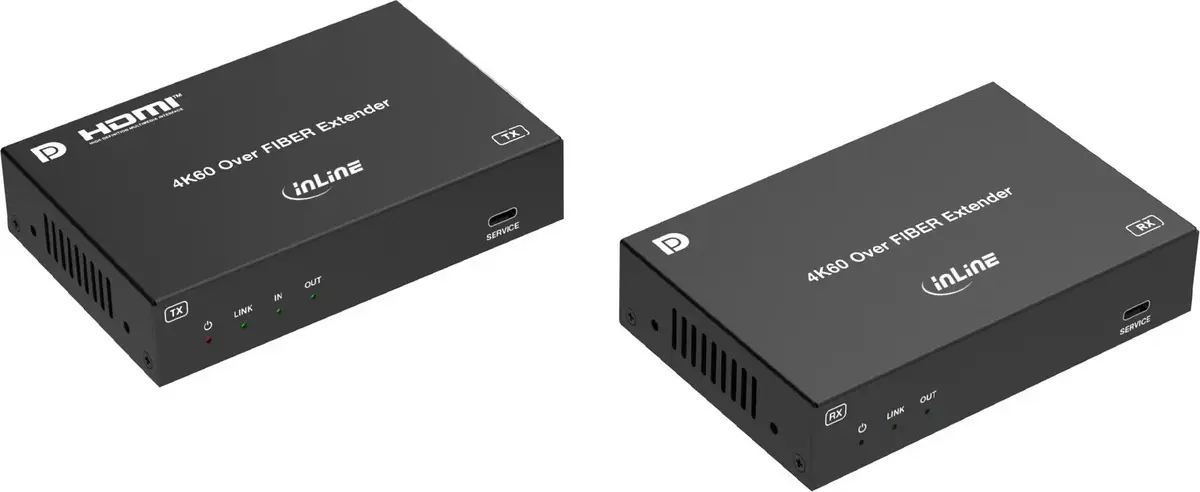

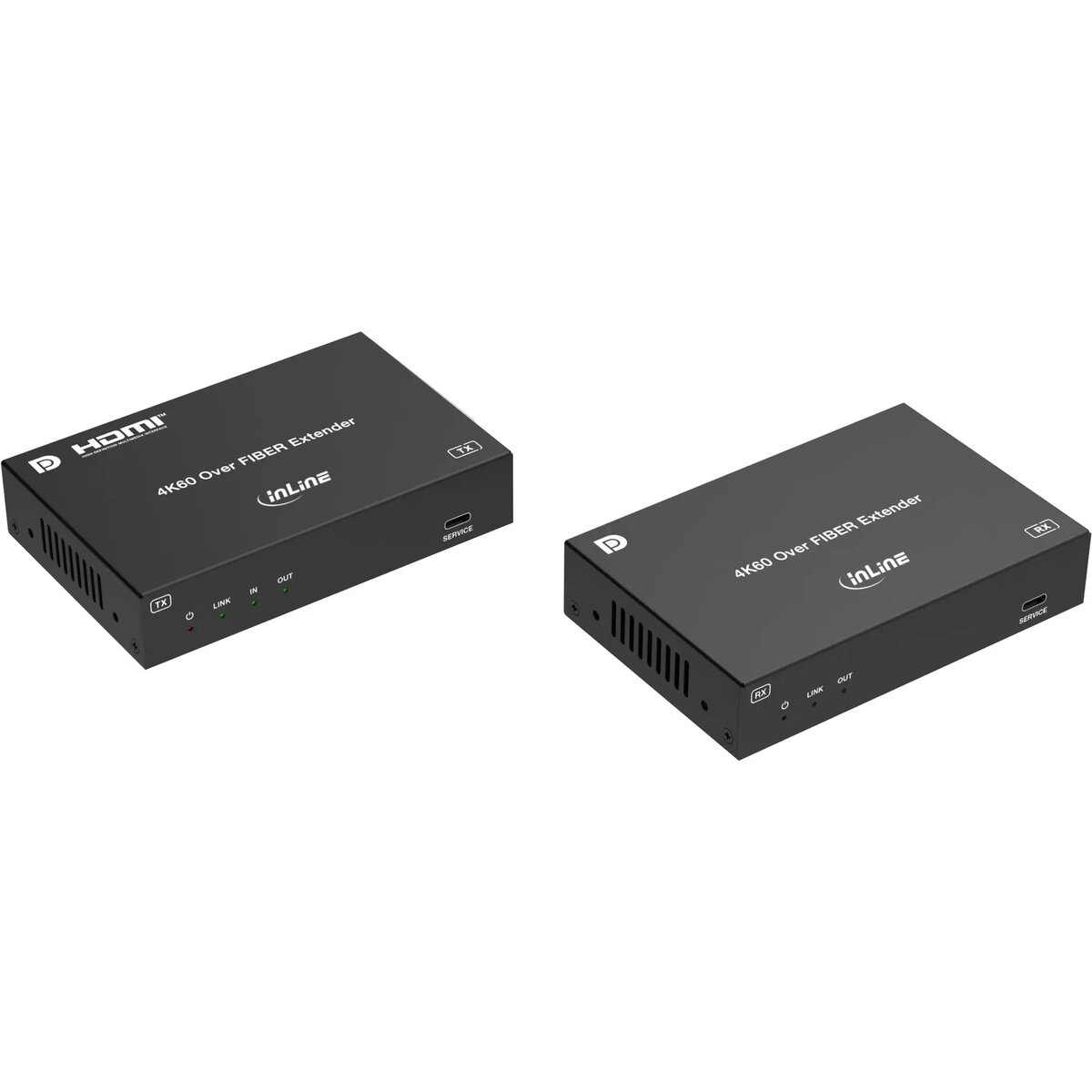

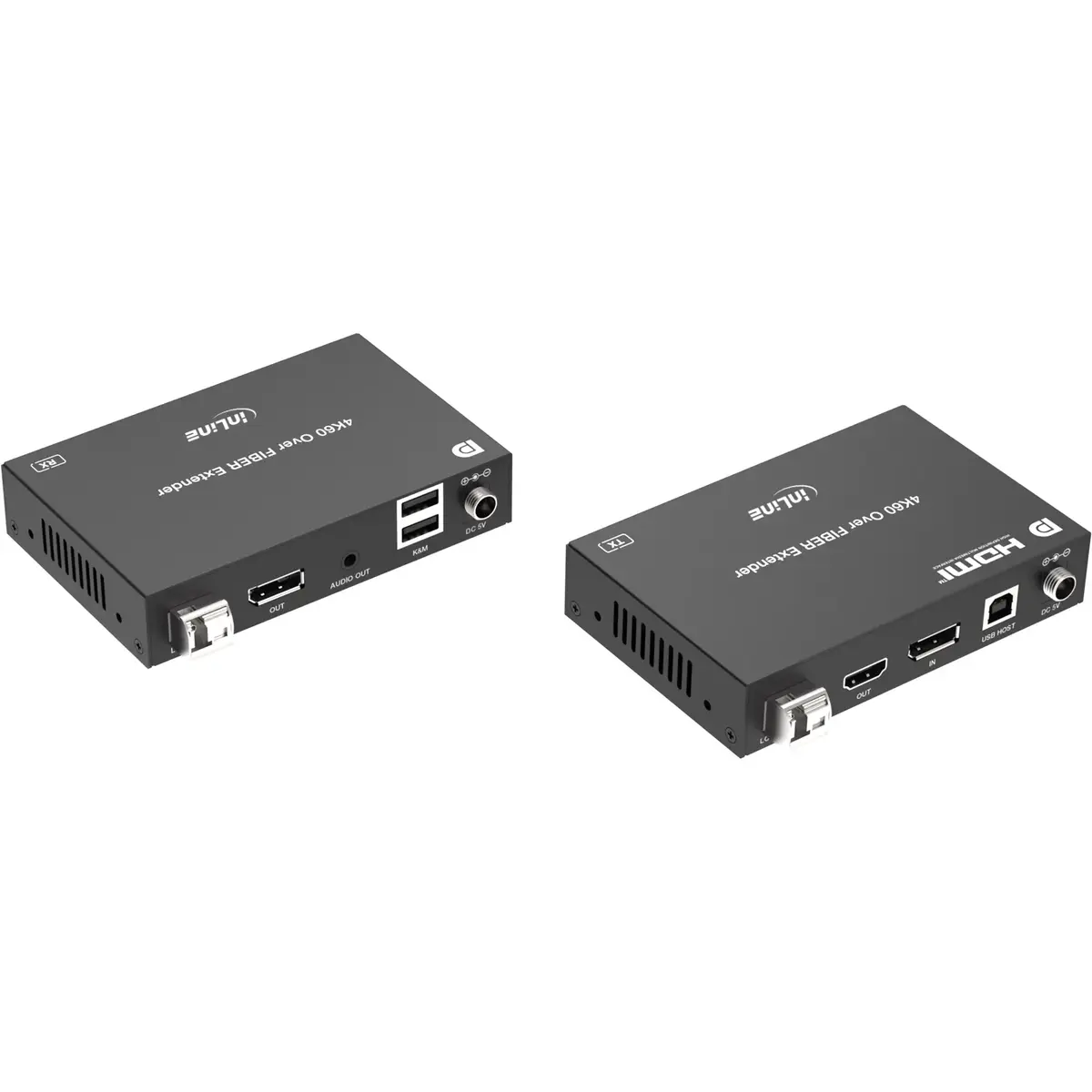

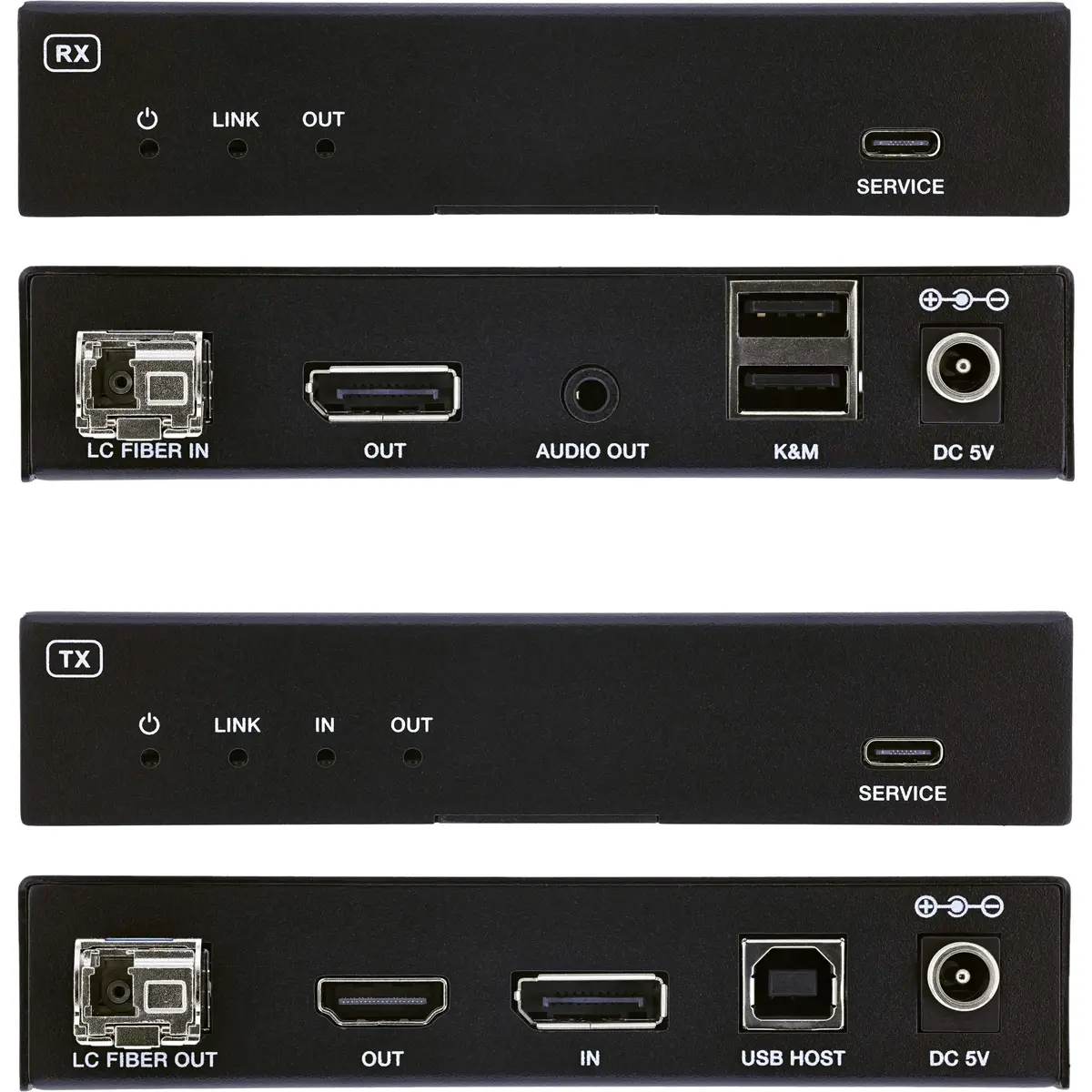

InLine 57885O KVM Extender Transmitter and Receiver Set DisplayPort 4K at 60Hz Fiber Singlemode 10000 m

Type: Characteristics of the device.

Transmitter & receiver

AC adapter output voltage:

5

AC adapter output current:

2 A

Bandwidth:

8.1 Gbit/s

SFP/SFP+ slots quantity:

1

Maximum transfer distance: The greatest distance over which the data/signal can be transferred.

10000 m

Screws included:

Yes

Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.

2

Transmitter local keyboard/mouse port type:

USB

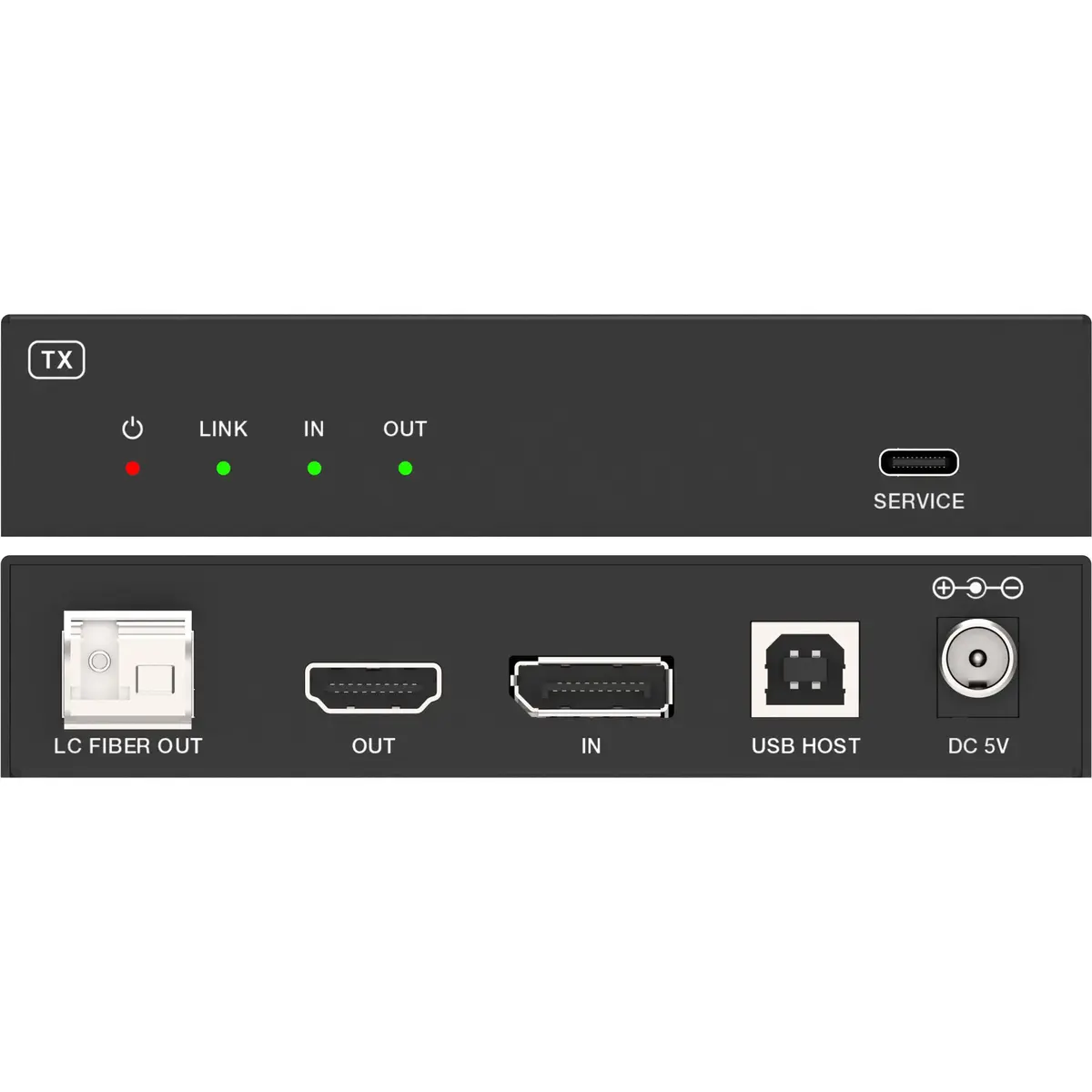

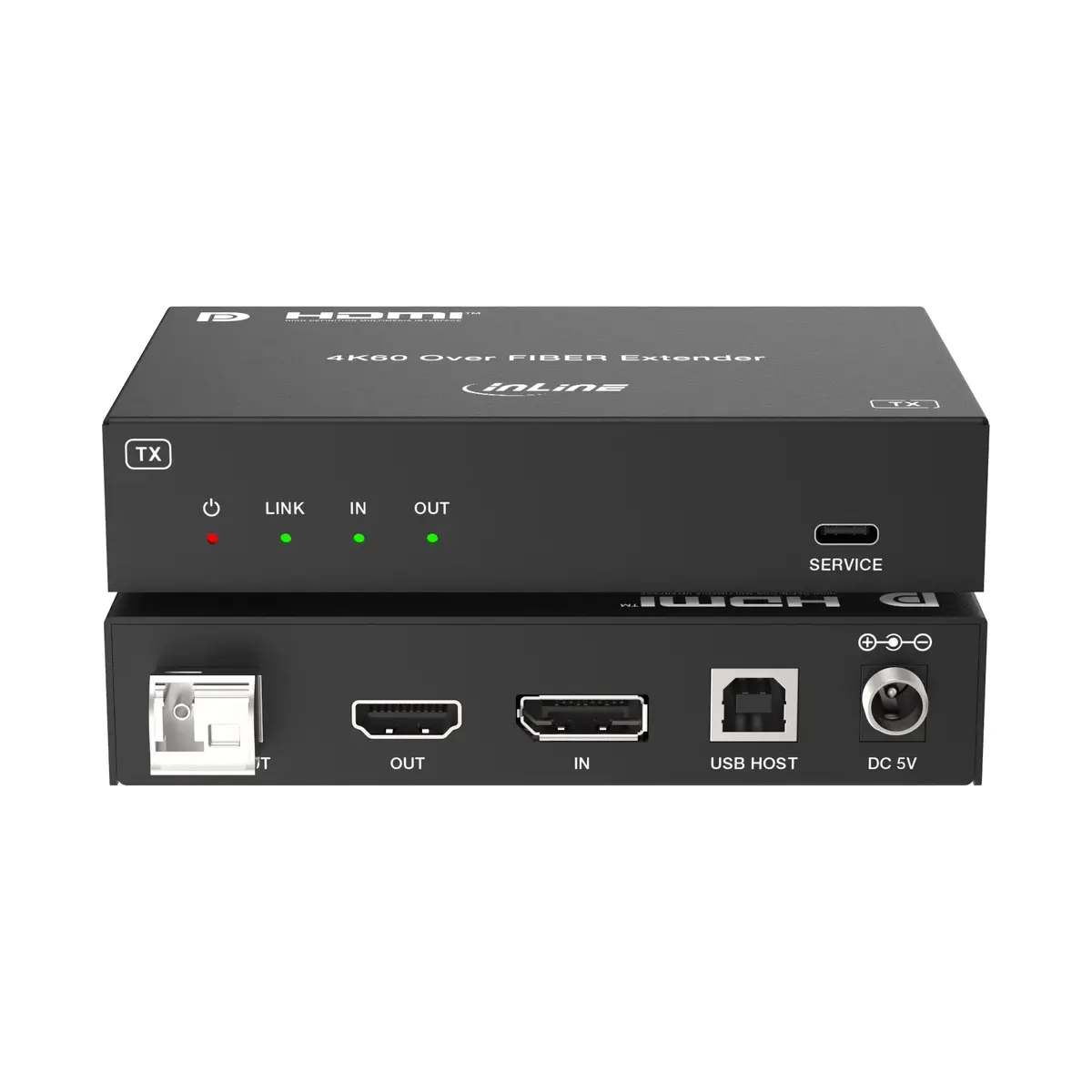

Transmitter video port type:

DisplayPort

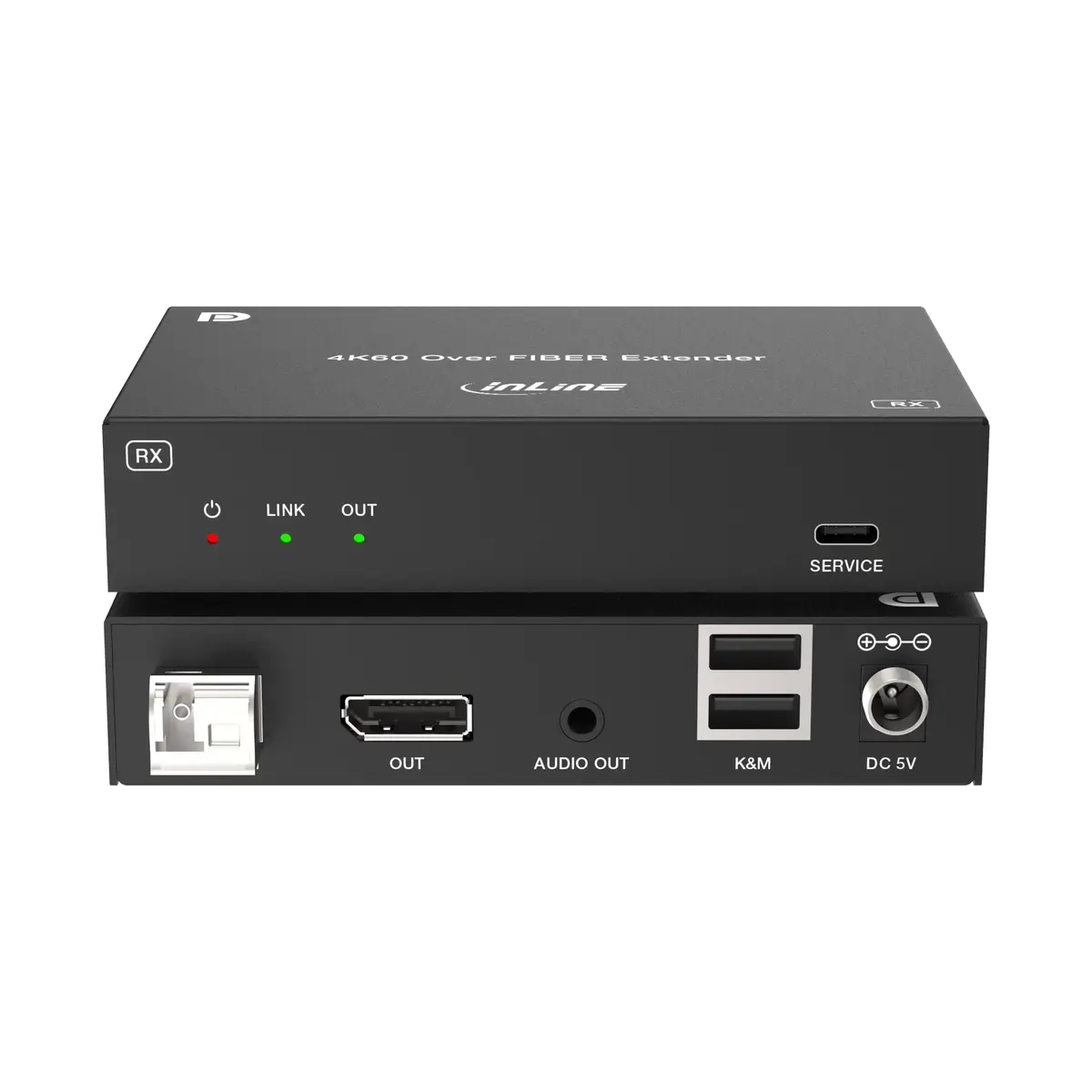

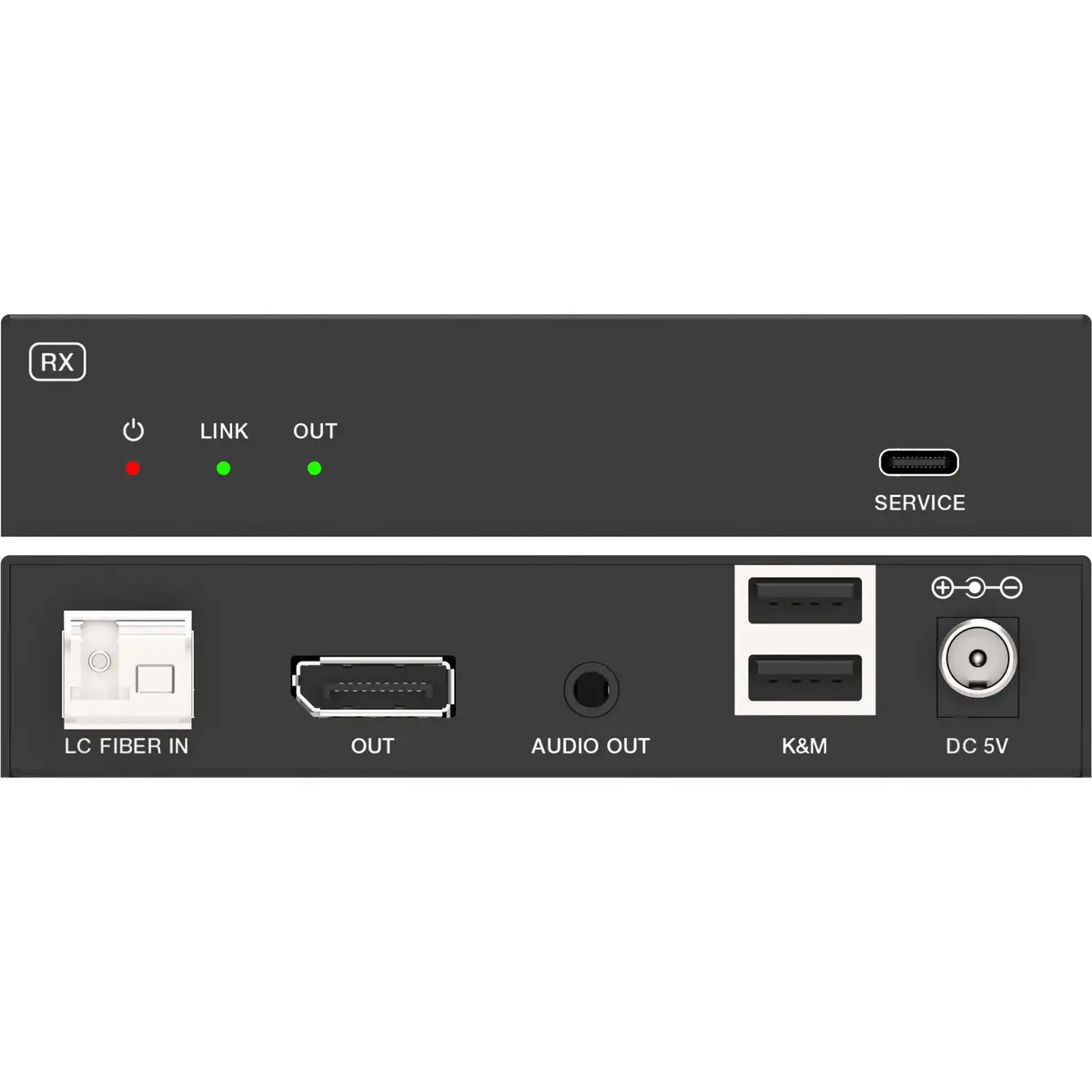

Receiver local video port type:

DisplayPort

Mounting bracket(s) included:

Yes

Receiver USB Type-A ports quantity:

2

Transmitter USB Type-B ports quantity:

1

Technical details

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

China

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).

90 x 120 x 25

Colour depth:

12 bit

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Packaging content

AC adapter included:

Yes

Manual:

Yes

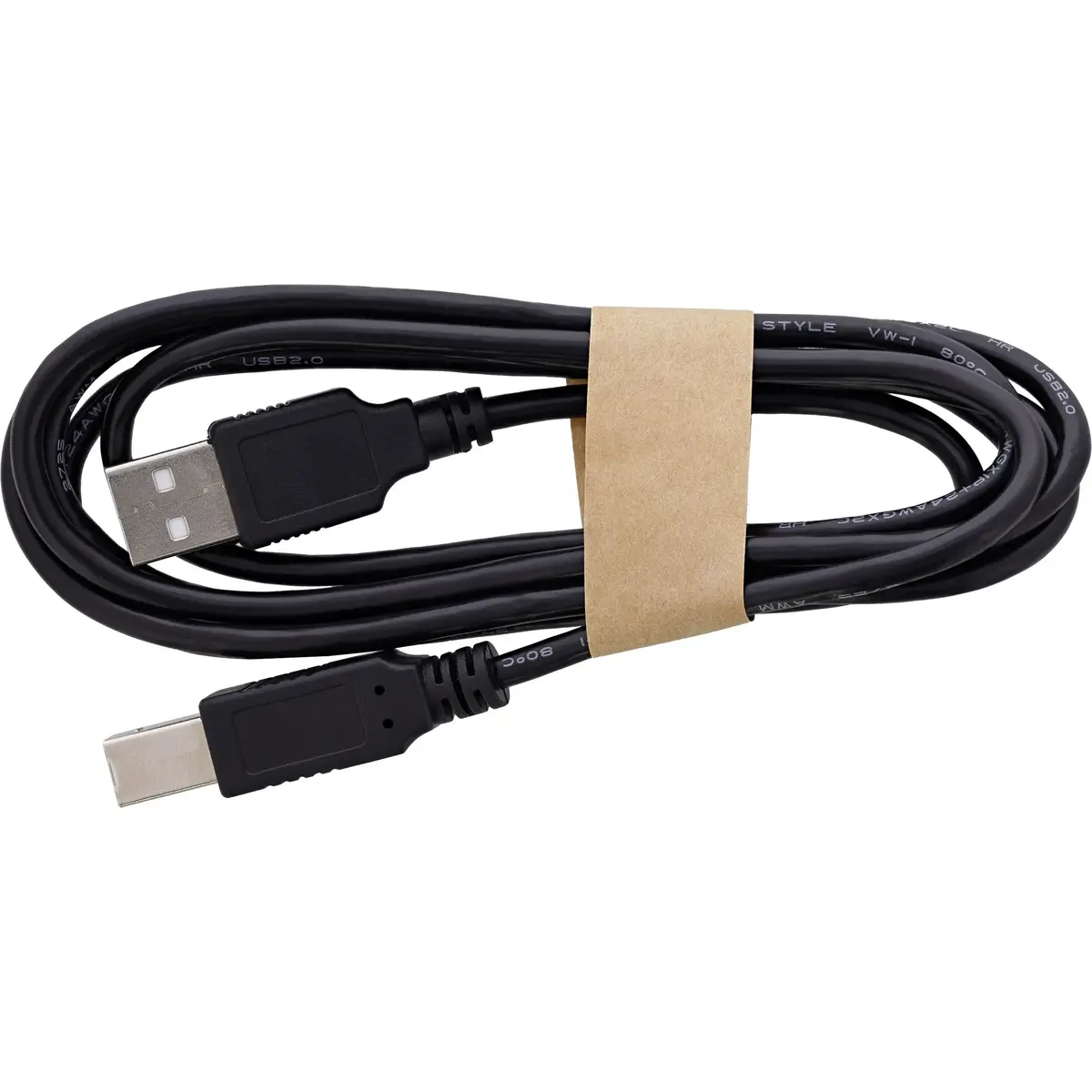

Cables included:

USB Type-A to USB Type-B

Packaging data

Package weight: Weight of the packaged product.

1114 g

Package volume:

3500 cm³

Package height: The distance from the top to the bottom of the packaging.

75 mm

Package depth: The distance from the front to the back of the packaging.

247 mm

Package width: The distance from one side of the packaging to the other.

188 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.283 kg

Operational conditions

Operating relative humidity (H-H):

20 - 80

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Sustainability

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

RoHS

Power

AC input frequency:

50 - 60

Performance

HDCP version:

2.3

Maximum refresh rate:

60 Hz

HDCP: High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Yes

High Dynamic Range (HDR) supported:

Yes

Maximum digital resolution:

3840 x 2160

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes
