InLine Installation cab Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH 300m

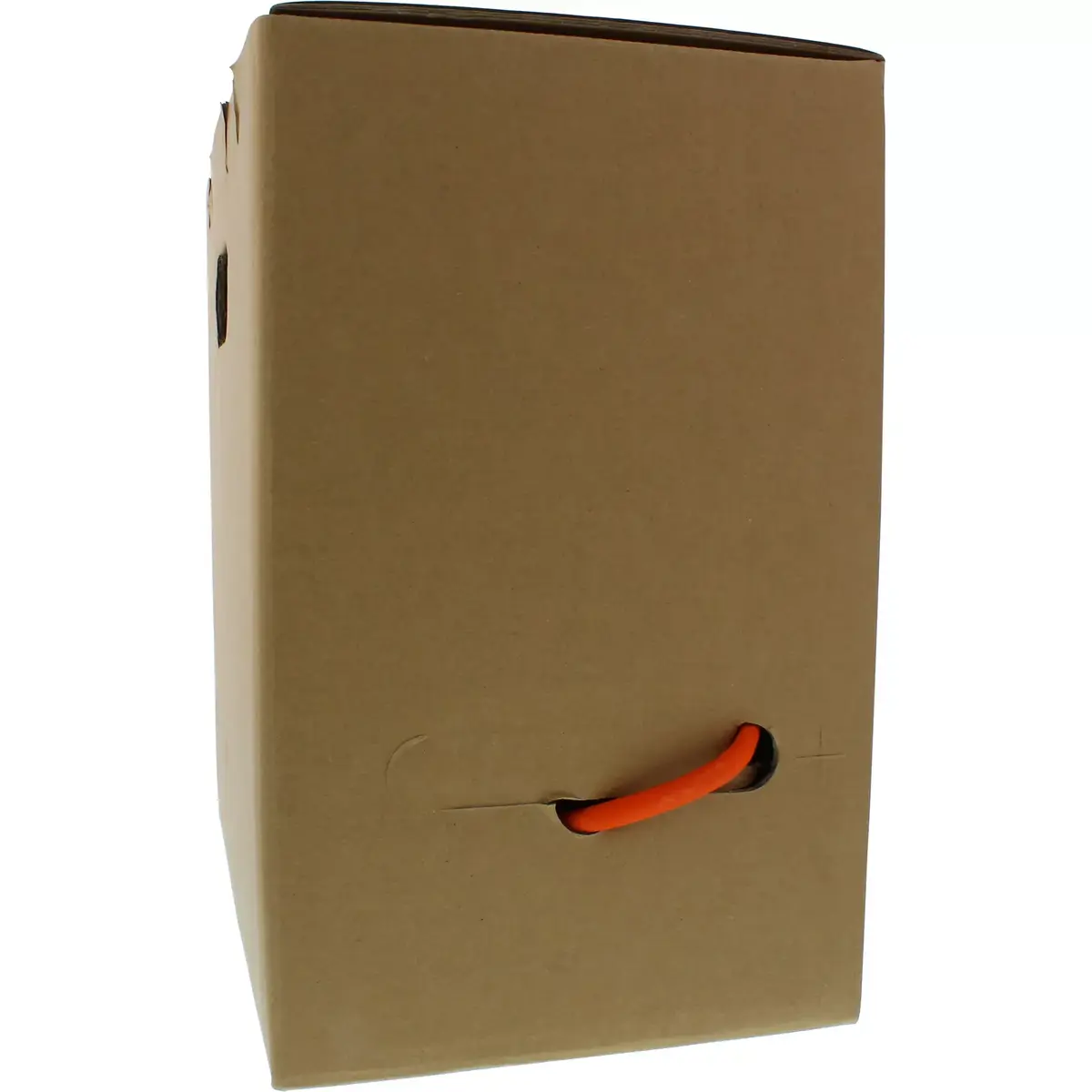

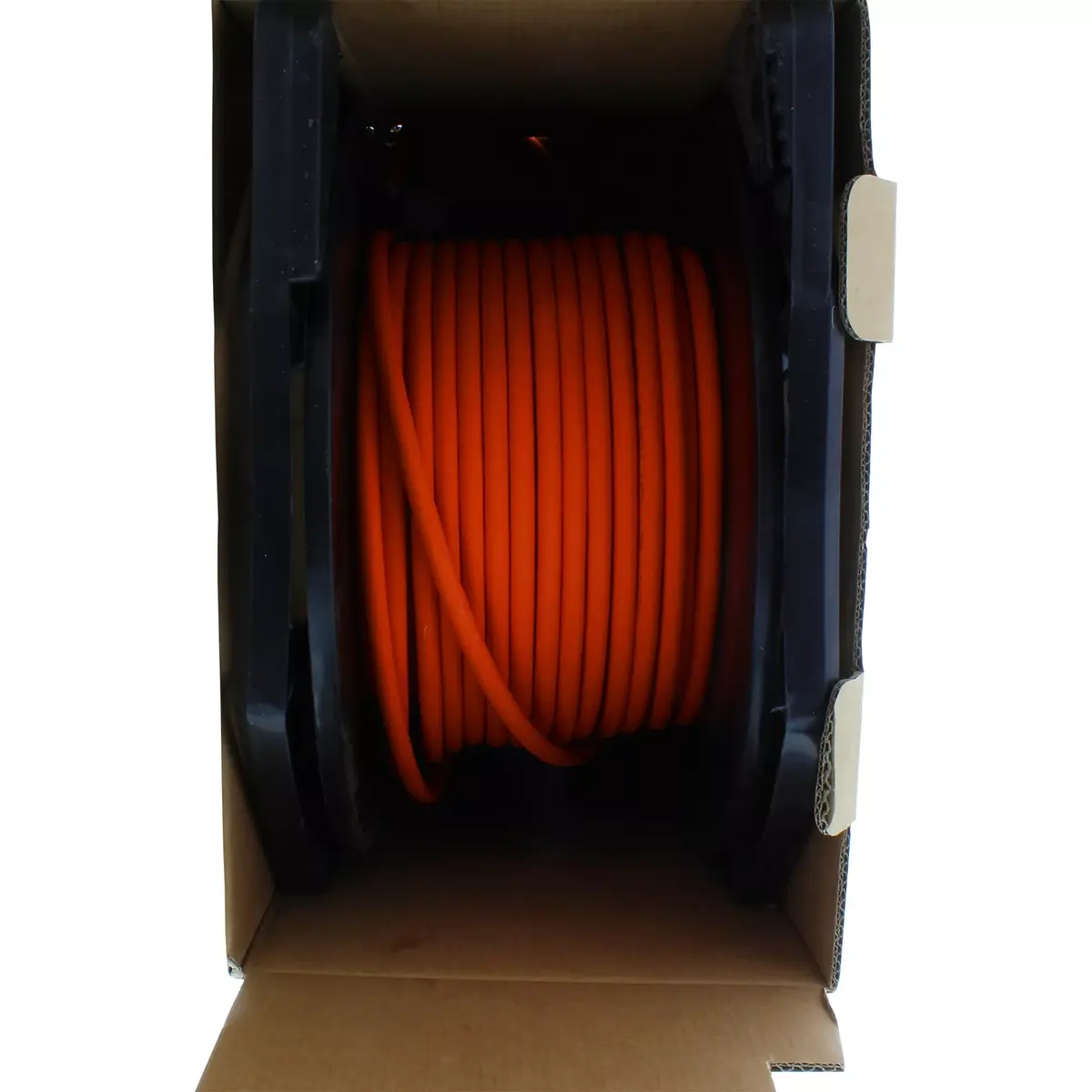

The InLine Installation cab Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH 300m is supplied in a drum box that houses a plastic roller with the data cable wound around it and fixed inside a cardboard carton for controlled unwinding and easy reference to required length. The packaging reduces pollution and mechanical damage during transport and on-site handling and is suitable for parcel shipping when using shorter bundles; 500 m lengths are supplied on a cable drum.

Advantages

The drum box design enables cost reduction through simplified on-site handling without additional drum tooling. The packaging is lightweight, easy to carry, handy and stackable for transport in construction vehicles. Cardboard protection prevents dirt and damage to the cable. Smaller quantities have lower average costs and the product is parcel-sendable for eligible bundle sizes.

Suitable for

• Structured cabling for offices and data centres
• High-speed Ethernet up to 10 Gb/s
• Communications installations requiring low-smoke zero-halogen (LSZH) materials
• Installations needing clear cable identification (orange sheath)

Key specifications

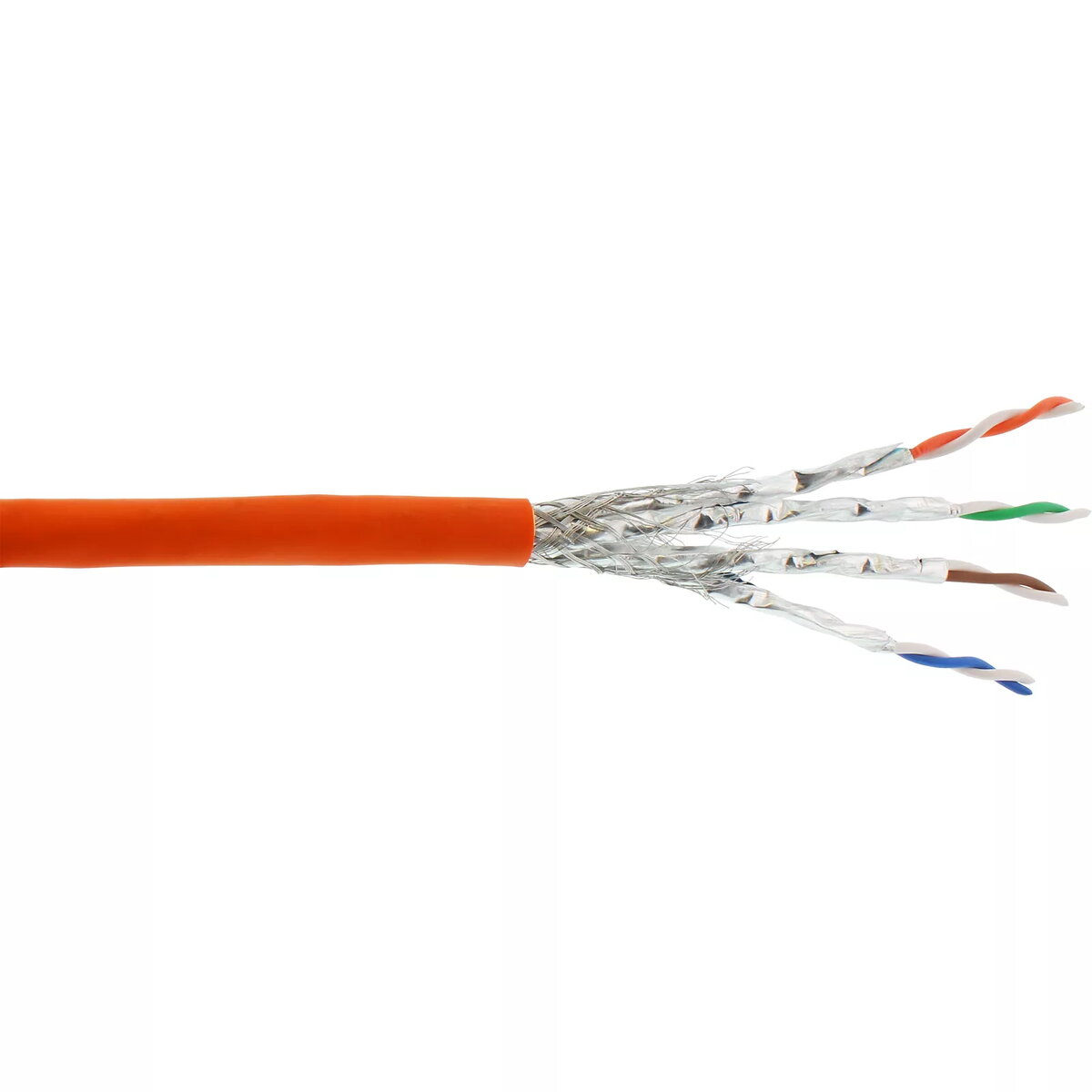

• Cable type: Cat.7a installation cable (S/FTP PiMF)
• Frequency: up to 1200 MHz
• Conductor: full copper, 4x2xAWG23/1 (0.58 mm)
• Suitable up to 10 Gb/s
• Impedance: 100 Ohm
• DC resistance: max. 87 Ohm/km
• Sheath: halogen-free (LSZH), orange
• Shielding: pairs in metal foil with overall braid
• Cable diameter: approx. 8.2 mm
• Installation temperature: 0 to 50 °C; operating temperature: -20 to 60 °C
• Fire reaction: Eca (EN 50575:2014 / A1:2016)
• Length options in drum box: 50 m, 100 m, 300 m (500 m supplied on cable drum)
• With meter-printing on cable

How to use

Place the drum box at the installation point and fix the carton so the plastic roller can turn freely. Pull the cable from the roller to the required length while keeping even tension to avoid kinks. Cut and terminate the cable following standard Cat.7a termination and grounding practices, respecting shielding layers. For 500 m deliveries, use appropriate cable drum handling equipment to unroll safely.

Usage recommendations

Use the drum box bundles (50 m, 100 m, 300 m) for ease of transport and single-person handling; reserve cable drums for larger 500 m runs. Maintain recommended installation temperatures and avoid sharp bends below the cable's minimum bend radius to preserve performance.
