header-product InLine Cat.7a Installation Cable S/FTP PiMF 4x2x0.58 AWG23 1200MHz B2ca 10m
42.49 €

InLine Cat.7a Installation Cable S/FTP PiMF 4x2x0.58 AWG23 1200MHz B2ca 10m

InLine Cat.7a Installation Cable 10m Photo 1

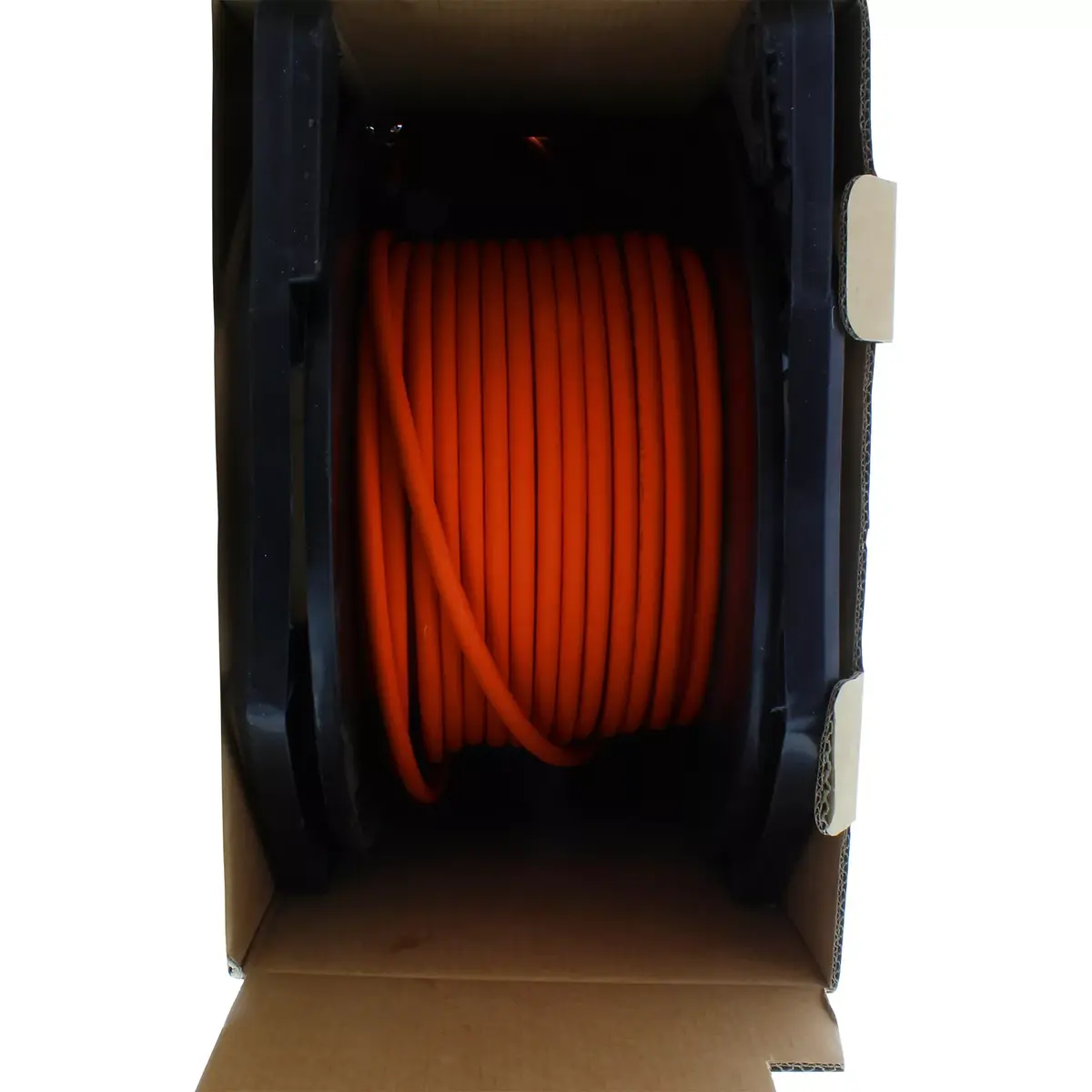

InLine Cat.7a Installation Cable 10m Photo 2

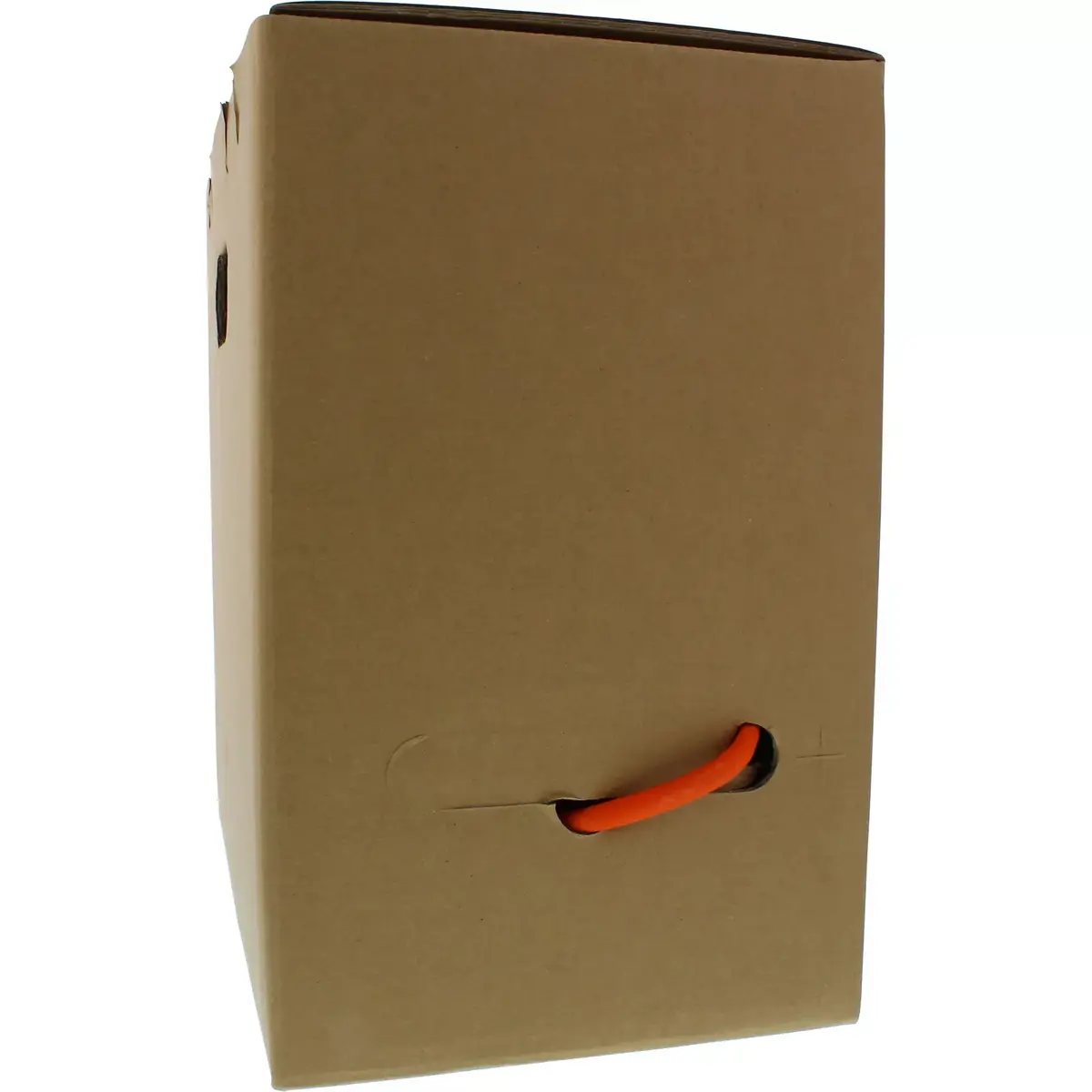

InLine Cat.7a Installation Cable 10m Photo 3
InLine Cat.7a Installation Cable 10m Photo 1
InLine Cat.7a Installation Cable 10m Photo 2
InLine Cat.7a Installation Cable 10m Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Cat.7a Installation Cable S/FTP PiMF 4x2x0.58 AWG23 1200MHz B2ca 10m

{{email}}
You keep track of price changes

InLine Cat.7a Installation Cable S/FTP PiMF 4x2x0.58 AWG23 1200MHz B2ca 10m

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine installation cable designed for high-speed network infrastructures. Features Cat.7a standard, S/FTP shielding with PiMF, 4x2x0.58 AWG23 conductor structure, and supports frequencies up to 1200MHz with data transfer rates up to 10000 Mbit/s. Built with B2ca fire rating for reliable professional networking and structured cabling applications.
Available for order: 17 pcs.
Warranty: 2 Years
SKU: 10497402
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
15.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.72 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
18.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Cat.7a Installation Cable S/FTP PiMF 4x2x0.58 AWG23 1200MHz B2ca 10m is a high-performance network cable designed for professional structured cabling and high-speed network infrastructures. Built to meet stringent technical standards, this installation cable ensures reliable data transmission with frequencies up to 1200MHz and supports data transfer rates up to 10000 Mbit/s. Featuring a robust construction with full copper cores, dual shielding, and a halogen-free LSZH sheath with a B2ca fire rating, it provides safety and durability for demanding networking environments.

Advantages

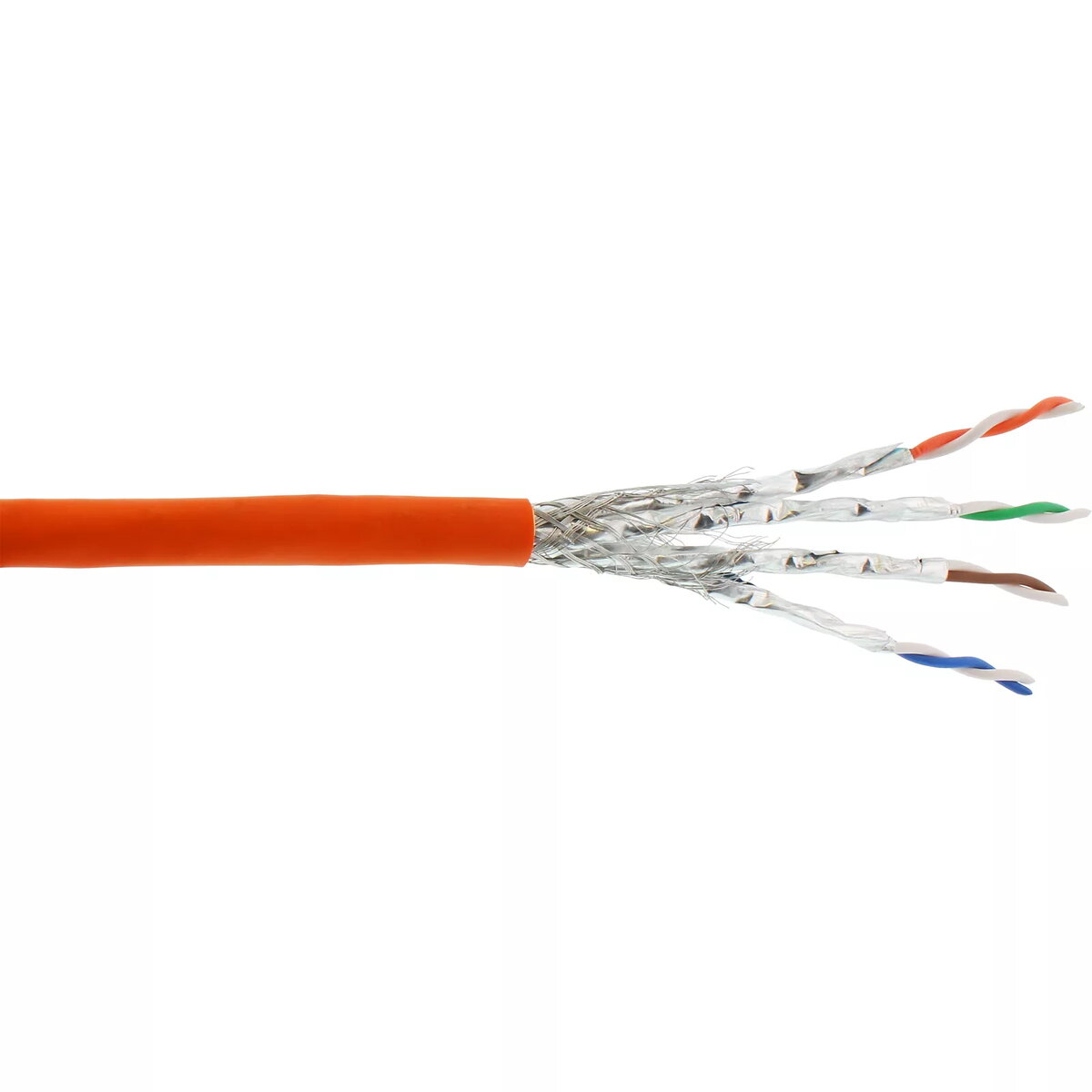

This network cable offers exceptional signal integrity and minimizes electromagnetic interference thanks to its S/FTP shielding with pairs in metal foil and overall braided shielding. The use of full copper cores ensures optimal conductivity and long-term reliability. Its halogen-free, low-smoke construction contributes to enhanced building safety by reducing toxic gas emissions in the event of a fire. The B2ca fire rating makes it suitable for installations subject to strict building regulations. Additionally, the 10-meter length is practical for specific connecting tasks and smaller installation segments within structured networks.

Suitable for

  • High-speed local area networks supporting up to 10 Gbit/s data rates
  • Professional structured cabling in office and commercial buildings
  • In-wall and under-floor network installations requiring halogen-free cables
  • Connecting network components in environments with high electromagnetic interference

This specific length may not be suitable for long-distance backbone connections or large-scale building installations that require continuous cable runs exceeding 10 meters without intermediate connections.

Key specifications

  • Cable length: 10 m
  • Cable standard: Cat7a
  • Cable shielding: S/FTP (S-STP)
  • Conductor structure: 4x2x0.58 AWG23
  • Maximum frequency: 1200MHz
  • Data transfer rate: Up to 10000 Mbit/s
  • Conductor material: Full copper
  • Sheath material: Halogen-free LSZH
  • Fire rating: B2ca
  • Cable shape: Round
  • Sheath colour: Orange

Proper installation requires careful handling to maintain the integrity of the cable shielding and to avoid exceeding the minimum bending radius during routing. Ensure that the cable is installed within the specified temperature range and connected using compatible Cat.7a or higher termination components such as patch panels, keystones, or termination boxes to achieve full performance capabilities.

What to consider before purchase

  • Verify that the 10-meter length is sufficient for your specific routing path and distance requirements
  • Check compatibility with your existing network hardware and termination modules
  • Confirm building regulations regarding fire rating requirements for your installation site

For optimal performance, always route the InLine Cat.7a installation cable away from high-voltage electrical power lines to minimize potential signal interference, and ensure proper grounding of the shielding system during installation.

Specifications

Cable shape:
Round
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
No
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
No
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
No
Cable shielding: The protective layer for the cable, typically made of plastic.
S/FTP (S-STP)
Cable standard: The category of the cable, which is determined by performance characteristics and test requirements.
Cat7a
Cable length: How long the cable is.
10 m
All features

Other features

Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
10 x 10000 x 10

Packaging data

Package type: The type of product package e.g. box.
Box
Package volume:
4500 cm³
Package weight: Weight of the packaged product.
719 g
Package height: The distance from the top to the bottom of the packaging.
100 mm
Package depth: The distance from the front to the back of the packaging.
210 mm
Package width: The distance from one side of the packaging to the other.
210 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.58 kg
Outer diameter:
7.8 mm
Height: The measurement of the product from head to foot or from base to top.
10 mm
Depth: The distance from the front to the back of something.
10000 mm
Width: The measurement or extent of something from side to side.
10 mm

Operational conditions

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 50
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60

Features

Frequency:
1200 MHz
Data transfer rate: Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
10000 Mbit/s
AWG wire size:
23
Cable fire class:
B2ca
Conductor material:
Copper
Cable shape:
Round
Jacket material:
Low smoke zero halogen (LSZH)
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.
No
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.
No
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
No
Product colour: The colour e.g. red, blue, green, black, white.
Orange
Cable shielding: The protective layer for the cable, typically made of plastic.
S/FTP (S-STP)
Cable standard: The category of the cable, which is determined by performance characteristics and test requirements.
Cat7a
Cable length: How long the cable is.
10 m
