InLine Installation cable Cat.7a S/FTP PiMF 4x2x0.58 AWG23 1200MHz 100m

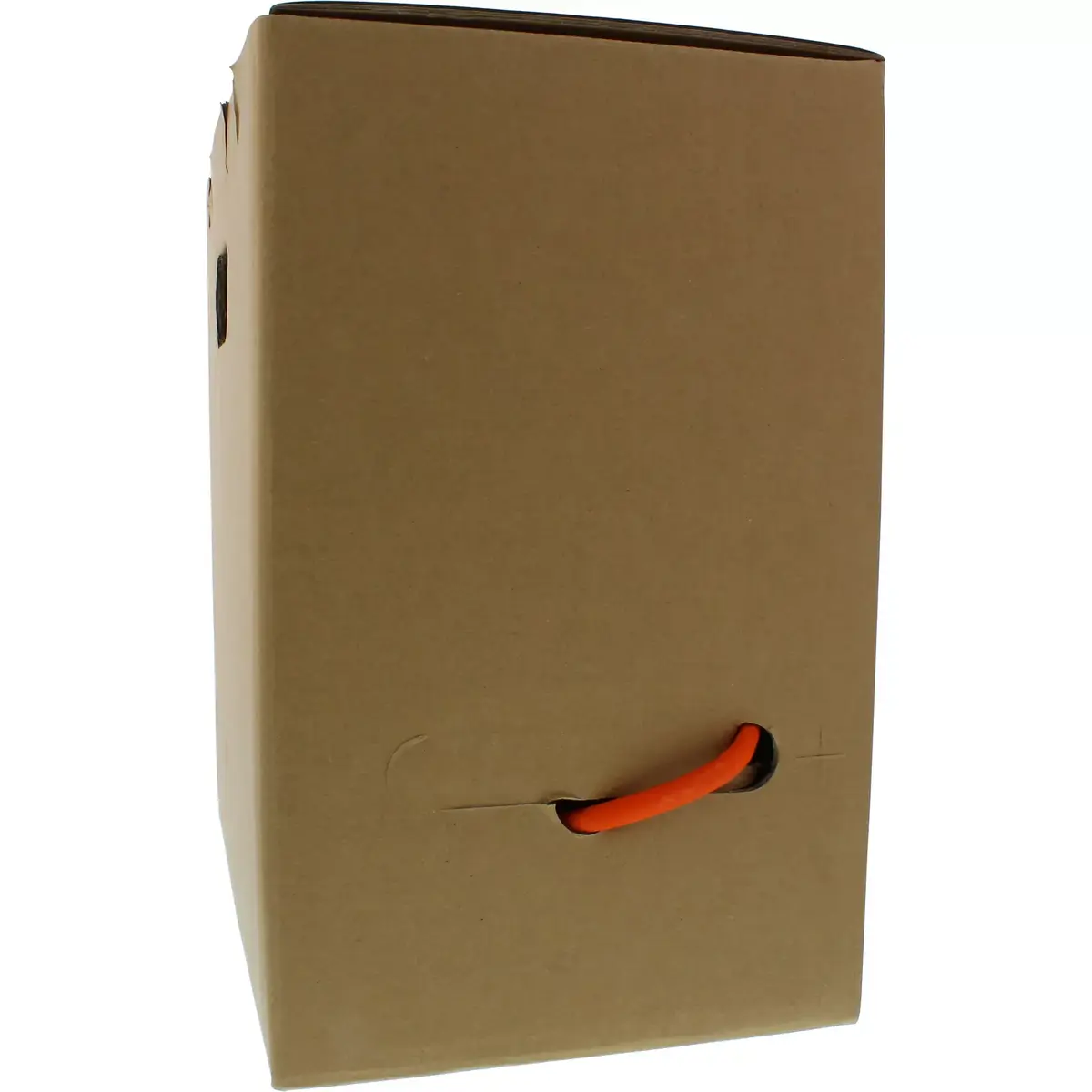

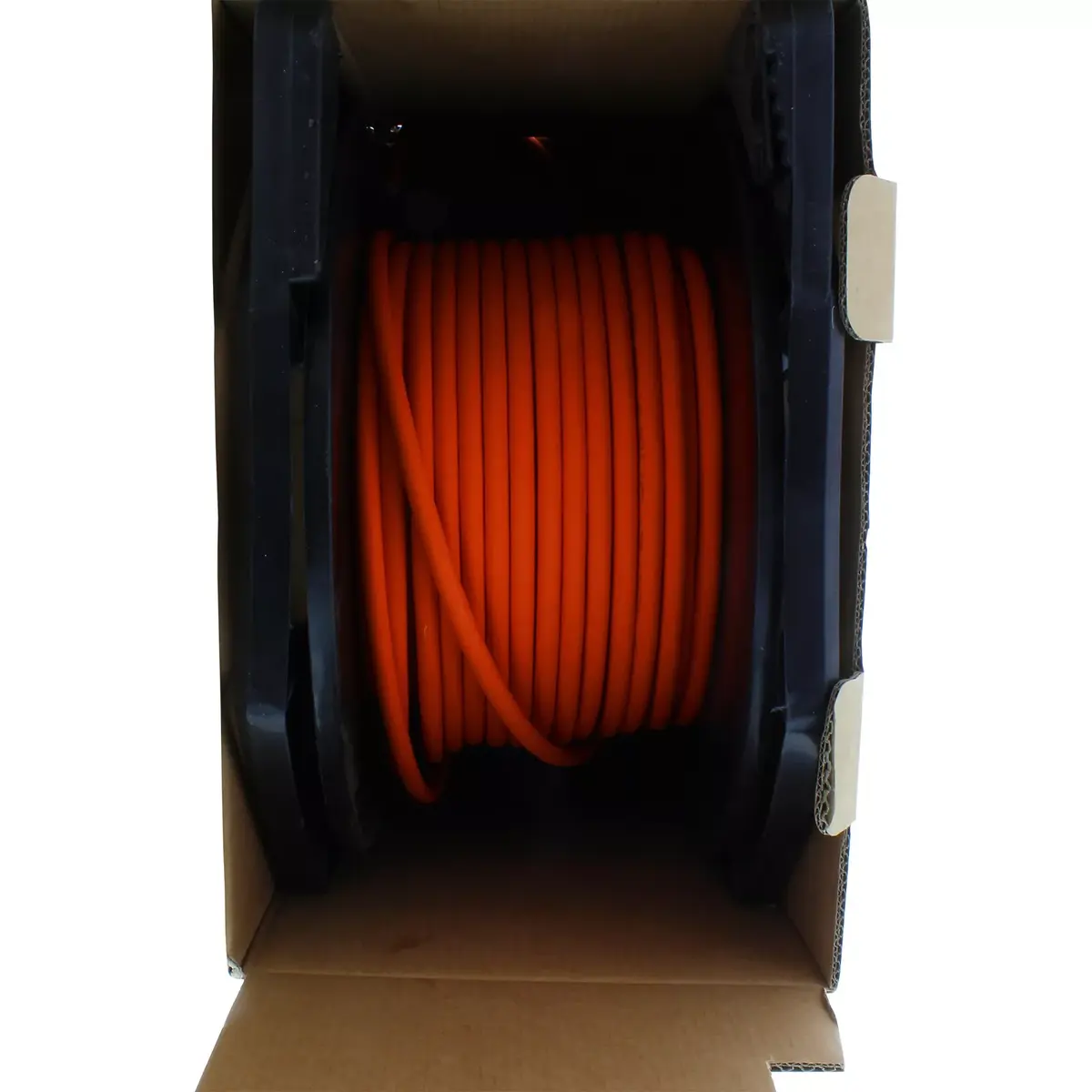

The InLine installation cable Cat.7a S/FTP PiMF 4x2x0.58 AWG23 (100 m) is supplied on a plastic reel secured inside a reinforced cardboard drum box to allow easy, tangle-free removal of the required length. The orange-sheathed, full-copper cable is designed for installation use and supports frequencies up to 1200 MHz and data rates up to 10 Gbit/s. The reel box includes a remaining-metre indication on the cable and fire behaviour classification B2ca according to EN 50575:2014/A1:2016.

Advantages

The drum box enables cost reduction through simple handling on site without additional unwinding devices, offers handy and stackable packaging for convenient transport in construction vehicles, and has a low weight suitable for parcel shipment. The cardboard-reinforced box prevents soiling and transport damage that can occur with loose cable rolls and reduces cutting costs for small quantities. Remaining-metre marking on the cable simplifies length measurement during installation.

Suitable for

• High-speed network installations in offices and data centres
• Structured cabling and backbone runs up to 10 Gbit/s
• Professional installation projects requiring protected transport and easy unwinding

Key specifications

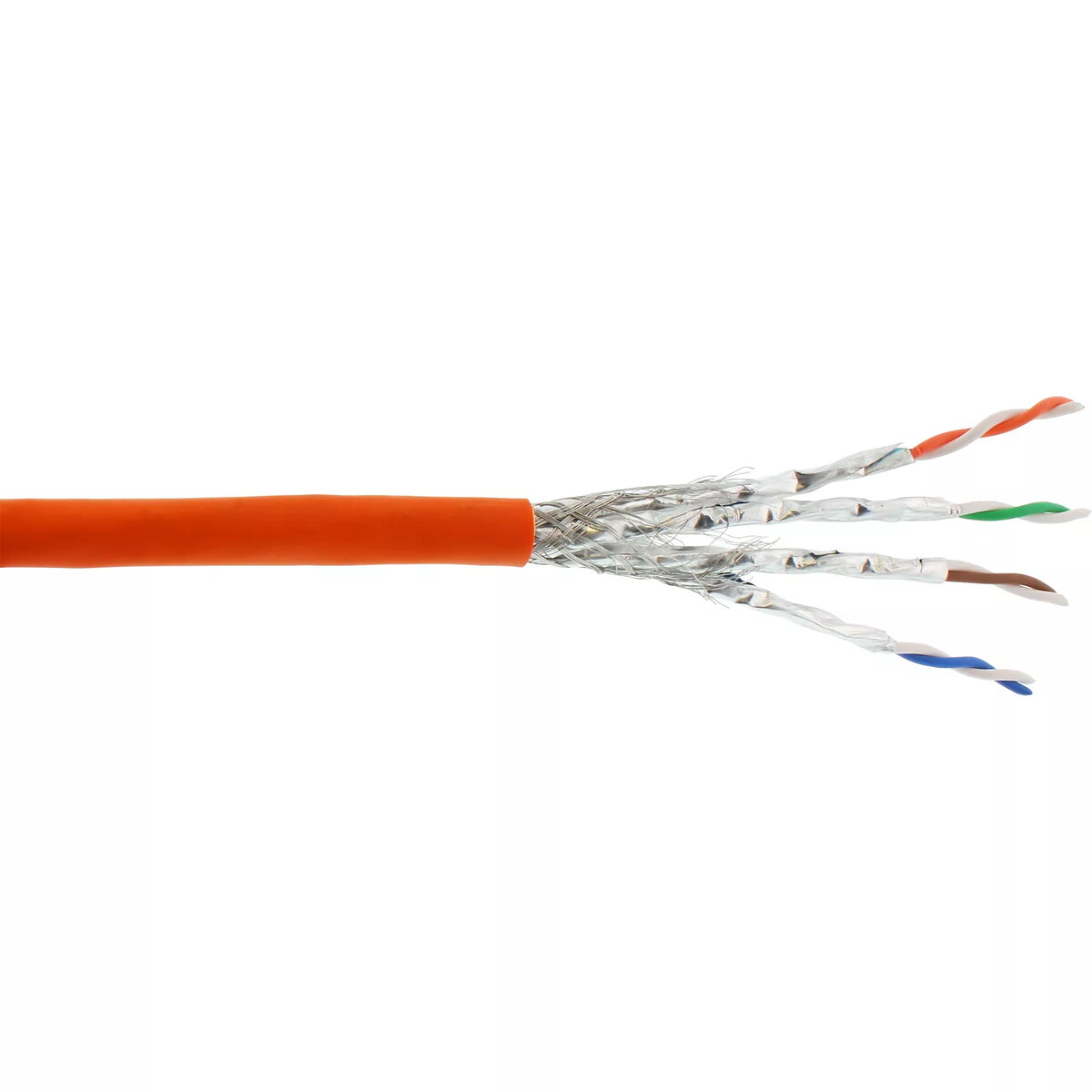

• Type: Installation cable, Cat.7a S/FTP PiMF
• Conductor: 4x2x AWG23 (0.58 mm core), full copper cores
• Bandwidth: up to 1200 MHz
• Data rate: suitable up to 10 Gbit/s
• Impedance: 100 Ω
• DC resistance: max. 93.8 Ω/km
• Shielding: pairs in metal foil (PiMF) with overall braided shielding
• Sheath: halogen-free (LSZH), colour: orange
• Cable diameter: approx. 7.8 mm
• Temperatures: installation 0 to 50 °C; operating -20 to 60 °C; storage -20 to 50 °C
• Packaging: plastic reel fixed in reinforced cardboard drum box; remaining metre indication on cable
• Fire behaviour: B2ca (EN 50575:2014/A1:2016)
• Available drum/box lengths: 10 m, 25 m (box), 50 m, 100 m, 300 m (drum box); 500 m delivered on drum
