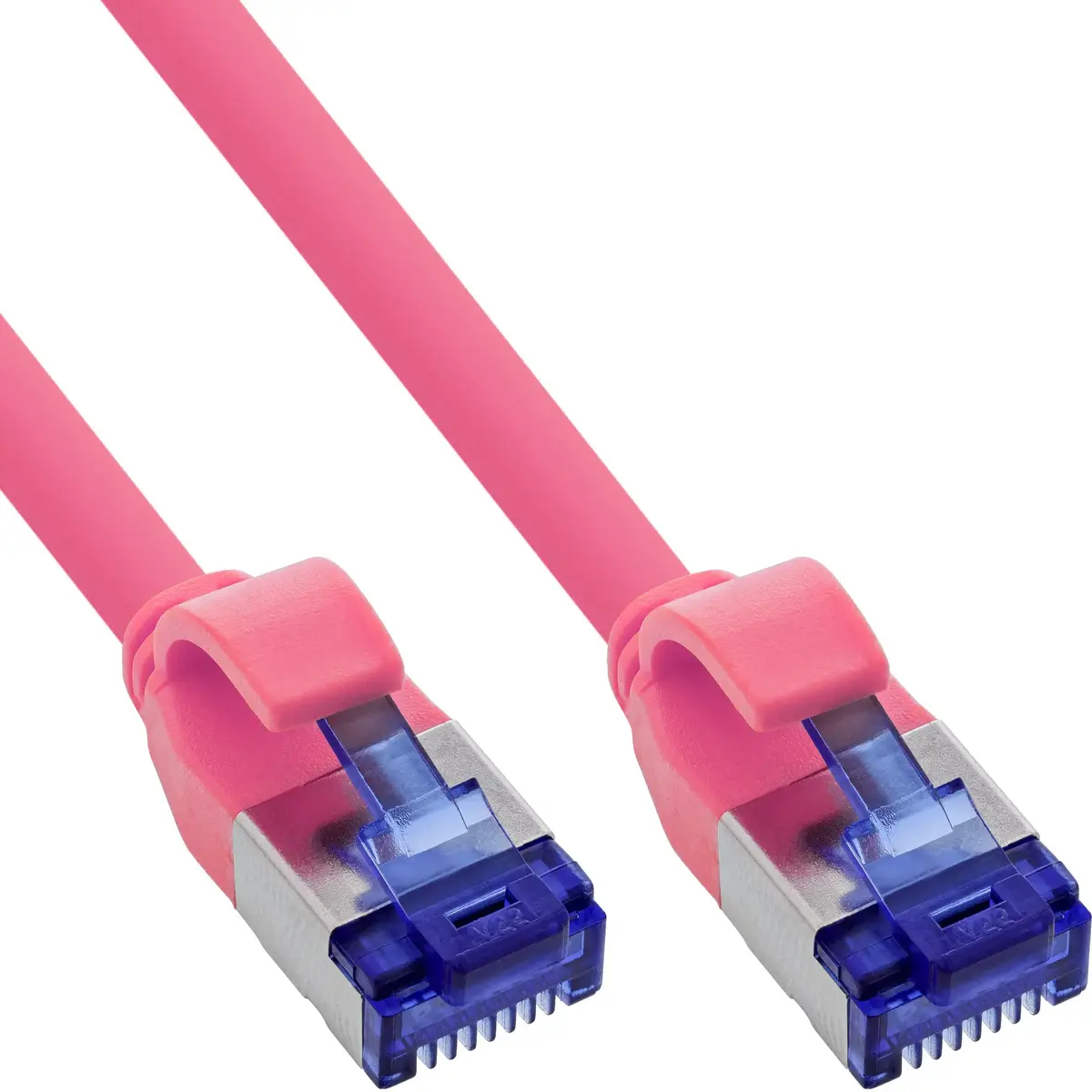

InLine 74925M networking cable Magenta 25 m Cat6a S/FTP RJ-45

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 74925M networking cable features a length of 25 m and adheres to the Cat6a standard. It has S/FTP shielding and RJ-45 connectors with gold plating, ensuring high data transfer rates of up to 10000 Mbit/s. The cable is ideal for high-speed network connections in various settings.

Available for order: 24 pcs.

Warranty: 2 Years

SKU: 11572733

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.56 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

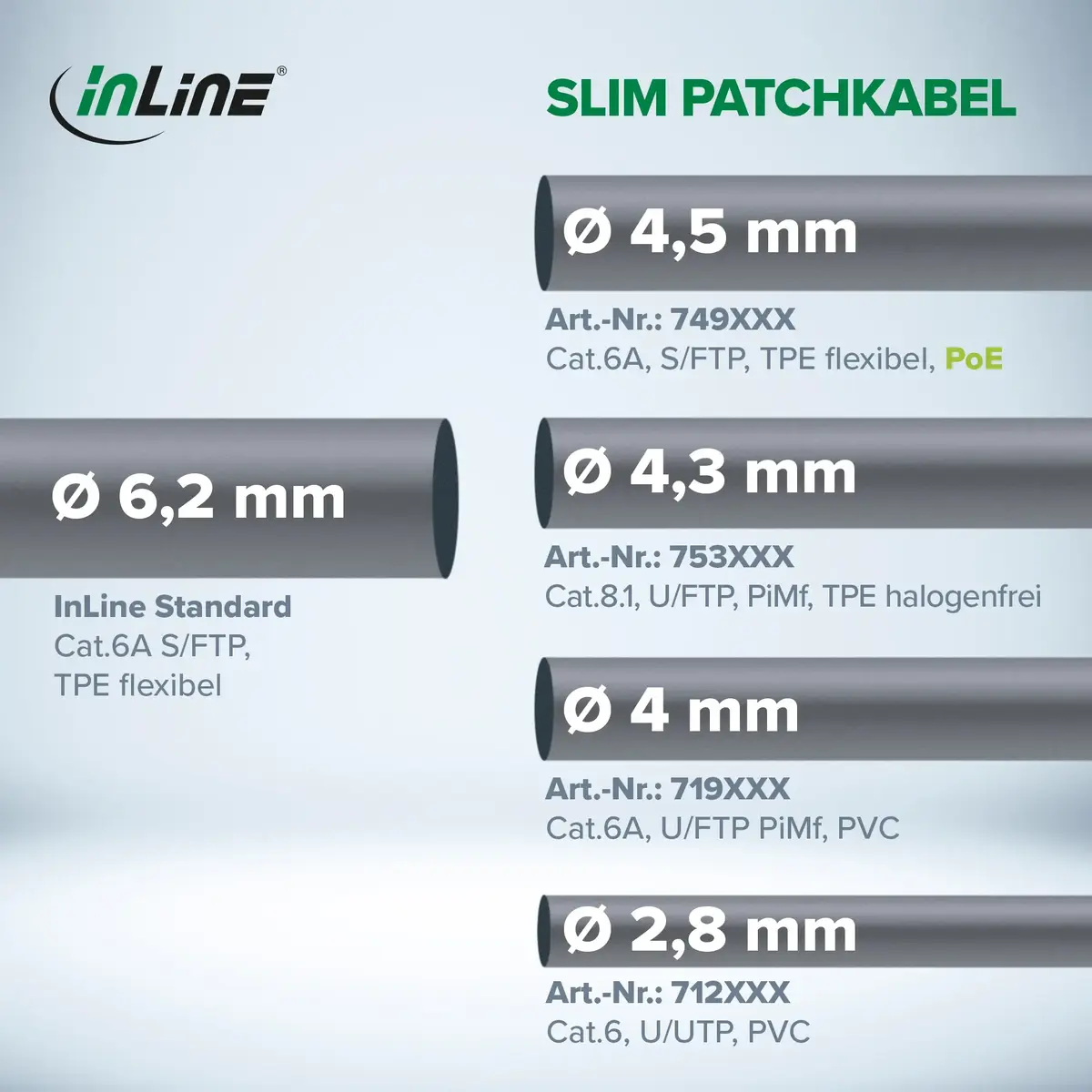

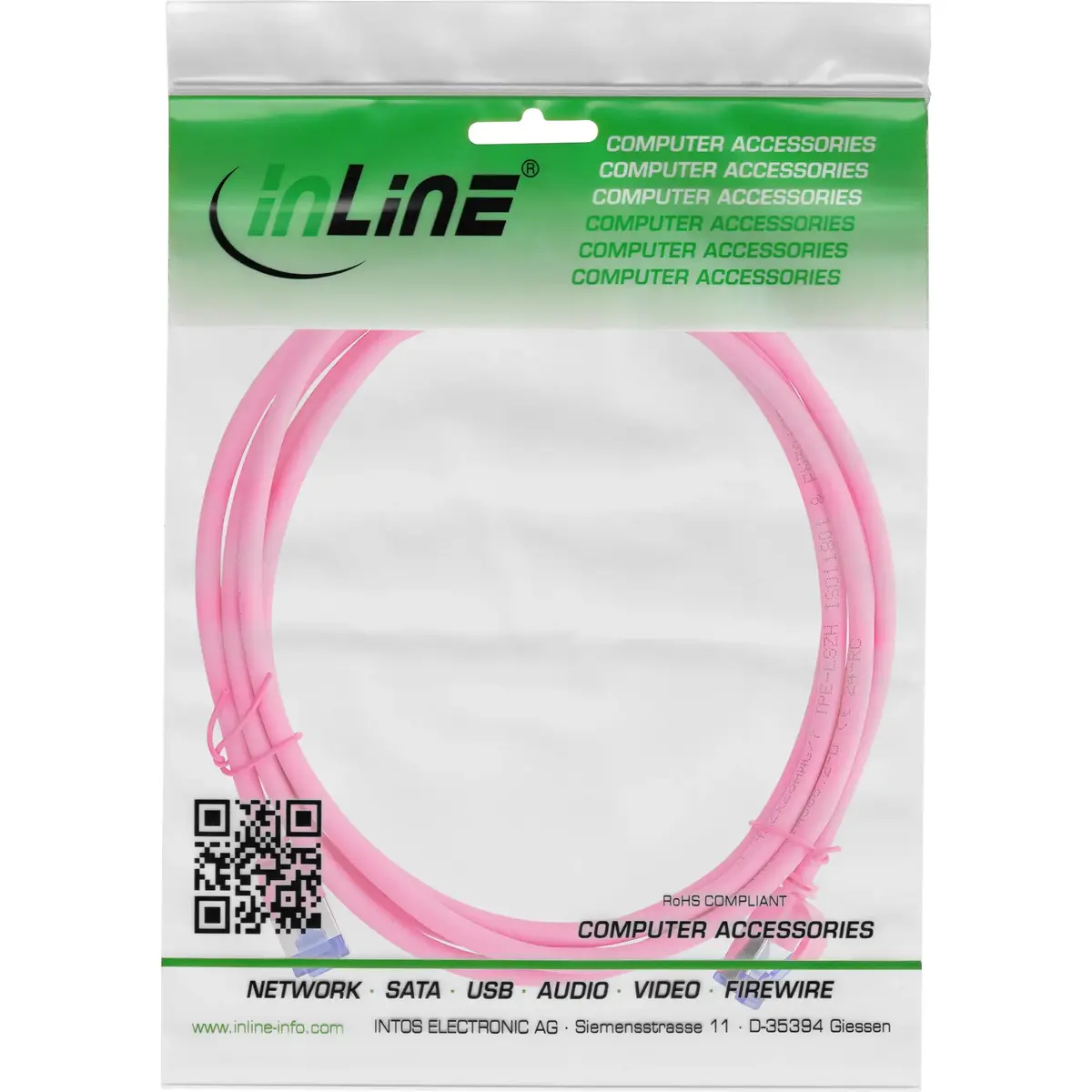

The InLine 74925M is a 25 m slim Cat.6A S/FTP patch cable with RJ‑45 connectors designed for high-density network installations. Its AWG28 copper conductors and double shielding deliver full Cat.6A performance up to 500 MHz and support data rates up to 10 Gbit/s over distances up to 30 metres. The slim design reduces required space by around 40% compared with conventional AWG26 patch cables and improves airflow in network cabinets. The TPE (LSZH) jacket is halogen-free and flame-retardant, producing minimal smoke in case of fire. The cable supports PoE up to 87 watts (4PPoE) and uses a 1:1 wiring according to T568B. The product comes with moulded RJ‑45 plugs, a blue-coloured plug for differentiation, and a magenta jacket for easy identification.

Advantages

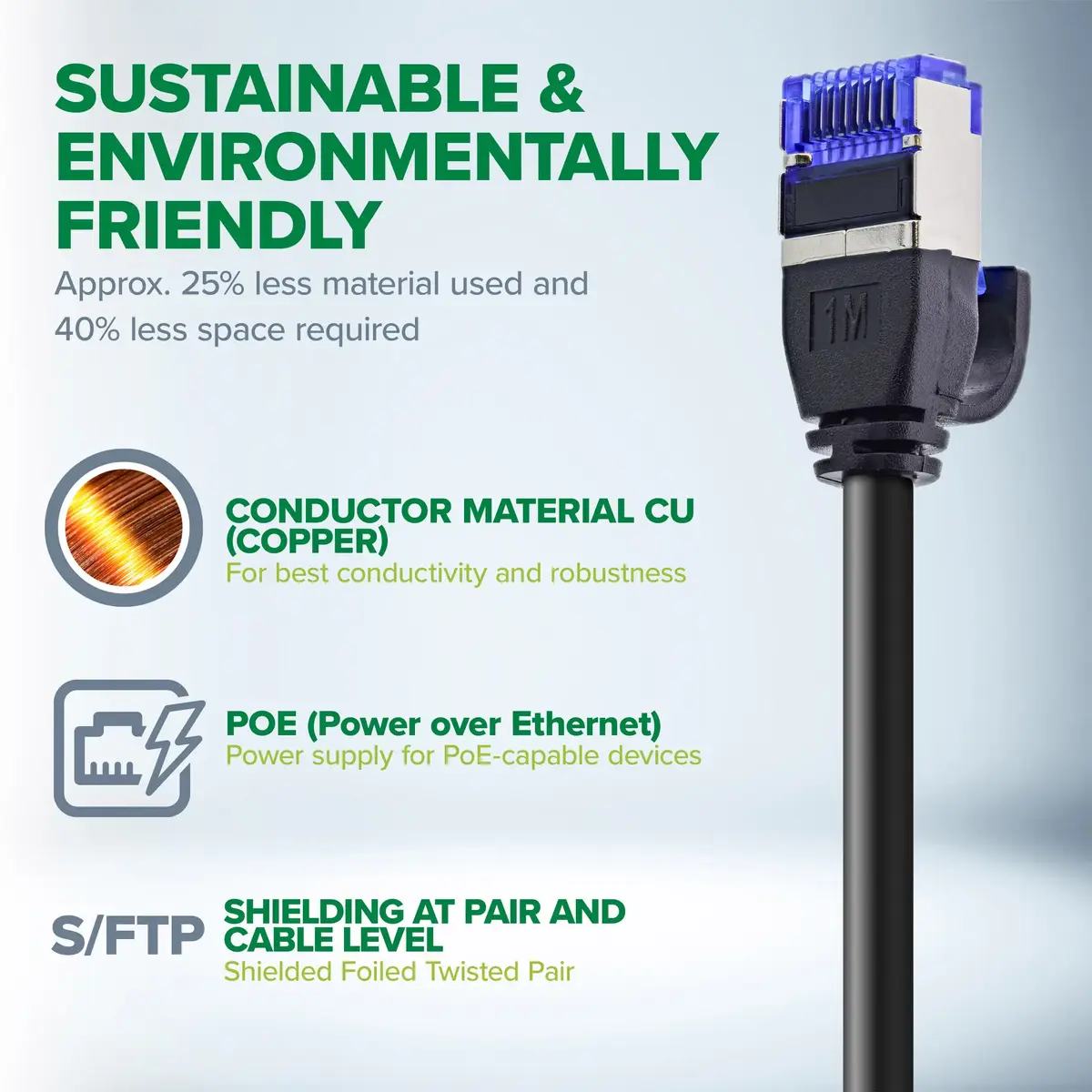

This slim Cat.6A S/FTP cable provides high transmission quality with high-quality copper conductors and reliable S/FTP shielding to minimize electromagnetic interference. Its reduced diameter enables significantly higher port density in cabinets and server rooms while lowering material usage and transport costs. The TPE LSZH sheath combines flexibility with improved fire safety and low smoke emission. PoE support up to 87 watts allows powering devices such as IP cameras and access points without separate power supplies.

Suitable for

High-density network cabinets and server rooms
10 Gigabit Ethernet connections up to 25–30 m
PoE-powered devices (IP cameras, access points, VoIP phones) requiring up to 87 W
Environments with limited cable routing space or narrow cable management paths

Key specifications

Product name: InLine 74925M
Length: 25 m
Standard: Cat.6A, up to 500 MHz

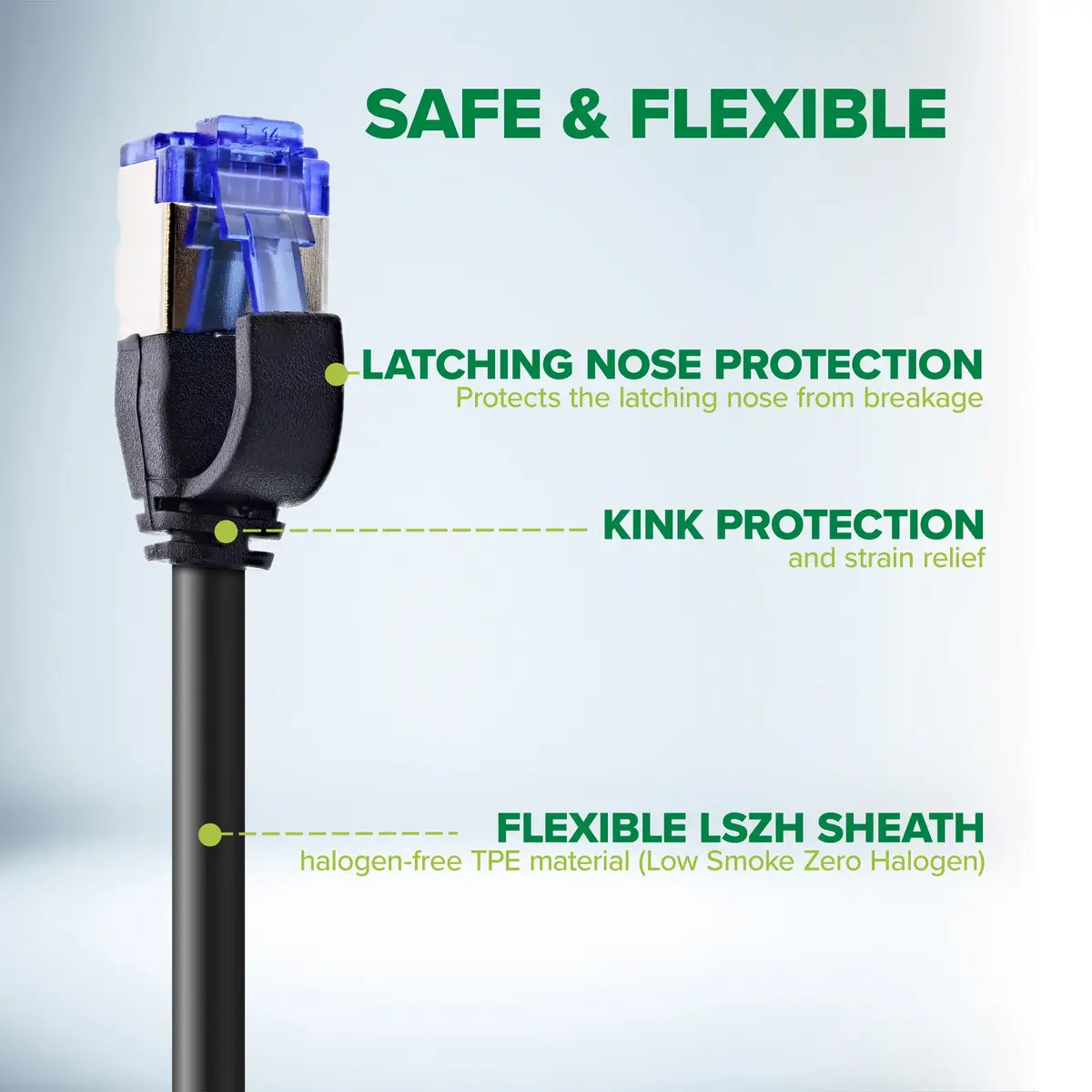

Connections: RJ‑45 straight male – RJ‑45 straight male, moulded with latching nose protection
Cable construction: S/FTP (pair and overall shielding)
Conductor material and gauge: Pure copper, AWG28
Sheath material: TPE (LSZH – Low Smoke Zero Halogen)

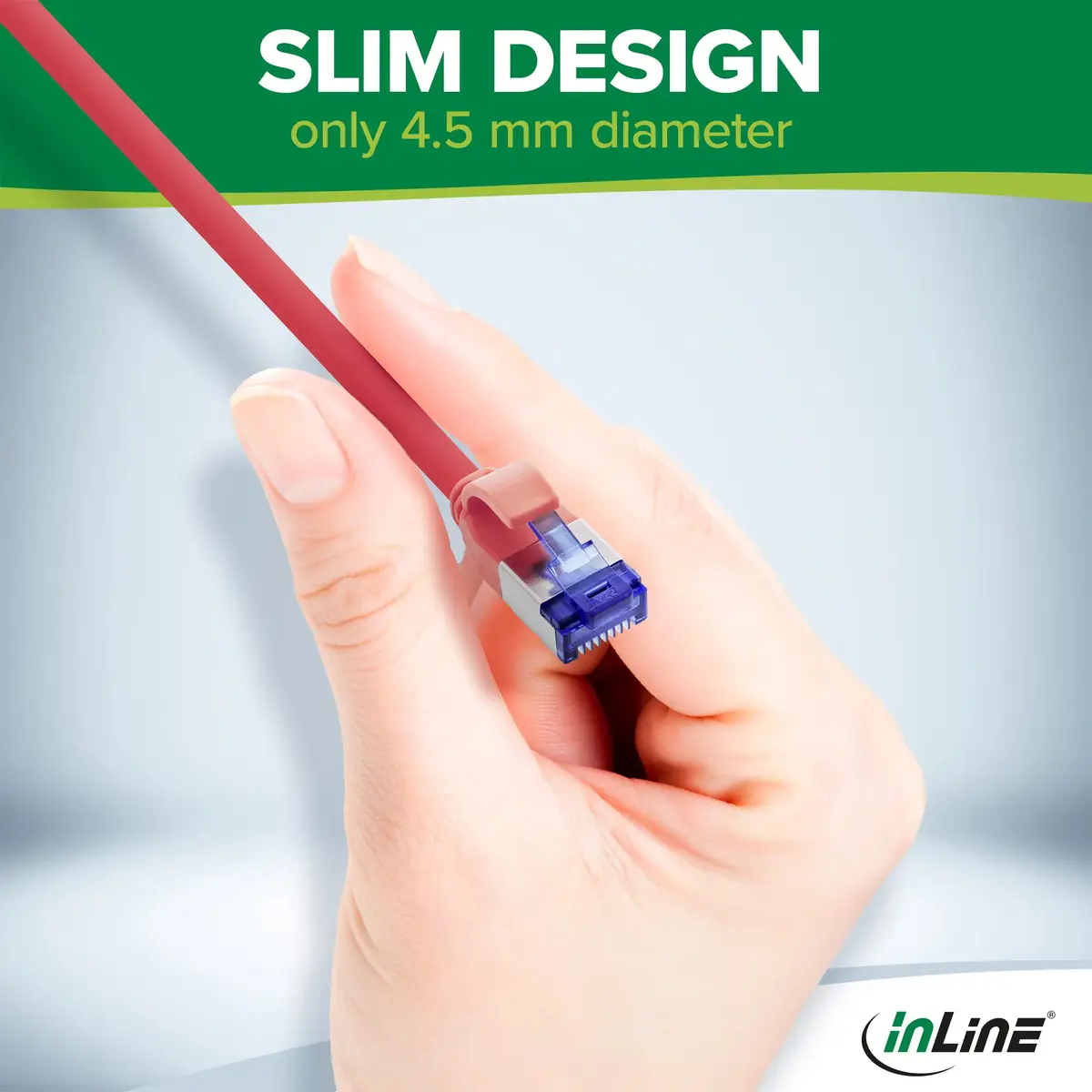

Outlet diameter: 4.1 mm
Wiring: 1:1 according to T568B
PoE support: Yes, up to 87 watts (4PPoE)
Operating temperature: -20 to +75 °C

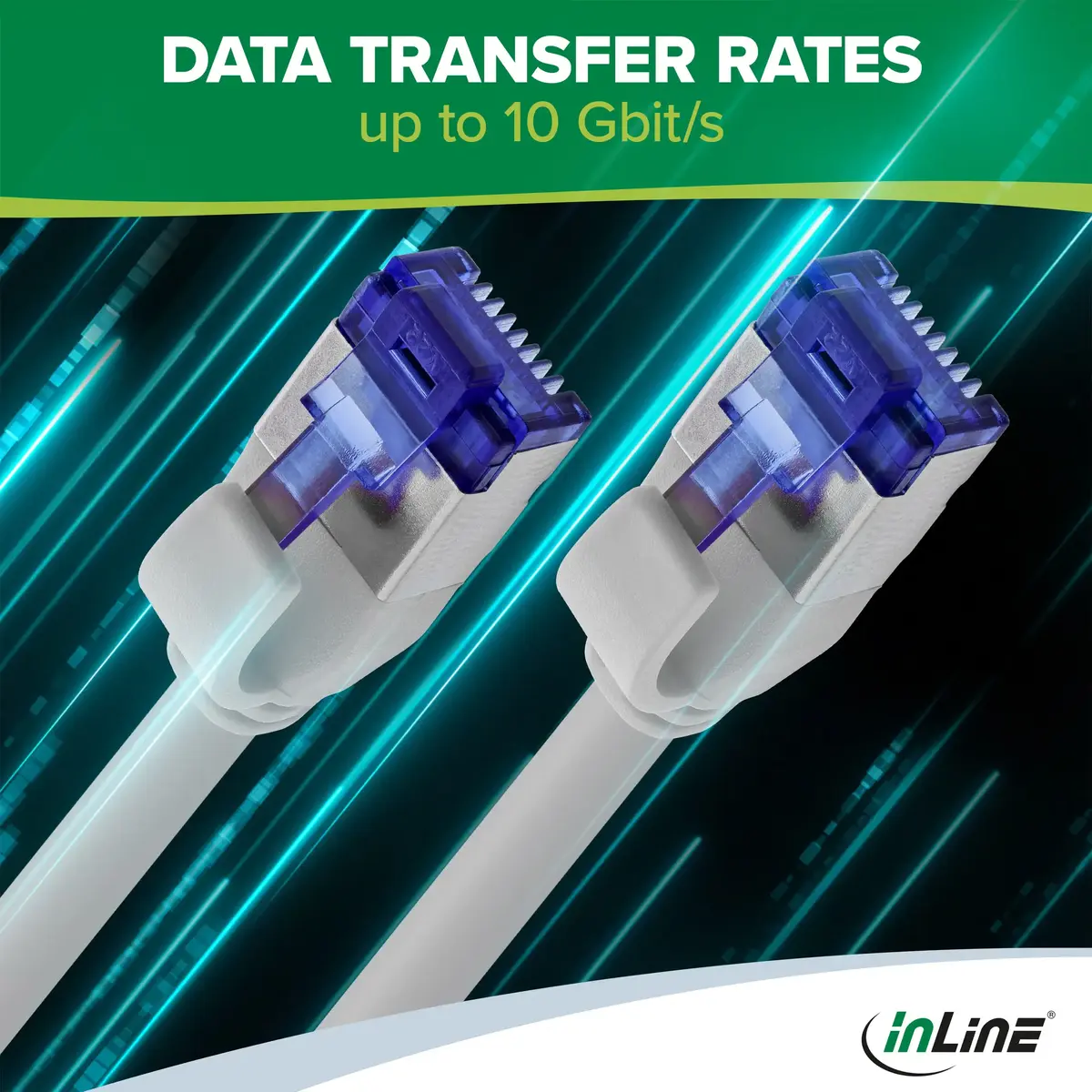

Data rates: up to 10 Gbit/s

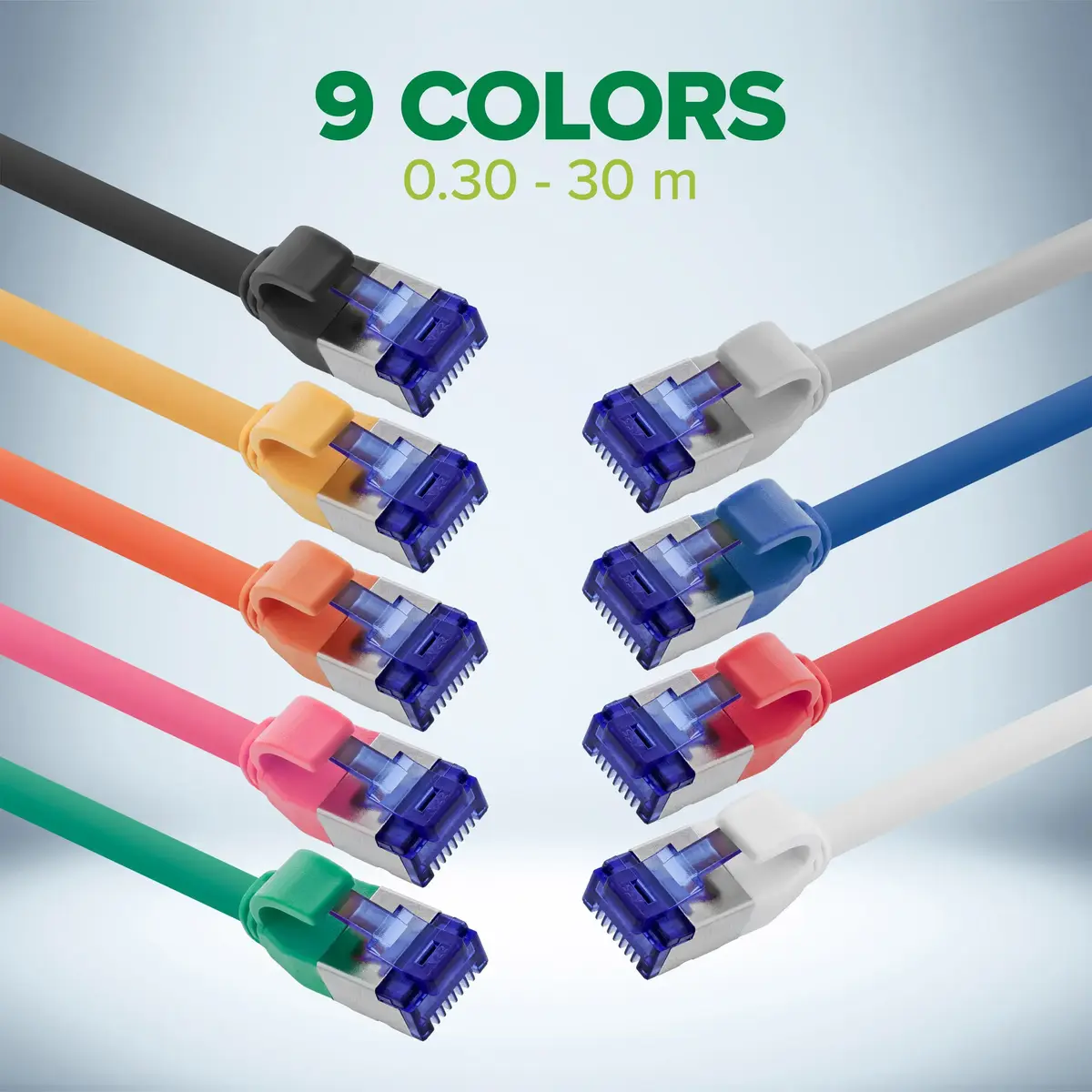

Colour: Magenta (with blue coloured plug for differentiation)

How to use

Connect the moulded RJ‑45 plug to the network ports of switches, routers or end devices following the 1:1 T568B wiring. Route the slim cable through cable management channels or cabinet panels, taking advantage of its small diameter and flexibility to fit narrow paths. Ensure connectors are fully inserted until the latch clicks and test the link with appropriate network testing tools to verify Cat.6A performance and PoE power delivery.

Usage recommendations

For optimal performance, avoid sharp bends and maintain the recommended minimum bend radius; keep cable runs under 30 metres for guaranteed 10 Gbit/s performance. Use in enclosed spaces benefits from the LSZH jacket. When deploying PoE devices, verify switch or injector capability for 4PPoE and required wattage before installation.

Specifications

Cable length:: 25 m
Connector 1:: RJ-45
Connector 2:: RJ-45
Cabling technology:: 10GBase-T
Weight:: 0.54 kg
Product colour:: Magenta

All features

Features

Cable length:: 25 m
Connector 1:: RJ-45
Connector 2:: RJ-45
Cabling technology:: 10GBase-T
Product colour:: Magenta
Plug and Play:: Yes
Data transfer rate:: 10000 Mbit/s
Connector contacts plating:: Gold
Jacket material:: Thermoplastic Elastomer (TPE), Low smoke zero halogen (LSZH)
Cable standard:: Cat6a
AWG wire size:: 28
Cable shielding:: S/FTP (S-STP)
Conductor material:: Copper
Molded cable boot:: Yes
Power over Ethernet (PoE):: Yes
Country of origin:: Taiwan
Ethernet interface type:: Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Connector 1 form factor:: Straight
Connector 2 form factor:: Straight
Connector 1 gender:: Male
Connector 2 gender:: Male
Power over Ethernet (PoE) type supported:: PoE++ (4PPoE), PoE+
Cable shape:: Round

Weight & dimensions

Weight:: 0.54 kg
Height:: 120 mm
Width:: 150 mm
Depth:: 250000 mm
Outer diameter:: 4.5 mm

Operational conditions

Storage temperature (T-T):: -20 - 75
Operating temperature (T-T):: -20 - 75

Packaging data

Package weight:: 560 g
Package type:: Polybag

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: RoHS, REACH, CE
