header-product InLine Patch panel 76818A Cat.6A 0.5U 8-port RJ45 grey with dust protection for table wall and rail mounting
29.49 €

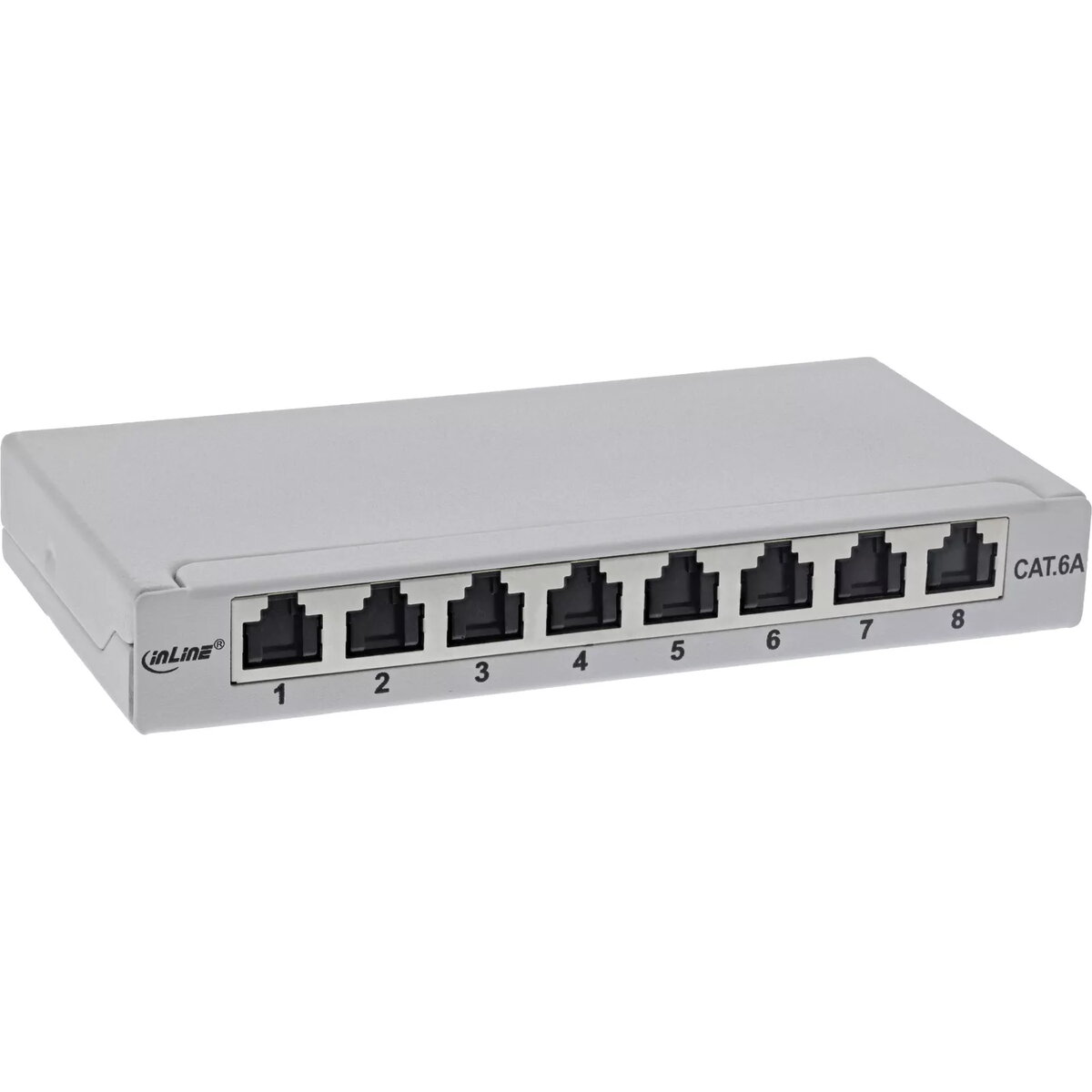

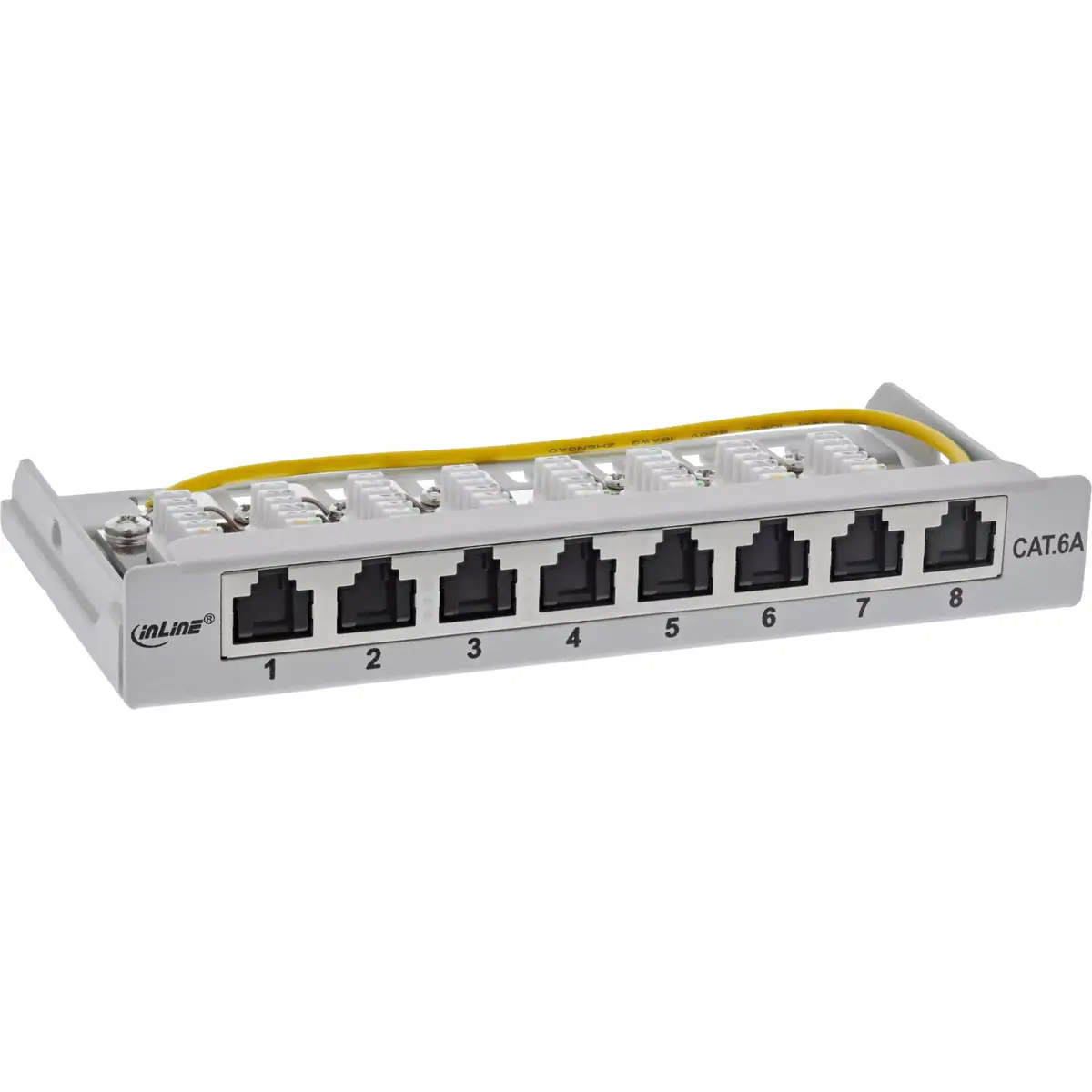

InLine Patch panel 76818A Cat.6A 0.5U 8-port RJ45 grey with dust protection for table wall and rail mounting

InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 1
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 2
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 3
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 4
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 5
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 6
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 1
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 2
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 3
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 4
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 5
InLine 76818A Cat.6A 0.5U 8-Port Patch Panel Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Patch panel 76818A Cat.6A 0.5U 8-port RJ45 grey with dust protection for table wall and rail mounting

{{email}}
You keep track of price changes

InLine Patch panel 76818A Cat.6A 0.5U 8-port RJ45 grey with dust protection for table wall and rail mounting

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine Cat.6A patch panel model 76818A featuring 8 RJ45 ports and a compact 0.5U rack capacity. Designed for flexible table, wall, or DIN rail mounting, this grey network panel includes integrated dust protection to ensure reliable cable connections in professional structured cabling systems and data networks.
Available at price 29.49 €: 79 pcs.
Total available for order: 158 pcs.
Warranty: 2 Years
SKU: 10545195
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
24.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
27.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.45 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
27.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Patch panel 76818A Cat.6A 0.5U 8-port RJ45 grey with dust protection for table wall and rail mounting is a compact network solution designed for professional structured cabling systems and data networks. Featuring eight RJ45 ports in a space-saving 0.5U form factor, this fully shielded patch panel enables organized cable management and reliable signal transmission in environments with limited space.

Advantages

This network panel offers exceptional installation flexibility through its support for table, wall, and DIN rail mounting, making it suitable for diverse technical environments. The slim design with a height of only 22 mm optimizes rack space while accommodating up to eight installation cables connected via LSA insulation displacement connectors. Integrated dust protection flaps safeguard the RJ45 contacts from debris when cables are disconnected, and the screwless enclosure design simplifies access during setup and maintenance.

Suitable for

  • Small office and home office network installations
  • Structured cabling systems requiring high-density Cat.6A performance
  • Desktop, wall-mounted, and DIN rail network distribution setups

This patch panel may not be suitable for large-scale enterprise data centers that require high-port-count modular patch panels exceeding eight ports per unit, or for unshielded cabling environments where fully shielded Cat.6A infrastructure is unnecessary.

Key specifications

  • Cat.6A performance according to IEC 60603-7-5

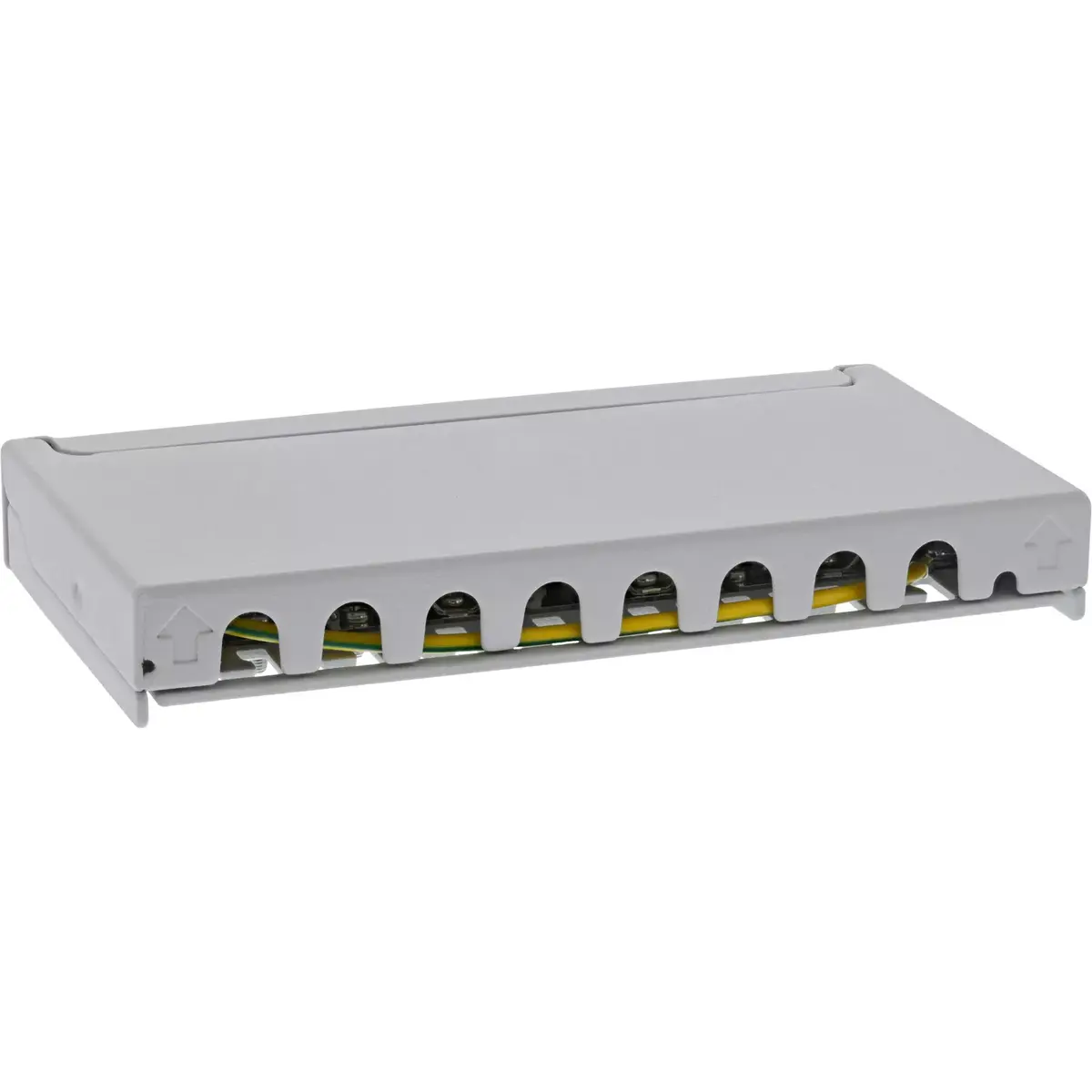

  • 8 RJ45 ports with integrated inward-folding dust protection
  • 0.5U rack capacity and slim profile
  • LSA cutting terminals for installation cables
  • TIA/EIA-568A/B color coding with cable strain relief

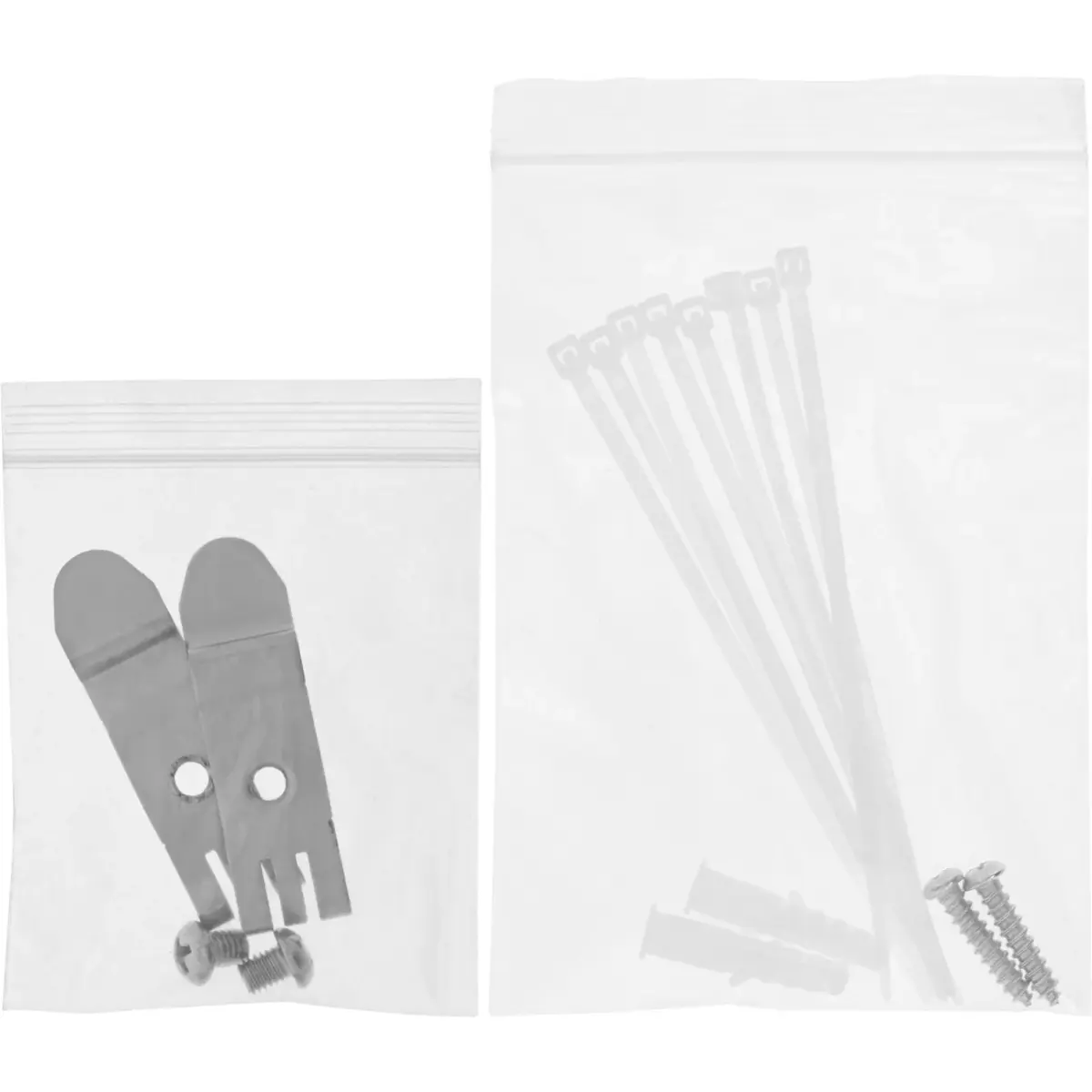

  • Includes earthing cable and mounting hardware
  • Dimensions: 80 x 158 x 22 mm
  • Colour: Grey

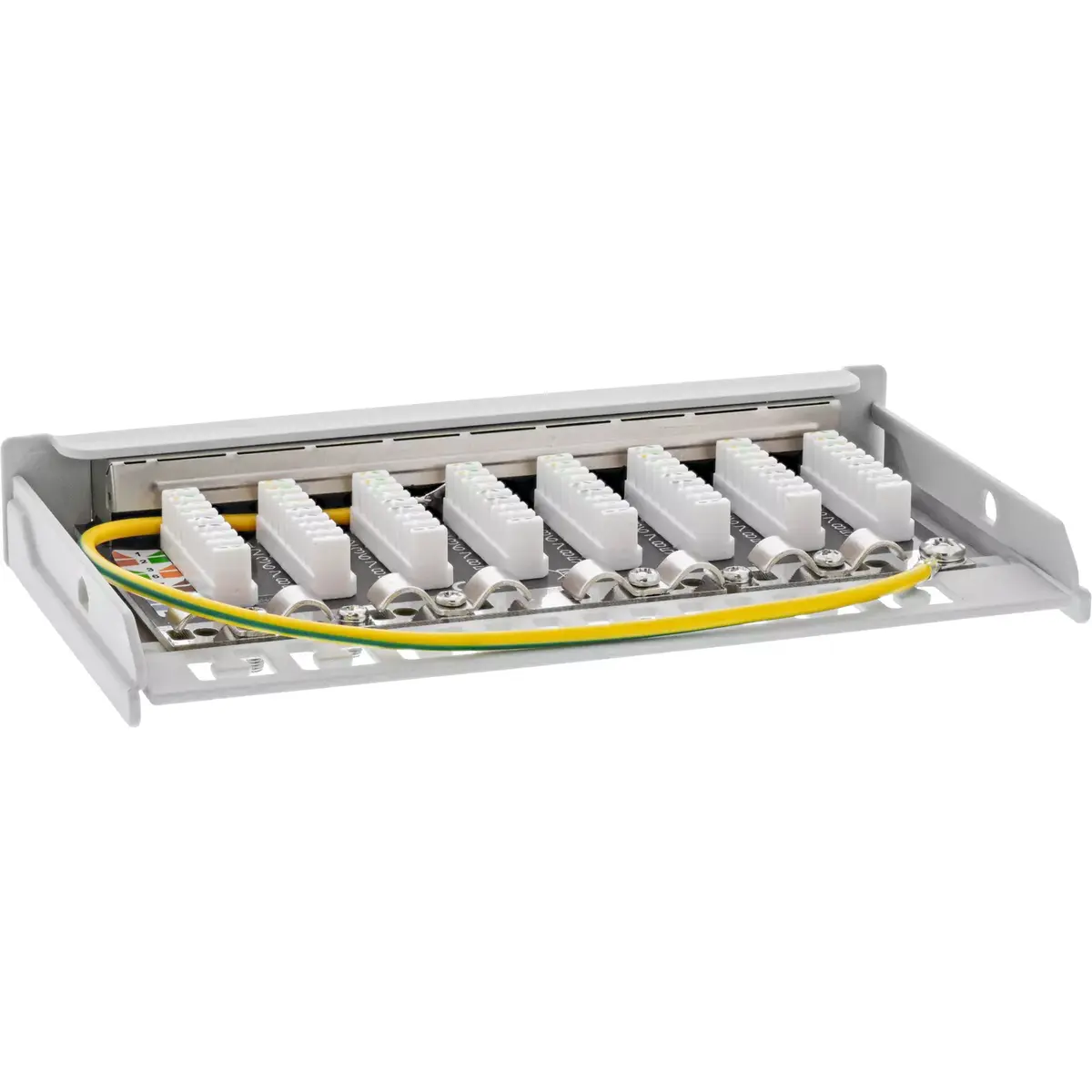

Installation cables are connected to the rear using LSA insulation displacement connectors following TIA/EIA-568A or TIA/EIA-568B color coding. Secure the installation cables using the integrated strain relief features and connect the included earthing cable to ensure proper grounding. The screwless enclosure opens easily for internal access, and the numbered RJ45 ports facilitate accurate cable mapping.

What to consider before purchase

  • Verify available physical space for the 80 x 158 x 22 mm dimensions
  • Confirm compatibility with your existing Cat.6A shielded cabling infrastructure
  • Check whether table, wall, or rail mounting matches your deployment location

Ensure proper cable management and grounding using the provided earthing cable during installation to maintain optimal network performance and signal integrity.

Specifications

Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Wall mounting
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
8
All features

Packaging data

Package type: The type of product package e.g. box.
Box
Package volume:
600 cm³
Package weight: Weight of the packaged product.
451 g
Package height: The distance from the top to the bottom of the packaging.
32 mm
Package depth: The distance from the front to the back of the packaging.
172 mm
Package width: The distance from one side of the packaging to the other.
96 mm

Packaging content

Cable tie(s) included:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.396 kg
Depth: The distance from the front to the back of something.
158 mm
Height: The measurement of the product from head to foot or from base to top.
22 mm
Width: The measurement or extent of something from side to side.
80 mm
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
80 x 158 x 22

Design

Product colour: The colour e.g. red, blue, green, black, white.
Grey
Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Wall mounting

Network

Cable types supported:
Cat6a
Connector(s):
RJ45
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
8

Description

Machine translation.
