header-product InLine Patch panel Cat.6A 0.5U 8-port RJ45 table and wall mounting black RAL9005
34.49 €

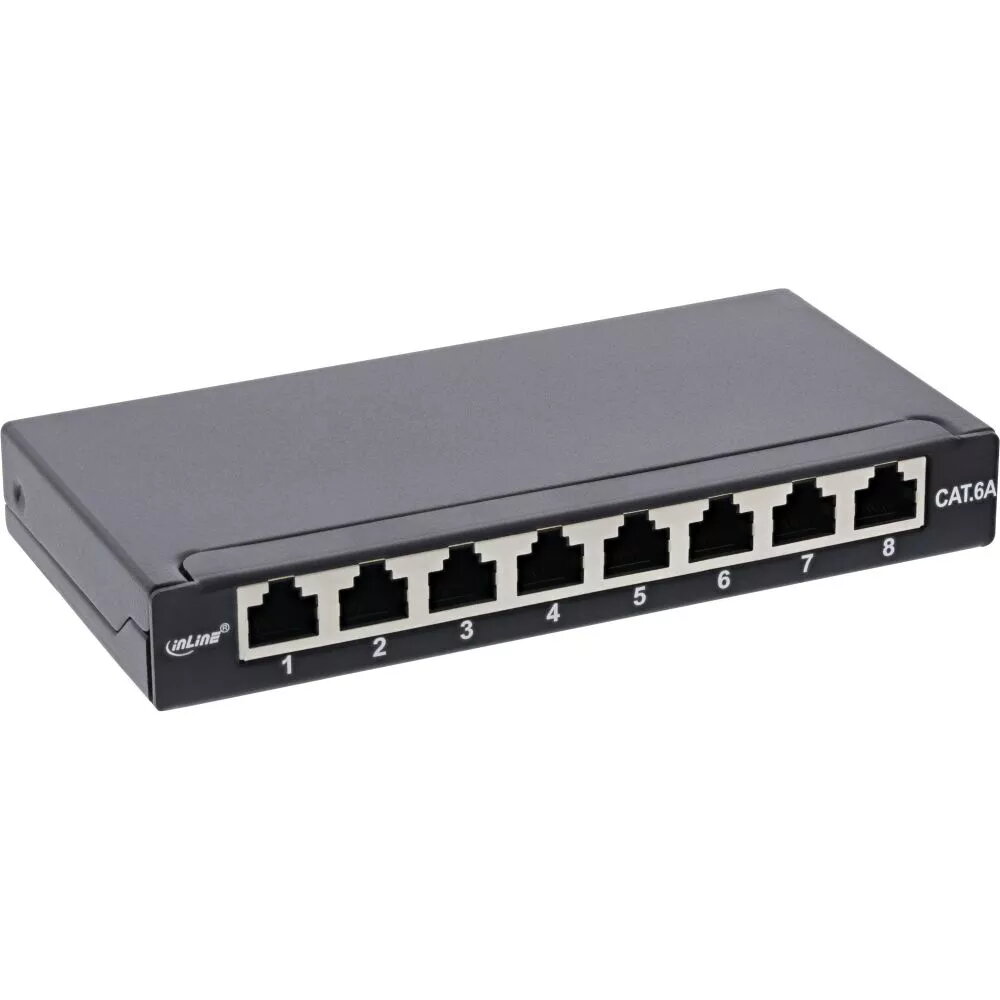

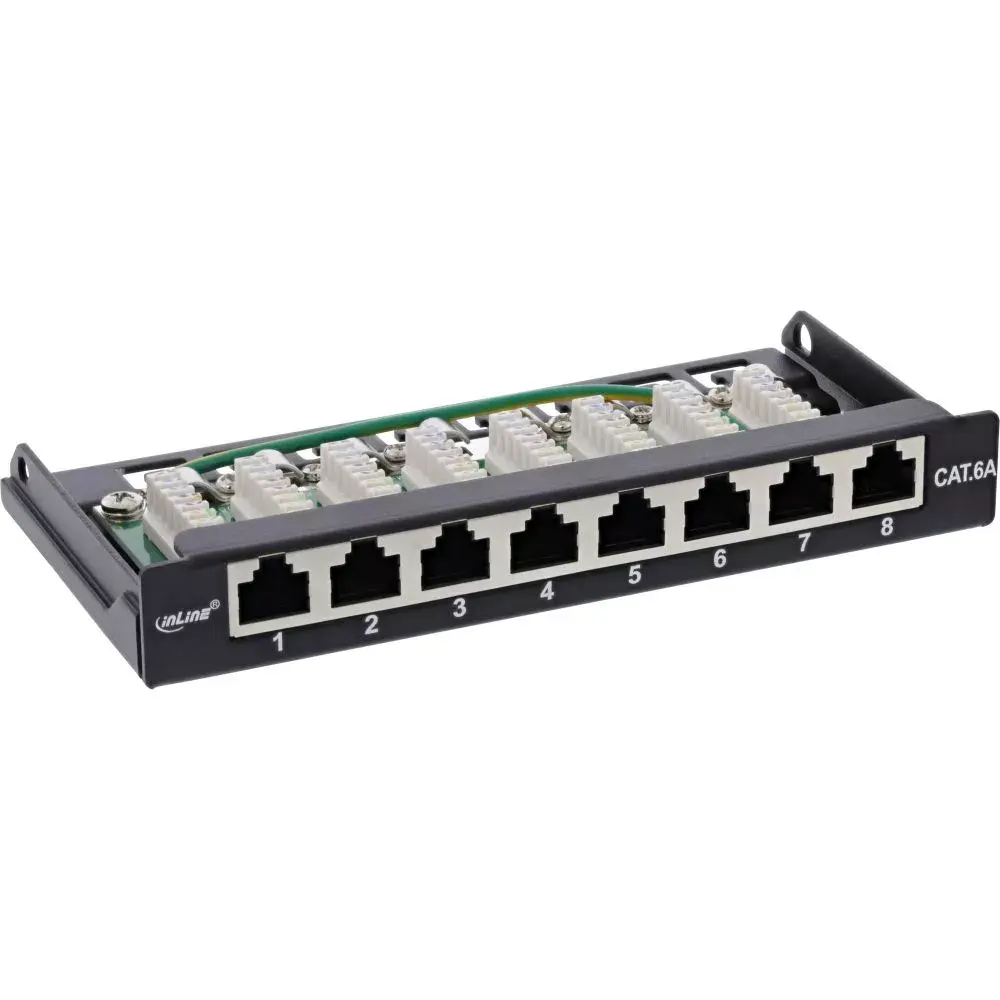

InLine Patch panel Cat.6A 0.5U 8-port RJ45 table and wall mounting black RAL9005

InLine Cat.6A 0.5U 8-Port Patch Panel Photo 1
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 2
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 3
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 4
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 5
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 6
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 1
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 2
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 3
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 4
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 5
InLine Cat.6A 0.5U 8-Port Patch Panel Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Patch panel Cat.6A 0.5U 8-port RJ45 table and wall mounting black RAL9005

{{email}}
You keep track of price changes

InLine Patch panel Cat.6A 0.5U 8-port RJ45 table and wall mounting black RAL9005

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine Cat.6A 0.5U patch panel with 8 RJ45 ports designed for efficient network cable organization and termination. Supports Cat6a cable types and features flexible table or wall mounting options. Certified to IEC 60603-7-5 standards, this compact black RAL9005 unit is ideal for small office network installations and structured cabling systems.
Available at price 34.49 €: 67 pcs.
Total available for order: 134 pcs.
Warranty: 2 Years
SKU: 6770075
free shipment

Cheapest delivery:

Latvijas Pasts nodaļa

Pick-up points

Latvijas Pasts nodaļa

Cost

3.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
01.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
04.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.45 kg)
Parcel couriers
Latvijas Pasts nodaļa
04.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 3.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Patch panel Cat.6A 0.5U 8-port RJ45 table and wall mounting black RAL9005 is a compact and efficient networking solution designed for organized cable management and reliable signal transmission. Featuring eight fully shielded RJ45 ports in a slim 0.5U form factor, this patch panel is engineered to support Cat6a cable types and complies with IEC 60603-7-5 standards. Its versatile design allows for both desktop and wall mounting, making it a practical choice for small office environments and structured cabling systems where space is at a premium.

Advantages

This patch panel offers a space-saving 0.5U profile with a height of only 23 mm, allowing it to fit into compact setups where standard panels may not be suitable. The fully shielded housing protects signals from electromagnetic interference, while the color-coded LSA terminals support straightforward termination according to TIA/EIA-568A and TIA/EIA-568B standards. Integrated cable strain relief and an included earth cable ensure secure installations and stable grounding, complemented by a screwless housing design for straightforward access.

Suitable for

  • Small office and home network installations requiring structured cabling
  • Desktop or wall-mounted network organization for up to eight cables
  • Cat6a shielded network environments

When it may not be suitable

This patch panel may not be suitable for large-scale enterprise data centers or server rooms that require high-density port configurations exceeding eight ports. Additionally, it is not designed for environments that require unshielded cabling setups without grounding considerations.

Key specifications

  • Cat6a cable support
  • 8 RJ45 ports with numbering
  • 0.5U rack capacity
  • Wall and table mounting options

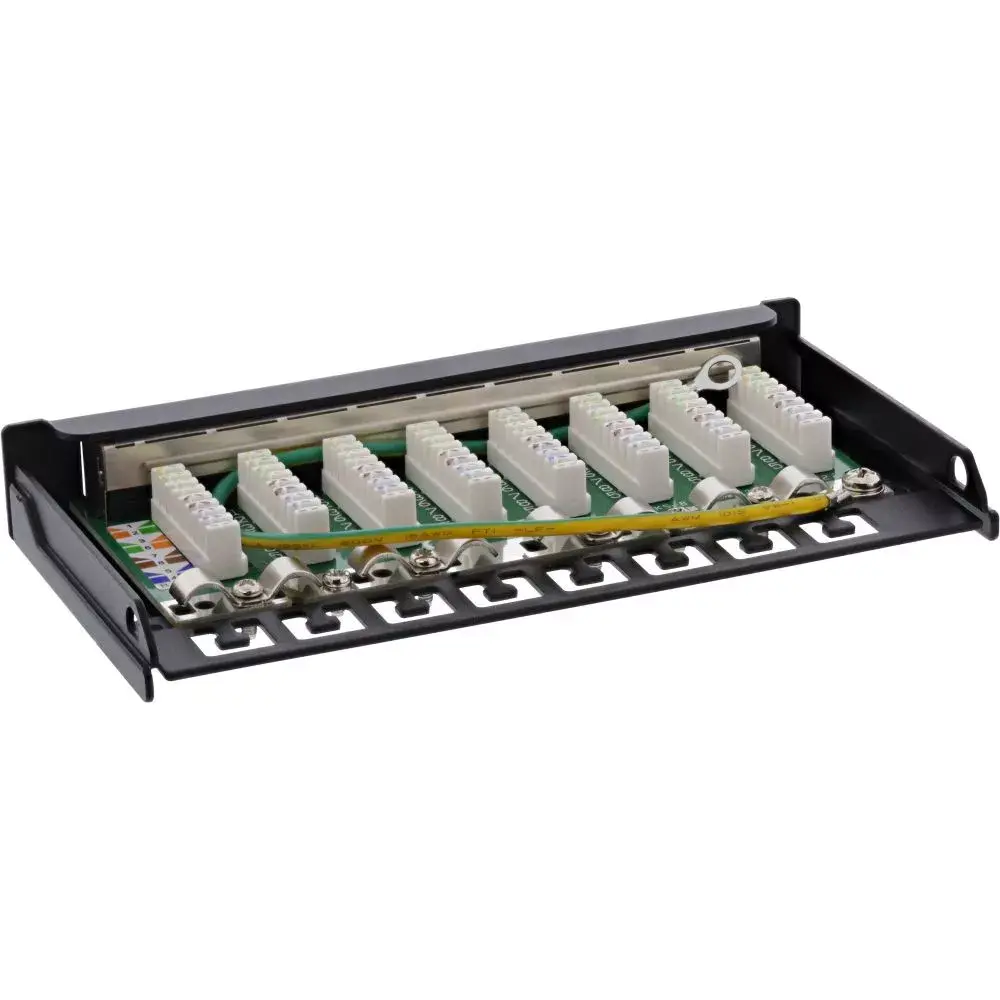

  • LSA terminal cable connection
  • TIA/EIA-568A/B color coding
  • Fully shielded housing
  • Includes strain relief and earth cable
  • Dimensions: 80 x 160 x 23 mm
  • Color: Black RAL9005

How to use

To install the patch panel, select a suitable mounting location on a wall or flat table surface and secure the unit using the provided screws. Prepare the network cables by stripping the outer jacket, organizing the individual wires according to the TIA/EIA-568A or TIA/EIA-568B color coding, and terminating them onto the LSA terminals using a compatible punch-down tool. Secure the cables with the integrated strain relief to prevent pulling tension on the contacts, and ensure the earth cable is properly connected for shielding effectiveness.

What to consider before purchase

  • Verify that an eight-port capacity meets your current and immediate networking needs
  • Confirm that your existing infrastructure utilizes Cat6a shielded cables
  • Check available physical space on your wall or desktop for the 80 x 160 mm footprint

Ensure proper grounding using the included earth cable to maintain signal integrity, and use a standard LSA punch-down tool for secure wire termination during installation.

Specifications

Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Wall mounting
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
8
All features

Packaging data

Package type: The type of product package e.g. box.
Box
Package volume:
5200 cm³
Package weight: Weight of the packaged product.
451 g
Package height: The distance from the top to the bottom of the packaging.
20 mm
Package depth: The distance from the front to the back of the packaging.
270 mm
Package width: The distance from one side of the packaging to the other.
950 mm

Packaging content

Cable tie(s) included:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.395 kg
Depth: The distance from the front to the back of something.
160 mm
Height: The measurement of the product from head to foot or from base to top.
23 mm
Width: The measurement or extent of something from side to side.
80 mm
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
80 x 160 x 23

Certificates

Certification:
IEC 60603-7-5

Design

Product colour: The colour e.g. red, blue, green, black, white.
Black
Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Wall mounting

Network

Cable types supported:
Cat6a
Connector(s):
RJ45
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
8

Description

Machine translation.

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH357 67 01.12.2026 Best delivery
34.49 € Best price
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 67 15.12.2026
40.99 €
34.49 €
Stock: 67
Delivery Date: 01.12.2026 Best delivery
Warehouse: WH357
Available only for legal entities
40.99 €
Stock: 67
Delivery Date: 15.12.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the InLine Cat.6A 0.5U 8-Port Patch Panel cost, and is it available for purchase?

The price is 34.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 134 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 01.12.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All InLine products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized InLine service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: rack capacity, mounting, ports quantity, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
