header-product InLine 10" patch panel Cat.6A 0.5U 12-port with dust protection grey RJ45 rack mounting
34.99 €

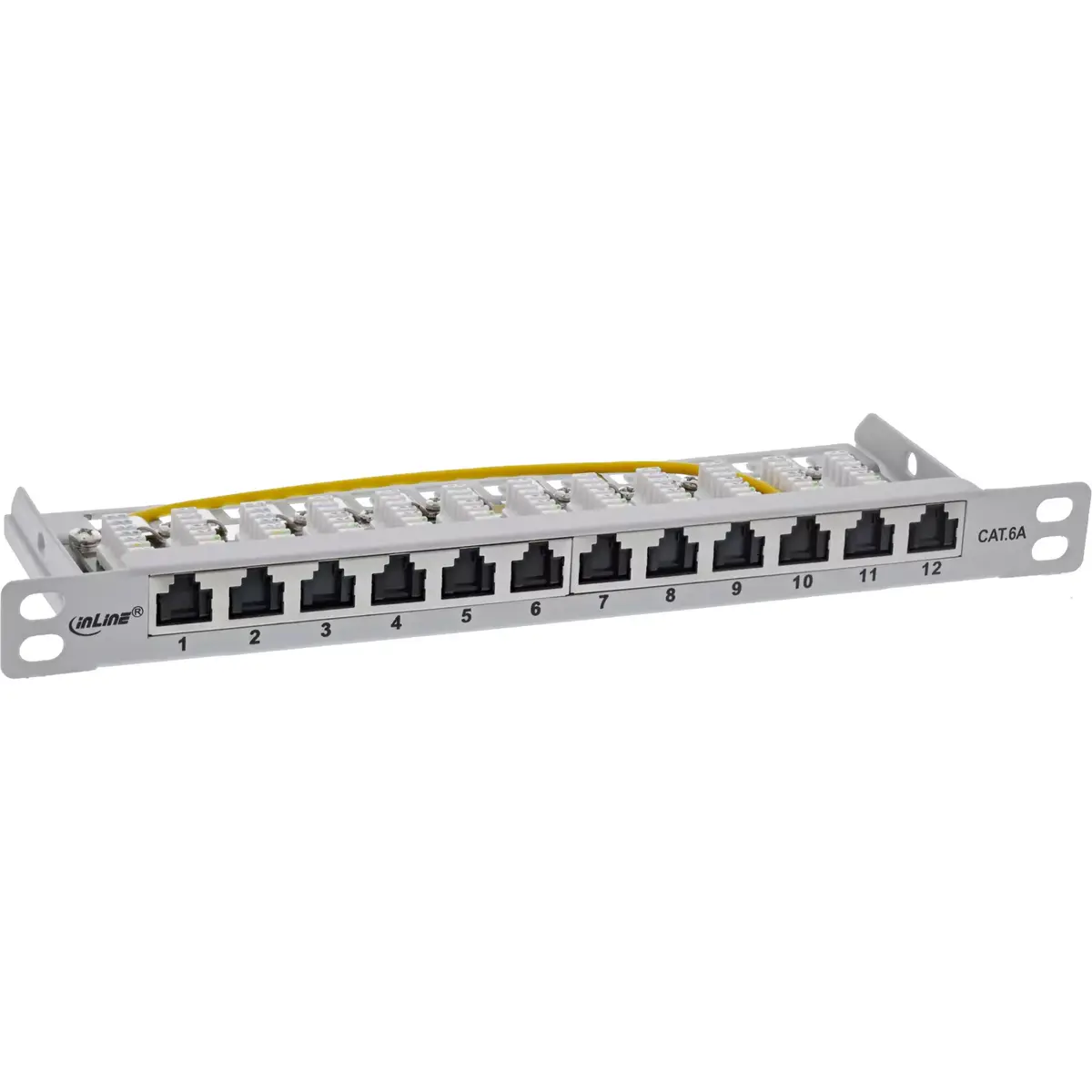

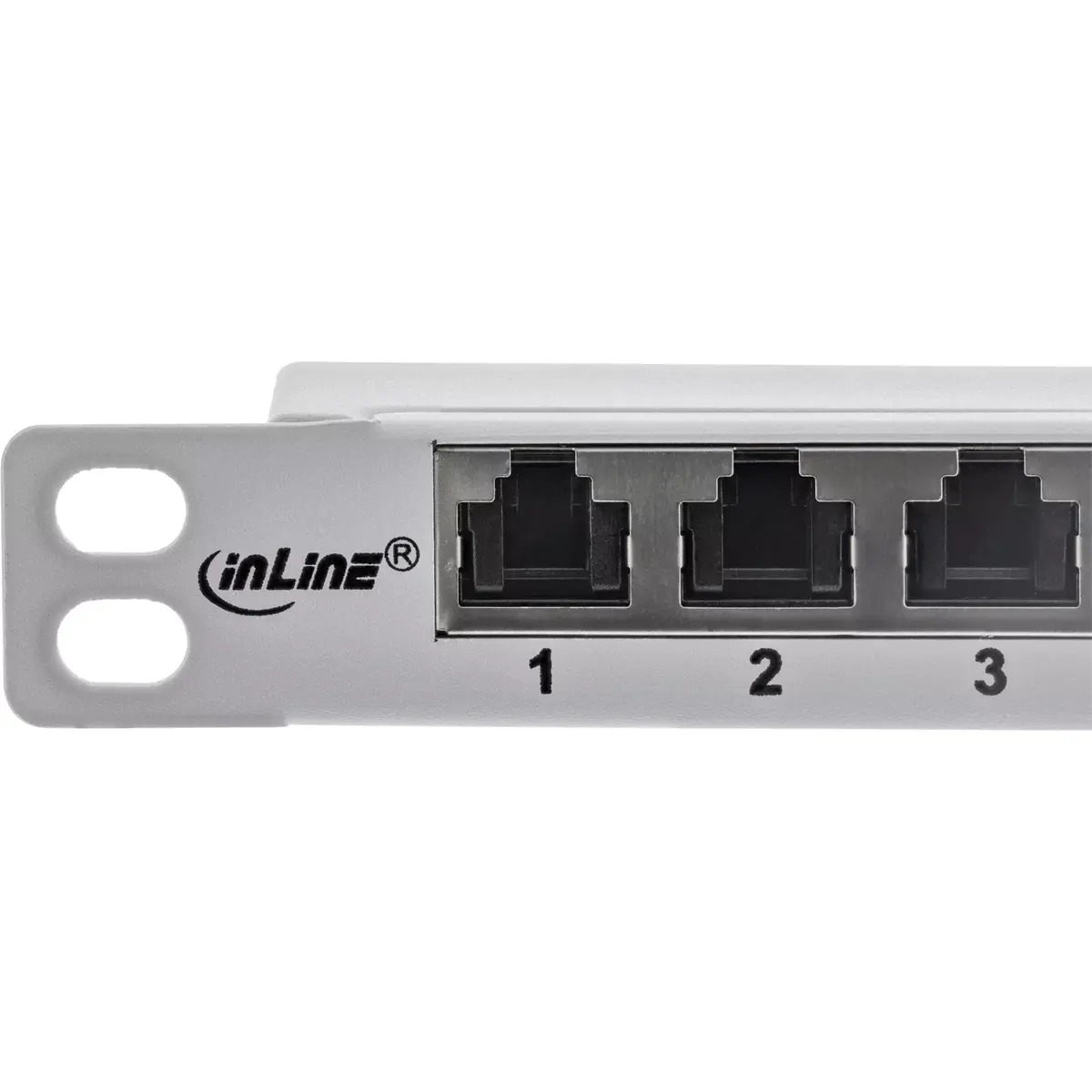

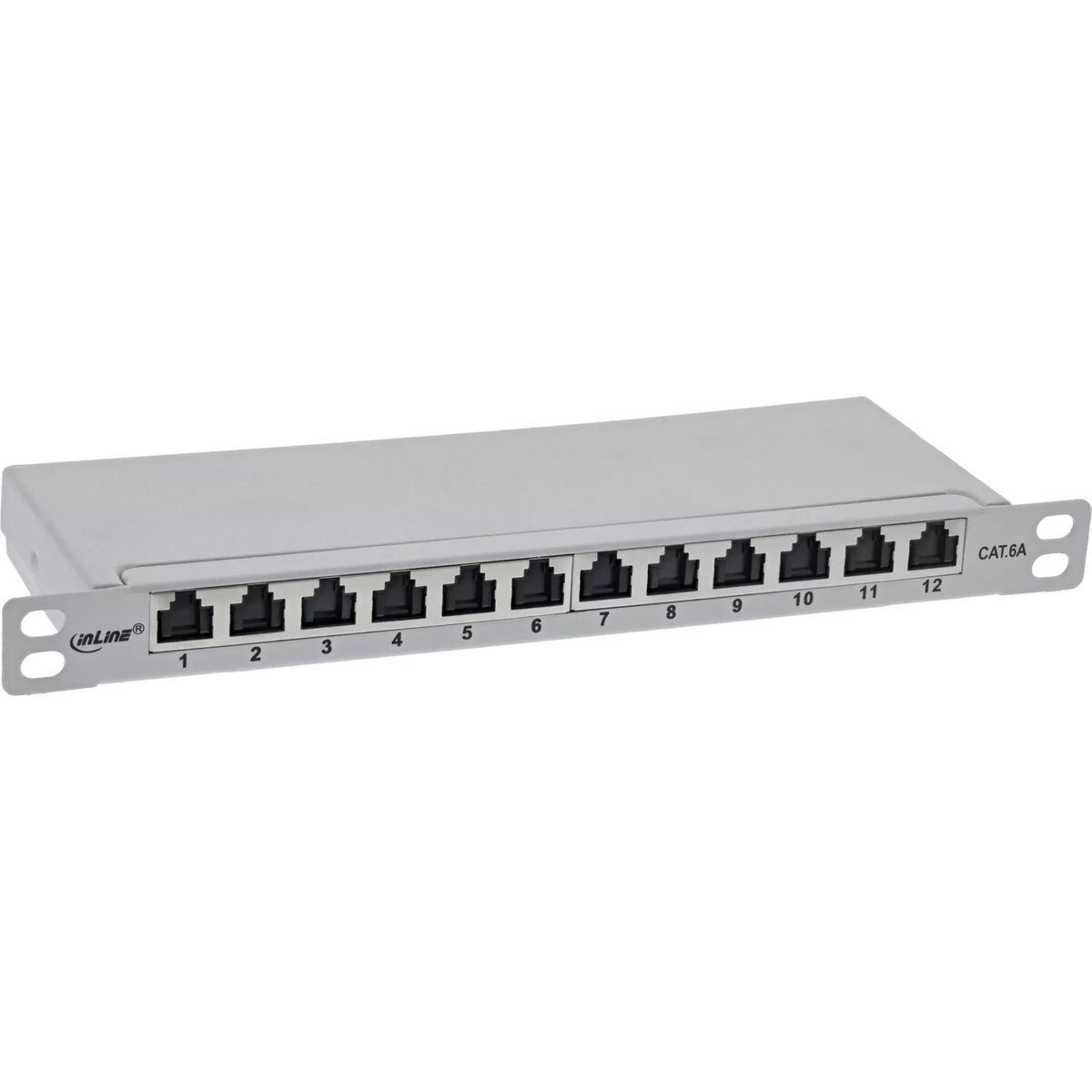

InLine 10" patch panel Cat.6A 0.5U 12-port with dust protection grey RJ45 rack mounting

InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 1
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 2
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 3
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 4
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 5
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 6
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 7
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 1
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 2
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 3
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 4
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 5
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 6
InLine 10" Cat.6A 0.5U 12-Port Patch Panel Photo 7
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine 10" patch panel Cat.6A 0.5U 12-port with dust protection grey RJ45 rack mounting

{{email}}
You keep track of price changes

InLine 10" patch panel Cat.6A 0.5U 12-port with dust protection grey RJ45 rack mounting

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine 10" patch panel Cat.6A 0.5U 12-port designed for structured network cabling and rack mounting. Features RJ45 connectors, Cat6a cable support, and integrated dust protection in a grey finish. Ideal for organizing and managing network connections in compact server racks and telecommunication enclosures.
Available at price 34.99 €: 68 pcs.
Total available for order: 135 pcs.
Warranty: 2 Years
SKU: 10545193
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
06.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
11.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.61 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
11.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 10" patch panel Cat.6A 0.5U 12-port with dust protection grey RJ45 rack mounting is designed for efficient structured network cabling in compact environments. This hardware component allows the organization and management of up to 12 network connections within a 10-inch rack setup. Featuring a slim 0.5U profile, it optimizes available rack space while ensuring reliable signal transmission and robust physical protection for active connections.

Advantages

The compact 0.5U height allows multiple panels to be installed efficiently within minimal rack space, saving valuable vertical units in smaller network cabinets. Integrated dust protection flaps safeguard the internal RJ45 contacts from environmental debris when cables are disconnected. The fully shielded design supports Cat.6A performance standards to minimize electromagnetic interference and maintain stable high-speed data transfer rates.

Suitable for

  • Compact 10-inch wall cabinets and telecommunication enclosures
  • Small office and home network installations requiring structured cabling
  • Organizing up to 12 RJ45 network connections

When it may not be suitable

This patch panel is not designed for 19-inch standard server racks, as it is specifically built for 10-inch enclosures. It is also unsuitable for unshielded cabling environments where Cat.6A specifications and grounding requirements are not needed or supported.

Key specifications

  • Rack capacity: 0.5U
  • Ports quantity: 12 RJ45 sockets
  • Cable support: Cat.6A fully shielded
  • Connection type: LSA insulation displacement connectors
  • Color: Grey
  • Dimensions: 23 x 257 x 80 mm

How to use

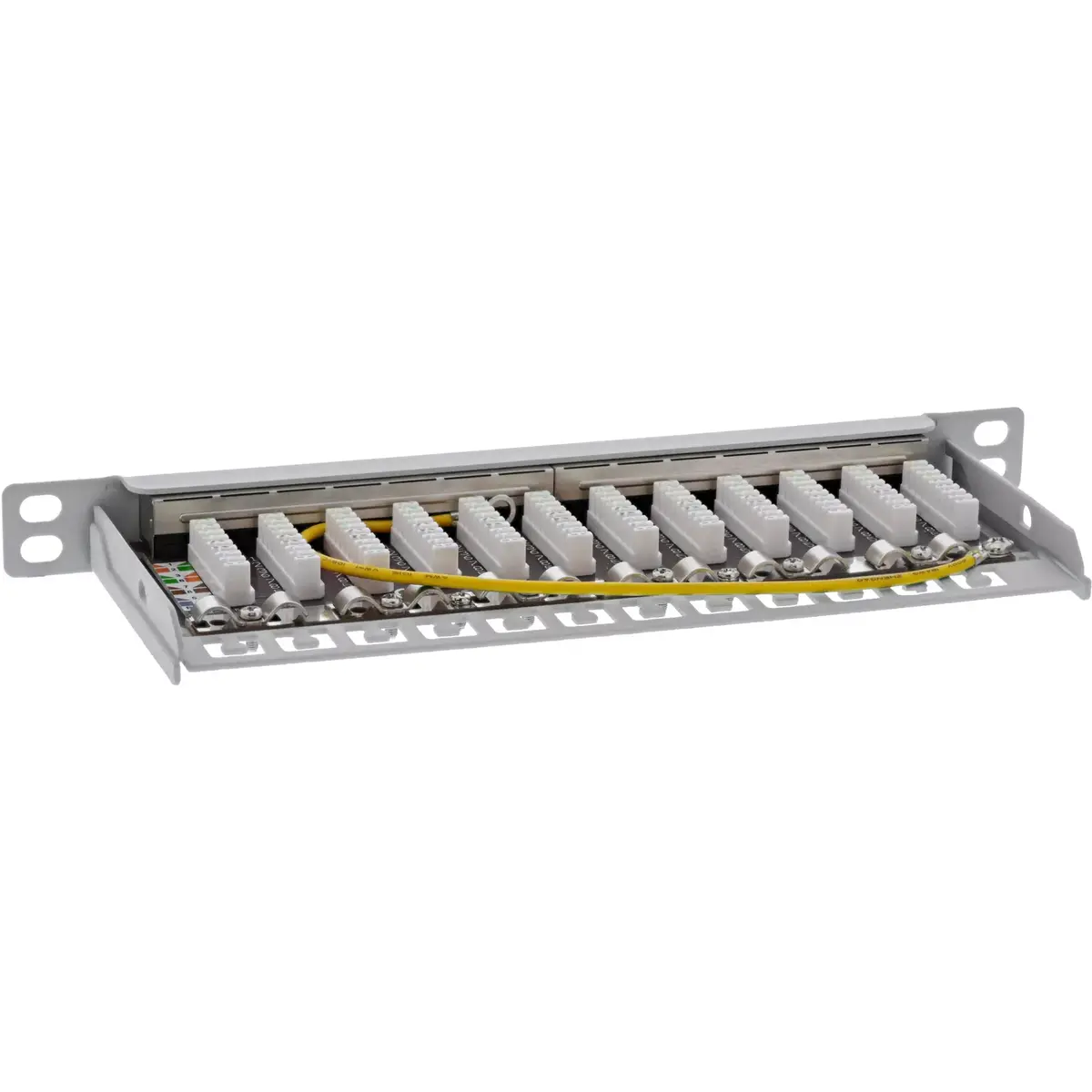

Mount the patch panel securely into a compatible 10-inch rack using the included mounting hardware and connect the grounding cable for shielding integrity. Terminate the installation cables to the rear LSA insulation displacement connectors following the designated TIA/EIA color coding scheme. Secure each cable with the integrated strain relief mechanism. Plug standard network cables into the front RJ45 ports as needed, allowing the dust protection flaps to open automatically during insertion.

What to consider before purchase

  • Verify that your network enclosure is compatible with 10-inch equipment rather than standard 19-inch racks
  • Ensure your infrastructure utilizes Cat.6A fully shielded cables for optimal performance
  • Check that the 12-port capacity meets your current and immediate network expansion requirements

Always ensure proper cable management and secure the grounding cable during installation to maintain shielding effectiveness and signal integrity.

Specifications

Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Rack mounting
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
12
All features

Packaging data

Package type: The type of product package e.g. box.
Box
Package volume:
1000 cm³
Package weight: Weight of the packaged product.
606 g
Package height: The distance from the top to the bottom of the packaging.
32 mm
Package depth: The distance from the front to the back of the packaging.
275 mm
Package width: The distance from one side of the packaging to the other.
108 mm

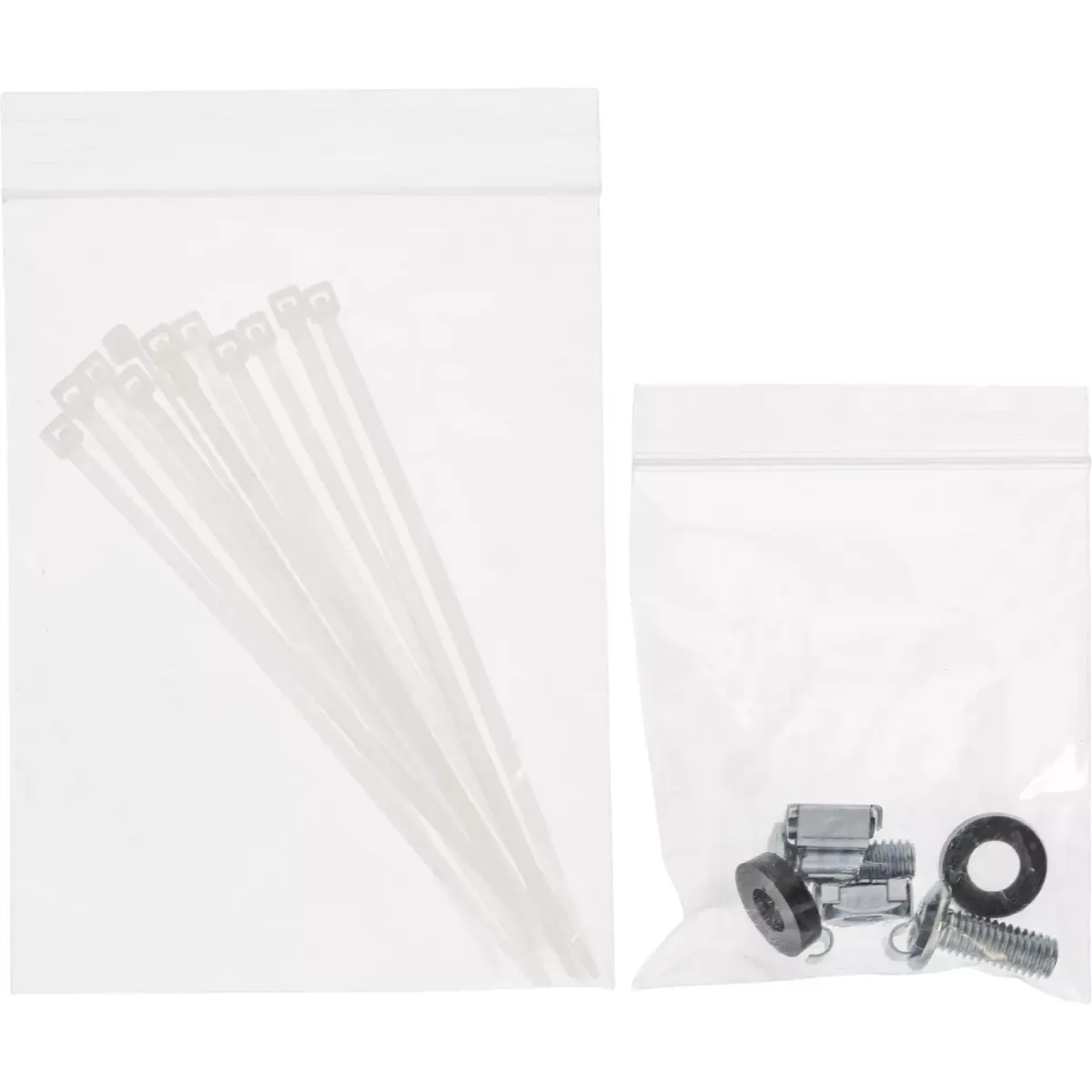

Packaging content

Cable tie(s) included:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.525 kg
Depth: The distance from the front to the back of something.
257 mm
Height: The measurement of the product from head to foot or from base to top.
80 mm
Width: The measurement or extent of something from side to side.
23 mm
Dimensions (WxDxH): Dimensions of the product (Width x Depth x Height).
23 x 257 x 80

Design

Product colour: The colour e.g. red, blue, green, black, white.
Grey
Rack capacity: The spase that device fill in rack.
0.5U
Mounting: What size the mounting head of the product is, to couple it with a camera.
Rack mounting

Network

Cable types supported:
Cat6a
Connector(s):
RJ45
Ports quantity: The number of ports or external interfaces to which other equipment can be connected.
12
