InLine 76819S 10-inch Cat.6A 12-port 0.5U Patch Panel Black RAL9005

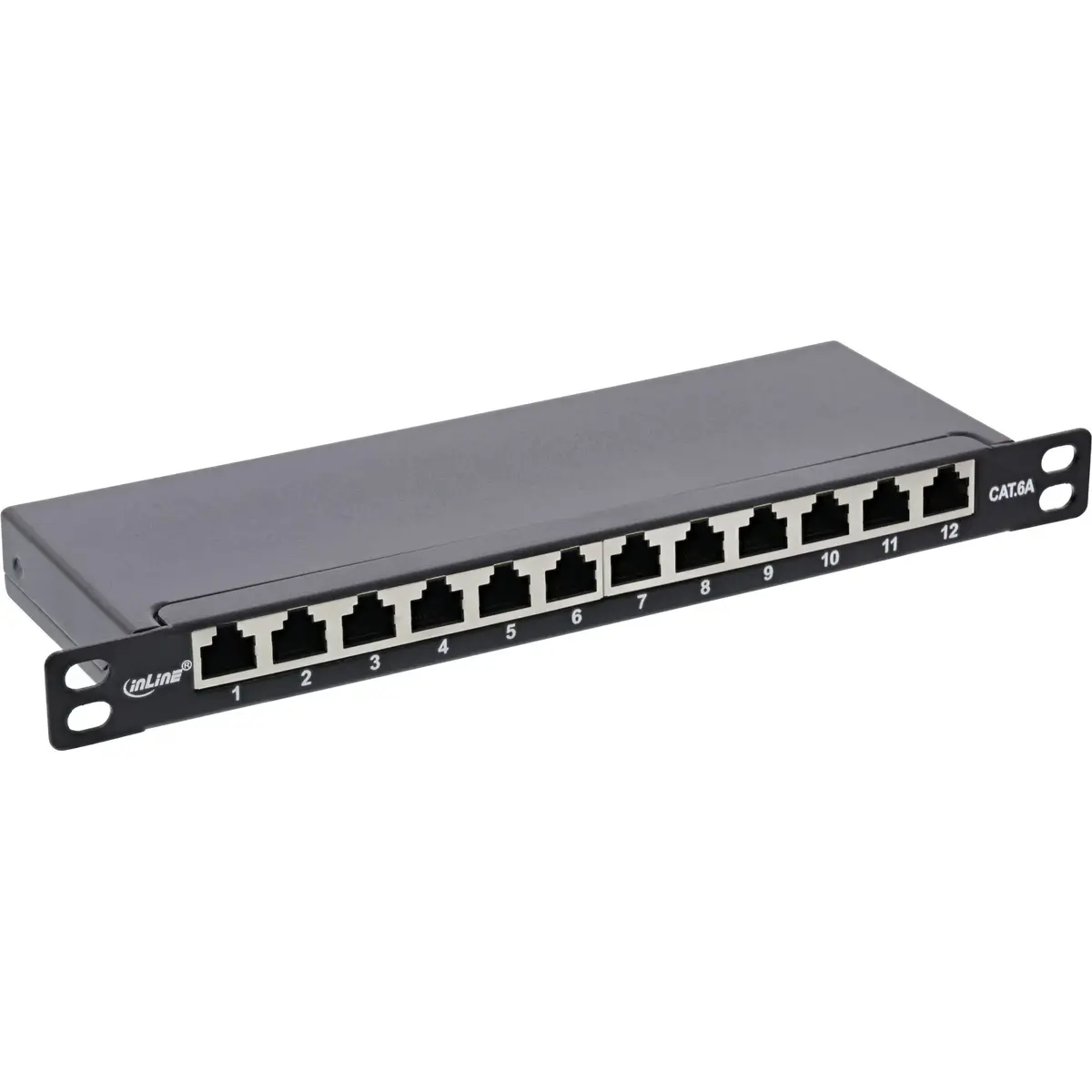

The InLine 76819S 10-inch Cat.6A 12-port 0.5U Patch Panel in black RAL9005 is a compact and efficient network accessory designed for structured cabling systems. Engineered for 10-inch network racks and wall cabinets, this patch panel provides reliable cable management and high-speed data transmission support for professional IT environments, server rooms, and advanced home networks. Featuring a slim 0.5U height profile, it allows two panels to be installed within a single rack unit, optimizing limited space without compromising performance.

Advantages

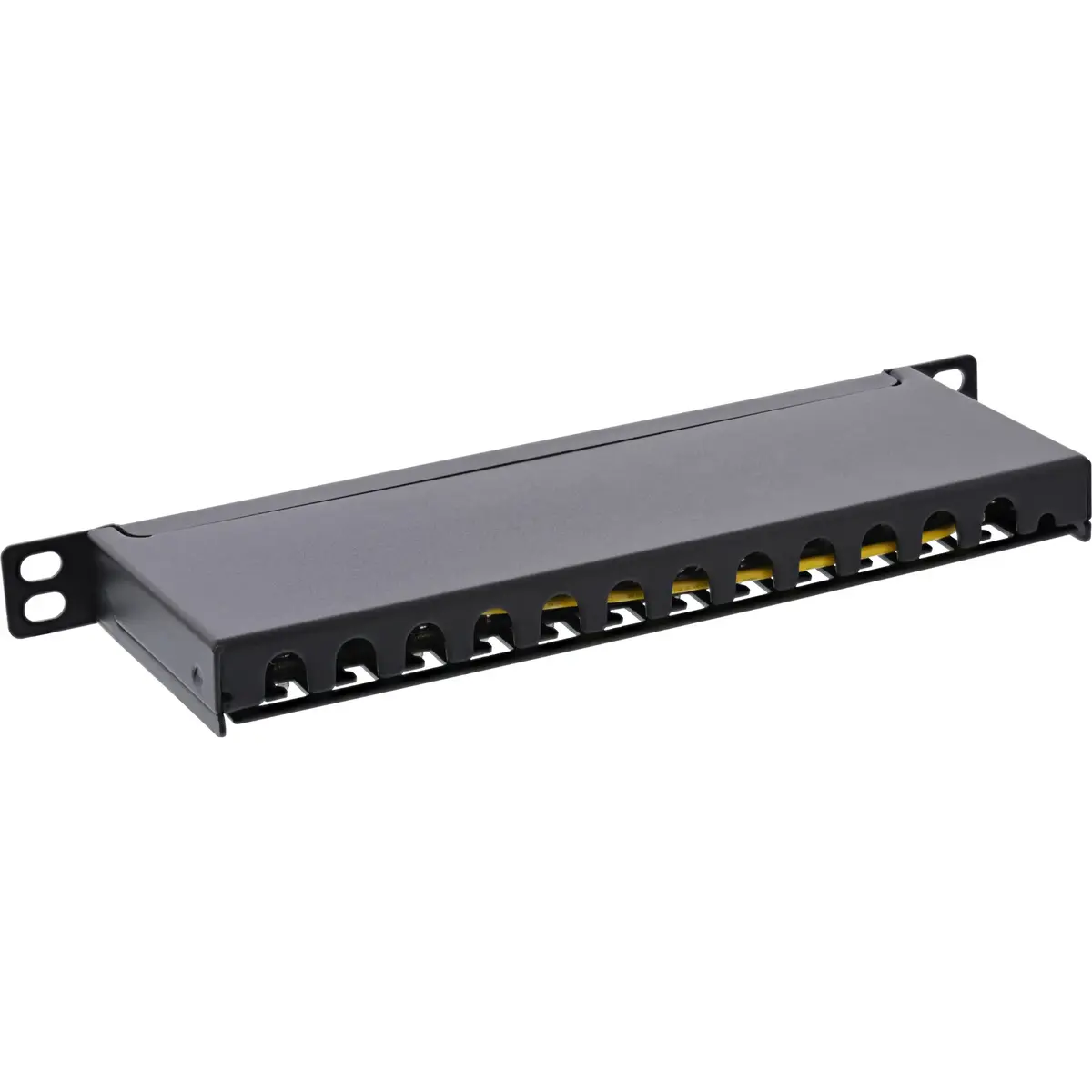

This patch panel delivers exceptional space-saving efficiency thanks to its ultra-slim 23 mm height and 0.5U rack capacity. It features fully shielded construction designed up to Cat. 6A standards according to IEC 60603-7-5, ensuring minimal signal interference and reliable high-speed data transfer. The durable enclosure can be opened without screws for convenient access, and the integrated strain relief along with the included earthing cable ensures secure and stable installation. With twelve numbered RJ45 sockets, cable organization remains clear and manageable in compact network setups.

Suitable for

• Mounting in 10-inch network racks and wall cabinets
• Structured cabling systems in small server rooms and home networks
• High-speed data transmission setups supporting Cat.6A standards
• Environments with limited rack space requiring high-density port solutions

When it may not be suitable

This patch panel is not designed for standard 19-inch server racks, as it is specifically built for 10-inch enclosures. It may also be unsuitable for large enterprise data centers requiring high port counts exceeding twelve connections per panel unit.

Key specifications

• Cat6a performance category
• 0.5U rack capacity

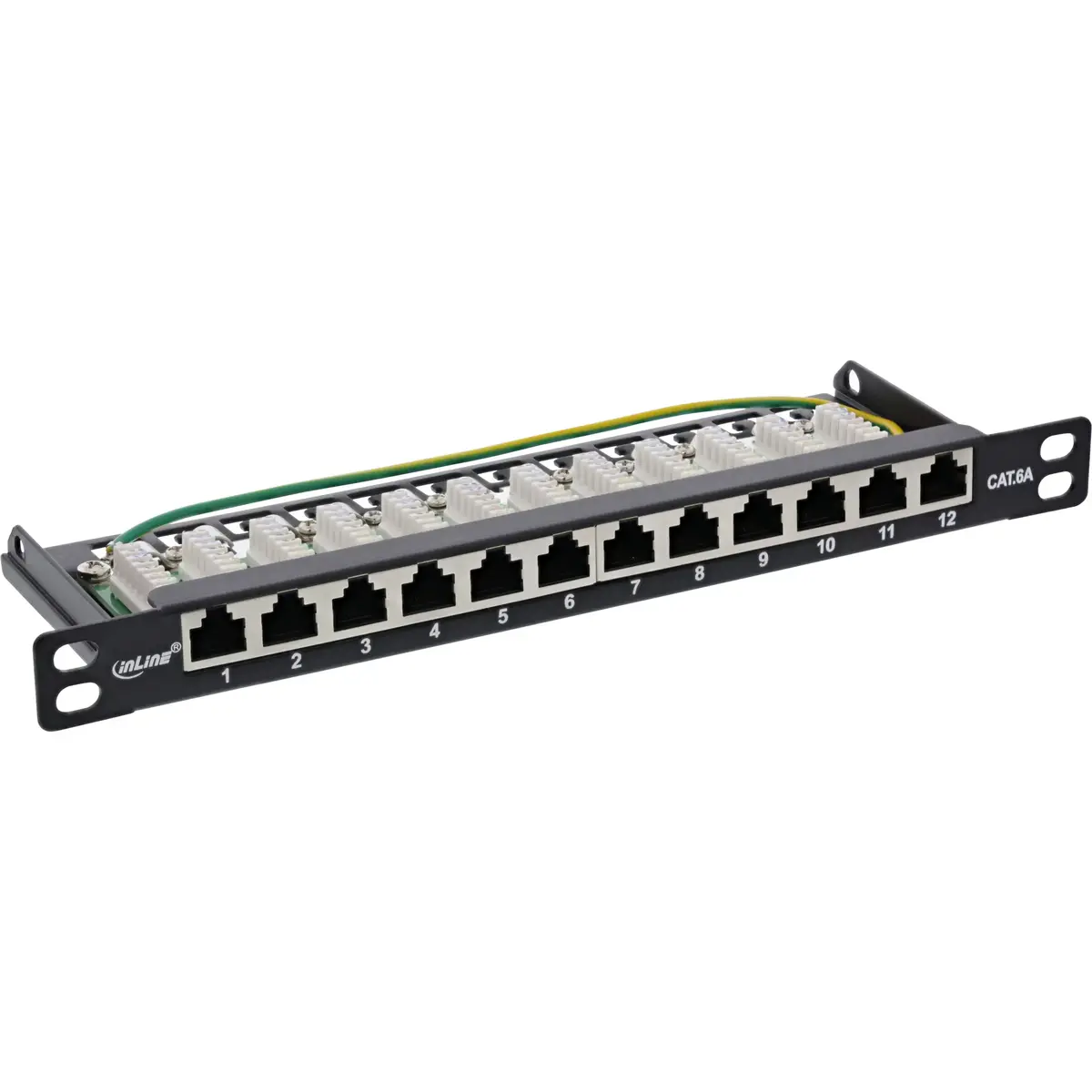

• 12 RJ45 ports with sequential numbering
• Fully shielded enclosure design
• LSA insulation displacement connectors for cable termination
• TIA/EIA-568A/B colour coding compatibility
• Black finish in RAL9005
• Includes earthing cable and integrated cable strain relief

How to use

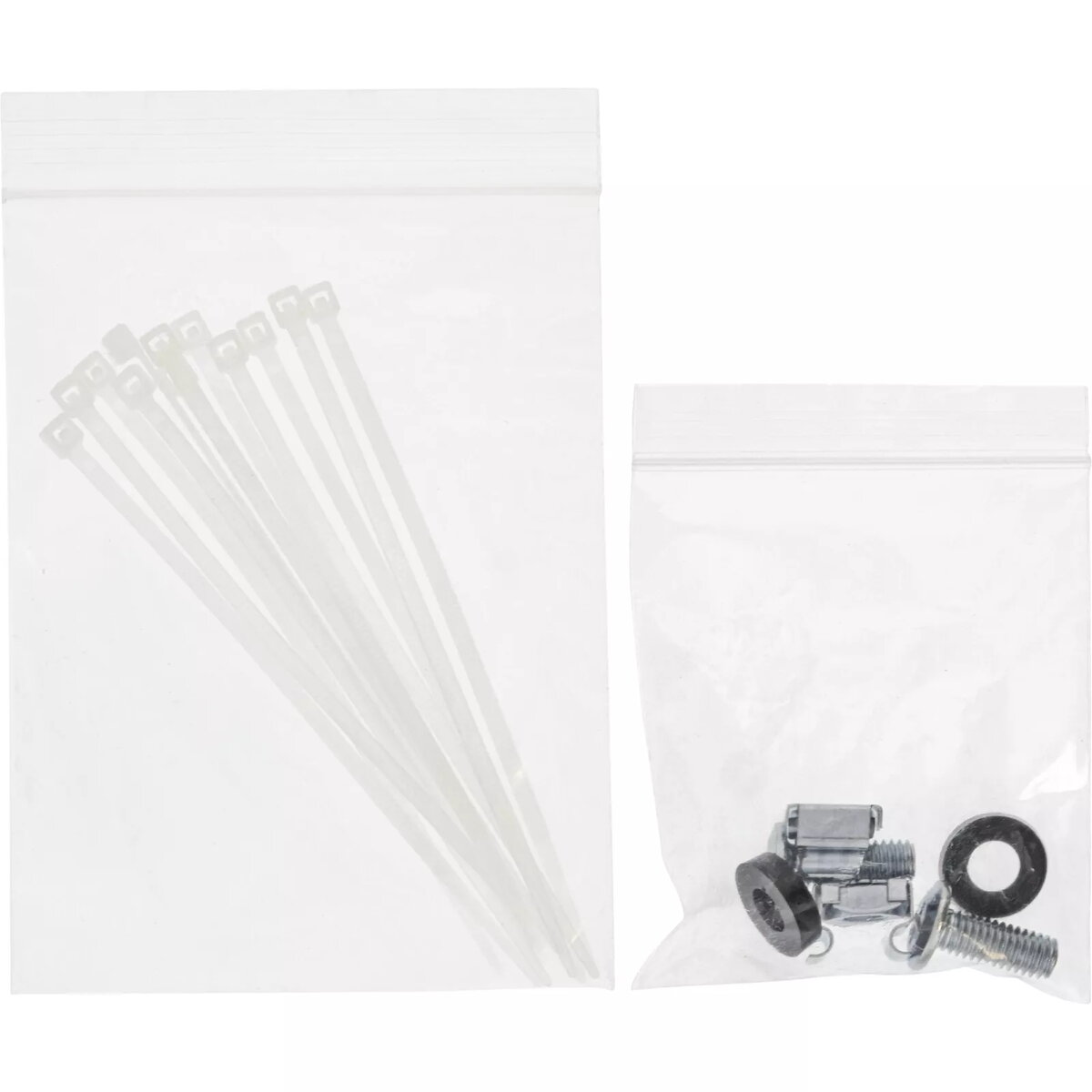

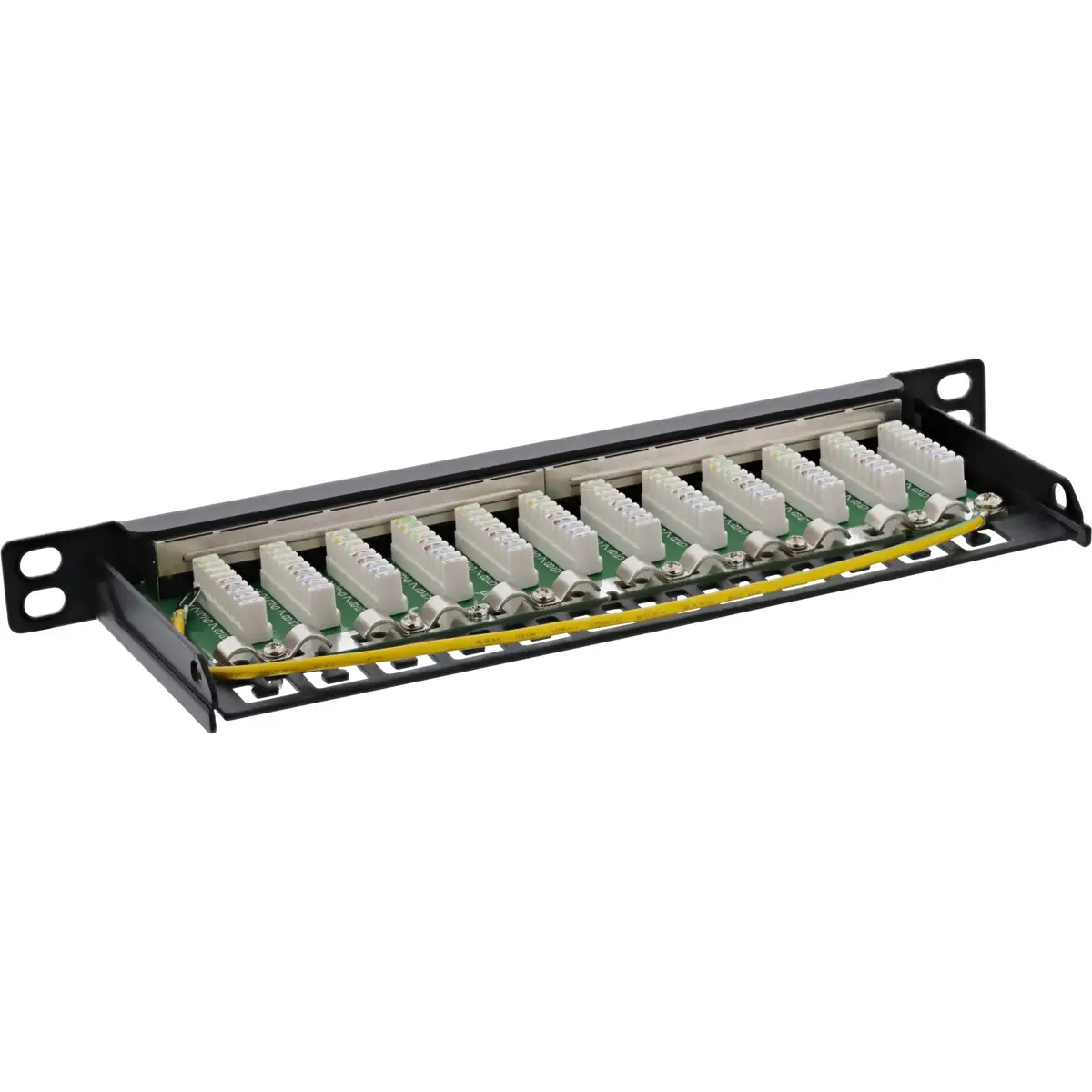

To install the patch panel, mount it securely into a compatible 10-inch network rack or wall cabinet using the provided mounting material. Open the screwless enclosure to access the internal wiring area. Connect the installation cables to the LSA insulation displacement connectors, following the TIA/EIA-568A or TIA/EIA-568B colour coding scheme as required by your network configuration. Secure the cables using the integrated strain relief mechanism to prevent accidental disconnection, and attach the included earthing cable for proper grounding. Once wiring is complete, close the enclosure and connect your patch cords to the numbered RJ45 sockets on the front panel.

What to consider before purchase

• Verify that your network rack or wall cabinet supports 10-inch equipment rather than standard 19-inch hardware
• Assess your port requirements to ensure twelve connections are sufficient for your network layout
• Check whether your existing cabling infrastructure matches Cat.6A specifications for optimal performance

Usage recommendations: Ensure proper grounding using the supplied earthing cable to maintain shielding effectiveness and protect network equipment from electrical interference. Always follow standard TIA/EIA colour coding guidelines consistently across all connected lines to maintain network integrity.
