InLine Duplex Installation Cable S/FTP PiMF Cat.7a

Name: InLine Duplex Installation Cable S/FTP 77050I
Brand: InLine
SKU: 1093128
Price: 159.49 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz 50m

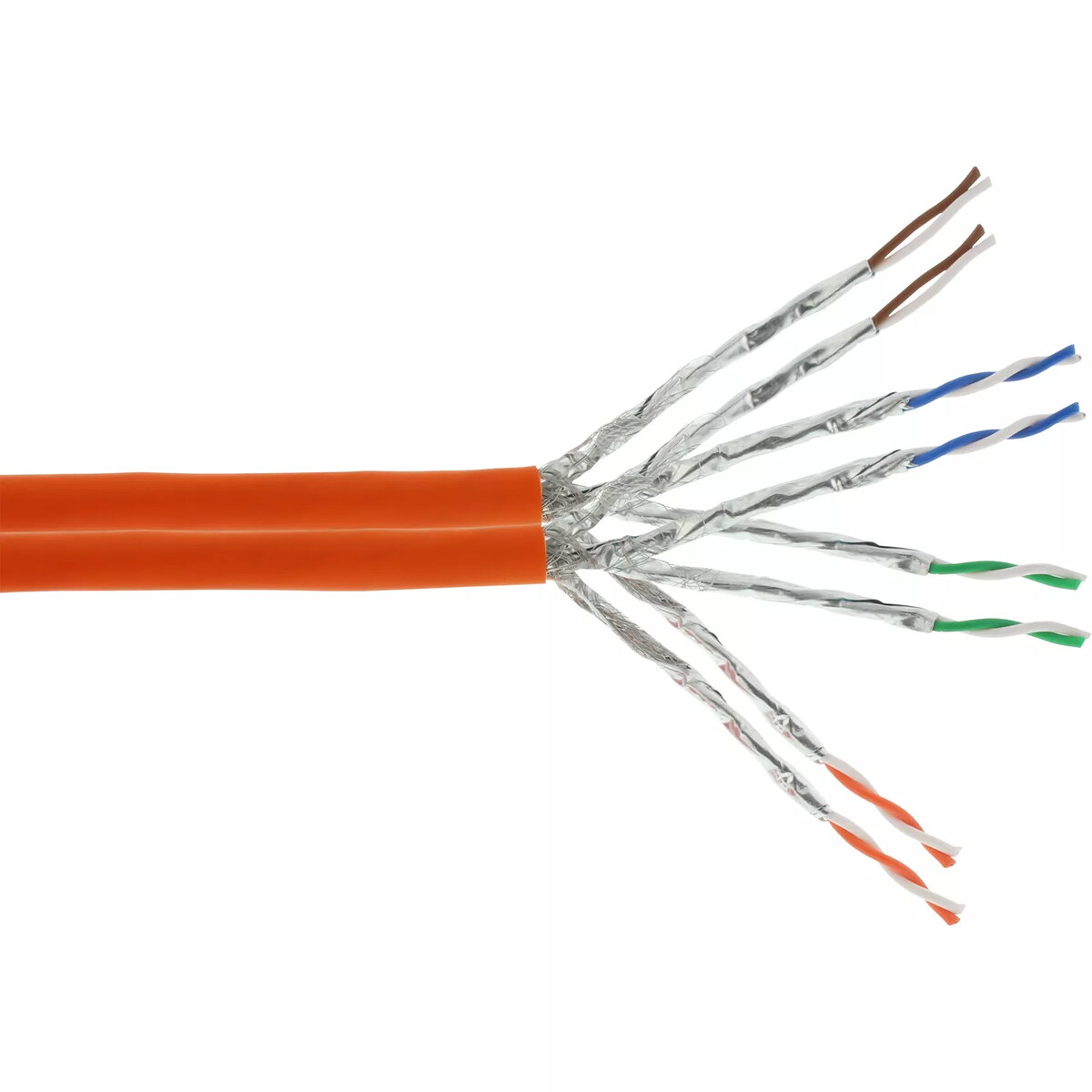

InLine Duplex Installation Cable S/FTP PiMF Cat.7a Photo 1

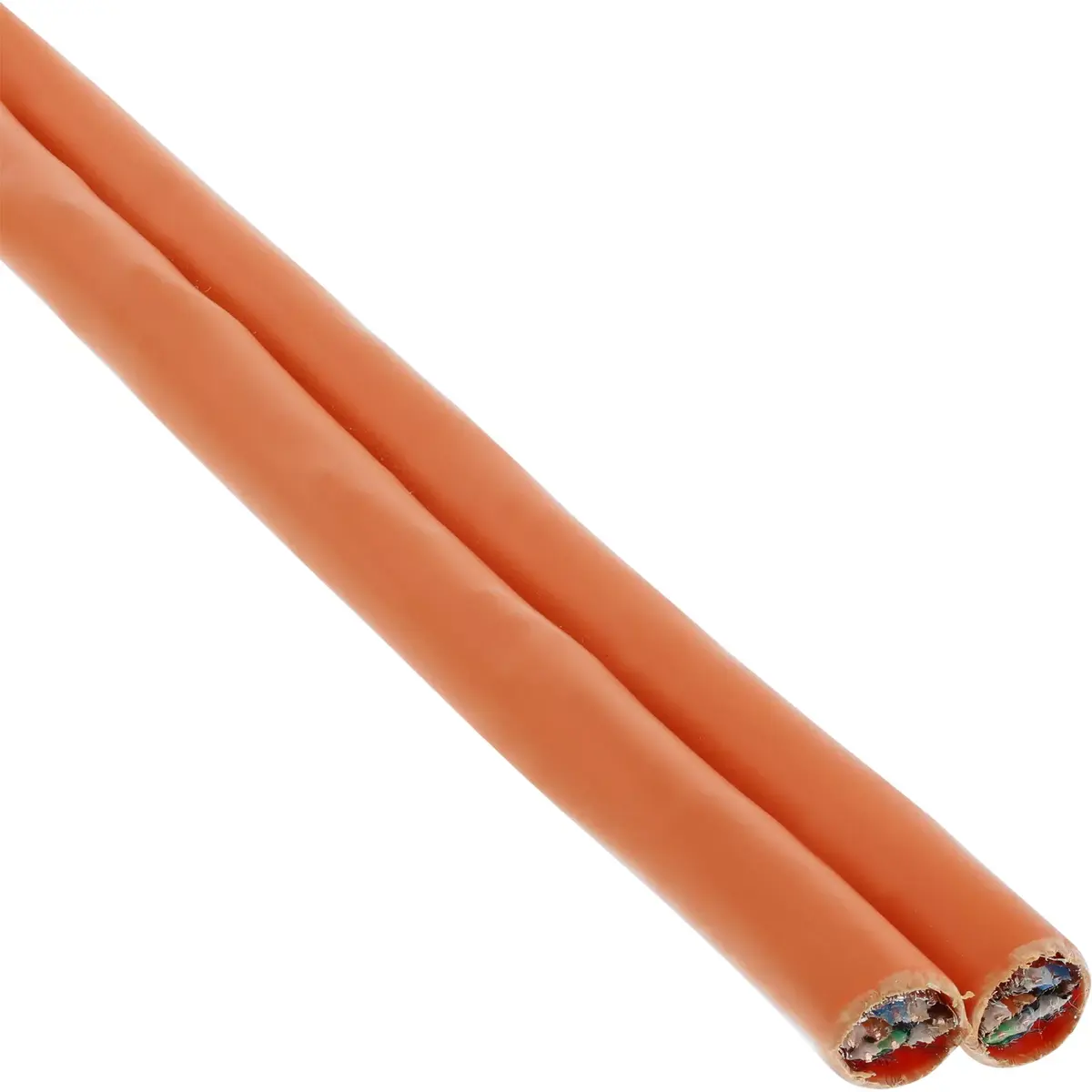

InLine Duplex Installation Cable S/FTP PiMF Cat.7a Photo 2

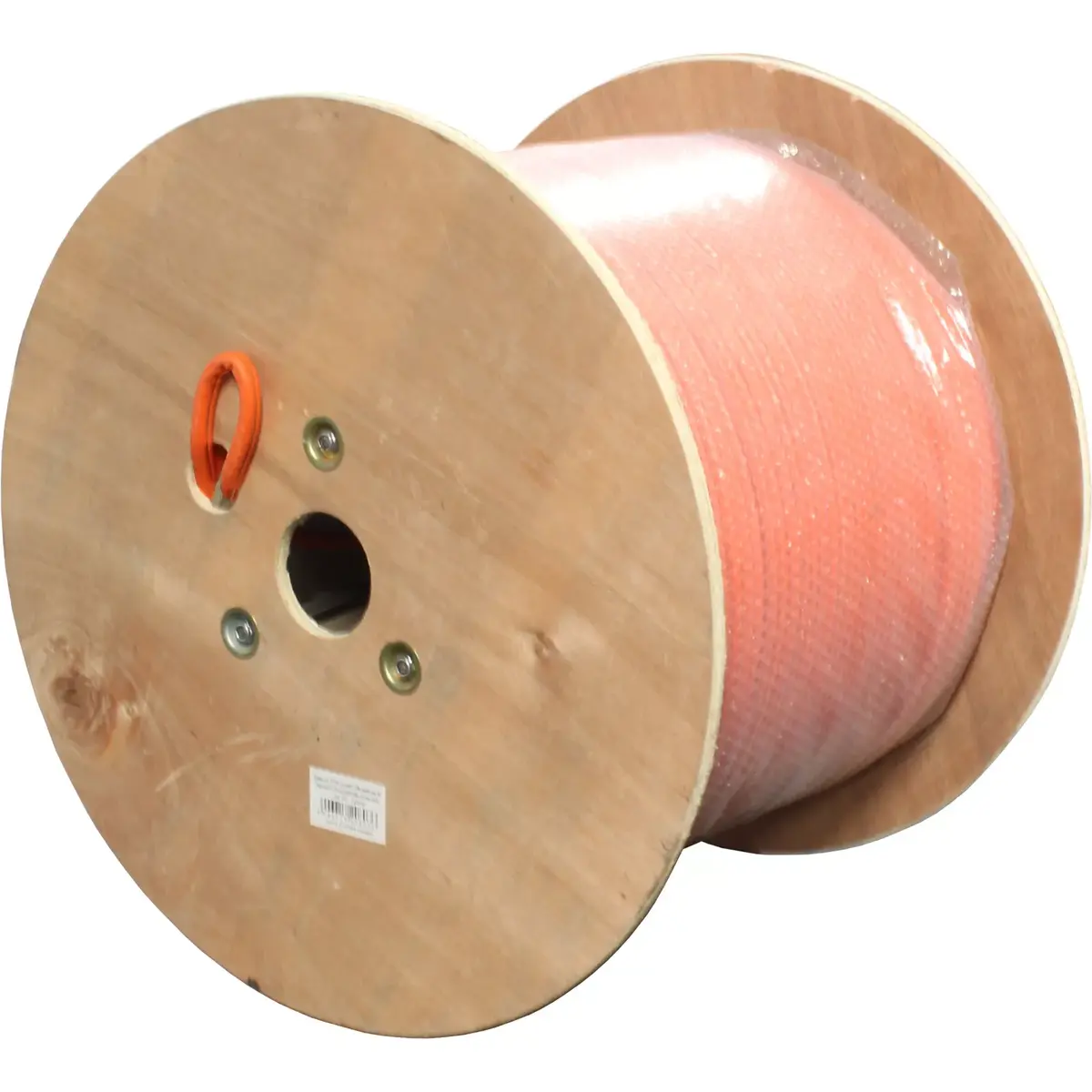

InLine Duplex Installation Cable S/FTP PiMF Cat.7a Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 offers high-speed data transmission up to 1200MHz. With a length of 50m, this cable features S/FTP shielding for enhanced performance and reduced interference. The LSOH material ensures safety in case of fire, making it ideal for various installations. Its vibrant orange color aids in easy identification during setup.

Available at price 159.49 €: 19 pcs.

Total available for order: 38 pcs.

Warranty: 2 Years

SKU: 1093128

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 7.54 € (Weight: 8.64 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 171.49 €: 19 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 (50 m) is supplied in a drum box that holds the data cable on a plastic roller fixed inside a cardboard carton for controlled unwinding and easy access to the required length. The cable is designed for installation use, supports frequencies up to 1200 MHz and provides full copper conductors with S/FTP (pairs in metal foil plus overall braid) shielding. The outer jacket is halogen-free (LSOH) and the sheath is orange for easy identification.

Advantages

The drum box reduces on-site handling costs by allowing unwinding without additional tooling, offers lightweight and stackable packaging suitable for transport in construction vehicles and parcel delivery, and protects the cable from dirt and damage with cardboard packaging. Small-quantity handling and logistics costs are reduced, and meter-printing on the cable simplifies measuring and installation.

Suitable for

Structured building and site installations requiring Cat.7a performance
10 Gbps Ethernet and high-bandwidth network links up to 1200 MHz
Indoor installation runs where color-coded cables simplify identification

Key specifications

Type: Duplex installation cable, S/FTP PiMF
Category: Cat.7a to 1200 MHz
Conductor: Full copper, (2x) 4x2x AWG23/1
Shielding: Pairs in metal foil, overall braid
Impedance: 100 Ohm
DC resistance: max. 87 Ohm/km
Jacket: Halogen-free (LSOH), orange
Cable diameter: approx. 2 x 8.2 mm
Temperature: installation 0 to 50 °C, operation -20 to 60 °C
Reaction to fire: Eca (EN 50575:2014 / A1:2016)
Length: 50 m (drum box available for 50 m and 100 m bundles)

How to use

Place the drum box so the cable can be unwound smoothly from the plastic roller. Pull the cable to the required length, cut at the meter-print marking if needed, and perform terminations or connector assembly according to standard Cat.7a installation practices. Follow standard bending radius and separation guidelines from power cables during installation to preserve shielding and signal quality.

Usage recommendations

For optimal performance, keep the cable within the specified installation and operating temperature ranges, avoid sharp bends or compressive forces on the sheath, and use the drum box for controlled unwinding to prevent kinks and contamination. The drum box option is provided for 50 m and 100 m bundles; 300 m and 500 m lengths are supplied on a single drum.

Specifications

Cable length:: 50 m
Connector 1:: No
Connector 2:: No
Product colour:: Orange

All features

Features

Cable length:: 50 m
Connector 1:: No
Connector 2:: No
Product colour:: Orange
Jacket material:: Low smoke zero halogen (LSZH)
Cable standard:: Cat7a
AWG wire size:: 23
Cable shielding:: S/FTP (S-STP)
Conductor material:: Copper

Other features

Input impedance:: 100 Ω

Weight & dimensions

Outer diameter:: 8.2 mm

Operational conditions

Operating temperature (T-T):: -20 - 60
