header-product InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz LSOH Orange 100m
309.49 €

InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz LSOH Orange 100m

InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 1
InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 2
InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 3
InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 1
InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 2
InLine Duplex Installation Cable S/FTP Cat.7a 100m Photo 3
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz LSOH Orange 100m

{{email}}
You keep track of price changes

InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz LSOH Orange 100m

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine Duplex installation cable featuring S/FTP PiMF shielding, Cat.7a standard, AWG23 wire gauge, and 1200MHz frequency support. Built with a halogen-free LSOH jacket for safe indoor networking. This 100-meter orange data cable is designed for high-performance structured cabling systems and reliable professional network installations.
Available at price 309.49 €: 49 pcs.
Total available for order: 99 pcs.
Warranty: 2 Years
SKU: 1093129
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

2.49 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
17.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
22.12.2026 {{selectedOffer.courierDeliveryString}}
From 10.67 € (Weight: 13.12 kg)
Parcel couriers
Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
22.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 2.49 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 334.49 €: 50 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine Duplex Installation Cable S/FTP PiMF Cat.7a AWG23 1200MHz LSOH Orange 100m is a high-performance networking solution designed for professional structured cabling systems. This robust data cable provides reliable signal transmission for demanding network environments and supports high data rates up to 10Gb. Built with quality full copper conductors and advanced dual shielding, it minimizes interference to ensure stable connectivity across long distances in indoor installations.

Advantages

This installation cable features comprehensive S/FTP PiMF shielding with pairs in metal foil and an overall braid shielding to effectively protect against electromagnetic interference and crosstalk. The halogen-free LSOH jacket ensures enhanced safety by producing low smoke and no toxic halogens in the event of fire, making it suitable for sensitive indoor areas. Delivered in a practical drum box, the cable is easy to transport, store, and unwind on-site without requiring additional tooling, which helps reduce handling time and potential installation damage.

Suitable for

  • Professional structured cabling systems in commercial and residential buildings
  • High-speed local area networks supporting up to 10Gb data rates
  • Indoor network installations requiring strict halogen-free safety standards
  • Duplex network runs utilizing pre-measured 100-meter cable lengths

When it may not be suitable

This cable is not pre-terminated with connectors, meaning it requires professional termination and specialized tools for installation. It is intended for fixed in-wall or conduit installation and is not designed for frequent mobile use or outdoor deployment without additional protective conduits.

Key specifications

  • Cable standard: Cat.7a duplex
  • Frequency support: up to 1200MHz
  • Wire gauge: AWG23/1, full copper conductors

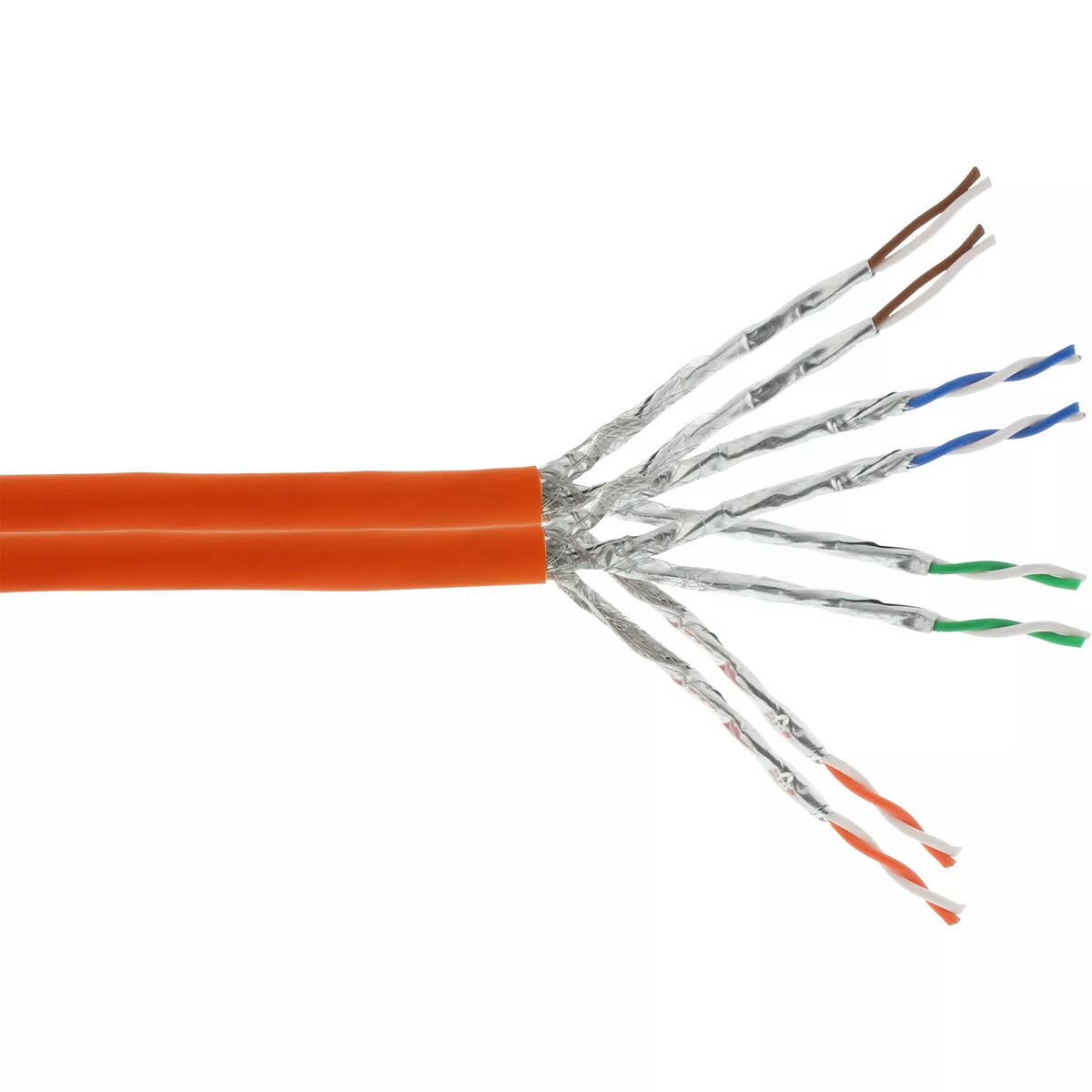

  • Shielding: S/FTP PiMF (pairs in metal foil plus overall braid)
  • Jacket material: Halogen-free LSOH
  • Cable length: 100 meters
  • Color: Orange
  • Impedance: 100 Ohm
  • Fire reaction class: Eca

How to use

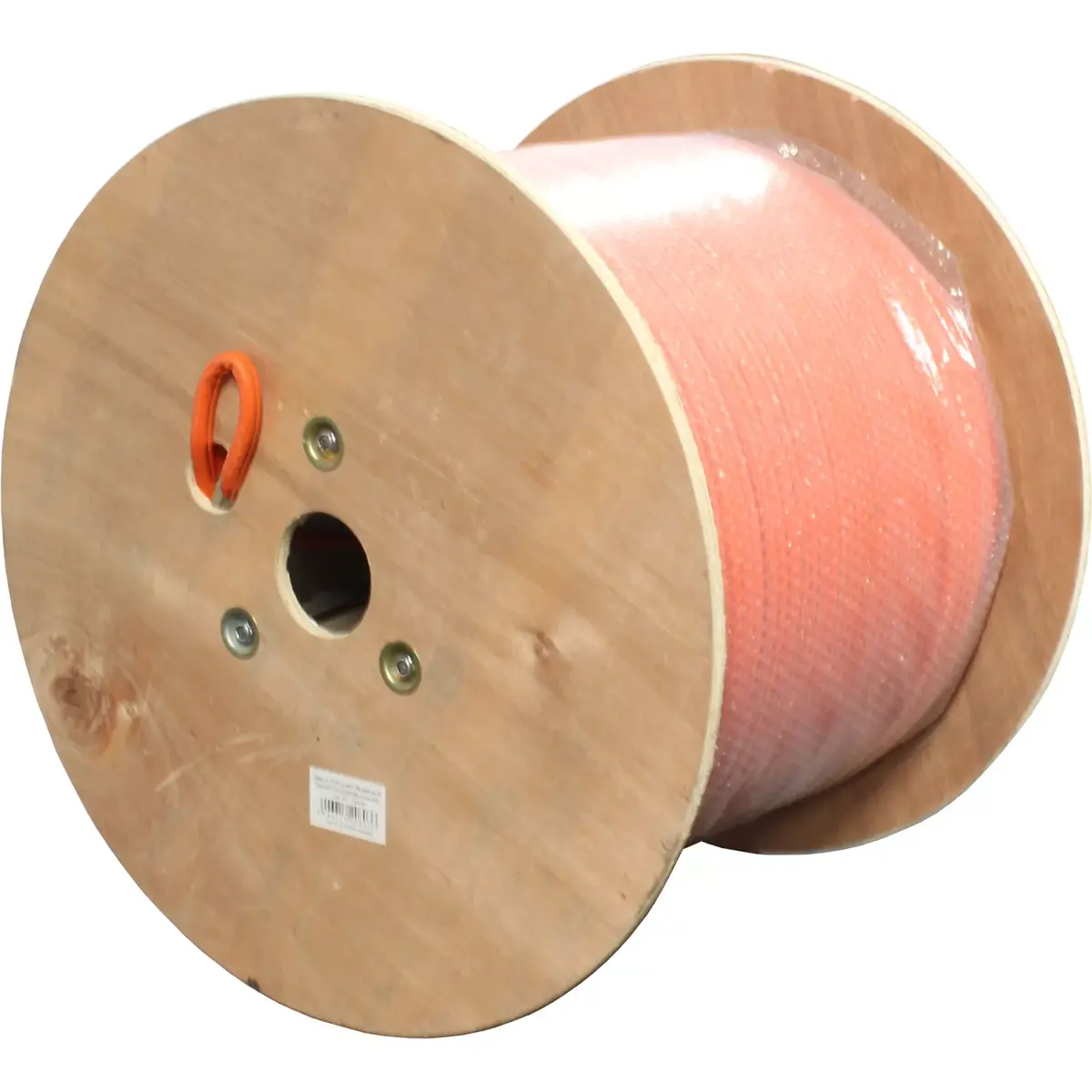

Plan your cable routes through walls, conduits, or cable trays before pulling the cable from the supplied drum box. Measure the required lengths using the continuous meter-printing on the cable jacket to minimize waste. Terminate the cable ends carefully with compatible Cat.7a connectors, patch panels, or keystone jacks designed for solid AWG23 conductors. Ensure that the installation temperature remains within the specified range during setup and avoid exceeding the minimum bend radius to maintain signal integrity.

What to consider before purchase

  • Verify that the 100-meter length and duplex configuration match the requirements of your network layout
  • Ensure compatibility with your existing termination hardware, patch panels, and connectors
  • Check local building regulations regarding the use of Eca fire-rated LSOH cables
  • Confirm that the installation environment remains within the permitted operating temperature limits

For optimal network performance and signal stability, always maintain proper grounding of the S/FTP shielding system and avoid pinching or sharply bending the cable during installation.

Specifications

Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
No
Cable shielding: The protective layer for the cable, typically made of plastic.
S/FTP (S-STP)
Cable standard: The category of the cable, which is determined by performance characteristics and test requirements.
Cat7a
Cable length: How long the cable is.
100 m
All features

Other features

Input impedance:
100 Ω

Packaging data

Package volume:
53100 cm³
Package weight: Weight of the packaged product.
13120 g
Package height: The distance from the top to the bottom of the packaging.
410 mm
Package depth: The distance from the front to the back of the packaging.
360 mm
Package width: The distance from one side of the packaging to the other.
360 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
14.468 kg
Outer diameter:
8.2 mm
Depth: The distance from the front to the back of something.
100000 mm

Operational conditions

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-20 - 60

Features

AWG wire size:
23
Conductor material:
Copper
Jacket material:
Low smoke zero halogen (LSZH)
Connector 2: This is the second connector in the device.
No
Connector 1: This is the first connector in the device.
No
Product colour: The colour e.g. red, blue, green, black, white.
Orange
Cable shielding: The protective layer for the cable, typically made of plastic.
S/FTP (S-STP)
Cable standard: The category of the cable, which is determined by performance characteristics and test requirements.
Cat7a
Cable length: How long the cable is.
100 m

Description

Machine translation.

Similar products

{{product.title}}
Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH357 50 03.12.2026 Best delivery
334.49 €
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
WH109 49 17.12.2026
309.49 € Best price
334.49 €
Stock: 50
Delivery Date: 03.12.2026 Best delivery
Warehouse: WH357
Available only for legal entities
309.49 €
Stock: 49
Delivery Date: 17.12.2026
Warehouse: WH109

Customer reviews

Customer questions

FAQ

How much does the InLine Duplex Installation Cable S/FTP Cat.7a 100m cost, and is it available for purchase?

The price is 309.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 99 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 17.12.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All InLine products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized InLine service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: connector 2, connector 1, cable shielding, cable standard, cable length, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
