InLine LC/APC–LC/APC OS2 9/125µm fiber cable 1 m

Name: Fiber optical simplex cable InLine 88201
Brand: InLine
SKU: 11731493
Price: 9.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

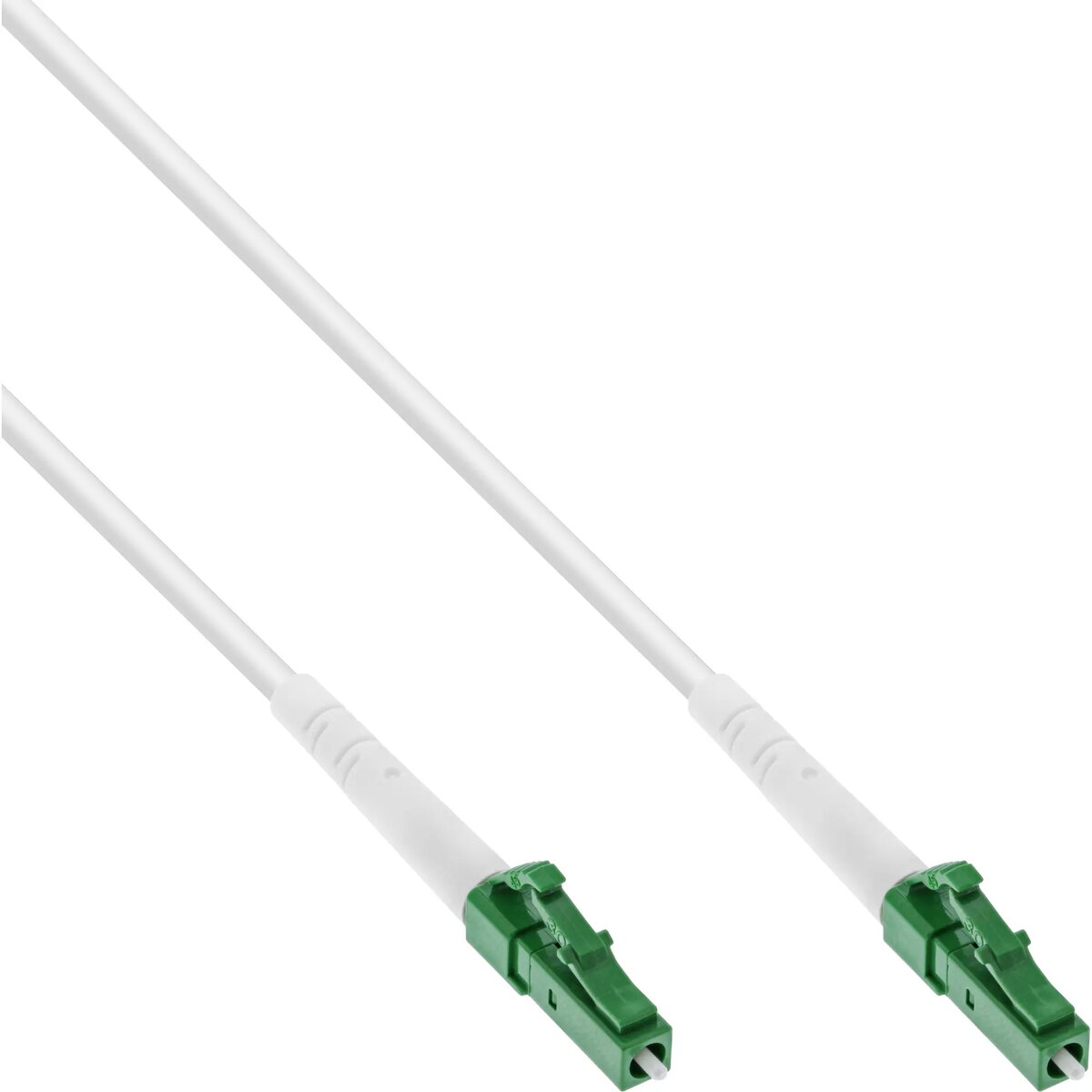

Fiber optical simplex cable InLine LC/APC to LC/APC OS2 9/125µm 1 m

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 1 m Photo 1

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 1 m Photo 2

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 1 m Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Single-mode fiber optical simplex cable by InLine with LC/APC 8° connectors on both ends. OS2 grade fiber with 9/125 µm core/cladding, intended for FTTH and single-channel links. Total length 1 m. Suitable for indoor patching, fiber terminations and connecting transceivers, providing low-loss single-mode transmission.

Available for order: 168 pcs.

Warranty: 2 Years

SKU: 11731493

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

InLine fiber optical simplex cable LC/APC to LC/APC OS2 9/125µm, length 1 m, is a single-mode patch cable designed for indoor FTTH and single-channel links. It features LC connectors with 8° APC polish on both ends and OS2 grade fiber with a 9/125 µm core/cladding. The cable is intended for reliable, low-loss connections between the household fiber entry point, optical modem or transceiver and other fiber equipment.

Advantages

The cable provides low insertion loss and high return loss consistent with single-mode OS2 performance, enabling stable transmission for broadband and telecom applications. Its 3.0 mm outer diameter, halogen-free sheath and stainless steel spiral reinforcement increase mechanical stability compared with very thin provider-supplied pigtails. The neutral white sheath allows unobtrusive installation in living areas. A test report is supplied to document optical performance.

Suitable for

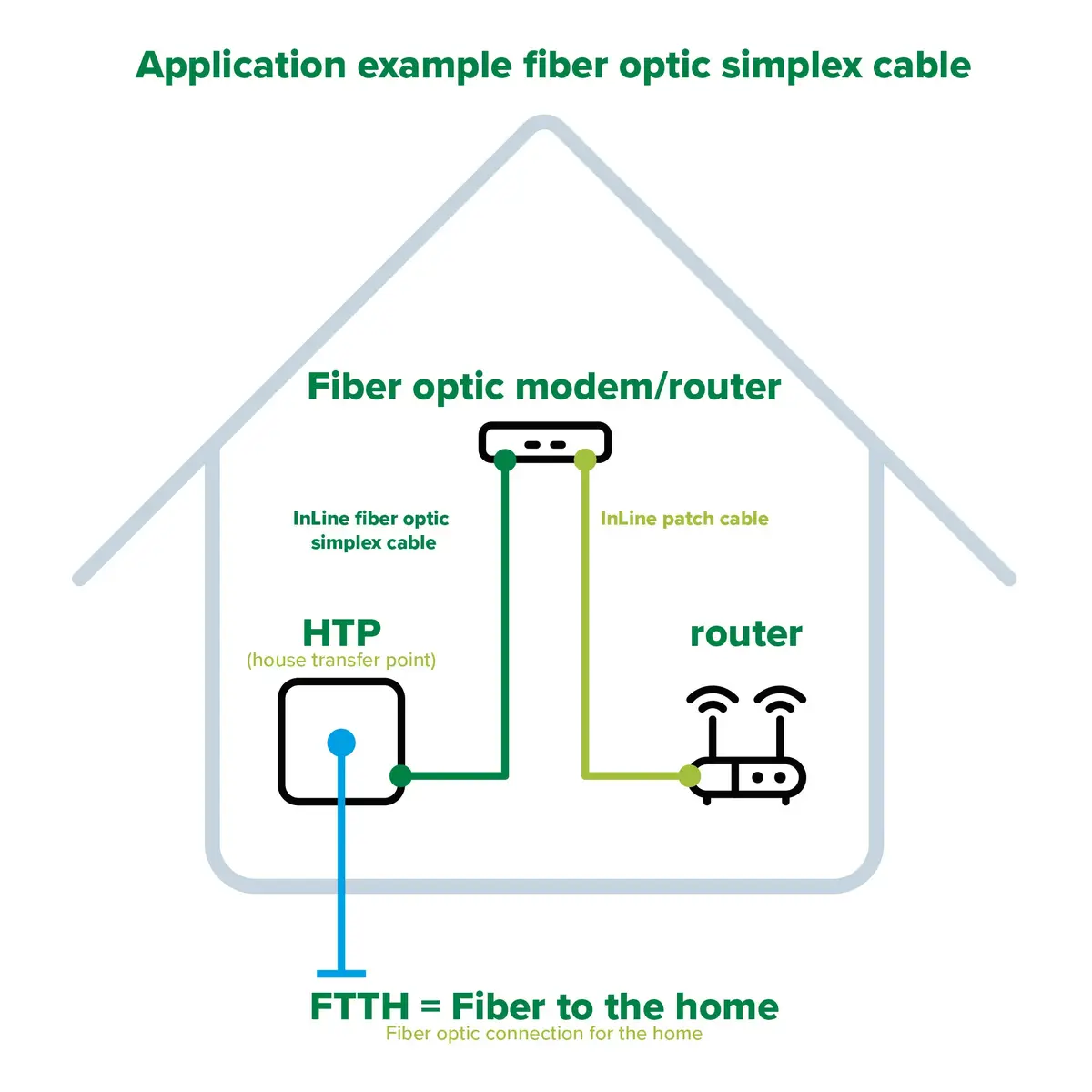

FTTH indoor patching between fiber entry point and optical modem
Connecting single-mode transceivers and ONT/OLT devices
Short single-channel links and fiber terminations inside premises

Key specifications

Connector type: LC to LC, APC 8° polished
Fiber type: Single-mode OS2, 9/125 µm
Cable outer diameter: approx. 3.0 mm
Construction: armoured/flexible metal tubing with stainless steel spiral reinforcement
Sheath: halogen-free, neutral white
Typical insertion loss: <0.20 dB
Maximum insertion loss (specified): <0.30 dB
Return loss: >60 dB
Operating temperature range: -40 °C to +85 °C
Length: 1 m

How to use

Connect one LC/APC connector to the fiber outlet or patch panel and the other LC/APC connector to the optical modem, transceiver or receiver. Ensure connectors are clean before mating to avoid contamination-related loss; use appropriate dust caps when the cable is not connected. Route the cable with gentle bends, observing the minimum bend radius of the fiber, and secure it in place using clips or cable management suitable for indoor installations.

Usage recommendations

For consistent optical performance, clean connectors with a fiber cleaning tool before each connection and avoid sharp bends or crushing. Use the supplied test report to verify insertion and return loss if required during installation or maintenance.

Specifications

Cable length:: 1 m
Connector 1:: LC
Connector 2:: LC
Weight:: 0.016 kg
Product colour:: White

All features

Full duplex:: No
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Fibre optic type:: OS2
Return loss:: 60 dB
Connector polish type:: APC
Test protocol included:: Yes

Features

Cable length:: 1 m
Connector 1:: LC
Connector 2:: LC
Product colour:: White
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Dimensions (WxDxH):: 150 x 1000 x 10
Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.016 kg

Operational conditions

Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Packaging data

Package weight:: 24 g
Package depth:: 160 mm
Package height:: 10 mm
Package width:: 150 mm
Package volume:: 300 cm³
