InLine LC/APC–LC/APC OS2 9/125µm fiber cable 0.5 m

Name: Fiber optical simplex cable InLine 88255
Brand: InLine
SKU: 11734310
Price: 8.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Fiber optical simplex cable InLine LC/APC to LC/APC OS2 9/125µm 0.5 m

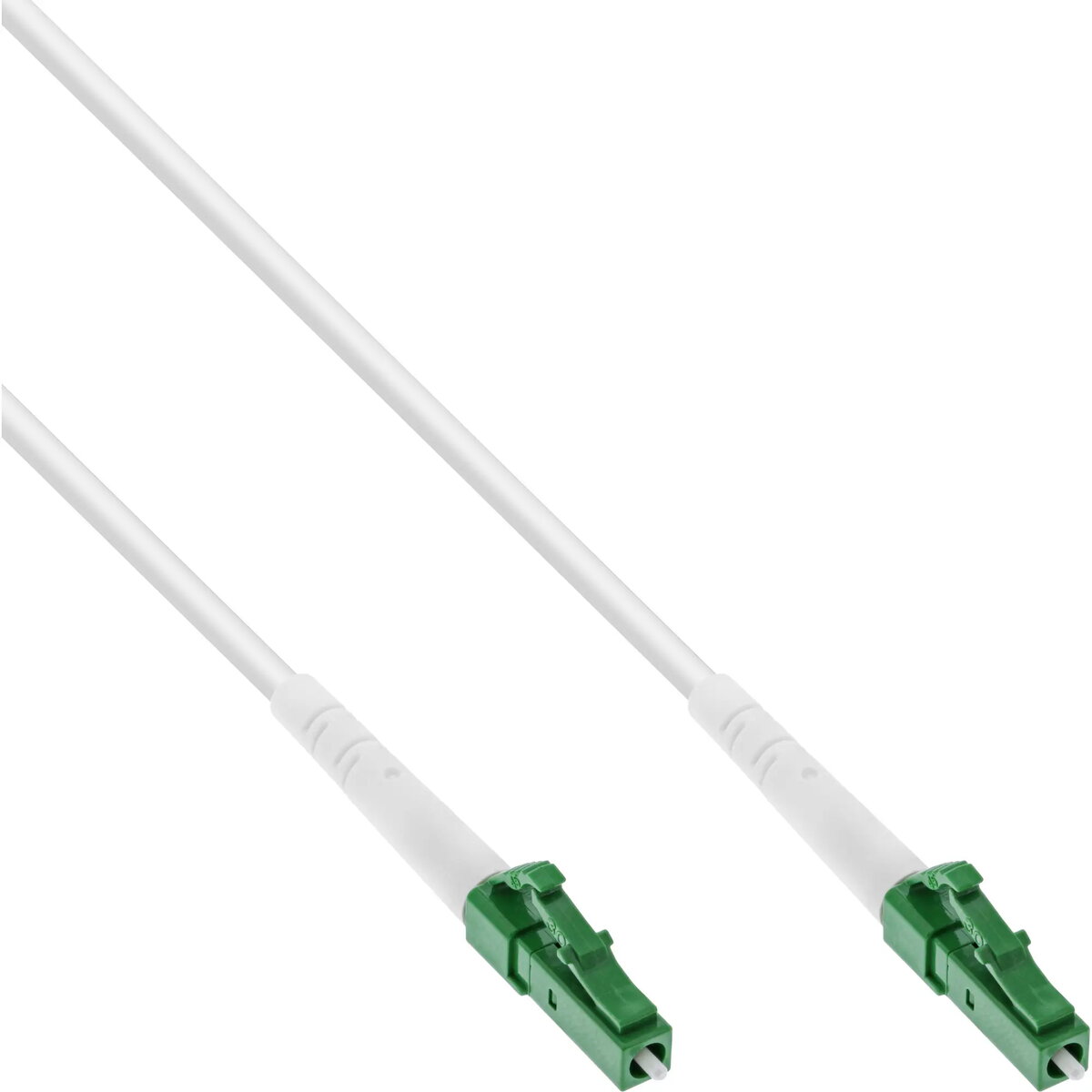

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 0.5 m Photo 1

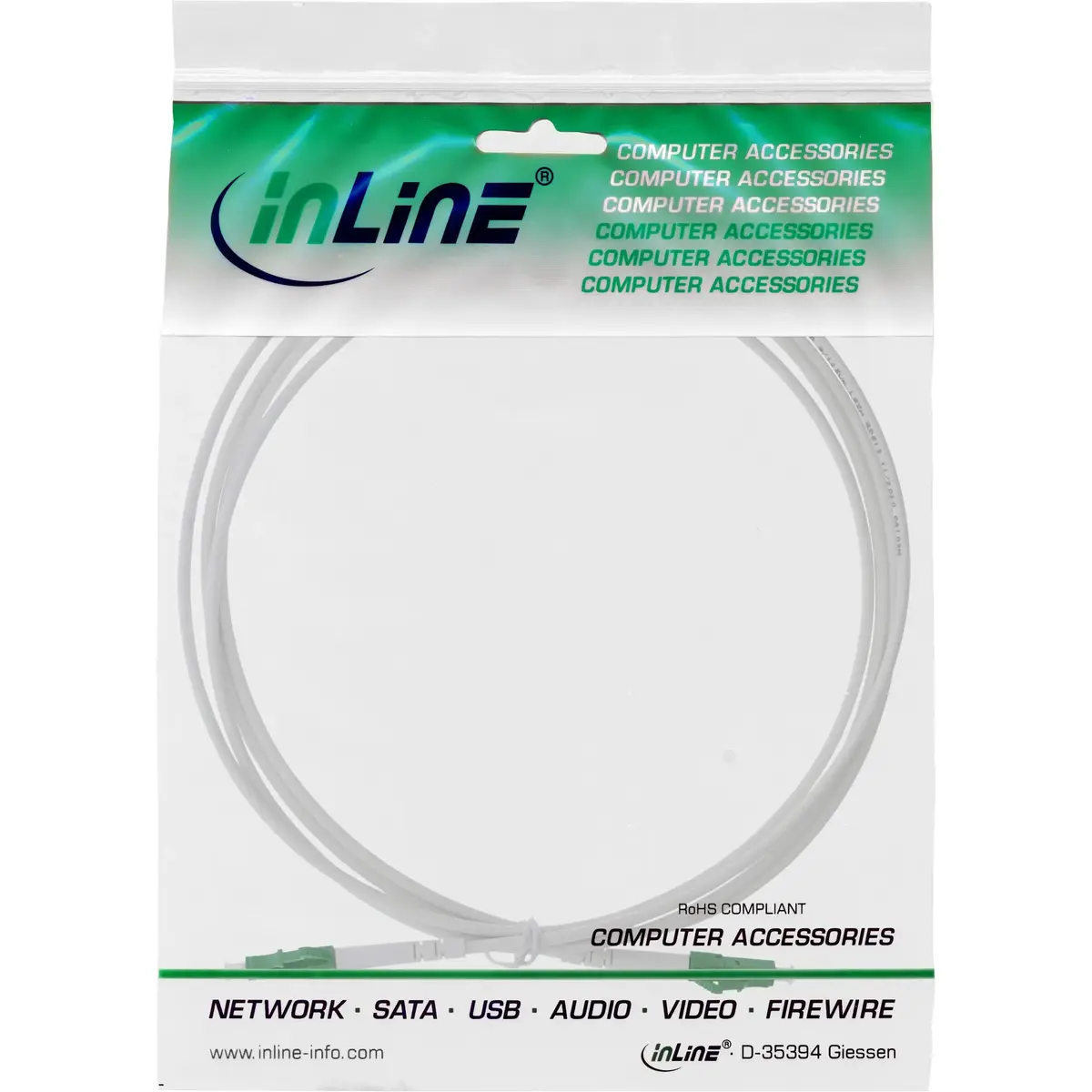

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 0.5 m Photo 2

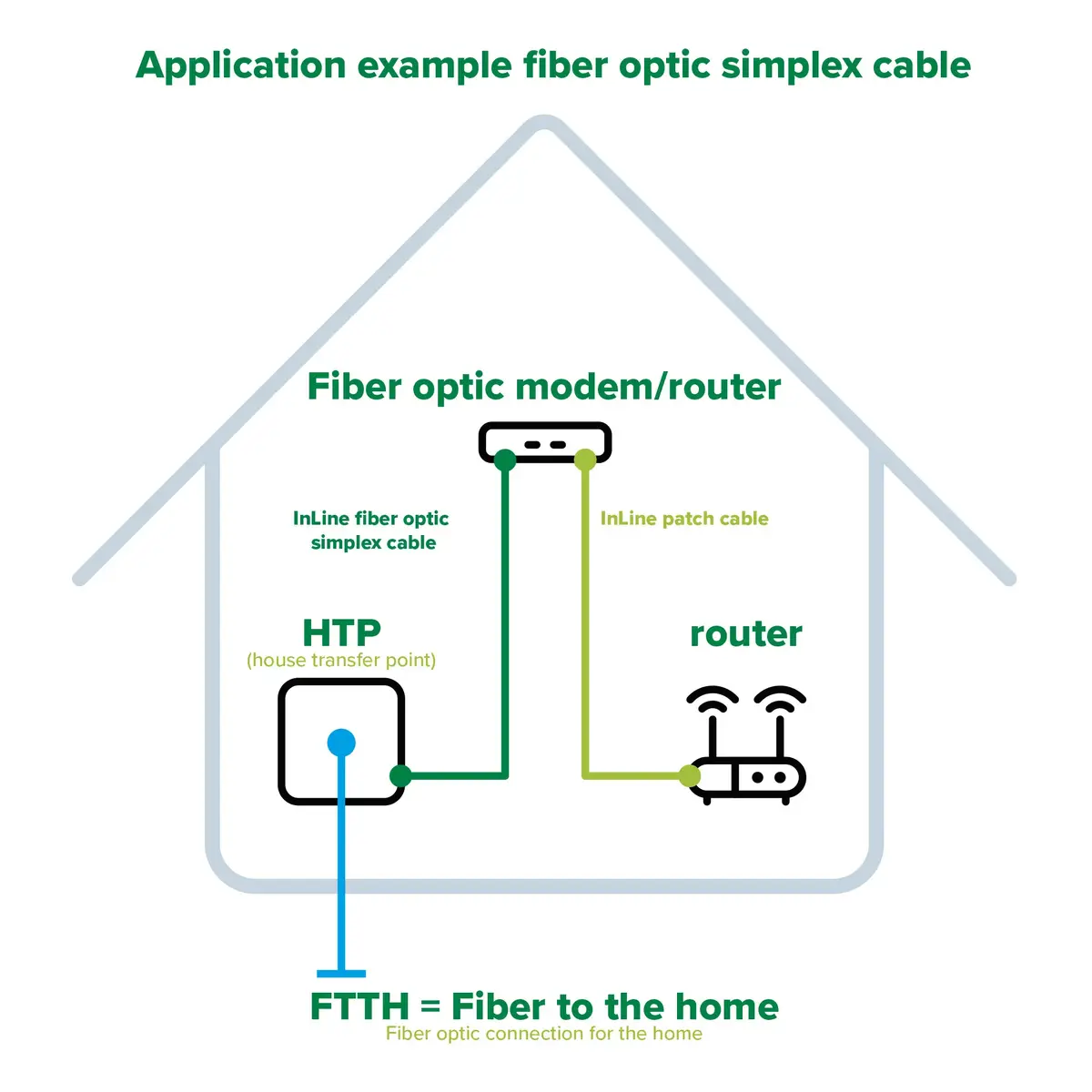

InLine LC/APC–LC/APC OS2 9/125µm fiber cable 0.5 m Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

InLine fiber optical simplex patch cable for FTTH applications with LC/APC 8° connectors on both ends. Single-mode OS2 fibre with 9/125 µm core/cladding, length 0.5 m. Designed for low-loss connections in optical networks, splicing panels, patch panels and active equipment where compact LC/APC terminations and stable single-mode transmission are required.

Available for order: 518 pcs.

Warranty: 2 Years

SKU: 11734310

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

InLine fiber optical simplex cable LC/APC to LC/APC OS2 9/125µm, length 0.5 m, is designed for reliable single-mode connections in FTTH and professional optical networking applications. The cable features LC/APC 8° connectors on both ends and OS2 9/125 µm fiber for stable low-loss transmission. With a compact 3.0 mm armoured structure and a halogen-free white jacket, this patch cable is suitable for visible home installations and for connecting splice panels, patch panels and active devices where minimal insertion loss and high return loss are required.

Advantages

The InLine simplex cable offers a robust construction with a stainless steel spiral tube reinforcement and a flexible metal tubing core that increases mechanical strength while maintaining bend resilience for indoor routing. Its halogen-free outer jacket reduces risk in enclosed spaces and the compact LC/APC terminations provide low insertion loss (typical <0.20 dB) and high return loss (>60 dB), supporting stable single-mode OS2 transmission. Supplied with a test report, the cable meets common industry standards for safety and performance.

Suitable for

Connecting FTTH home termination points to fiber modems and ONTs
Patch panels and splice enclosures in residential or small-business installations
Interconnects between active optical equipment with LC/APC interfaces
Short indoor fiber runs where compact, armoured single-mode cabling is required

Key specifications

Fiber type: Single-mode OS2, 9/125 µm
Connector type: LC/APC to LC/APC, 8° angled polish
Cable outer diameter: approx. 3.0 mm (armoured)
Outer sheath: halogen-free, white
Insertion loss: typical <0.20 dB, maximum <0.30 dB
Return loss: >60 dB
Mechanical reinforcement: stainless steel spiral tube and flexible metal tubing
Operating temperature range: -40 °C to +85 °C
Length: 0.5 m

How to use

Route the InLine LC/APC to LC/APC patch cable between the optical network termination or splice panel and the fiber modem or active device, taking care to avoid tight bends and sharp kinks. Remove protective caps from the LC/APC connectors only immediately before connection, and insert the connectors into the matching LC/APC ports ensuring proper alignment of the angled ferrules. For disconnection, pull the connector housing — not the cable jacket — to avoid stressing the fibre. Store unused cable lengths coiled loosely and protected from mechanical damage.

Usage recommendations

For best performance, maintain a bend radius greater than the manufacturer’s minimum (avoid tight loops), keep connector endfaces clean using appropriate fiber cleaning tools, and verify insertion and return loss with test equipment if used in mission-critical installations. Use the armoured cable option where extra mechanical protection is needed in visible or high-traffic areas.

Specifications

Cable length:: 0.5 m
Connector 1:: LC
Connector 2:: LC
Weight:: 0.01 kg
Product colour:: White

All features

Full duplex:: No
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Fibre optic type:: OS2
Return loss:: 60 dB
Connector polish type:: APC
Test protocol included:: Yes

Features

Cable length:: 0.5 m
Connector 1:: LC
Connector 2:: LC
Product colour:: White
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Dimensions (WxDxH):: 150 x 500 x 10
Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.01 kg

Operational conditions

Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Packaging data

Package weight:: 17 g
Package depth:: 170 mm
Package height:: 1 mm
Package width:: 145 mm
Package volume:: 100 cm³
