InLine LC/APC to SC/APC 9/125µm OS2 2 m

Name: Fiber optic simplex patch cable 88402
Brand: InLine
SKU: 11734316
Price: 11.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Fiber optic simplex patch cable InLine LC/APC (8°) to SC/APC (8°) 9/125µm OS2, 2 m

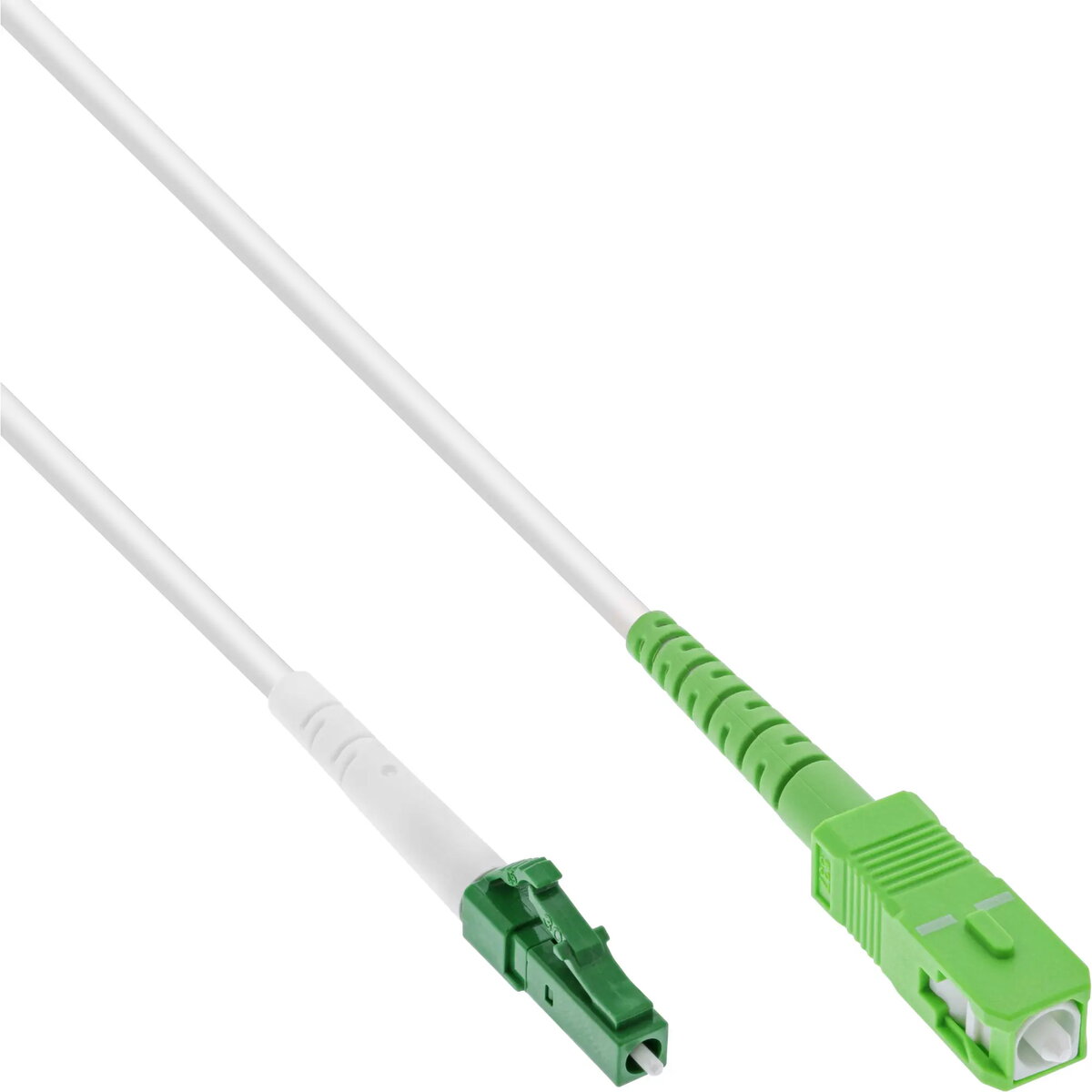

InLine LC/APC to SC/APC 9/125µm OS2 2 m Photo 1

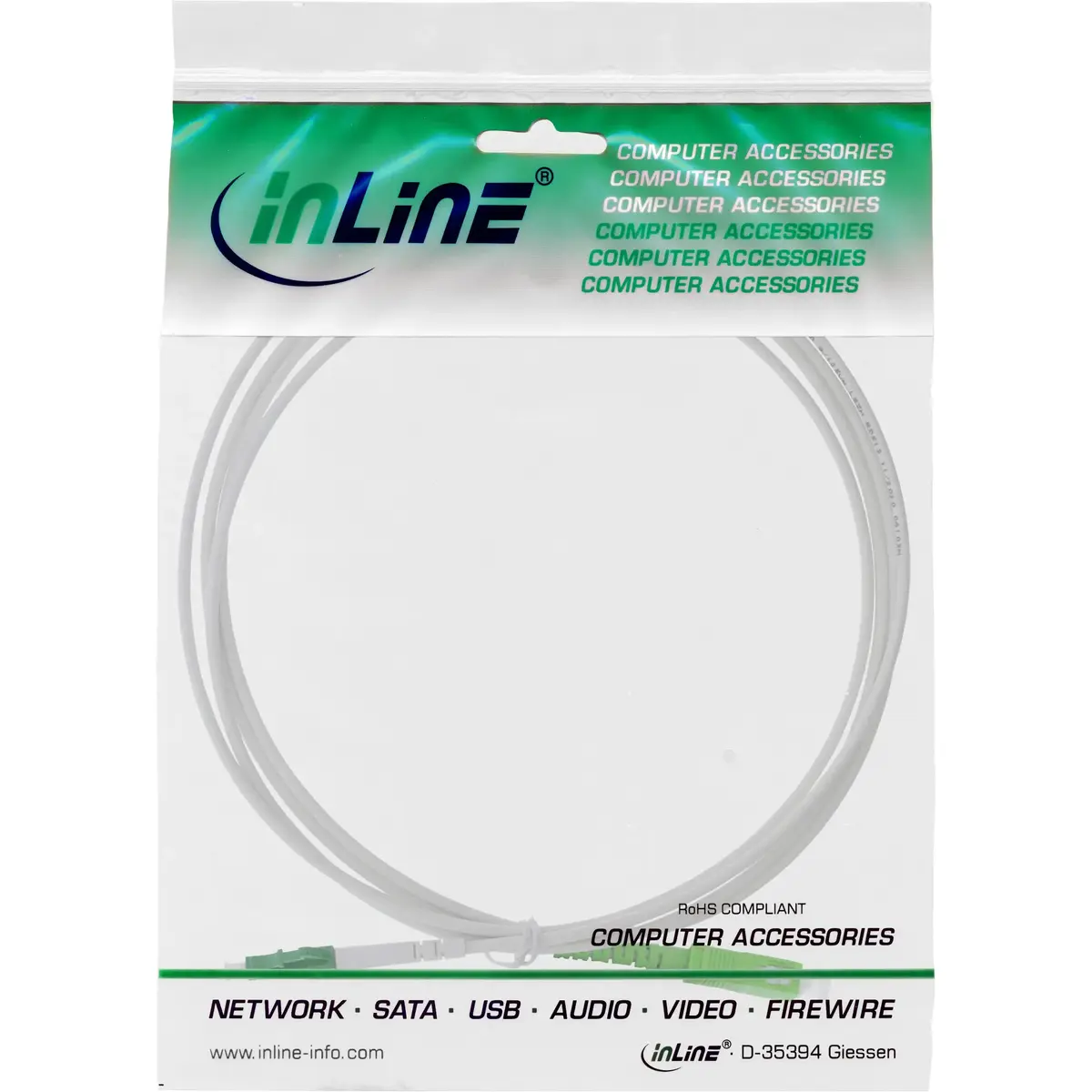

InLine LC/APC to SC/APC 9/125µm OS2 2 m Photo 2

InLine LC/APC to SC/APC 9/125µm OS2 2 m Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Single‑fiber simplex patch cable from InLine for FTTH and single‑mode connections. Length 2 m, OS2 fibre 9/125 µm, LC/APC (8°) connector on one end and SC/APC (8°) on the other. Designed for low‑loss single‑mode transmission, fiber optic linking between equipment, patch panels and ONT/OLT in access networks and premises.

Available for order: 223 pcs.

Warranty: 2 Years

SKU: 11734316

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Single-fiber simplex patch cable InLine LC/APC (8°) to SC/APC (8°) 9/125µm OS2, 2 m is a pre-assembled single-mode duplex replacement cable designed for FTTH and point-to-point optical connections. The cable uses OS2 9/125 µm fibre and features an LC/APC connector on one end and an SC/APC connector on the other, both with 8° APC polish for low back-reflection. The armoured 3.0 mm outer sheath and internal stainless steel spiral tube provide mechanical protection suitable for in-home routing between the house transfer point, ONT/OLT and fibre modem.

Advantages

The cable combines a compact LC form factor with the robust SC interface to allow flexible device and patch-panel connections while keeping insertion loss low and return loss high. Its halogen-free outer jacket and reinforced metal tubing increase durability compared with thin factory-supplied jumpers, reducing the risk of breakage during installation or everyday use. The product is delivered with test report data and complies with relevant IEC standards for fibre performance and fire/toxicity behaviour.

Suitable for

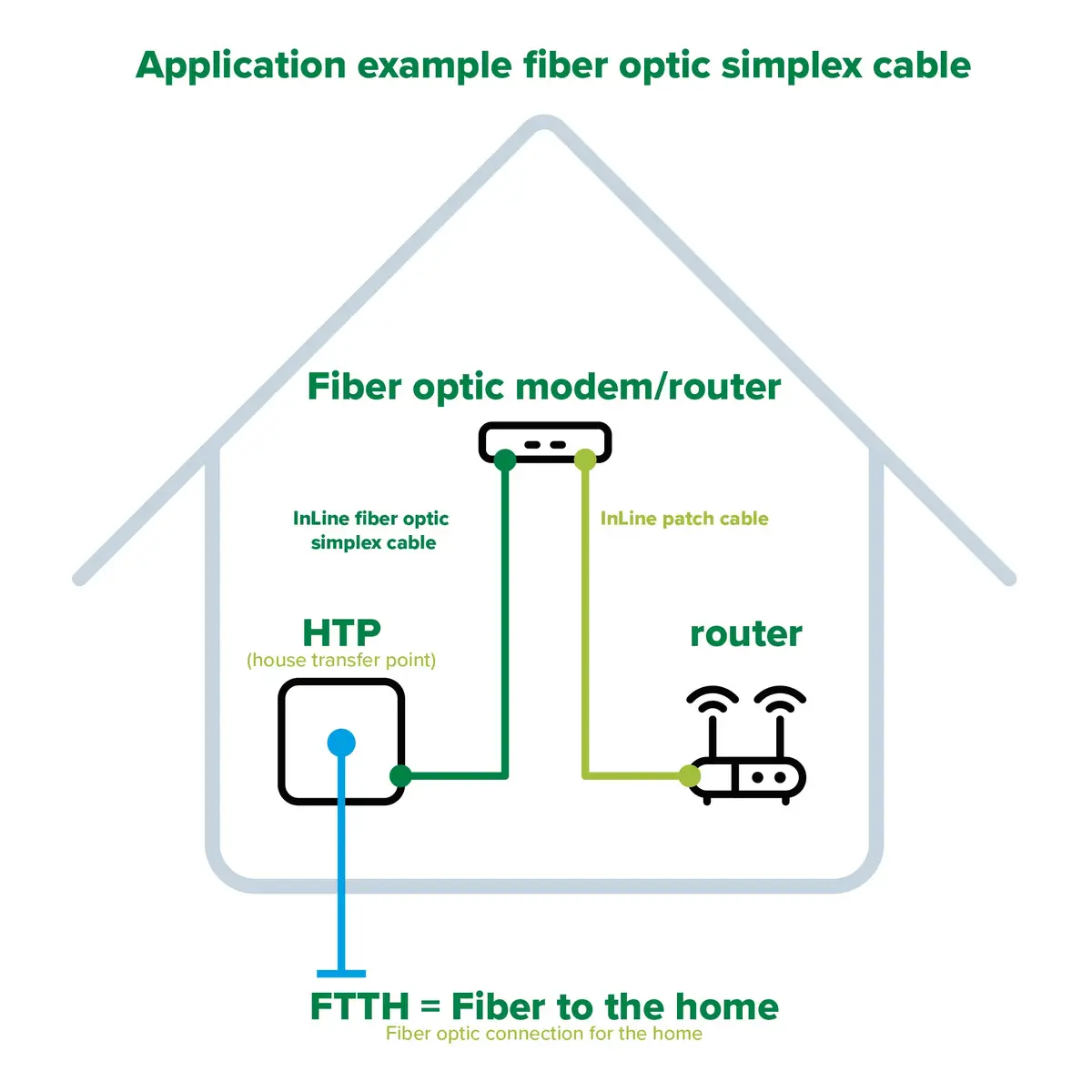

FTTH installations linking the home entry point to ONT/ONT ports or home routers
Patch panel to network equipment connections in premises and small data closets
Single-mode optical links requiring APC-terminated connectors to minimise back-reflection
Replacement of thin or damaged pre-installed consumer fibre jumpers

Key specifications

Fibre type: OS2 single-mode, 9/125 µm
Connectors: LC/APC (8°) to SC/APC (8°)
Cable outer diameter: approx. 3.0 mm (armoured)
Internal reinforcement: stainless steel spiral tube
Insertion loss (typical): <0.20 dB; maximum <0.30 dB
Return loss: >60 dB (APC)
Polish type: APC 8°
Operating temperature range: -40 °C to +85 °C
Sheath: halogen-free, white
Cable length: 2 m

How to use

Connect the LC/APC end to the device or patch panel port sized for LC connectors and the SC/APC end to the corresponding SC port. Ensure both connector ferrules and device ports are clean before mating to avoid performance degradation; use a fibre-cleaning tool or lint-free swabs with appropriate cleaner. Route the cable without sharp bends and avoid compressing the armoured tube; maintain the minimum bend radius recommended for single-mode jumper cables. Verify link quality after installation using the supplied test report or appropriate optical test equipment.

Usage recommendations

Store and install the cable in a dry environment, avoid exposure to prolonged UV light or chemicals. When replacing existing consumer jumpers, choose this sturdier 3 mm armoured cable to reduce the likelihood of damage during handling. For best optical performance, use APC-terminated connectors throughout the link where optical reflections must be minimised, and perform post-installation insertion loss and return loss checks if network equipment supports them.

Specifications

Cable length:: 2 m
Connector 1:: LC
Connector 2:: SC
Weight:: 0.034 kg
Product colour:: White

All features

Full duplex:: No
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Fibre optic type:: OS2
Connector polish type:: APC
Test protocol included:: Yes

Features

Cable length:: 2 m
Connector 1:: LC
Connector 2:: SC
Product colour:: White
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Dimensions (WxDxH):: 170 x 2000 x 8
Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.034 kg

Operational conditions

Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Packaging data

Package weight:: 41 g
Package depth:: 170 mm
Package height:: 80 mm
Package width:: 165 mm
Package volume:: 2300 cm³
