InLine LC/APC to SC/APC 9/125µm OS2 0.5 m cable

Name: Fiber optical simplex cable InLine 88455
Brand: InLine
SKU: 11731834
Price: 8.99 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

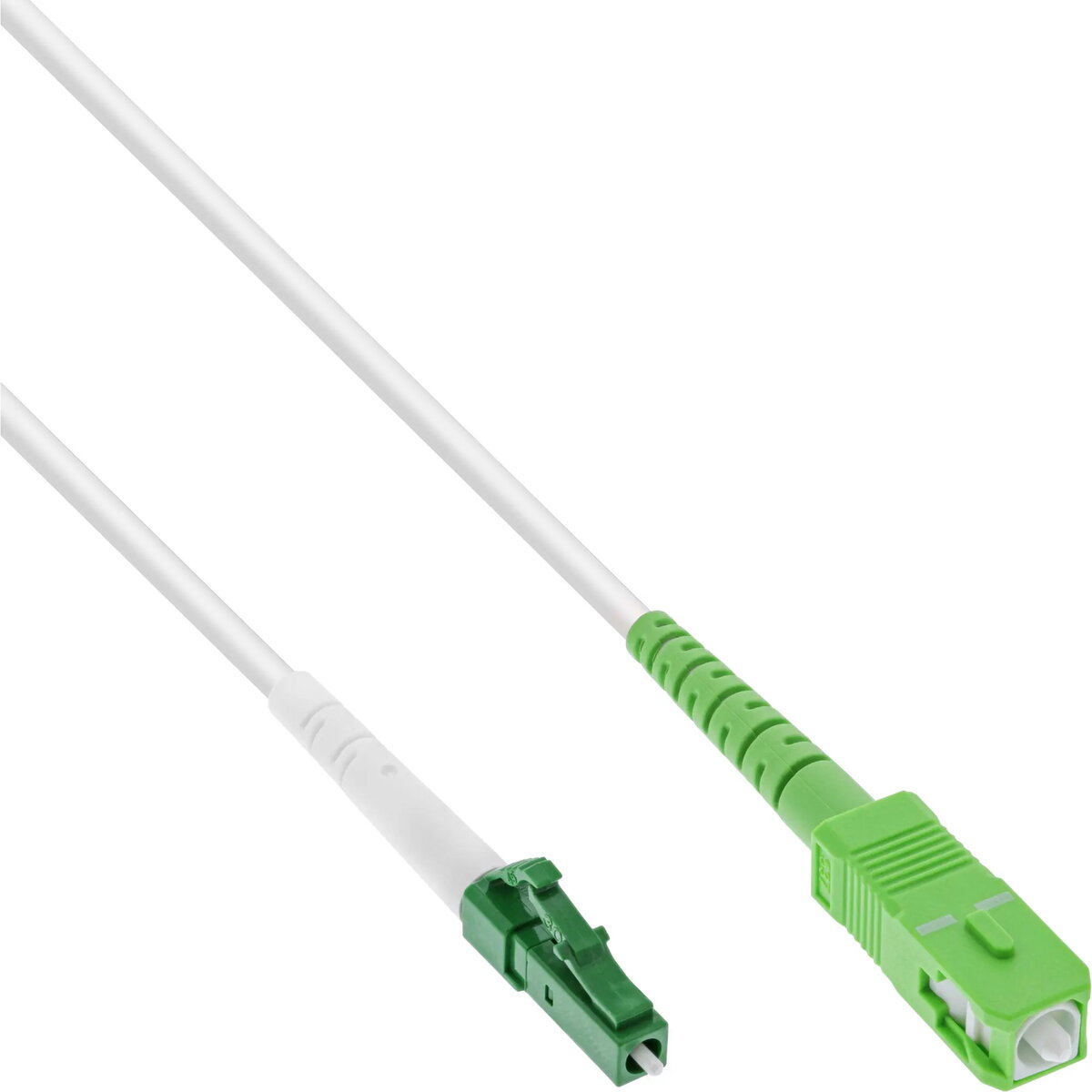

Fiber optical simplex cable InLine LC/APC 8° to SC/APC 8° 9/125µm OS2 0.5 m

InLine LC/APC to SC/APC 9/125µm OS2 0.5 m cable Photo 1

InLine LC/APC to SC/APC 9/125µm OS2 0.5 m cable Photo 2

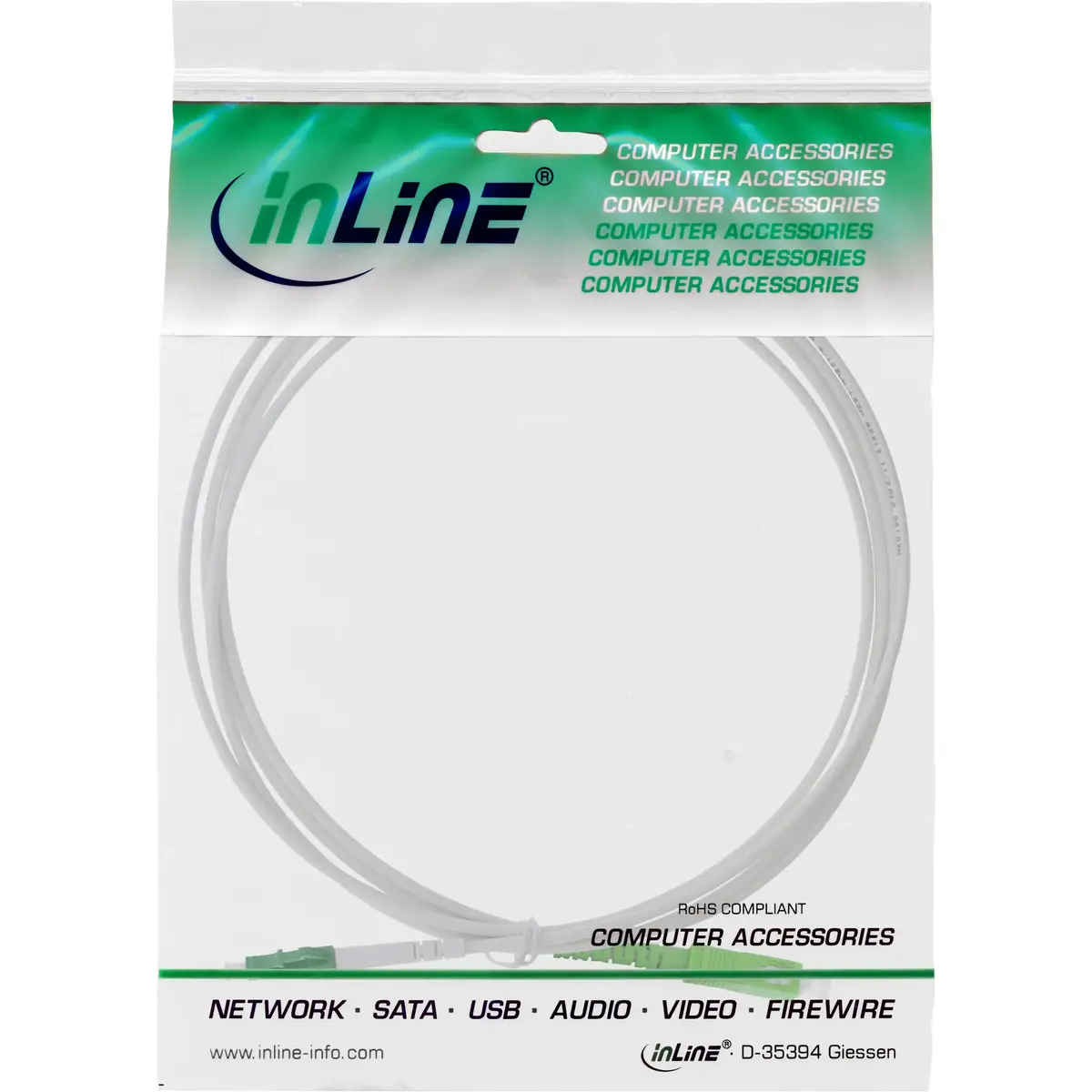

InLine LC/APC to SC/APC 9/125µm OS2 0.5 m cable Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Single-fiber (simplex) fiber optic patch cable by InLine with LC/APC 8° connector on one end and SC/APC 8° on the other. 9/125 µm single-mode core (OS2) and 0.5 m length for FTTH, telecom and equipment interconnects. Suitable for low-loss single-mode transmission, optical patching, labs and short link assemblies.

Available for order: 562 pcs.

Warranty: 2 Years

SKU: 11731834

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

07.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

10.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.01 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

10.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

InLine fiber optical simplex cable with LC/APC 8° to SC/APC 8° connectors is a 0.5 m single-mode patch cord designed for low-loss optical interconnection. The cable uses a 9/125 µm OS2 fiber core and an armoured 3.0 mm outer jacket for improved mechanical protection compared with extremely thin provider-supplied leads. Its APC 8° polished terminations and tested insertion/return loss characteristics make it suitable for FTTH, telecom equipment links and short link assemblies where reliable single-mode transmission is required.

Advantages

The armoured construction with a stainless-steel spiral tube increases resistance to crushing and accidental damage while preserving flexibility for indoor routing. An outer sheath made from halogen-free material and a neutral white colour enable unobtrusive installation in living spaces. Factory-tested optical performance with typical insertion loss below 0.20 dB and return loss better than 60 dB ensures predictable link behaviour for installers and network operators.

Suitable for

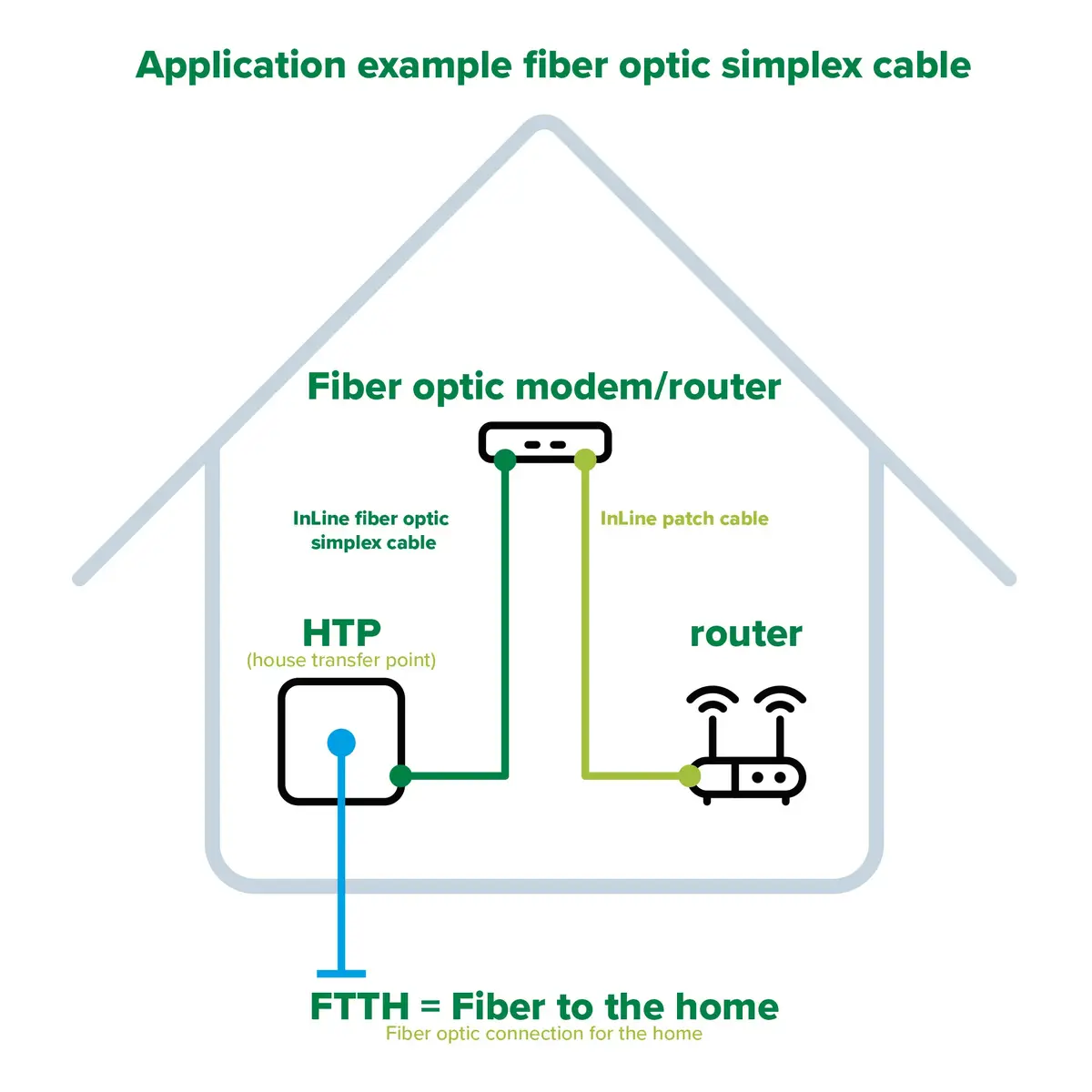

FTTH connections between the optical entry point and home gateway or modem
Patch panels and telecom equipment interconnects in racks or cabinets
Laboratory and test bench short links where single-mode OS2 fiber is required
Replacement or upgrade of thin, unarmoured provider-supplied drop cables

Key specifications

Fiber type: single-mode OS2, 9/125 µm core/cladding
Length: 0.5 m
Connector A: LC/APC 8° male
Connector B: SC/APC 8° male
Connector polish: APC (angled 8°)
Armoured cable outer diameter: approx. 3.0 mm
Outer sheath: halogen-free, white
Typical insertion loss: <0.20 dB
Maximum insertion loss (specified): <0.30 dB
Return loss: >60 dB
Operating temperature range: -40 °C to +85 °C

How to use

Connect the LC/APC end to the device or adapter with an LC receptacle and the SC/APC end to the patch panel, modem or adapter with an SC receptacle, ensuring both connectors seat fully and the angled APC faces are not contaminated. Avoid sharp bends and maintain the minimum bend radius recommended for 3.0 mm armoured cables when routing. If necessary, inspect connector endfaces with a microscope and clean with approved fiber cleaning tools before insertion to achieve the stated optical performance.

Usage recommendations

For long-term reliability in FTTH installations, use this armoured 3.0 mm drop cable where provider-supplied 1.6 mm lines are insufficient. Store and route the cable to avoid kinks, and perform optical loss testing after installation to verify insertion and return loss meet expected values.

Specifications

Cable length:: 0.5 m
Connector 1:: LC
Connector 2:: SC
Weight:: 0.012 kg
Product colour:: White

All features

Full duplex:: No
Insertion loss:: 0.3 dB
Fiber mode structure:: Single-mode
Core diameter:: 9 µm
Cladding diameter:: 125 µm
Fibre optic type:: OS2
Return loss:: 60 dB
Connector polish type:: APC
Test protocol included:: Yes

Features

Cable length:: 0.5 m
Connector 1:: LC
Connector 2:: SC
Product colour:: White
Connector 1 gender:: Male
Connector 2 gender:: Male

Other features

Dimensions (WxDxH):: 150 x 500 x 10
Cable diameter:: 3 mm

Weight & dimensions

Weight:: 0.012 kg

Operational conditions

Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Packaging data

Package weight:: 19 g
Package depth:: 170 mm
Package height:: 1 mm
Package width:: 150 mm
Package volume:: 100 cm³

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the InLine LC/APC to SC/APC 9/125µm OS2 0.5 m cable cost, and is it available for purchase?

The price is 8.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 562 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 07.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All InLine products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized InLine service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: cable length, connector 1, connector 2, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
