Cable set InLine 95040 4 mm² 1500 V 30 A

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The InLine 95040 cable set features a core size of 4 mm², supports input voltage up to 1500 V and current of 30 A. It includes male and female connectors, suitable for DC power sources. The cable length is 0.42 m with a diameter of 5.5 mm, making it ideal for solar panel installations.

Available for order: 176 pcs.

Warranty: 2 Years

SKU: 11239861

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

24.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

27.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

27.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

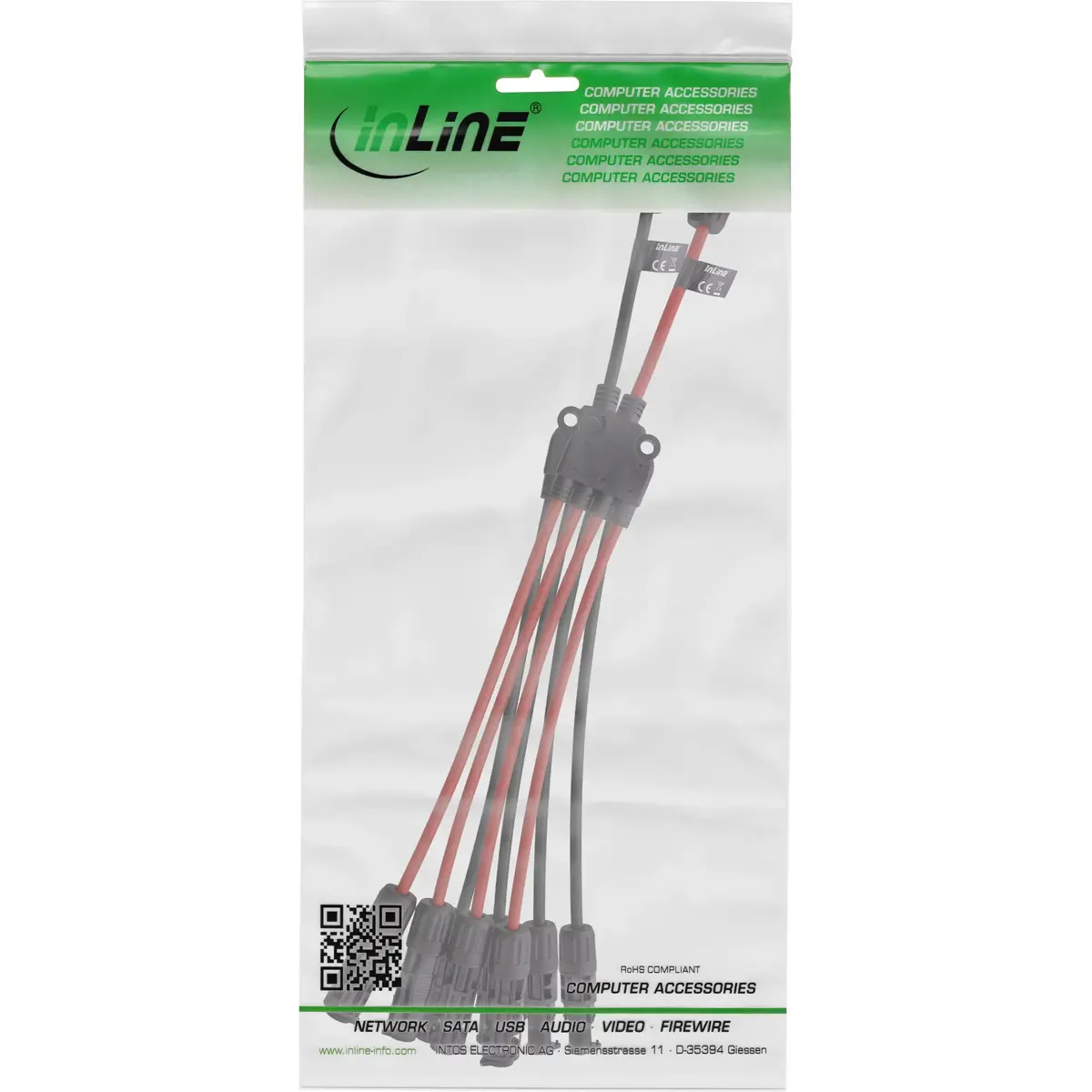

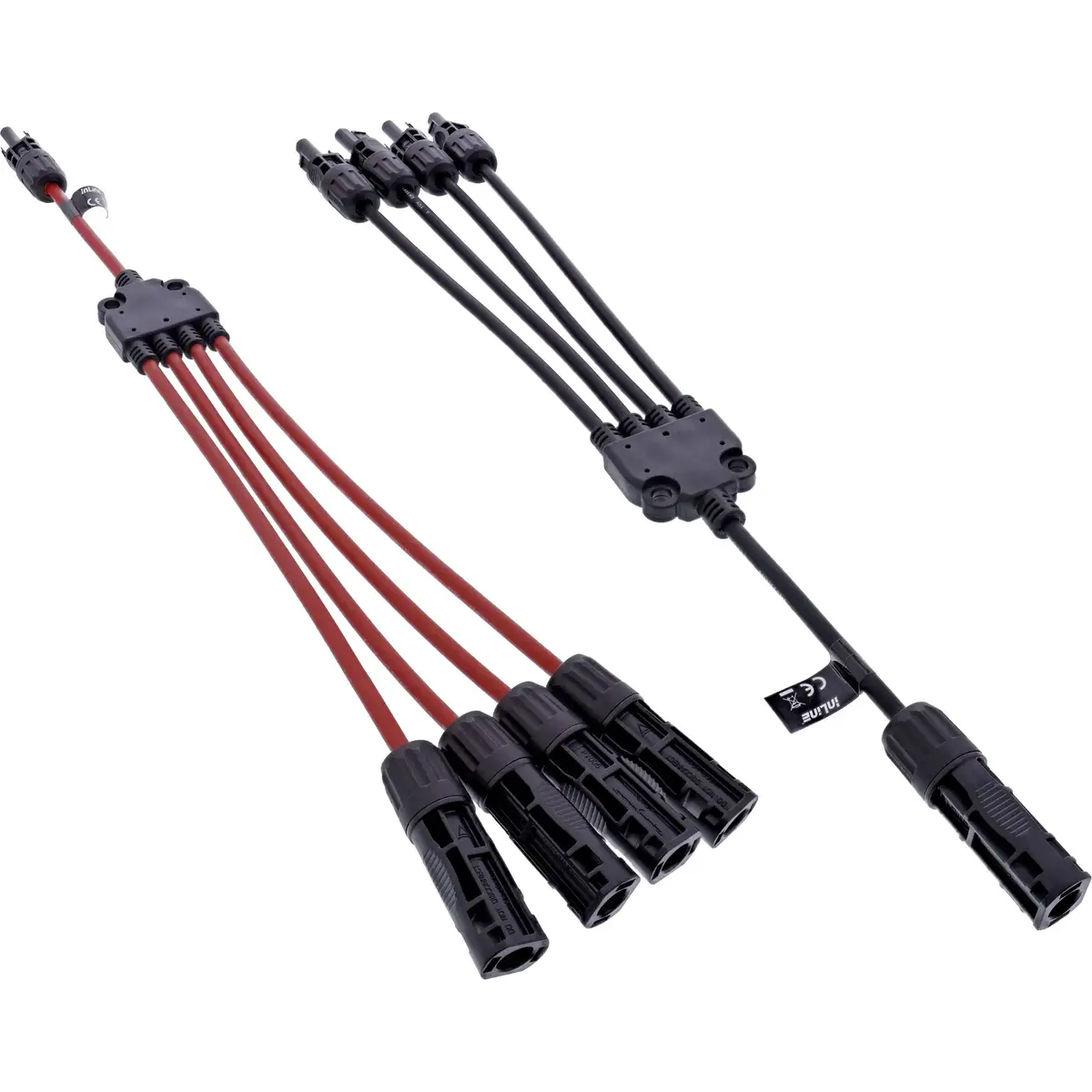

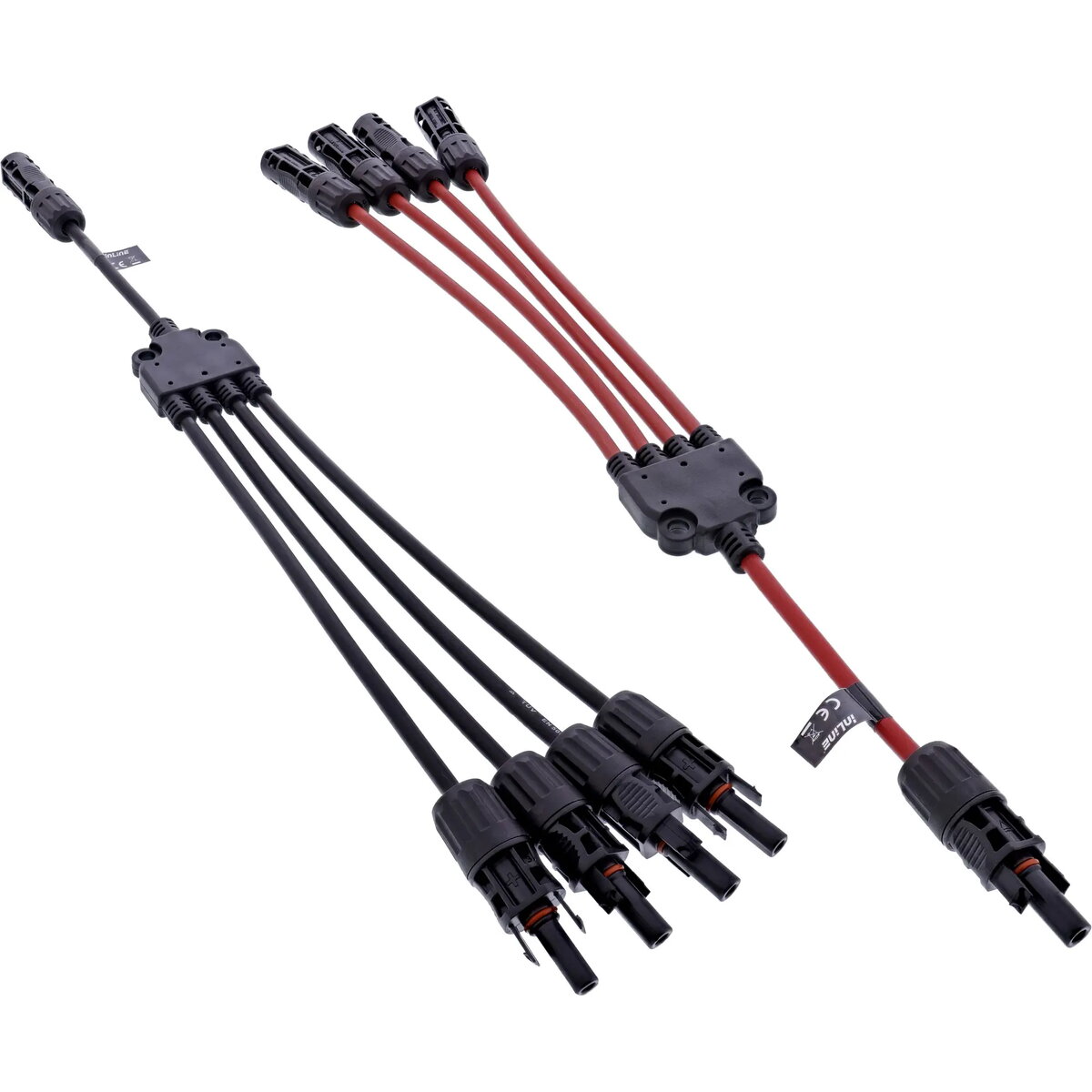

The InLine 95040 cable set is a high-quality solar cable Y-splitter designed to distribute cable paths to corresponding solar modules. It has a conductor cross-section of 4 mm², supports DC input voltages up to 1500 V and nominal current up to 30 A, and comes with male and female connectors. The set includes a 0.42 m length cable with an outer diameter of 5.5 mm, suitable for use in photovoltaic panel installations and related DC connections.

Advantages

The InLine 95040 combines a compact 0.42 m cable length with a 4 mm² conductor for reliable current transmission up to 30 A and voltage rating up to 1500 V. Its male and female connectors enable straightforward DC connections between panels and system components. The product is intended for outdoor solar applications and conforms to common electrical parameters used in modern PV systems.

Suitable for (tasks / use cases)

Connecting multiple solar panels in parallel
Extending or redirecting DC cable runs between panels
Integrating panels into combiner boxes or microinverter inputs
Field service and temporary test setups for PV arrays

Key specifications

Brand: InLine
Model / MPN: 95040
EAN: 4043718334773
Conductor cross-section: 4 mm²
Maximum voltage: 1500 V (DC)
Rated current: 30 A
Cable length: 0.42 m
Cable outer diameter: 5.5 mm

How to use

Ensure that the system is de-energized before connecting the InLine 95040 cable set. Plug the male and female connectors to the corresponding panel or device connectors until they click or lock in place, observing correct polarity. Route the cable to avoid sharp bends and mechanical strain; secure it with appropriate clamps or ties. After installation, verify connections and continuity and, if applicable, perform insulation and polarity checks before energizing the circuit.

Usage recommendations

Use the cable set only within the specified voltage (up to 1500 V DC) and current (30 A) limits. For outdoor installations, protect connections from prolonged moisture exposure and mechanical damage; follow applicable local electrical codes and PV installation best practices.

All features

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -40 - 85
Cable length: How long the cable is.: 0.42 m
Input voltage: The voltage (V) which is required to power the product.: 1500
Product colour: The colour e.g. red, blue, green, black, white.: Red, Black
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.: 5.5 mm
Input current:: 30
Number of products included: The number of products that are included in the package.: 2 pc(s)
Connector type: The type of connector e.g. USB.: Standard4/MC4/PV4
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IPX68
Power source type: What the power source is.: DC
Number of connectors: The quantity of ports (sockets) where external devices can be connected to this product.: 5
Core size:: 4 mm²
Product type: The sub-category of the product.: Cable set
Connector 1 gender: The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.: Male
Connector 2 gender: The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.: Female
Ultraviolet (UV) resistant:: Yes
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS, TÜV mark
