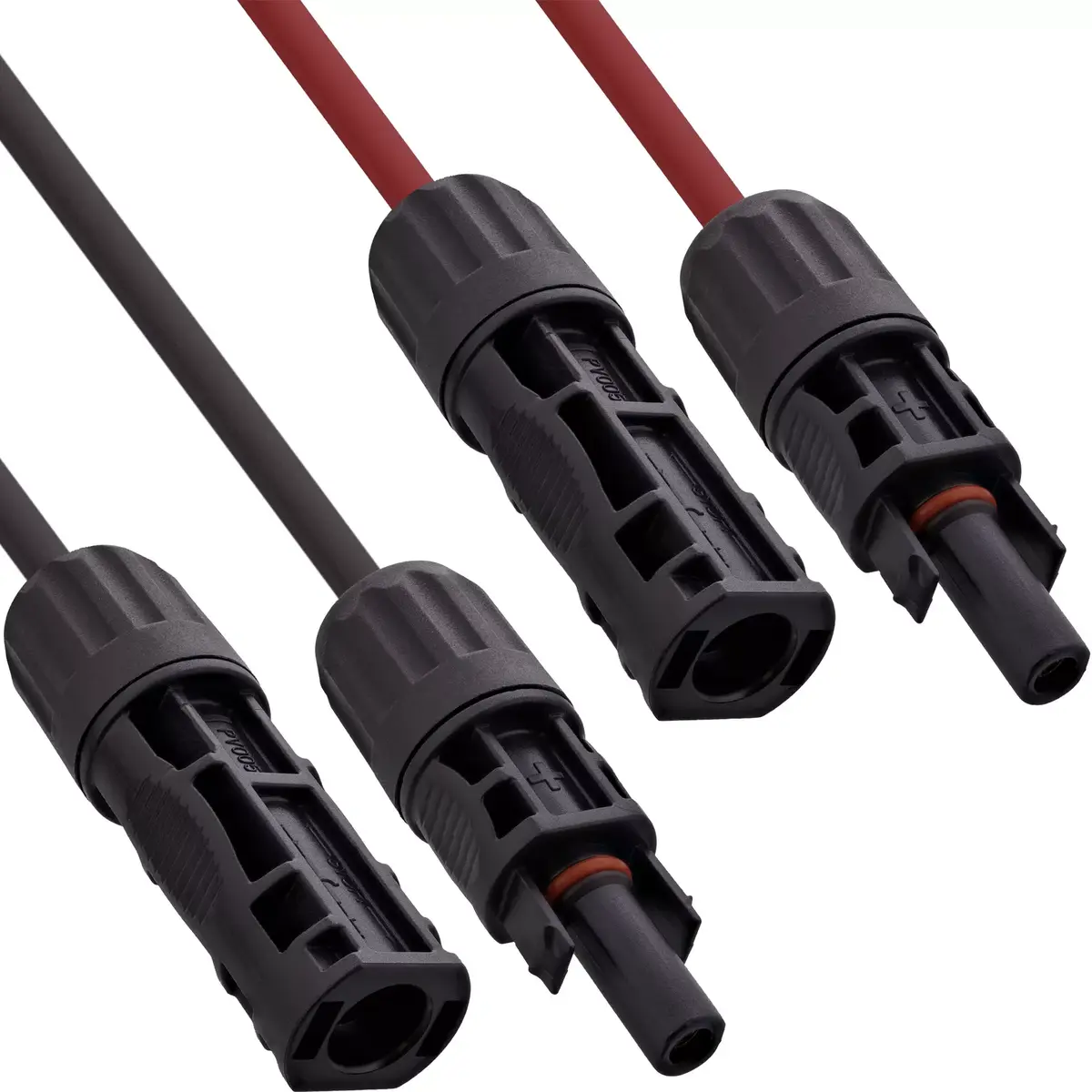

InLine 95412 Solar Cable Extension Set Photo 1

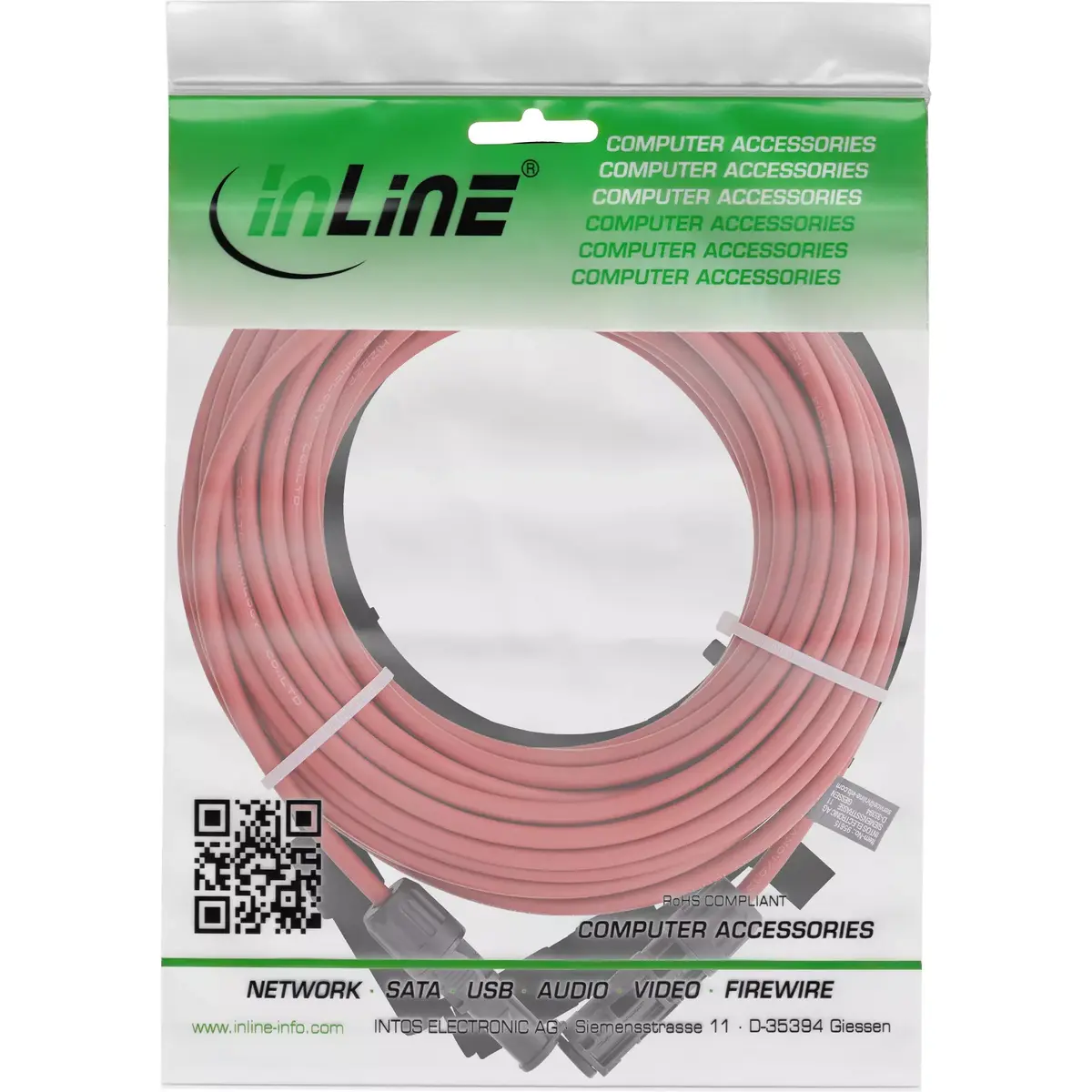

InLine 95412 Solar Cable Extension Set Photo 2
InLine 95412 Solar Cable Extension Set Photo 1
InLine 95412 Solar Cable Extension Set Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine 95412 Medium Voltage Solar Cable Extension Set 4mm² 12.5m Red Black 1500V

{{email}}
You keep track of price changes

InLine 95412 Medium Voltage Solar Cable Extension Set 4mm² 12.5m Red Black 1500V

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine 95412 medium voltage solar cable extension set designed for photovoltaic systems. Features a length of 12.5 m, 4mm² conductor cross-section, and a maximum operating voltage of 1500 V. The set includes red and black cables with 0.7 mm insulation thickness, 5.5 mm diameter, and pre-mounted solar connectors for reliable outdoor power transmission and renewable energy installations.
Available for order: 32 pcs.
Warranty: 2 Years
SKU: 11239019
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
18.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
23.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.45 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
23.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 95412 Medium Voltage Solar Cable Extension Set 4mm² 12.5m Red Black 1500V is a reliable medium voltage cable designed specifically for photovoltaic systems and renewable energy installations. This set includes red and black cables with pre-mounted solar connectors, offering a practical length of 12.5 meters, a 4mm² fine-wired tinned copper conductor cross-section, and a maximum operating voltage of 1500 V for efficient outdoor power transmission.

Advantages

The cable features robust construction with an external diameter of 5.5 mm, a 0.7 mm insulation thickness, and halogen-free cross-linked polyolefin insulation that ensures low smoke and zero halogen properties. It provides excellent resistance against ozone, weathering, and UV radiation, making it highly durable for permanent outdoor deployment in demanding climatic conditions. The pre-mounted solar connectors save installation time and ensure secure electrical contacts right out of the box.

Suitable for

  • Wiring photovoltaic systems and solar panel arrays
  • Connecting solar modules to inverters or charge controllers
  • Outdoor renewable energy power transmission
  • Residential and commercial solar installations requiring pre-terminated cables

When it may not be suitable

This cable set may not be suitable for high-power industrial applications requiring conductor cross-sections significantly larger than 4mm² or for permanent installations where the 12.5-meter length is either insufficient or excessively long for the required routing distance. It is also not intended for direct burial without additional protective conduit depending on local electrical regulations.

Key specifications

  • Medium voltage solar cable extension set
  • Conductor cross-section: 4 mm²
  • Cable length: 12.5 m
  • Maximum operating voltage: 1500 V DC
  • Conductor material: Tinned copper
  • Color: Red and black
  • Outer diameter: 5.5 mm
  • Insulation thickness: 0.7 mm
  • Ambient temperature range: -40°C to +90°C
  • Minimum bending radius: 22 mm
  • Halogen-free and flame resistant

How to use

Unroll the red and black cables carefully and route them along the planned path between your solar panels and system components, ensuring the minimum bending radius of 22 mm is respected to prevent internal conductor damage. Connect the pre-mounted solar plugs securely to the corresponding terminals of your photovoltaic modules or devices until they click into place. Verify that all connections are tight and that the cables are safely secured away from sharp edges and moving parts.

What to consider before purchase

  • Verify that the 12.5-meter length matches the distance requirements of your setup
  • Confirm that the 4mm² cross-section is adequate for your system current and voltage drop limits
  • Check compatibility of the pre-mounted solar connectors with your existing hardware
  • Ensure the operating temperature range suits your local climate conditions

Usage recommendations

Always verify the required wire cross-section based on your specific system current and cable run distance, and consult a qualified solar technician if you have any doubts. Ensure cables are secured against mechanical strain and protected from prolonged immersion in standing water during installation.

All features
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.714 kg
Package weight: Weight of the packaged product.
1448 g
Height: The measurement of the product from head to foot or from base to top.
21 mm
Width: The measurement or extent of something from side to side.
21 mm
Depth: The distance from the front to the back of something.
12500 mm
Product colour: The colour e.g. red, blue, green, black, white.
Black, Red
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.
5.5 mm
Package depth: The distance from the front to the back of the packaging.
250 mm
Package height: The distance from the top to the bottom of the packaging.
75 mm
Package width: The distance from one side of the packaging to the other.
220 mm
Insulation thickness:
0.7 mm
Length: The measurement or extent of something from end to end; the greater of two or the greatest of three dimensions of an object.
12.5 m
Product type: The sub-category of the product.
Medium voltage cable
Conductor cross section:
4
Conductor material:
Tinned copper
Operating voltage (max):
1500 V
Package volume:
4100 cm³
Fire-resistant:
Yes
Doesn't contain:
Halogen
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, TÜV mark
