header-product InLine 95612 Medium Voltage Cable Red Black 1500 V Insulation Thickness 0.7 mm Length 1 m Diameter 6.3 mm
96.99 €

InLine 95612 Medium Voltage Cable Red Black 1500 V Insulation Thickness 0.7 mm Length 1 m Diameter 6.3 mm

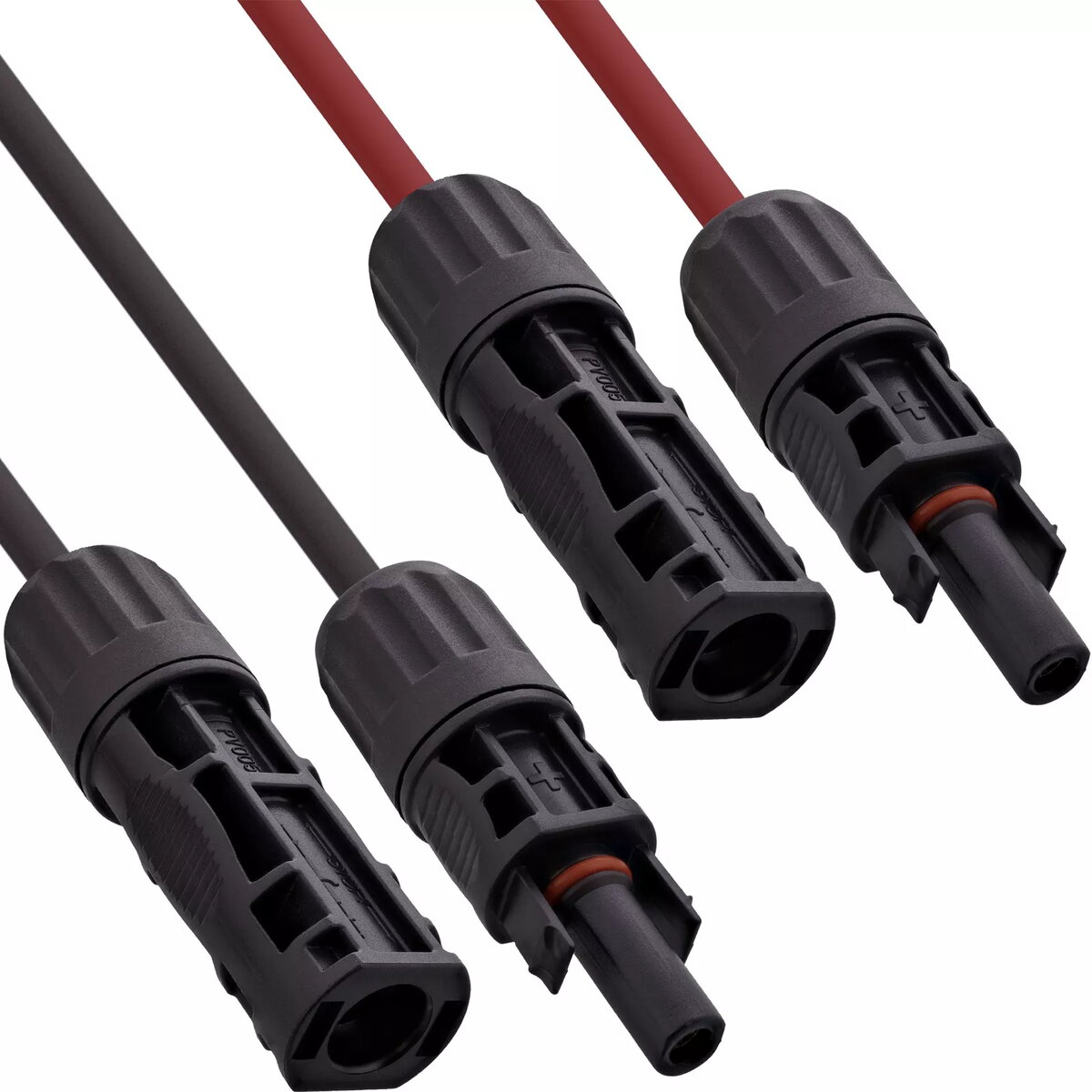

InLine 95612 Medium Voltage Cable Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

InLine 95612 Medium Voltage Cable Red Black 1500 V Insulation Thickness 0.7 mm Length 1 m Diameter 6.3 mm

{{email}}
You keep track of price changes

InLine 95612 Medium Voltage Cable Red Black 1500 V Insulation Thickness 0.7 mm Length 1 m Diameter 6.3 mm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

InLine 95612 medium voltage cable designed for reliable electrical connections and power transmission. Featuring a durable construction with a red and black color scheme, an insulation thickness of 0.7 mm, and a maximum operating voltage of 1500 V. This cable has a length of 1 meter, a diameter of 6.3 mm, and a width of 21 mm, making it suitable for various technical installations and energy supply applications.
Available for order: 32 pcs.
Warranty: 2 Years
SKU: 11238928
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
18.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
23.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.98 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
23.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The InLine 95612 Medium Voltage Cable is a reliable solution designed for efficient electrical connections and power transmission in various technical applications. Featuring a durable red and black color scheme, an insulation thickness of 0.7 mm, and a maximum operating voltage of 1500 V, this cable is built to handle demanding energy supply requirements. With a length of 1 meter, a diameter of 6.3 mm, and a conductor cross-section of 6 mm², it provides stable performance for modern photovoltaic systems and other electrical installations.

Advantages

The medium voltage cable offers exceptional durability thanks to its robust construction and high-quality tinned copper conductor material. It is engineered to withstand harsh environmental conditions, featuring ozone resistance, weather resistance, and UV resistance tested according to strict industry standards. Additionally, the halogen-free and low-smoke cross-linked polyolefin insulation ensures enhanced safety, flame resistance, and long operational lifespan even in wide ambient temperature ranges from -40°C to +90°C.

Suitable for

  • Cabling of photovoltaic systems and solar power installations
  • Power transmission in technical and energy supply applications
  • Outdoor and indoor installations requiring UV and weather resistance
  • Connections requiring low smoke zero halogen safety standards

When it may not be suitable

This cable may not be suitable for applications requiring a length greater than 1 meter without additional connections or extensions. It is also not designed for high-voltage power transmission outside of its specified maximum operating voltage limits of 1500 V DC.

Key specifications

  • Medium voltage cable type
  • Red and black color
  • Insulation thickness of 0.7 mm
  • Maximum operating voltage of 1500 V DC
  • Length of 1 meter
  • Diameter of 6.3 mm
  • Conductor cross-section of 6 mm²
  • Tinned copper conductor material
  • Ambient temperature range from -40°C to +90°C
  • Halogen-free and flame-resistant insulation

How to use

Ensure the power is turned off before handling the cable during installation. Measure the required distance for your setup and verify that the 1-meter length and 6 mm² cross-section are appropriate for your current and distance requirements. Route the cable carefully, respecting the minimum bending radius of 26 mm to avoid internal damage. Connect the cable securely to your photovoltaic system or compatible technical equipment, ensuring proper insulation and firm terminal connections.

What to consider before purchase

  • Verify that the 1-meter length is sufficient for your intended installation setup
  • Check if the 6 mm² conductor cross-section matches your current and distance requirements
  • Confirm compatibility with your existing photovoltaic or medium voltage equipment
Usage recommendations: Consult a qualified solar technician if you are in doubt regarding the required wire cross-section for your specific current and distance parameters. Always inspect the cable for any physical damage before installation and ensure that bending radii and environmental temperature limits are strictly observed.
All features
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.977 kg
Package weight: Weight of the packaged product.
1983 g
Height: The measurement of the product from head to foot or from base to top.
21 mm
Width: The measurement or extent of something from side to side.
21 mm
Depth: The distance from the front to the back of something.
12500 mm
Product colour: The colour e.g. red, blue, green, black, white.
Black, Red
Diameter: Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.
6.3 mm
Package depth: The distance from the front to the back of the packaging.
260 mm
Package height: The distance from the top to the bottom of the packaging.
65 mm
Package width: The distance from one side of the packaging to the other.
230 mm
Insulation thickness:
0.7 mm
Length: The measurement or extent of something from end to end; the greater of two or the greatest of three dimensions of an object.
1 m
Product type: The sub-category of the product.
Medium voltage cable
Conductor cross section:
6
Conductor material:
Tinned copper
Operating voltage (max):
1500 V
Package volume:
3900 cm³
Fire-resistant:
Yes
Doesn't contain:
Halogen
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, TÜV mark
