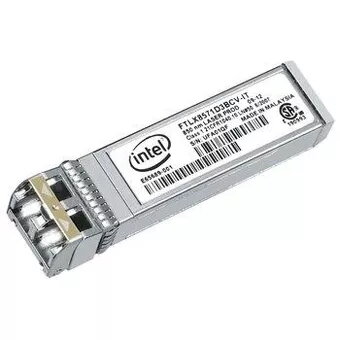

SFP+ transceiver module Intel E10GSFPSRG1P5 10000 Mbit/s 850 nm

The Intel E10GSFPSRG1P5 SFP+ transceiver module supports 10 Gbit/s data rates over multimode fiber at an 850 nm wavelength. Designed for short-range connections in data centers and enterprise networks, the module provides a compact, hot-pluggable interface for SFP+ ports. Its RoHS-compliant construction and industry-standard form factor enable straightforward integration into compatible switches, routers and network interface cards that accept SFP+ optical modules.

Advantages

This SFP+ transceiver offers reliable 10 Gbit/s performance with low power consumption and a small form factor that simplifies port density in networking equipment. Operating at 850 nm, the module is optimized for multimode fiber links, providing predictable optical performance for short-reach connections. The hot-pluggable design allows field replacement or upgrades without powering down the host device, supporting maintenance and scalability in live network environments.

Suitable for

• Short-reach 10 Gbit/s links in data centers and server rooms
• Aggregation and access layer connections between switches
• High-bandwidth uplinks for network interface cards and blade servers
• Fiber optic patch panel and cabling infrastructure using multimode fiber

Key specifications

• Data rate: 10,000 Mbit/s (10 Gbit/s)
• Wavelength: 850 nm
• Form factor: SFP+
• Optical type: Multimode fiber (MMF)
• Connector: LC duplex
• Compliance: RoHS
• Typical application range: short-reach links (up to typical multimode distances)

How to use

Insert the module into a compatible SFP+ slot on the powered equipment until it seats and the retention latch engages. Connect LC duplex multimode fiber patch cords to the module, observing correct transmit/receive orientation. Verify link status via the host device LEDs or management interface and configure network settings as required. To remove, disengage the retention latch and pull the module straight out. Use dust caps when the transceiver is not connected to protect the optical interfaces.

Usage recommendations

Install and handle the transceiver in an electrostatic-safe environment, follow manufacturer guidelines for supported fiber types and maximum reach, and ensure connectors and patch cords are clean to maintain optimal optical performance.
