INTELLINET 5-Port Fast Ethernet Office Switch, Desktop Metal, 10/100, IEEE 802.3az

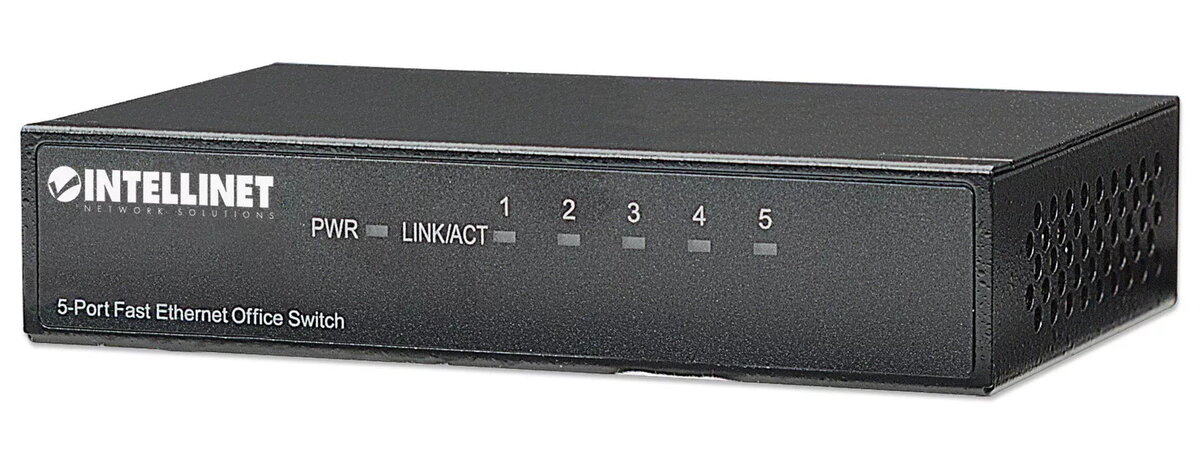

INTELLINET 5-Port Fast Ethernet Office Switch Photo 1

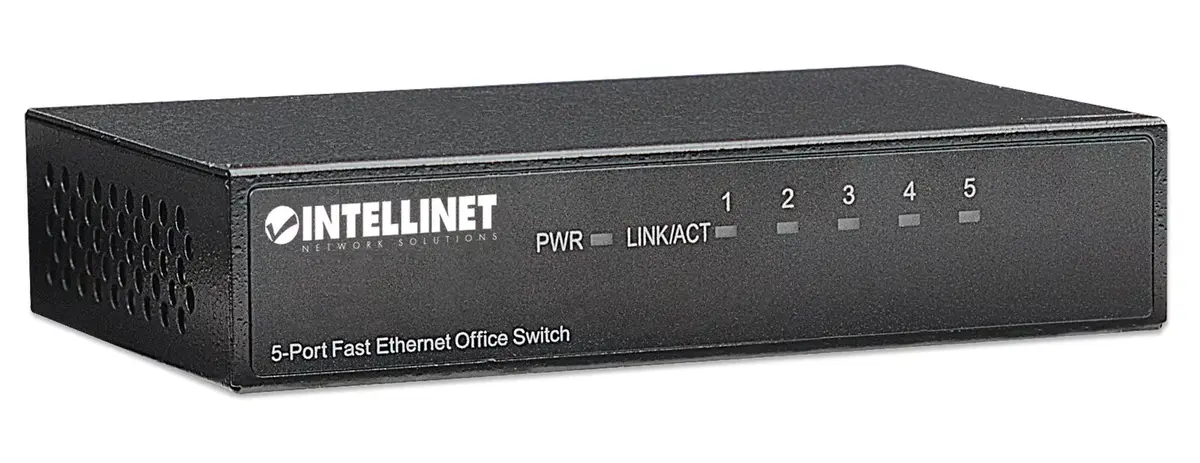

INTELLINET 5-Port Fast Ethernet Office Switch Photo 2

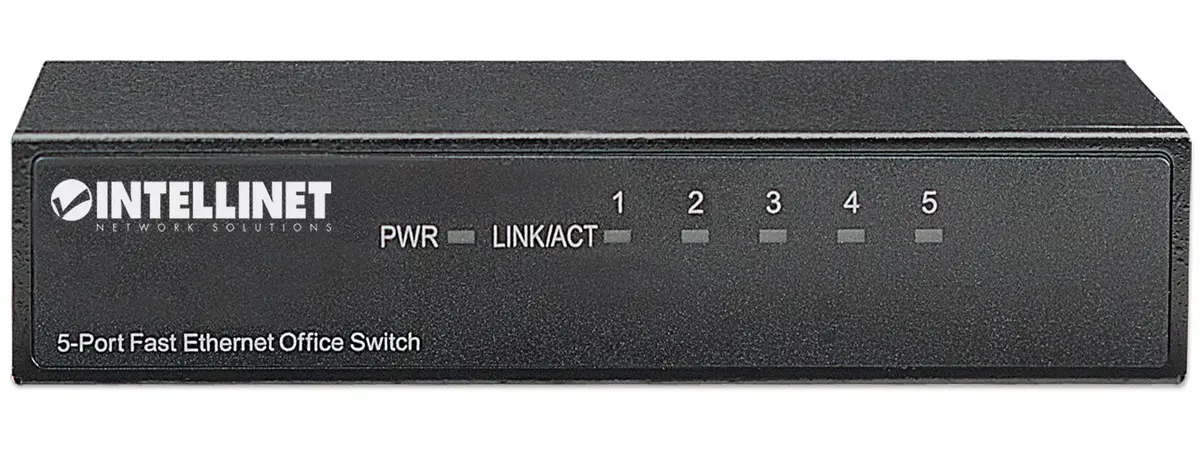

INTELLINET 5-Port Fast Ethernet Office Switch Photo 3

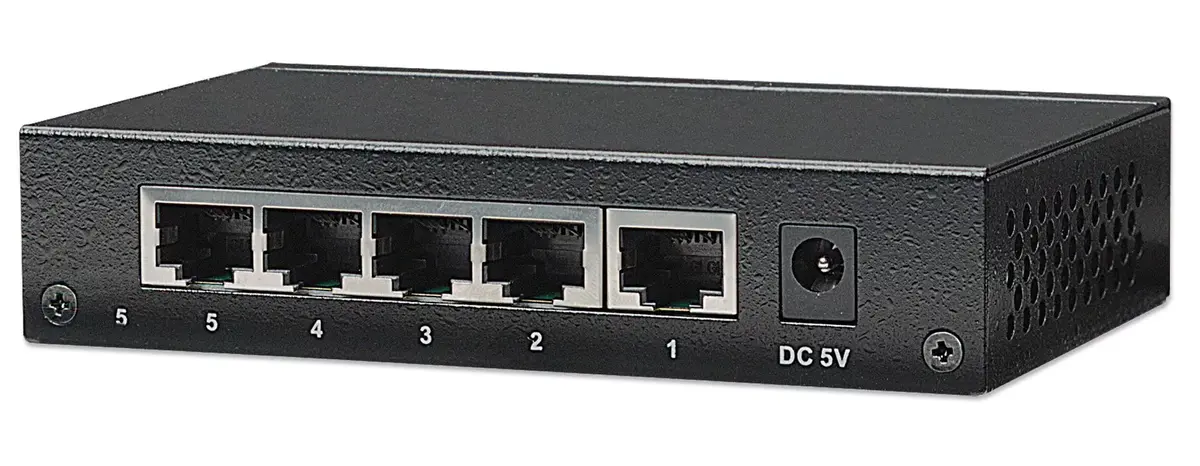

INTELLINET 5-Port Fast Ethernet Office Switch Photo 4

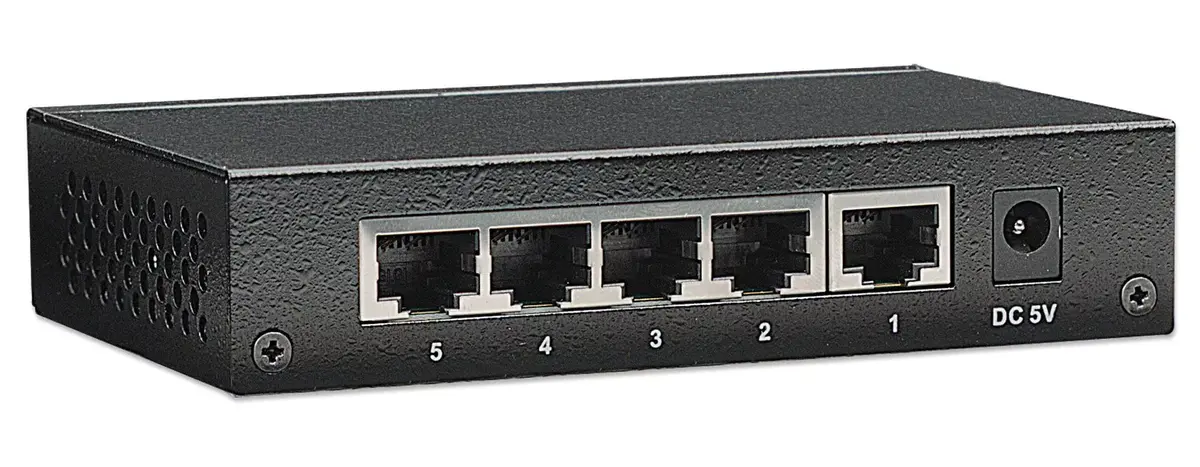

INTELLINET 5-Port Fast Ethernet Office Switch Photo 5

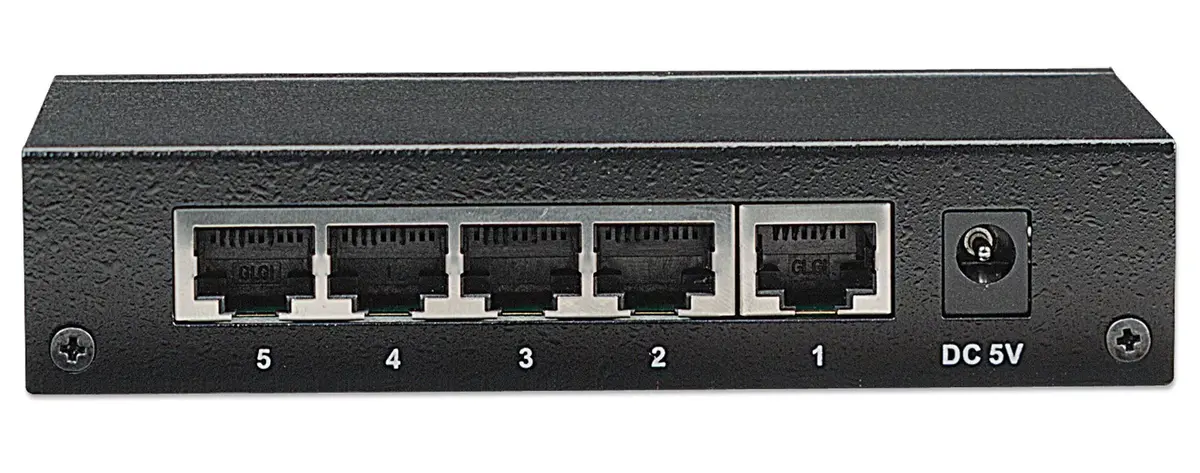

INTELLINET 5-Port Fast Ethernet Office Switch Photo 6

INTELLINET 5-Port Fast Ethernet Office Switch Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Unmanaged INTELLINET 5-port Fast Ethernet desktop switch in a metal housing supporting 10/100 Mbps RJ-45 ports. Provides five Full Duplex Ethernet ports, a 1024-entry MAC address table and energy-saving IEEE 802.3az support. Suitable for small office or home networks to expand wired connectivity for PCs, printers and IP devices.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 11191827

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.19 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The INTELLINET 5-Port Fast Ethernet Office Switch is an unmanaged desktop switch in a metal housing that provides five 10/100 Mbps RJ-45 ports for reliable wired connectivity. Designed for small office and home networks, it delivers full duplex Ethernet connections, a 1024-entry MAC address table and support for the energy-saving IEEE 802.3az standard. The metal chassis increases durability for environments such as wiring closets, small warehouses or office desks while maintaining a compact desktop footprint.

Advantages

The switch offers plug-and-play installation with Auto MDI/MDI-X on all ports, eliminating the need for crossover cables or special uplink ports. Energy-efficient IEEE 802.3az support reduces power consumption by detecting idle links and adapting power output based on cable length. With five Fast Ethernet ports and a 1024-entry MAC table, the device provides stable switching performance for common office devices without configuration or management overhead. Its metal housing improves physical robustness compared with typical plastic enclosures.

Suitable for (tasks / use cases)

Expanding wired networks in small offices and home offices
Connecting PCs, printers, VoIP phones and network-attached devices
Edge connectivity in wiring closets and light industrial locations
Temporary or permanent desktop switch deployment for meeting rooms

Key specifications

Port type and speed: 5 x RJ-45 Fast Ethernet ports (10/100 Mbps)
Duplex: Full Duplex support on all ports
MAC address table: 1024 entries
Energy efficiency: IEEE 802.3az support (Energy Efficient Ethernet)
Auto features: Auto MDI/MDI-X and auto-negotiation
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Chassis: Metal desktop housing
Color and weight: Black color, approximately 0.42 kg

How to use

Place the switch on a stable surface or mount it in a wiring closet where it has adequate ventilation. Connect each Ethernet device to an available RJ-45 port using standard Ethernet cables; the Auto MDI/MDI-X feature removes the need for crossover cables. Connect the power adapter and allow the switch to complete its startup sequence. Devices connected to the switch will automatically negotiate the appropriate 10/100 Mbps link speed and duplex mode without configuration. Monitor basic link/activity LEDs to confirm connectivity and troubleshoot physical-layer issues.

Usage recommendations

For reliable operation, use quality CAT5e or CAT6 cables and avoid placing the switch in areas with excessive dust, moisture, or extreme temperatures. When deploying near other network equipment, allow enough clearance for airflow around the metal chassis. For environments with frequent power fluctuations, consider using an uninterruptible power supply (UPS) to protect connected devices and ensure continued connectivity during brief outages.

Specifications

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 5
10G support:: No
Weight:: 0.42 kg
Product colour:: Black
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3

All features

Packaging content

Manual:: Yes

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC Class B, CE Mark

Operational conditions

Storage temperature (T-T):: -20 - 90
Operating temperature (T-T):: 0 - 50

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 5

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 2.5 W
Power supply included:: Yes

Design

LED indicators:: Y
Product colour:: Black
Stackable:: No

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3
Auto MDI/MDI-X:: Yes
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX

Weight & dimensions

Weight:: 0.42 kg
Height:: 25 mm
Width:: 121 mm
Depth:: 75 mm

Data transmission

MAC address table:: 1024 entries
Packet buffer memory:: 0.096 MB
