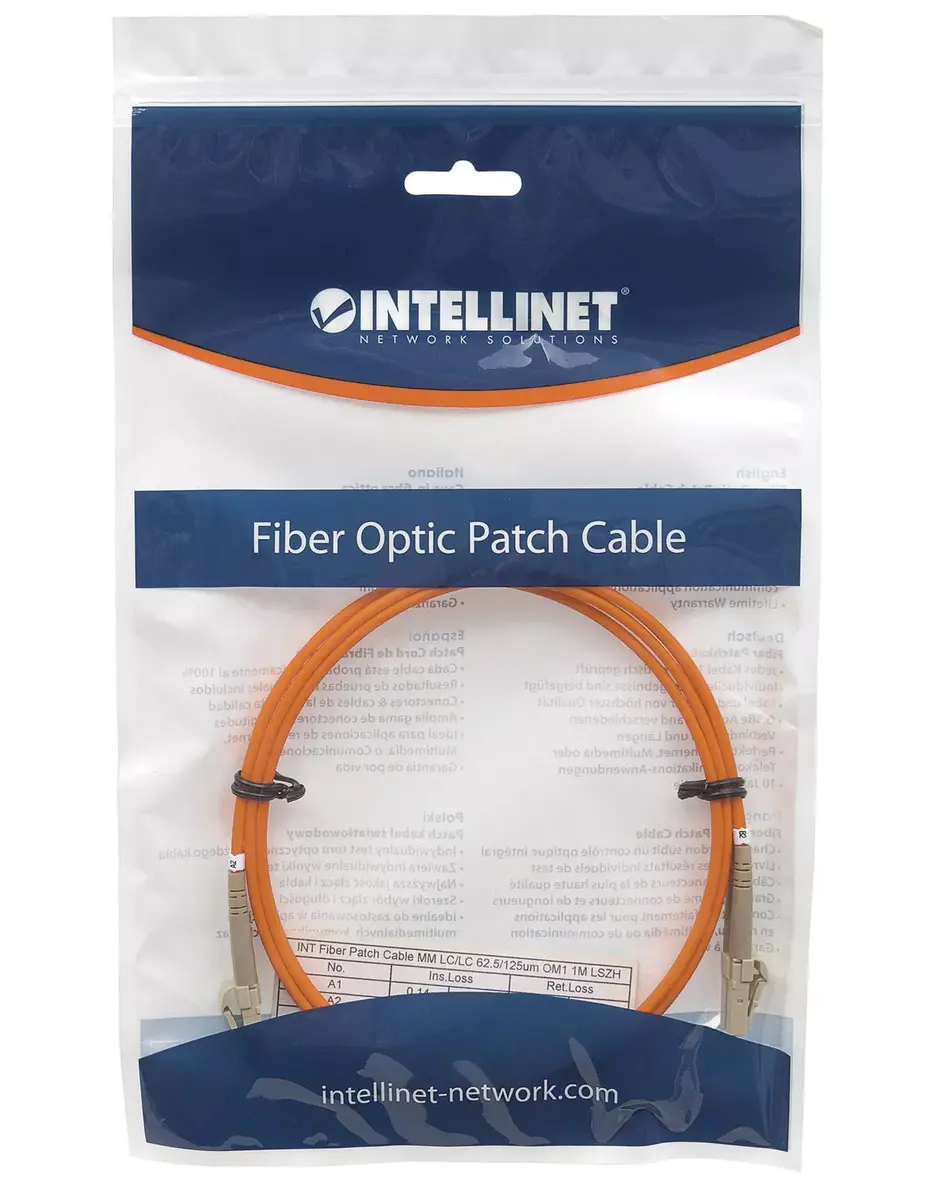

Fiber Optic Patch Cable Intellinet OM1 LC/LC 5m Orange Duplex Multimode 62.5/125 µm

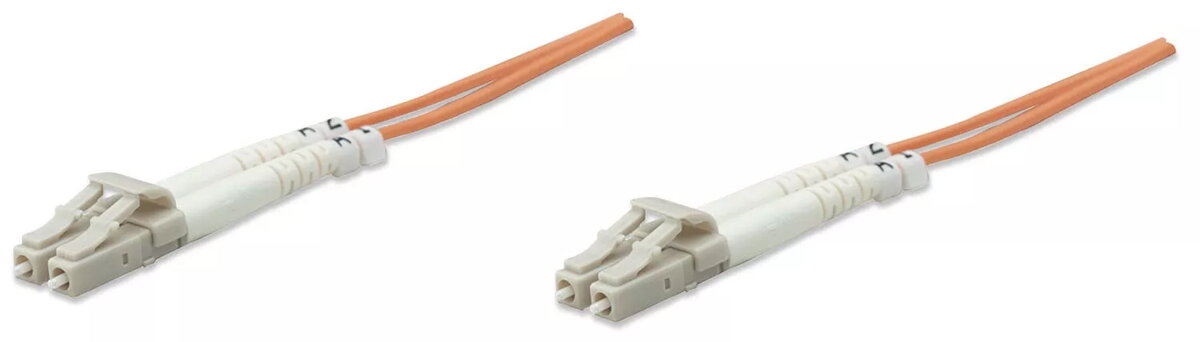

The Intellinet Fiber Optic Patch Cable OM1 is a 5 m duplex multimode cable with LC connectors on both ends and a 62.5/125 µm core/cladding. Constructed from LSZH materials, the cable supports full-duplex multimode transmission and is suitable for indoor networking environments where low-smoke, zero-halogen properties are required. The product comes with a lifetime warranty.

Advantages

Fiber optic transmission offers very long reach and low signal loss, commonly enabling links that can exceed 100 km in appropriate optical systems. Signals carried in fibre are not detectable remotely without direct physical access to the cable, providing a high level of security for sensitive installations. Because the cable contains no metallic conductors, it can be installed in environments with electromagnetic interference and in locations prone to lightning, and is safe to run alongside power infrastructure.

Suitable for

• Indoor network patching and interconnects
• Data centres and server rooms
• Telecommunications multimode links
• Environments requiring LSZH cables (low smoke, zero halogen)

Key specifications

• Brand: INTELLINET
• Model / MPN: 471237
• Type: Duplex multimode patch cable (OM1)
• Connectors: LC/LC
• Length: 5 m
• Core / Cladding: 62.5/125 µm
• Jacket: LSZH
• Transmission: Full duplex multimode
• Category: Fibre Optic Cables
• Warranty: Lifetime

How to use

Select appropriate LC-equipped transceivers or patch panels for each end, ensure both ends are clean and free of dust, and insert the LC connectors into the corresponding ports until they click. Route the cable to avoid tight bends (observe the minimum bend radius for multimode fibre), secure it with suitable cable management to prevent strain, and verify the link with appropriate optical diagnostic equipment or network testing tools.

Usage recommendations

When installing, avoid excessive pulling force, protect connector end-faces from contamination by using dust caps until connection, and follow LSZH handling practices in enclosed spaces to maintain safety and performance.
