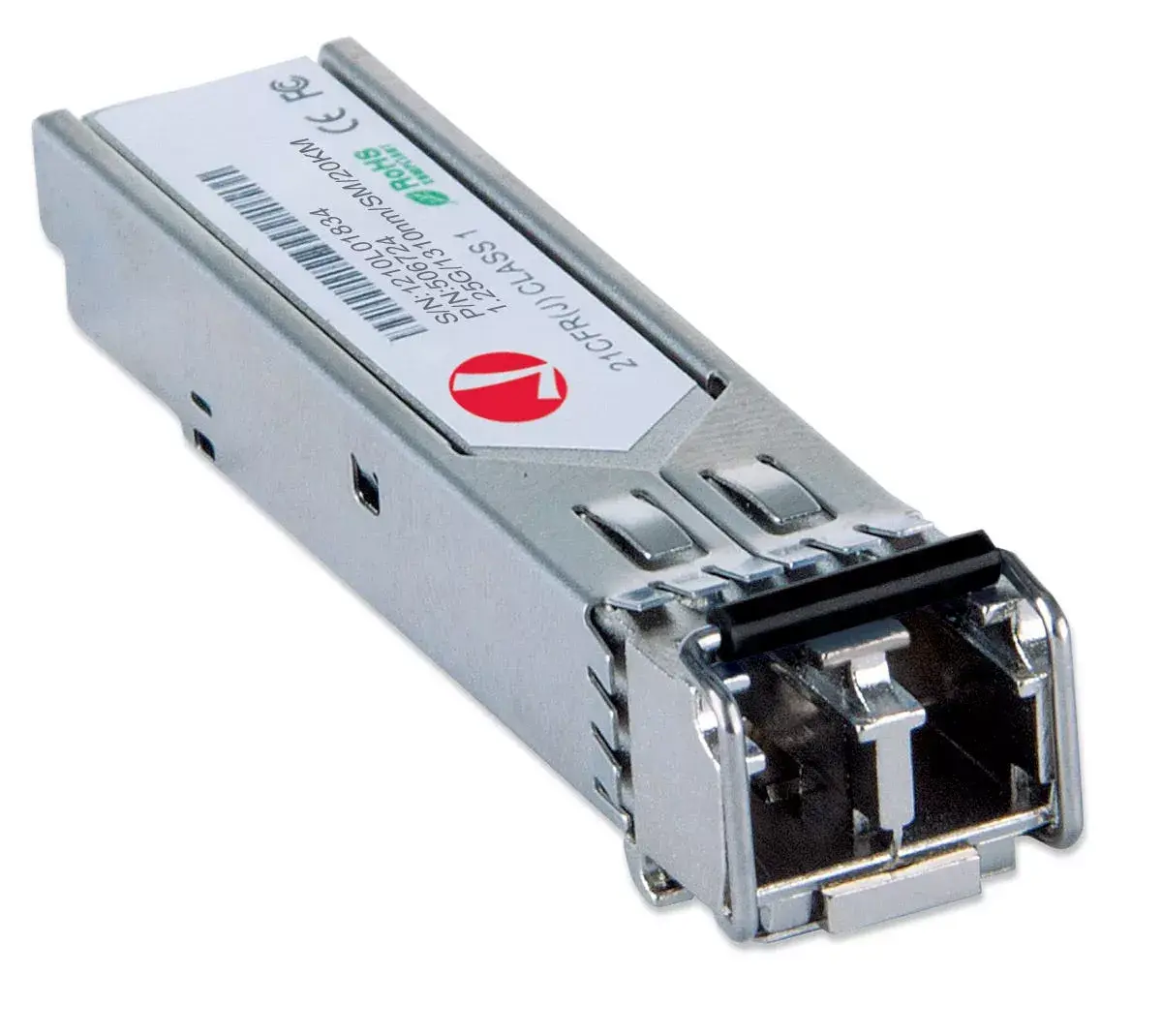

SFP Transceiver Module Intellinet GLC-LH-SM

Name: SFP Transceiver Module Intellinet GLC-LH-SM 506724
Brand: INTELLINET
SKU: 70376
Price: 23.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

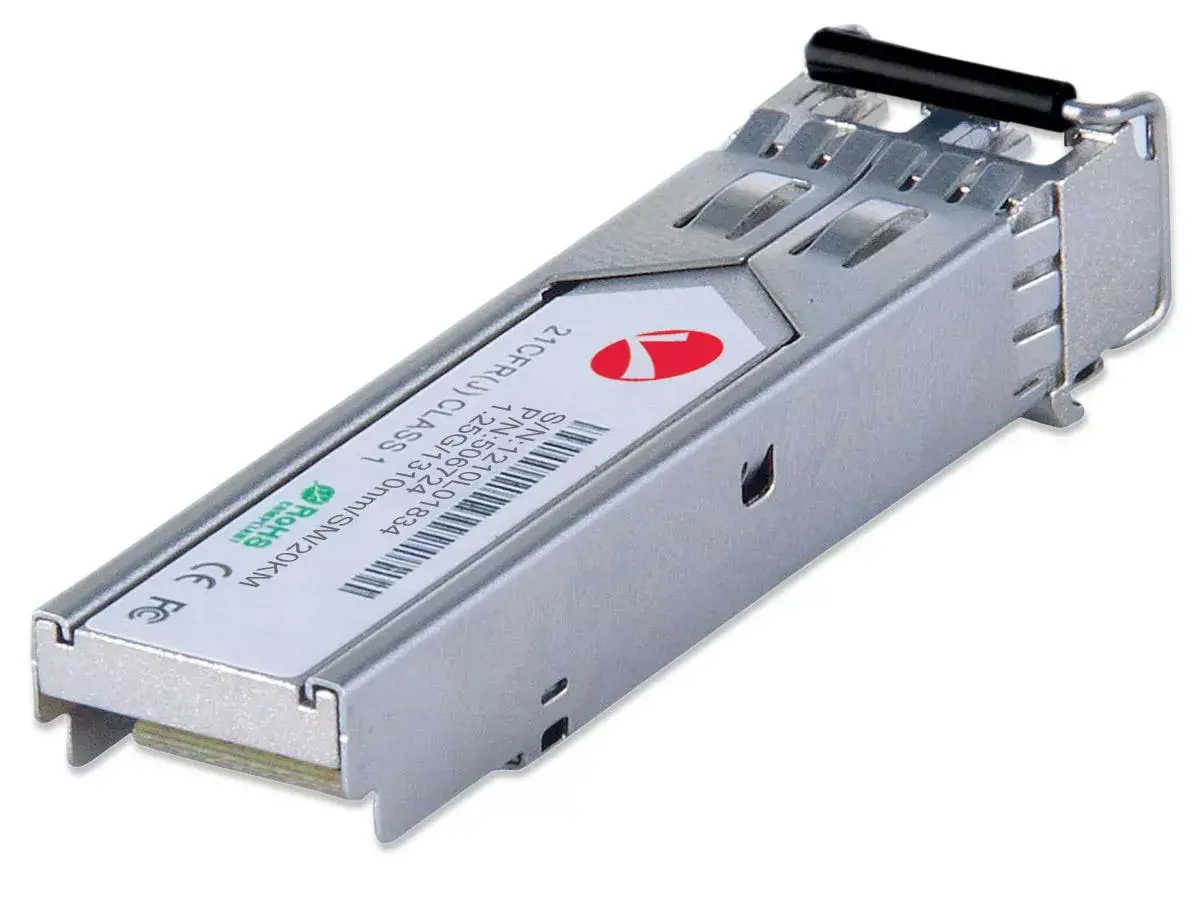

SFP Transceiver Module Intellinet GLC-LH-SM Photo 3

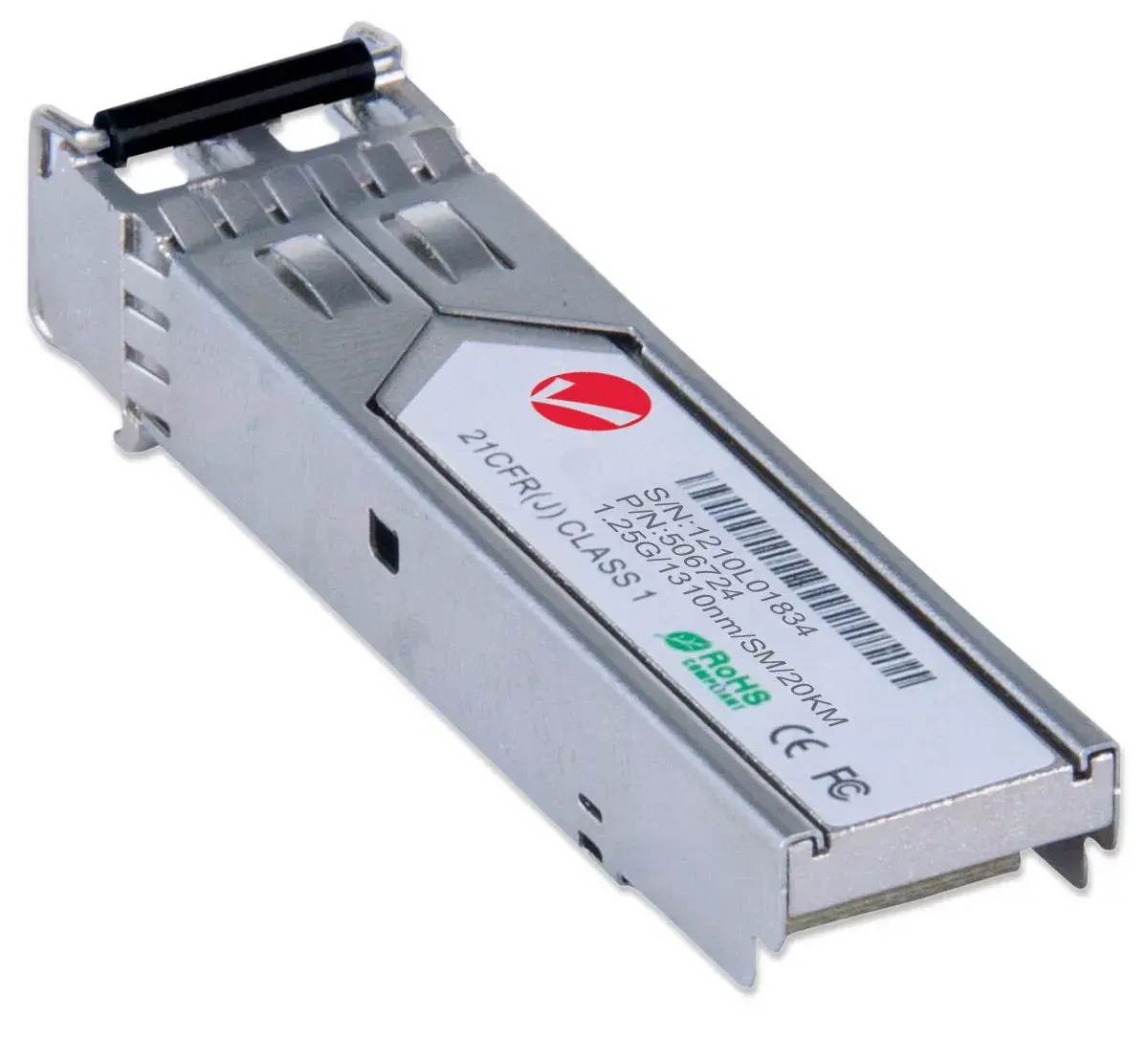

SFP Transceiver Module Intellinet GLC-LH-SM Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Intellinet SFP Transceiver Module is designed for Gigabit Ethernet applications. It features a 1000Base-Lx (LC) single-mode port with a range of up to 20km. This MSA compliant module is equivalent to Cisco GLC-LH-SM and supports a maximum data transfer rate of 1000 Mbit/s. With a compact design and low power consumption of 1 W, it is ideal for various networking needs. Certified with FCC Class A, CE, and RoHS, it ensures reliable performance.

Available at price 23.99 €: 4 pcs.

Total available for order: 188 pcs.

Warranty: 2 Years

SKU: 70376

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.06 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 37.49 €: 2 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet SFP Transceiver Module GLC-LH-SM is a mini-GBIC (SFP) module designed for Gigabit Ethernet applications. It provides a 1000Base-LX (LC) single-mode fibre interface with a range up to 20 km, in a compact metal housing that reduces electromagnetic interference and improves durability. The module is MSA-compliant, equivalent to Cisco GLC-LH-SM, supports a maximum data rate of 1000 Mbit/s and has low power consumption (1 W). It is suitable for high-density fibre installations and typical network environments requiring reliable single-mode links.

Advantages

The transceiver’s small form factor allows installation in high-density patch panels and switches while the metal enclosure offers electromagnetic shielding and mechanical robustness. MSA compliance ensures multi-vendor compatibility with SFP-enabled switches, and the module’s configuration provides compatibility with Cisco equipment. Hot-pluggable functionality permits insertion and removal without powering down the switch, simplifying maintenance and upgrades.

Suitable for

Single-mode Gigabit Ethernet links up to 20 km
High-density fibre cabinets and data centre patch panels
MSA-compliant SFP ports on switches and routers

Key specifications

Model: Intellinet GLC-LH-SM (MPN 506724)
Interface type: mini-GBIC (SFP), LC connector
Standard: 1000Base-LX
Maximum data rate: 1000 Mbit/s
Maximum range: up to 20 km (single-mode fibre)
Power consumption: 1 W
Housing: aluminium (metal) for EMI reduction
Certifications: FCC Class A, CE, RoHS
Weight: 0.062 kg

How to use

Insert the SFP transceiver into an empty SFP slot on a compatible network switch or router until it latches. Connect a single‑mode LC fibre patch cable to the module’s LC port and route the cable as required. The module is hot-pluggable, so it can be installed or removed while the switch remains powered on. Verify link status via the switch’s LEDs or management interface and confirm negotiated speed and optical signal levels if available.

Usage recommendations

Use high-quality single-mode LC patch cables and clean connectors before mating. Ensure fibre type and link budget meet the 20 km range requirement and verify compatibility with the switch vendor if specific vendor locking policies are implemented.

Specifications

Interface type:: mini-GBIC
Maximum data transfer rate:: 1000 Mbit/s
Weight:: 0.062 kg
Product colour:: Aluminium

All features

Performance

Interface type:: mini-GBIC
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3z
Ethernet interface type:: Gigabit Ethernet
Duplex system:: Full, Half
Wavelength:: 1310 nm
Fiber optic connector:: LC
Link budget:: 8 dB
Maximum transfer distance:: 20000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: -3 dBmW
Tx power (min):: -8 dBmW
Multi-mode fiber (MMF) supported:: No
Single-mode fiber (SMF) supported:: Yes
SFP transceiver standard:: LX

Network

SFP transceiver type:: Fiber optic

Certificates

Certification:: FCC Class A, CE, RoHS, IEC-60825

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W
Input voltage:: 3.3

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Logistics data

Harmonized System (HS) code:: 85369010

Features

Product colour:: Aluminium
Hot-Plug support:: Yes

Packaging data

Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.062 kg
Height:: 12 mm
Width:: 13 mm
Depth:: 55 mm

Sustainability

Sustainability certificates:: RoHS

Hide Show all

Instructions

mmo_19135304_1655026996_7917_20636.pdf

Description

Instructions

mmo_19135304_1655026996_7917_20636.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
EU3	2	26.06.2026 Best delivery	37.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
WH332	4	26.06.2026 Best delivery	23.99 € Best price
EU4	178	10.07.2026	37.49 €
WH109	4	10.07.2026	38.49 €

37.49 €

Stock: 2

Delivery Date: 26.06.2026 Best delivery

Warehouse: EU3

Available only for legal entities

23.99 €

Stock: 4

Delivery Date: 26.06.2026 Best delivery

Warehouse: WH332

37.49 €

Stock: 178

Delivery Date: 10.07.2026

Warehouse: EU4

38.49 €

Stock: 4

Delivery Date: 10.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the SFP Transceiver Module Intellinet GLC-LH-SM cost, and is it available for purchase?

The price is 23.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 188 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 26.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All INTELLINET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized INTELLINET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: interface type, maximum data transfer rate, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for SFP Transceiver Module Intellinet GLC-LH-SM?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
