SFP Transceiver Module Intellinet GLC-BX-D Equivalent

Name: SFP Transceiver Module Intellinet GLC-BX-D 507486
Brand: INTELLINET
SKU: 218914
Price: 34.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

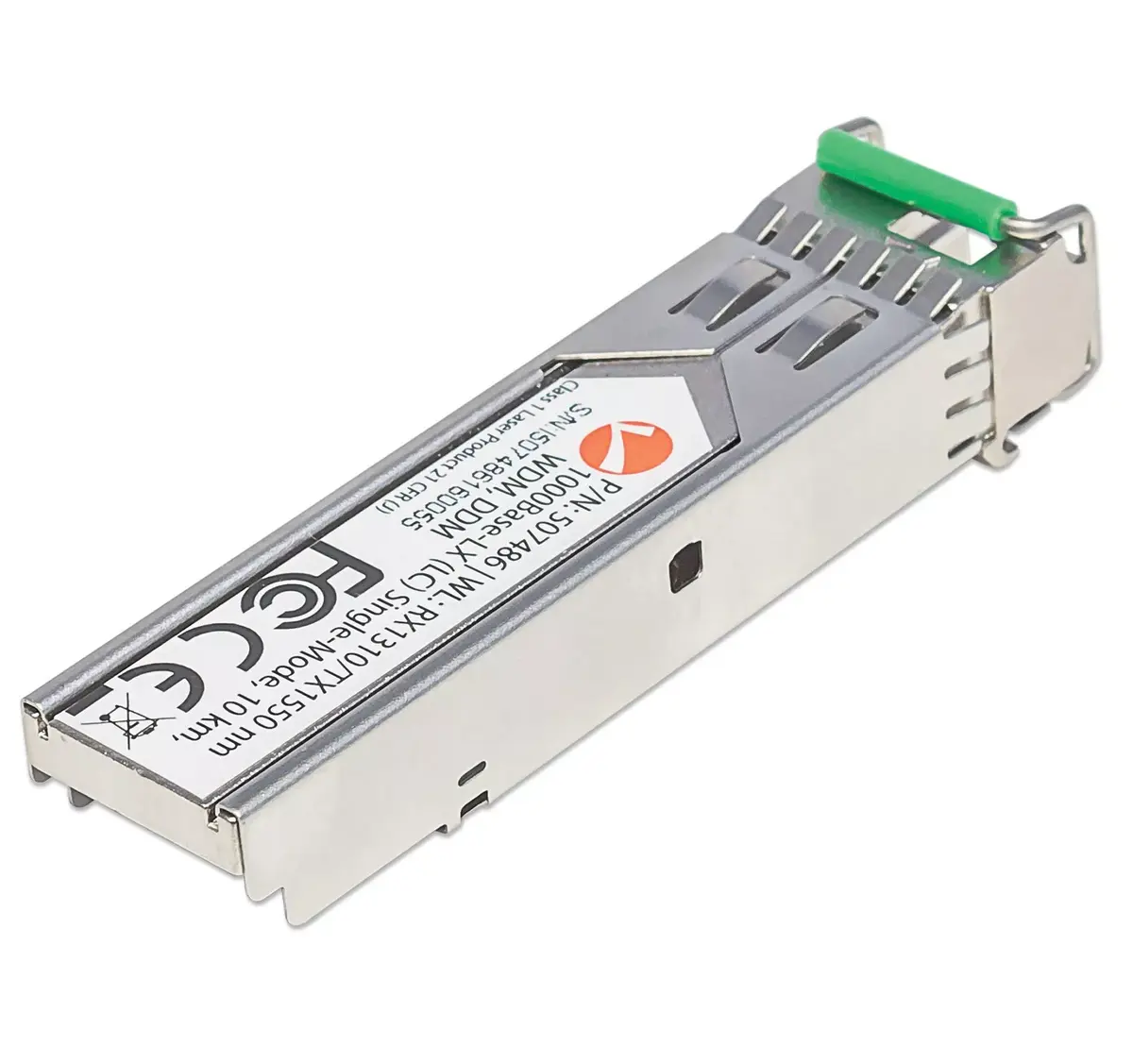

SFP Transceiver Module Intellinet GLC-BX-D Equivalent Photo 3

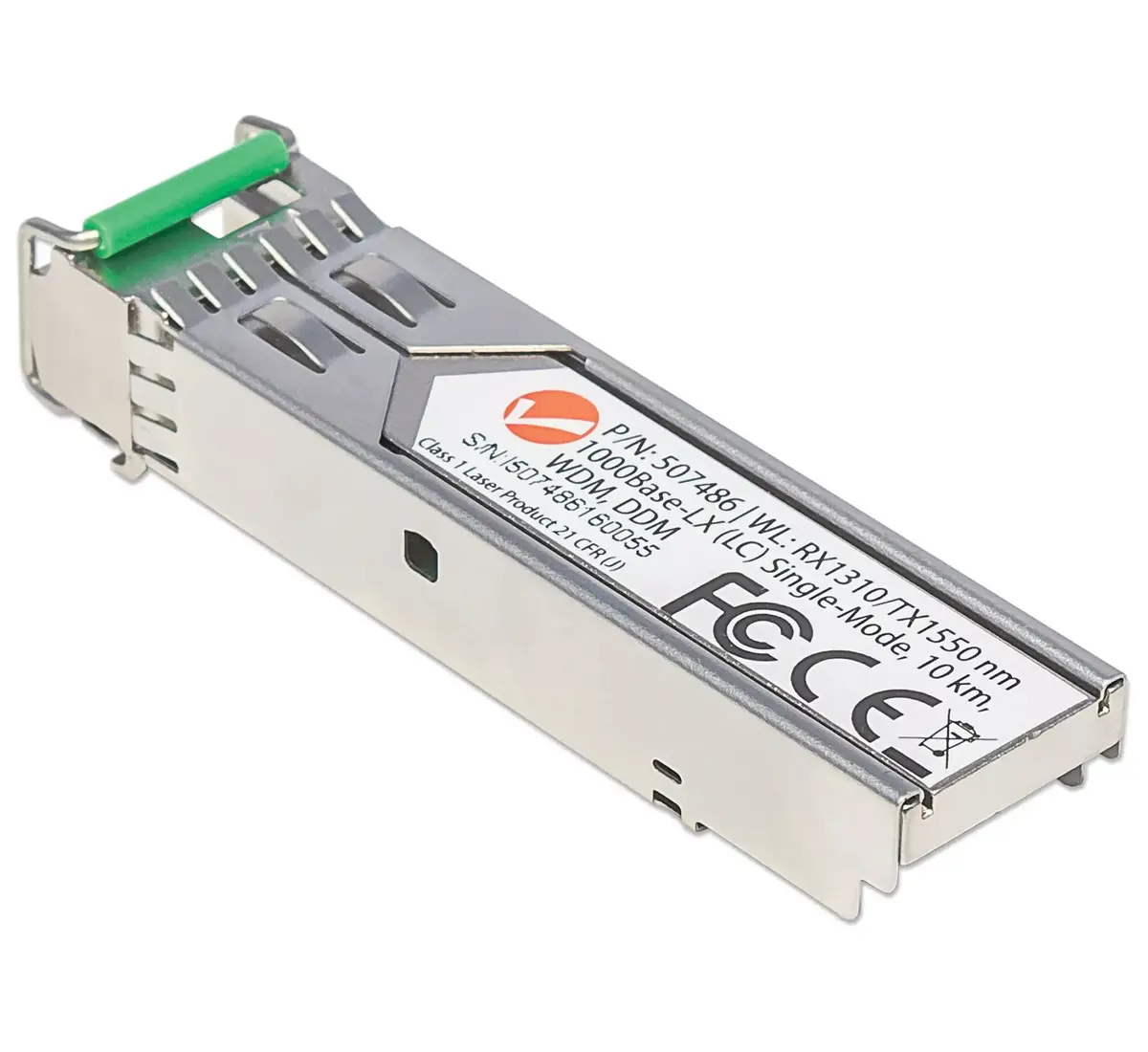

SFP Transceiver Module Intellinet GLC-BX-D Equivalent Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Intellinet SFP Transceiver Module is a Gigabit Fiber WDM Bi-Directional device with a 1000Base-Lx (LC) Single-Mode Port. It supports a maximum data transfer rate of 1000 Mbit/s and operates over distances up to 10 km. This MSA compliant module features a power consumption of 1 W and dimensions of 14 mm x 57 mm x 12 mm. It is equivalent to Cisco GLC-BX-D and comes with a three-year warranty.

Available at price 34.99 €: 1 pcs.

Total available for order: 140 pcs.

Warranty: 2 Years

SKU: 218914

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.04 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet SFP Transceiver Module (model 507486) is a Gigabit Fibre WDM bi-directional small form-factor pluggable (SFP) module with a 1000Base-LX (LC) single-mode port. The module houses the transceiver in metal for improved durability and reduced electromagnetic interference and supports data rates up to 1000 Mbit/s over distances up to 10 km. It is MSA-compliant, equivalent to Cisco GLC-BX-D, and requires a matching pair for bi-directional operation.

Advantages

This SFP module combines compact mini-GBIC sizing for high-density fibre installations with WDM bi-directional operation that uses a single strand of fibre for separate transmit and receive wavelengths (1310/1550 nm). The metal housing improves resilience and EMI performance. The module is hot-pluggable for in-service installation and supports Digital Diagnostics Monitoring (DDM/DOM) to read optical power, temperature, laser bias current and supply voltage in real time.

Suitable for

High-density rack or cabinet fibre connections where space is limited
Gigabit single-mode links up to 10 km
Networks that require Cisco GLC-BX-D compatibility or MSA-compliant SFP ports
Installations using WDM to double capacity or avoid laying a second fibre strand (paired with complementary module)

Key specifications

Interface type: SFP (mini-GBIC)
Standard: 1000Base-LX (single-mode, LC)
WDM bi-directional wavelengths: 1310/1550 nm (requires complementary pair)
Maximum data rate: 1000 Mbit/s
Maximum reach: up to 10 km
Power consumption: 1 W
Dimensions: 14 mm x 57 mm x 12 mm
Weight: 0.037 kg
Housing: metal
Compliance: MSA; vendor PN broadcast GLC-BX-D (Cisco equivalent)

How to use

Insert the SFP transceiver into an empty SFP slot on a compatible switch or router while the device remains powered on; the module is hot-pluggable and does not require a system reboot. Connect an LC single-mode fibre cable to the transceiver. For WDM bi-directional links, install the complementary module with the matching opposite wavelength at the remote end. Verify link status and monitor DDM parameters through the switch management interface.

Usage recommendations

Use this module in pairs for WDM bi-directional operation and confirm that connected equipment accepts MSA-compliant SFPs or sensors broadcasting vendor PN GLC-BX-D. Keep fibre connectors clean and monitor DDM values to ensure stable optical performance.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Weight:: 0.037 kg
Product colour:: Metallic

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3z
Duplex system:: Full
Ethernet LAN:: Yes
Fiber ports quantity:: 1
Fiber optic connector:: LC
Link budget:: 16 dB
Maximum transfer distance:: 10000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: -3 dBmW
Tx power (min):: -8 dBmW
Rx wavelength (max):: 1550 nm
Tx wavelength (max):: 1310 nm
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Logistics data

Harmonized System (HS) code:: 85369010

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Features

Product colour:: Metallic
Hot-Plug support:: Yes

Other features

RX sensitivity:: -24 dB

Packaging data

Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.037 kg
Height:: 12 mm
Width:: 14 mm
Depth:: 57 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W

Sustainability

Sustainability certificates:: RoHS
