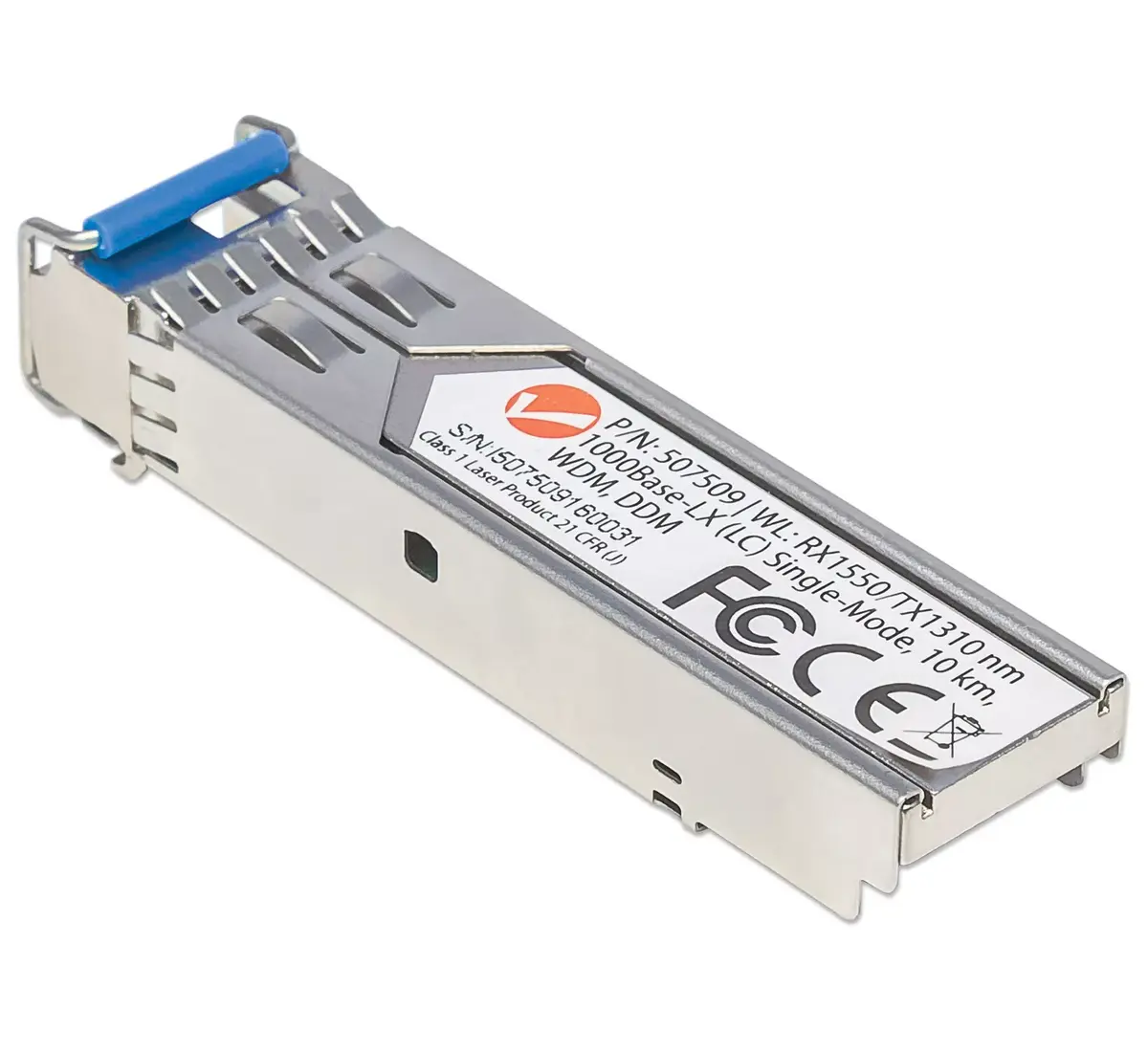

SFP Transceiver Module Intellinet GLC-BX-U Equivalent Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Intellinet Gigabit Fiber WDM Bi-Directional SFP transceiver module offers a data transfer rate of 1000 Mbit/s over a single-mode port with a range of up to 10 km. It operates at RX 1550 nm and TX 1310 nm wavelengths, is MSA compliant, and is equivalent to Cisco GLC-BX-U. With a compact design (14 mm x 57 mm x 12 mm) and low power consumption (1 W), it is ideal for efficient networking. Backed by a three-year warranty, this module is FCC Class A and CE certified.

Available at price 40.99 €: 98 pcs.

Total available for order: 196 pcs.

Warranty: 2 Years

SKU: 218917

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

09.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

14.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.04 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

14.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (equivalent to Cisco GLC-BX-U) is a compact hot-pluggable SFP module designed for single-mode fibre links up to 10 km. It supports 1000 Mbit/s transfer rates with TX at 1310 nm and RX at 1550 nm, uses WDM bi-directional technology to send and receive on a single fibre strand, and is MSA compliant. The module features a metal housing for improved durability and electromagnetic interference reduction, measures approximately 14 x 57 x 12 mm, consumes around 1 W, and is FCC Class A and CE certified with a three-year warranty.

Advantages

The module provides a compact mini-GBIC form factor for high-density installations, hot-pluggable convenience to avoid switch rebooting, and support for Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical output/input power, temperature, laser bias current and supply voltage. WDM bi-directional operation enables transmit and receive on separate wavelengths over a single fibre, which can double capacity or reduce fibre cabling requirements. The metal housing increases durability and reduces electromagnetic interference.

Suitable for

Single-mode fibre links up to 10 km
Gigabit Ethernet connections (1000 Mbit/s)
High-density rack or cabinet installations where space is limited
Networks requiring DDM/DOM monitoring and MSA-compliant SFP compatibility

Key specifications

Interface type: SFP (mini-GBIC)
Data rate: 1000 Mbit/s
Wavelengths: TX 1310 nm / RX 1550 nm (WDM bi-directional)
Maximum link distance: up to 10 km (single-mode)
Form factor dimensions: approx. 14 x 57 x 12 mm
Power consumption: ~1 W
Compliance: MSA compliant; equivalent to Cisco GLC-BX-U; FCC Class A, CE
Weight: 0.037 kg

How to use

Insert the SFP transceiver into any compatible SFP slot on an MSA-compliant switch or device while the switch is powered on; the module is hot-pluggable so no reboot is required. Connect a single-mode fibre cable using appropriate connectors and ensure the paired transceiver at the remote end uses the complementary wavelengths (one end TX 1310 / RX 1550, the other end TX 1550 / RX 1310). Monitor link status and diagnostics via the switch interface or management tools that support DDM/DOM.

Usage recommendations

The transceiver is intended for use in single-mode fibre networks; always pair with the complementary WDM SFP (e.g., the matching Intellinet part specified for use with this module) and follow manufacturer guidelines for handling, ESD protection and fibre connector cleanliness to ensure reliable operation.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Weight:: 0.037 kg
Product colour:: Metallic

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3z
Ethernet interface type:: Gigabit Ethernet
Duplex system:: Full
Ethernet LAN:: Yes
Fiber optic connector:: LC
Link budget:: 16 dB
Maximum transfer distance:: 10000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: -3 dBmW
Tx power (min):: -8 dBmW
Rx wavelength (max):: 1550 nm
Tx wavelength (max):: 1310 nm
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Product colour:: Metallic
Hot-Plug support:: Yes

Certificates

Certification:: FCC Class A, CE Mark

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W
Input voltage:: 3.3

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Logistics data

Harmonized System (HS) code:: 85369010

Other features

RX sensitivity:: -24 dB

Weight & dimensions

Weight:: 0.037 kg
Height:: 12 mm
Width:: 14 mm
Depth:: 57 mm

Sustainability

Sustainability certificates:: RoHS
