Managed Switch Intellinet 8-Port Gigabit PoE+

Name: Managed Switch Intellinet 8-Port Gigabit 508278
Brand: INTELLINET
SKU: 10801804
Price: 360.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Managed Switch Intellinet 8-Port Gigabit PoE+ 240W Layer 2+

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 1

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 2

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 3

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 4

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 5

Managed Switch Intellinet 8-Port Gigabit PoE+ Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Intellinet 8-Port Gigabit PoE+ Switch features 8 Gigabit Ethernet ports, 2 SFP ports, and a 240W PoE power budget. It supports Layer 2+/Layer 3 Lite functionalities, making it ideal for industrial use with IP cameras and access points. The IP30-rated metal housing ensures reliability in demanding environments.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 10801804

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.45 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 120.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 10.01 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Managed Switch 8-Port Gigabit PoE+ 240W (Model 508278) provides wired network connectivity and Power over Ethernet for industrial and harsh-environment installations. Housed in an IP30-rated metal chassis with DIN-rail mounting and dual redundant DC power inputs, the switch supports eight auto-sensing Gigabit RJ45 ports and two SFP slots for fiber links. It is designed for demanding applications including surveillance, access points and industrial IoT where extended operating temperatures and reliable PoE delivery are required.

Advantages

This managed PoE+ switch delivers gigabit performance across eight 10/100/1000 Mbps ports while offering a 240 W total PoE budget that can supply up to 30 W per port (IEEE 802.3at). The IP30 metal housing and operating range from -40 to 85 °C support deployment in harsh environments. Redundant DC power inputs with power-failure alarm and DIN-rail mounting improve reliability and simplify industrial installation. Built-in Powered Device Monitoring (PDM) enables automatic reboot of unresponsive PoE devices to reduce downtime.

Suitable for

Industrial Ethernet networks and factory automation
IP video surveillance systems with PoE cameras
Wireless access point backhaul in commercial or industrial sites
IoT and Industry 4.0 deployments requiring reliable PoE

Key specifications

Manufacturer: INTELLINET, Model: 508278, EAN: 0766623508278
Ports: 8 x Gigabit RJ45 (10/100/1000) with PoE+, 2 x SFP slots
PoE power budget: 240 W, up to 30 W per port (IEEE 802.3at/802.3af)
Managed switch with Layer 2+ / Layer 3 lite features (VLAN, QoS, port aggregation, ACL)
Management: Web-managed, SNMP, RMON, port mirroring
Security: 802.1X port-based access control, port binding, ARP protection
Housing: IP30 metal chassis, DIN-rail mountable
Operating temperature: -40 to 85 °C
Weight: 0.448 kg; Color: Black

How to use

Mount the switch on a DIN rail and connect redundant DC power supplies to the dedicated inputs. Use the web-management interface or SNMP to configure VLANs, QoS, PoE scheduling and access control. Insert SFP modules into the SFP slots for fiber uplinks as needed and connect PoE devices such as IP cameras or access points to the RJ45 ports. Enable Powered Device Monitoring (PDM) to allow automatic PD health checks and automated power cycling of unresponsive PoE devices.

Usage recommendations

Place the switch in a well-ventilated area within the specified temperature range, use appropriately rated SFP modules for fiber links, and configure redundant power inputs for continuous operation. Regularly update firmware and configure access control (802.1X, ACLs) to maintain network security.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Switch type:: Managed
Weight:: 0.448 kg
Basic switching RJ-45 Ethernet ports quantity:: 8
10G support:: No
Networking standards:: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at, IEEE 802.3af, IEEE 802.3
Product colour:: Black

All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 8
Console port:: RJ-45
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 8
SFP module slots quantity:: 2

Management features

Switch layer:: L2+/L3
Quality of Service (QoS) support:: Yes
Web-based management:: Yes
Switch type:: Managed

Sustainability

Sustainability compliance:: Yes
Sustainability certificates:: CE, UKCA, National Defense Authorization Act (NDAA), Federal Communications Commission (FCC)

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Total Power over Ethernet (PoE) budget:: 240 W
Power over Ethernet (PoE) power per port:: 30 W

Power

Power source:: PoE
Redundant power supply (RPS) support:: Yes
Power protection features:: Overload, Short circuit, Over voltage
Surge protection voltage:: 6 kV
Surge protection:: Yes
DC input voltage:: 45 - 57
Power consumption (max):: 255 W

Performance

Fanless:: Yes

Design

LED indicators:: Power, Link, Activity
Product colour:: Black
Reset button:: Yes
Housing material:: Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Packaging data

Package weight:: 1600 g
Package depth:: 225 mm
Package height:: 105 mm
Package width:: 195 mm
Package type:: Box

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Logistics data

Master (outer) case height:: 243 mm
Master (outer) case width:: 415 mm
Master (outer) case gross weight:: 17200 g
Master (outer) case length:: 545 mm
Products per master (outer) case:: 10 pc(s)

Weight & dimensions

Weight:: 0.448 kg

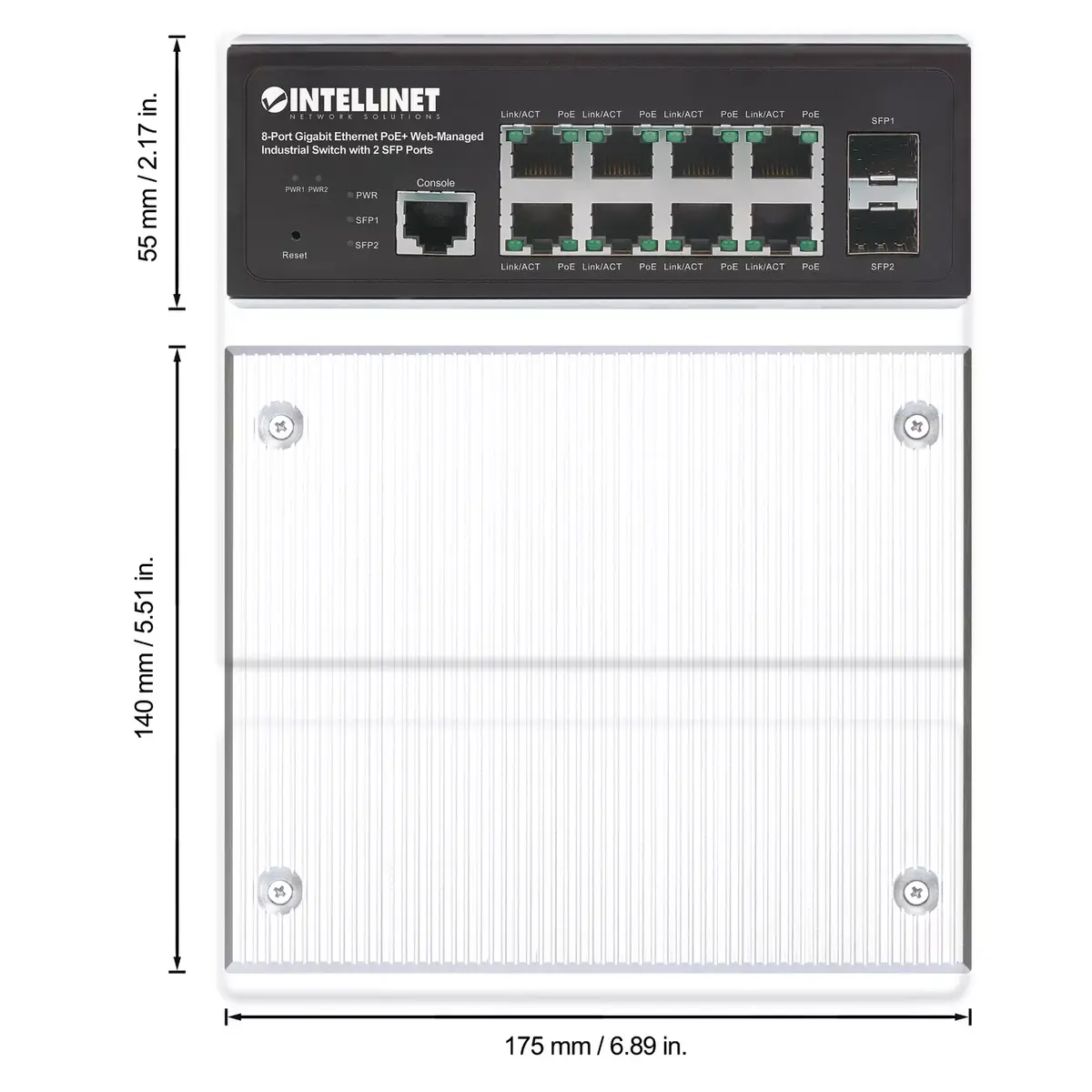

Height:: 55 mm
Width:: 140 mm
Depth:: 175 mm

Data transmission

MAC address table:: 8192 entries
Switching capacity:: 20 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Packet forwarding rate (1 Gbps):: 1488000 pps
Packet forwarding rate (10 Mbps):: 14880 pps
Packet forwarding rate (100 Mbps):: 148800 pps
Jumbo frames:: 9000

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3i, IEEE 802.3at, IEEE 802.3af, IEEE 802.3
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Broadcast storm control:: Yes
Rate limiting:: Yes
Auto MDI/MDI-X:: Yes
Spanning tree protocol:: Yes
VLAN support:: Yes
10G support:: No
Copper ethernet cabling technology:: 100BASE-TX, 10BASE-T
Cable types supported:: Cat5, Cat4, Cat3, Cat5e
Auto-sensing:: Yes
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
Virtual LAN features:: Tagged VLAN, Port-based VLAN
Half duplex:: Yes

Security

IGMP snooping:: Yes

Optical fiber

Fiber ethernet cabling technology:: 1000Base-X
