INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m

Name: SFP Fiber Optical Transceiver INTELLINET 508551
Brand: INTELLINET
SKU: 11269174
Price: 27.99 EUR
Availability: OutOfStock

Hot Deals at AiO.lv

A curated selection of maximum value offers!

SFP Fiber Optical Transceiver INTELLINET 1000Base-SX (LC) Multi-Mode 550 m, 3.3 V, Metal Housing

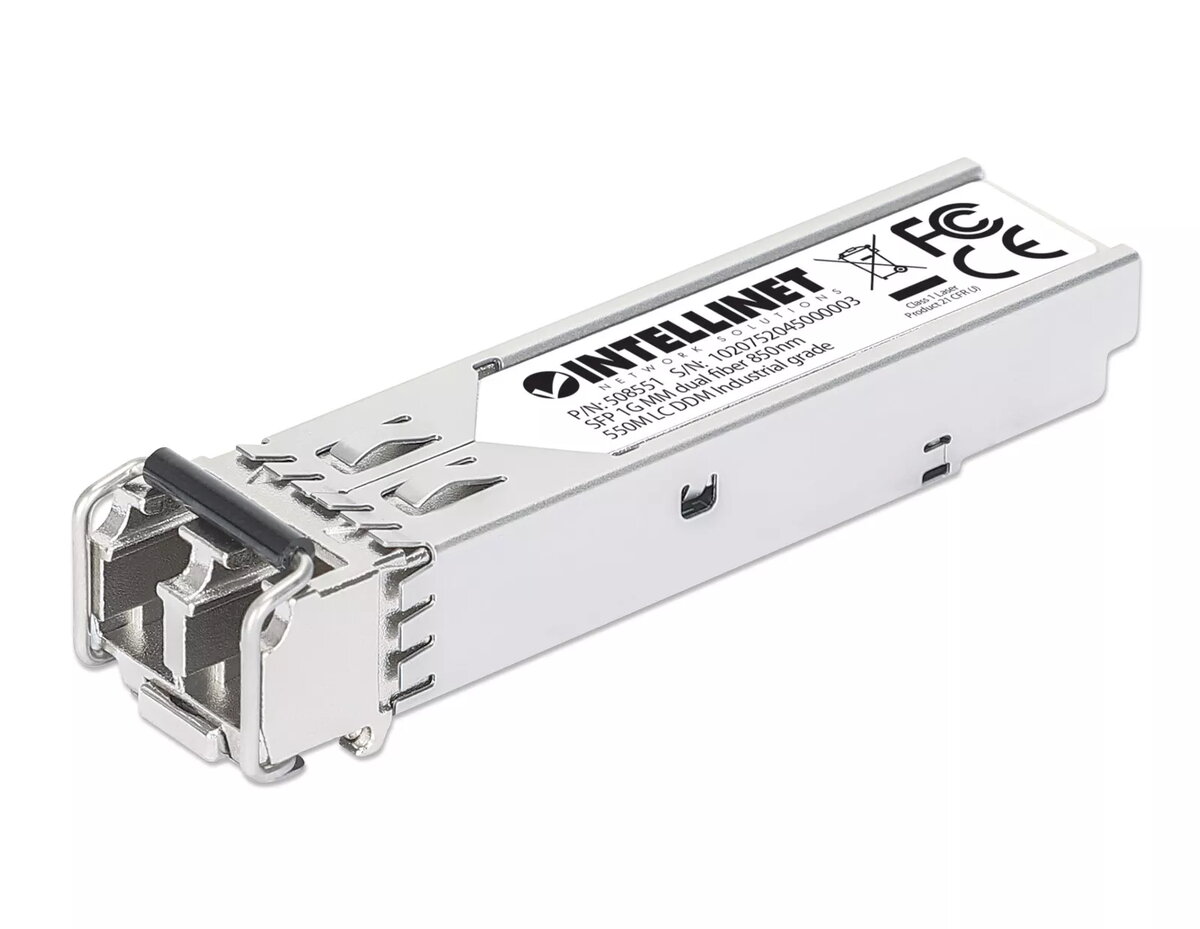

INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m Photo 1

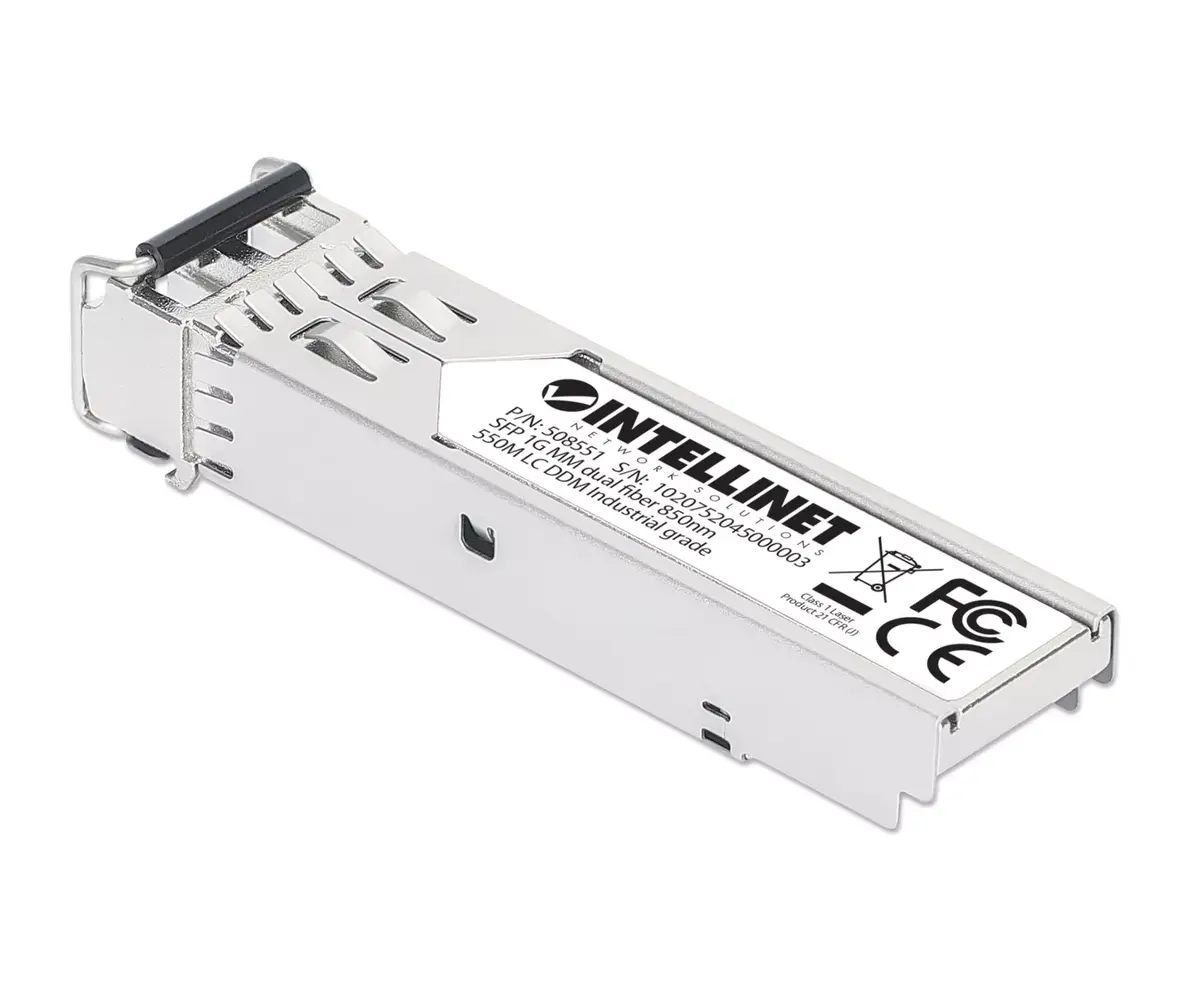

INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m Photo 2

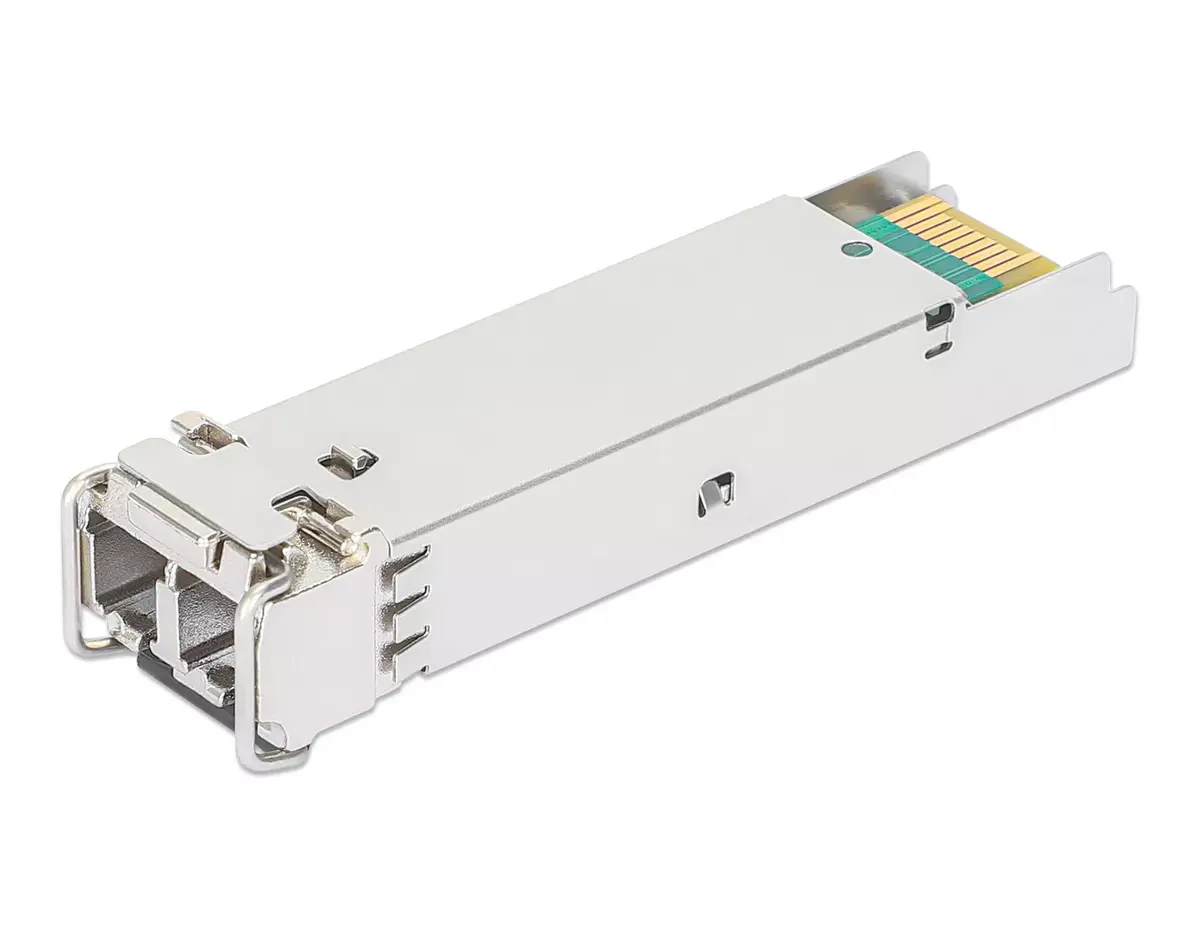

INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m Photo 3

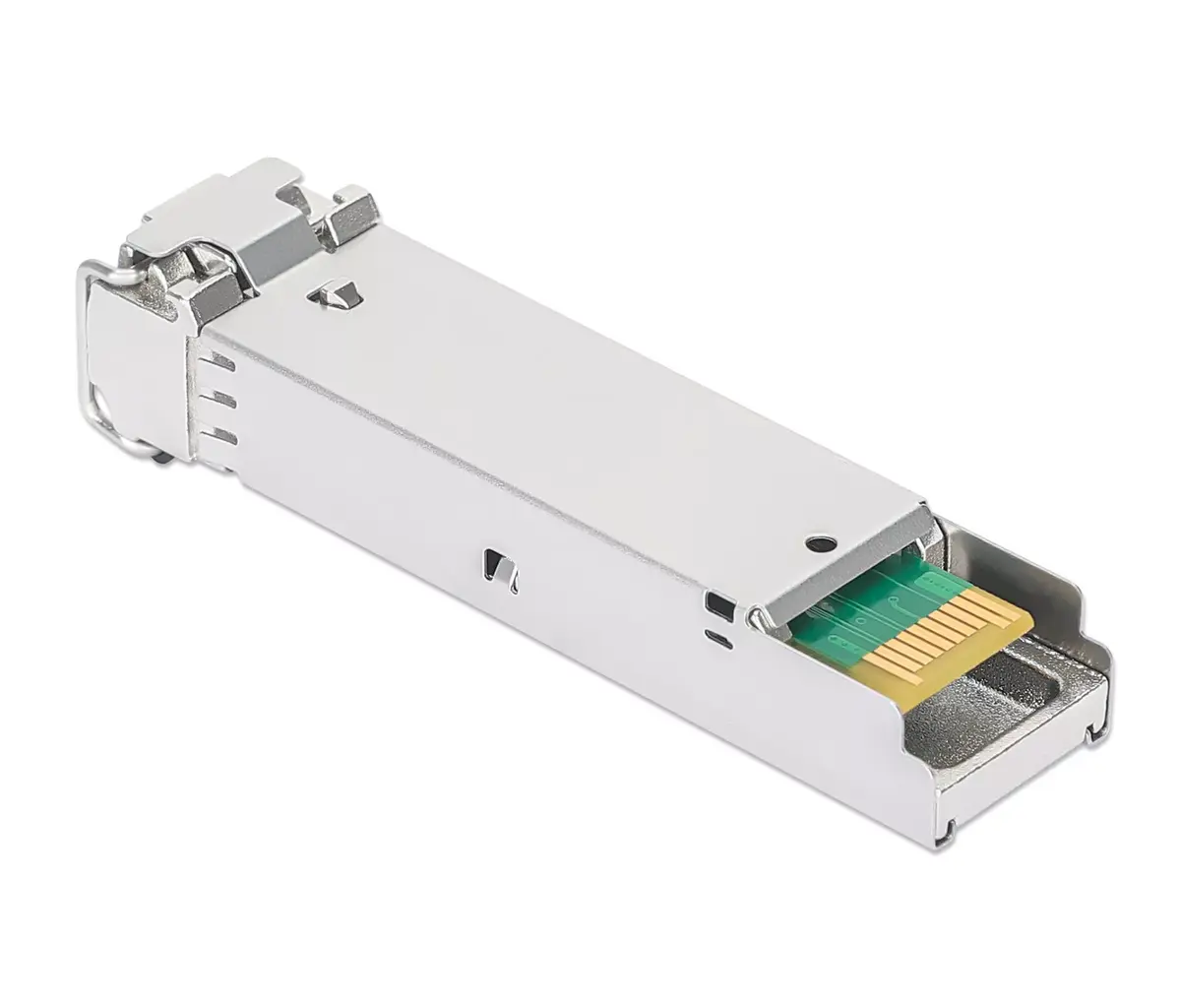

INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m Photo 4

INTELLINET SFP 1000Base-SX (LC) Multi‑Mode 550 m Photo 5

Short description

Industrial SFP fiber optic transceiver by INTELLINET supporting 1000Base-SX over multi-mode fiber with LC connector for links up to 550 m. MSA‑compliant SFP interface, metal housing in silver, typical power consumption 1 W and 3.3 V supply. Designed for gigabit Ethernet fiber uplinks, switches and industrial network equipment; CE/FCC/UKCA/RoHS/NDAA certified.

Warranty: 2 Years

SKU: 11269174

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

INTELLINET SFP Fiber Optical Transceiver 1000Base-SX (LC) is a compact gigabit-grade module designed for multi-mode fiber links up to 550 m. The MSA-compliant SFP interface and silver metal housing provide mechanical robustness and EMI protection while maintaining a 3.3 V supply and typical power consumption near 1 W. The module supports digital diagnostics monitoring (DDM) for real-time access to optical output/input power, temperature, laser bias current and supply voltage, and is suitable for fibre uplinks in switches, routers and industrial network equipment.

Advantages

The metal housing improves durability and reduces electromagnetic interference, enabling use in industrial or high-density rack environments. MSA compliance ensures broad multi-vendor compatibility with SFP-enabled switches and routers. Hot-pluggable operation lets you install or remove the transceiver without powering down the host device. Integrated DDM provides live operational telemetry for status monitoring and troubleshooting.

Suitable for

Gigabit Ethernet fiber uplinks between switches and routers
Industrial network equipment operating in extended temperature ranges
High-density patch panels and fiber distribution frames
Multi-vendor network environments requiring SFP interoperability

Key specifications

Interface type: SFP (Small Form-Factor Pluggable)
Data rate: 1000 Mbit/s (Gigabit Ethernet)
Fiber type: Multi-mode fiber (MMF)
Maximum reach: up to 550 m over appropriate MMF
Connector: LC duplex
Operating voltage: 3.3 V
Typical power consumption: approx. 1 W
Housing: metal, silver finish
Operating temperature range: -40 °C to +75 °C

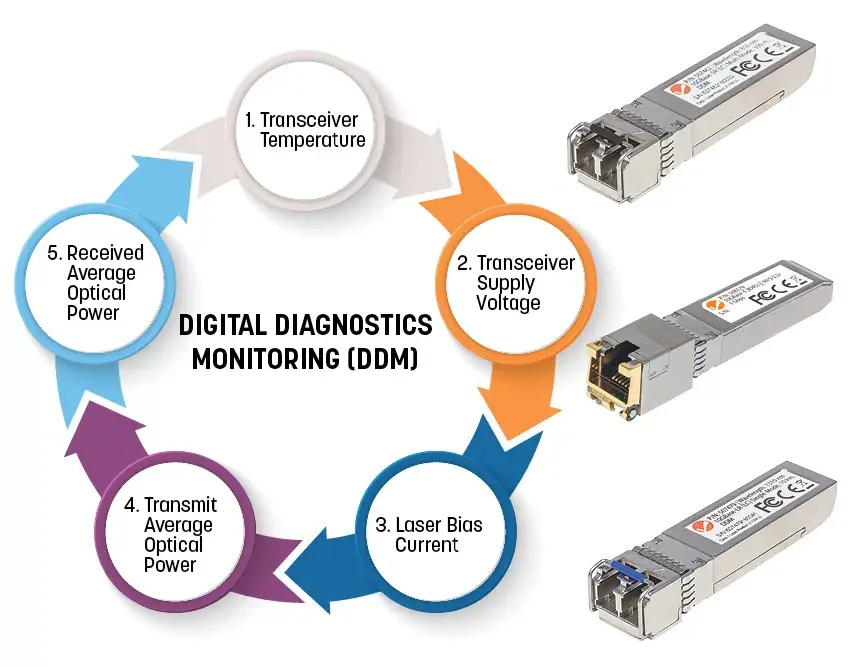

Support: Digital Diagnostics Monitoring (DDM/DOM)

How to use

Insert the SFP transceiver into any compatible SFP slot on your switch, router or media converter while the device remains powered if hot-plugging is supported by the host. Connect LC-terminated multi-mode fiber cables to the transceiver’s duplex LC port, observing transmit/receive orientation. Configure the host port for 1000Base-SX operation if required; many switches will auto-negotiate. Use the host management interface to check DDM parameters and verify link status and optical power levels.

Usage recommendations

To ensure reliable operation, use OM2/OM3/OM4 multi-mode fiber and LC patch cords rated for the intended link distance, avoid excessive bending or stress on fiber connectors, and verify compatibility with the host device. For installations in harsh environments, ensure proper ventilation or enclosure protection and monitor DDM readings for early detection of degraded optical performance.

Specifications

Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
SFP transceiver type:: Fiber optic

All features

Logistics data

Products per master (outer) case:: 48 pc(s)
Master (outer) case gross weight:: 2600 g
Master (outer) case height:: 250 mm
Master (outer) case length:: 310 mm
Master (outer) case width:: 200 mm

Packaging data

Package type: The type of product package e.g. box.: Box
Package weight: Weight of the packaged product.: 50 g
Package height: The distance from the top to the bottom of the packaging.: 24 mm
Package depth: The distance from the front to the back of the packaging.: 120 mm
Package width: The distance from one side of the packaging to the other.: 56 mm

Packaging content

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.02 kg
Height: The measurement of the product from head to foot or from base to top.: 12 mm
Depth: The distance from the front to the back of something.: 57 mm
Width: The measurement or extent of something from side to side.: 14 mm

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -40 - 75

Sustainability

Sustainability compliance:: Yes

Certificates

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: UKCA, RoHS, National Defense Authorization Act (NDAA), Federal Communications Commission (FCC), CE

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 1 W
Maximum voltage:: 3.3 V

Features

Brand compatibility: What other brands this brand can be used with.: MSA Compliant
Hot-Plug support: Device has hot-plug capability, which means that user can replace system components without shutting down the system.: Yes
Housing material: What the casing of the product is made of.: Metal
Product colour: The colour e.g. red, blue, green, black, white.: Silver

Performance

Digital Diagnostics Monitoring (DDM):: Yes
Duplex system: A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.: Full
Fiber ethernet cabling technology:: 1000BASE
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3z
Link budget:: 9 dB
Tx power (max):: -3 dBmW
Tx power (min):: -9 dBmW
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.: 850 nm
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 550 m
SFP transceiver standard:: SX
Fiber cable diameters supported (core/cladding):: 62.5/125, 50/125
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.: LC
Multi-mode fiber (MMF) supported:: Yes
Interface type:: SFP
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
SFP transceiver type:: Fiber optic
