SFP Transceiver Module Intellinet GLC-SX-MM

Name: SFP Transceiver Module Intellinet GLC-SX-MM 545006
Brand: INTELLINET
SKU: 70384
Price: 18.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

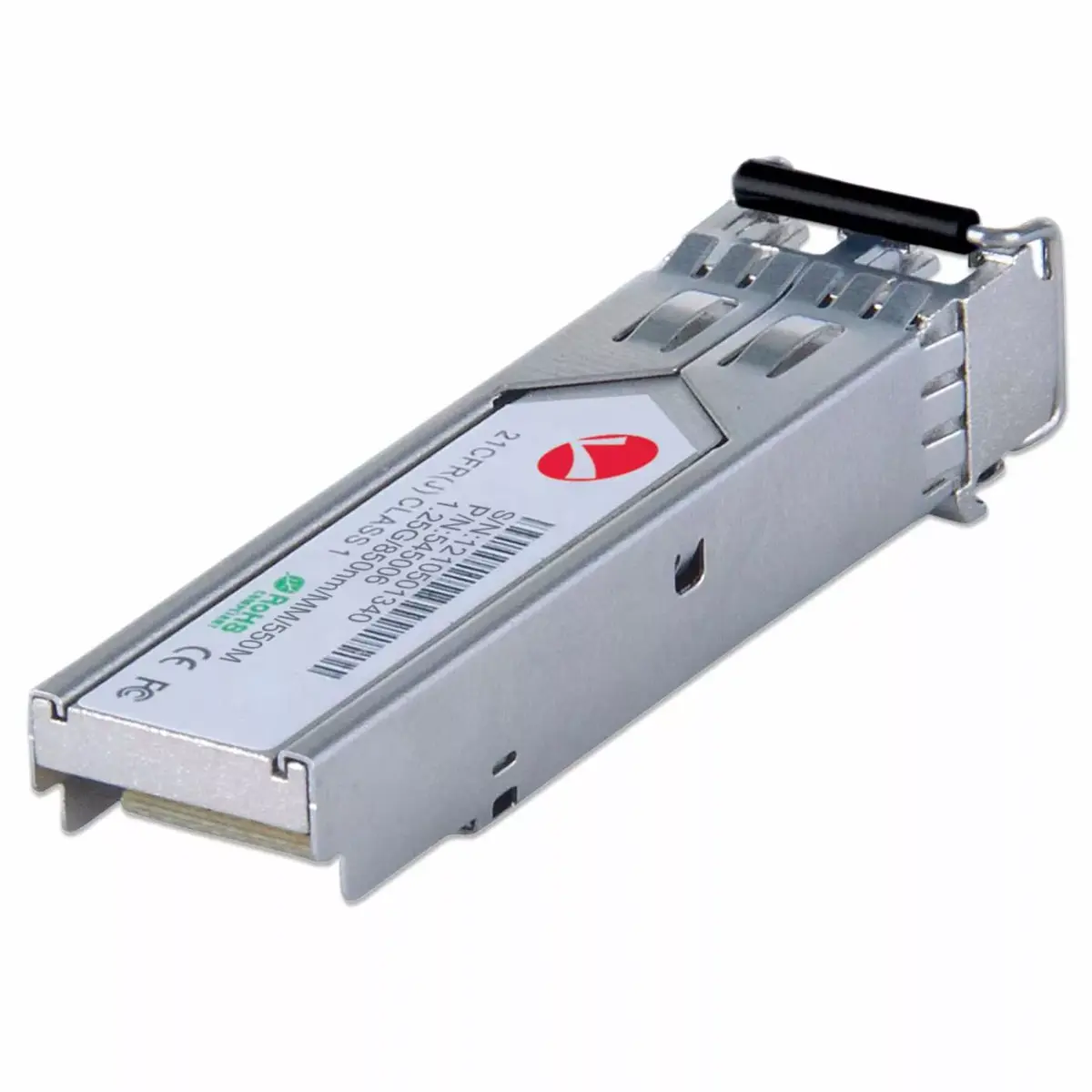

SFP Transceiver Module Intellinet GLC-SX-MM Photo 3

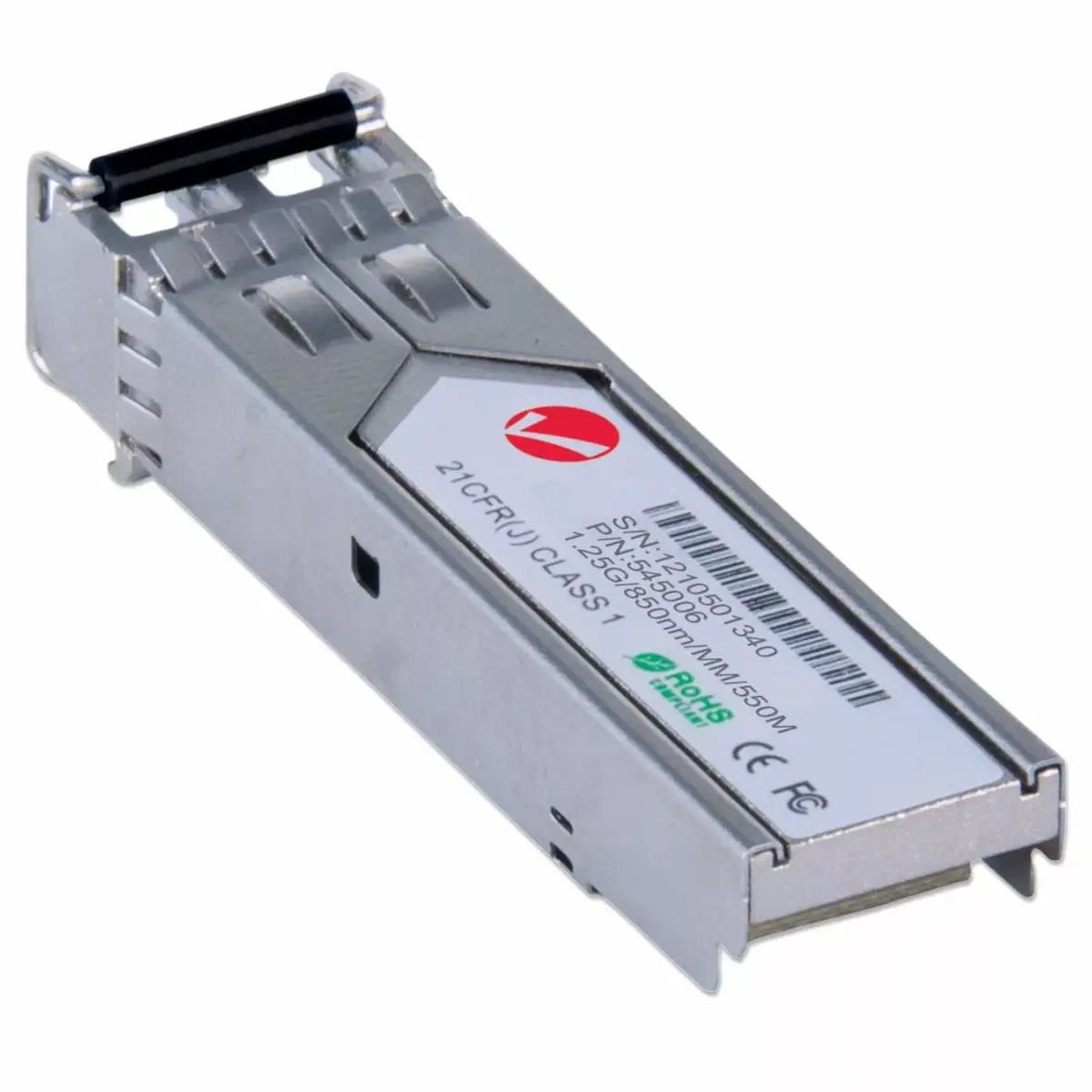

SFP Transceiver Module Intellinet GLC-SX-MM Photo 4

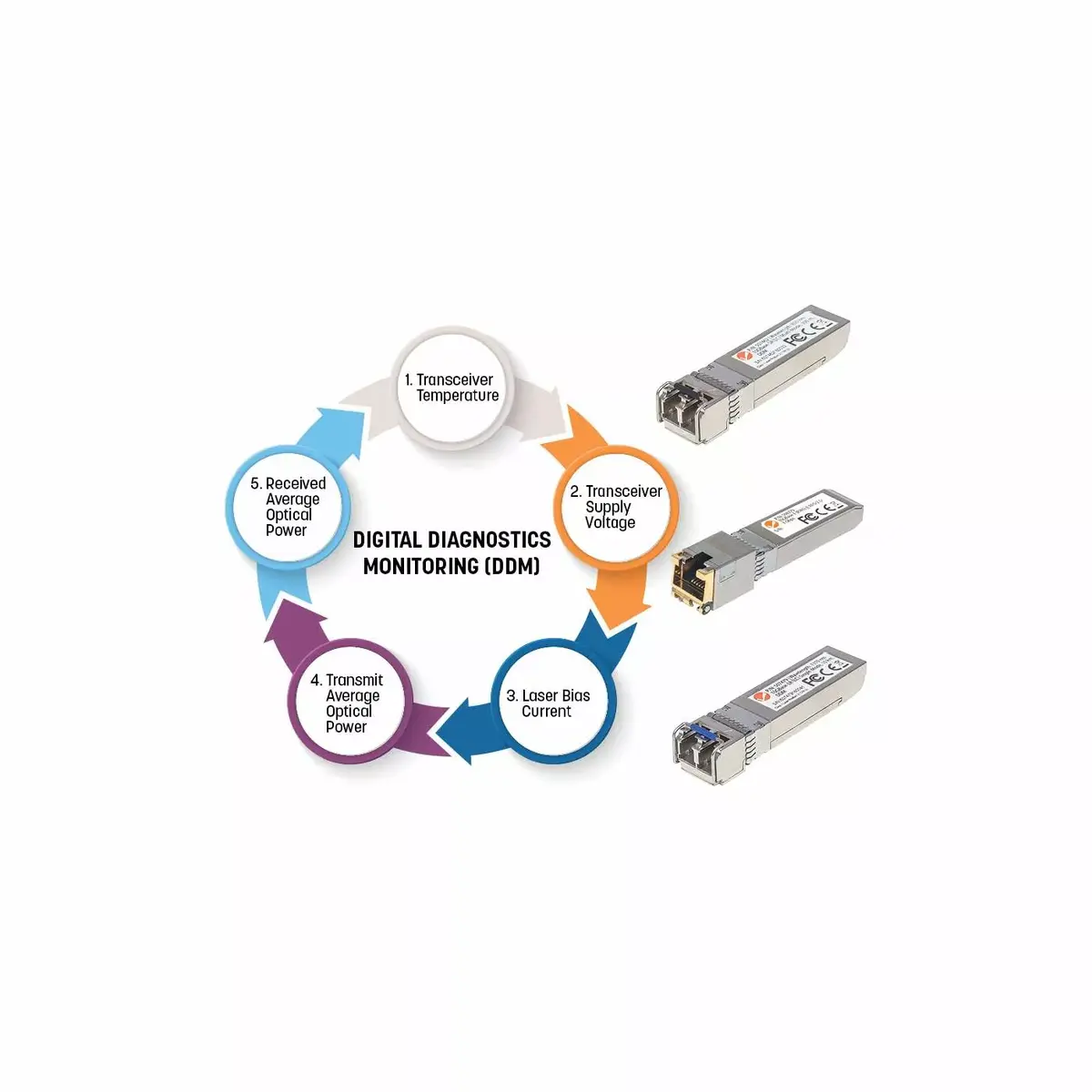

SFP Transceiver Module Intellinet GLC-SX-MM Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Intellinet SFP Transceiver Module is designed for Gigabit Ethernet applications, featuring a 1000Base-SX multi-mode port with a range of up to 550m. It is MSA compliant and equivalent to Cisco GLC-SX-MM. This module operates at a maximum data transfer rate of 1000 Mbit/s and has a compact SFP form factor. With a power consumption of only 1 W and a 3.3 V input voltage, it is energy efficient. Certified by FCC Class B, CE, RoHS, and more, it ensures reliable performance. Comes with a three-year warranty.

Available at price 18.49 €: 1 pcs.

Total available for order: 254 pcs.

Warranty: 2 Years

SKU: 70384

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

22.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

29.06.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

29.06.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet SFP Transceiver Module (model 545006) is a compact Gigabit fibre optic transceiver in an SFP (mini-GBIC) form factor. Designed for 1000Base-SX multimode links, it supports up to 1000 Mbit/s and a reach of up to 550 m. The module is MSA-compliant, set to broadcast the vendor part number GLC-SX-MM for broad compatibility, and comes in a metal housing that reduces electromagnetic interference and improves durability.

Advantages

The aluminium-cased SFP module offers a small footprint for high-density installations and is hot-pluggable, so it can be inserted or removed without powering down the switch. It is energy-efficient with low power consumption (approximately 1 W) and operates at 3.3 V input. Certifications such as FCC Class B, CE and RoHS ensure regulatory compliance and reliable operation. The module is equivalent to the Cisco GLC-SX-MM, providing multi-vendor interoperability.

Suitable for

Gigabit Ethernet multimode fibre links (1000Base-SX)
High-density rack or chassis installations requiring many SFP ports
Upgrading or replacing SFP modules in MSA-compliant switches
Short- to medium-distance fibre connections up to 550 m

Key specifications

Interface type: SFP (mini-GBIC)
Data rate: 1000 Mbit/s
Reach: up to 550 m (multimode)
Power consumption: ~1 W
Input voltage: 3.3 V
Product colour / housing: Aluminium / metal
Weight: 0.015 kg
Manufacturer part number (MPN): 545006
Vendor compatibility: broadcasts GLC-SX-MM (Cisco compatible), MSA-compliant
Certifications: FCC Class B, CE, RoHS

How to use

Insert the SFP transceiver into any compatible SFP port on a network switch or media converter until it latches. Connect the multimode fibre cable (LC connector) to the transceiver's optical ports, observing correct transmit/receive orientation. The hot-pluggable design allows installation or replacement without shutting down the device. Verify link status on the switch and confirm operational parameters such as link speed and diagnostics via the host equipment if supported.

Usage recommendations

Use multimode OM1/OM2/OM3 fibre appropriate for the required distance and maintain clean LC connectors. Store and handle the module in a dry, dust-free environment; avoid excessive force when inserting or removing the SFP to prevent damage to the connector or cage.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Weight:: 0.015 kg
Product colour:: Aluminium

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3z
Ethernet interface type:: Gigabit Ethernet
Fiber ethernet cabling technology:: 1000BASE
Duplex system:: Full
Wavelength:: 850 nm
Fiber optic connector:: LC
Link budget:: 8 dB
Maximum transfer distance:: 550 m
Fiber cable diameters supported (core/cladding):: 62.5/125, 50/125
Tx power (max):: -3 dBmW
Tx power (min):: -8 dBmW
Multi-mode fiber (MMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Form factor:: SFP
Product colour:: Aluminium
Hot-Plug support:: Yes

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Certificates

Certification:: FCC Class B, CE, RoHS, IEC-60825, UKCA, NDAA

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W
Input voltage:: 3.3

Packaging content

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight:: 0.015 kg
Height:: 12 mm
Width:: 13 mm
Depth:: 55 mm
