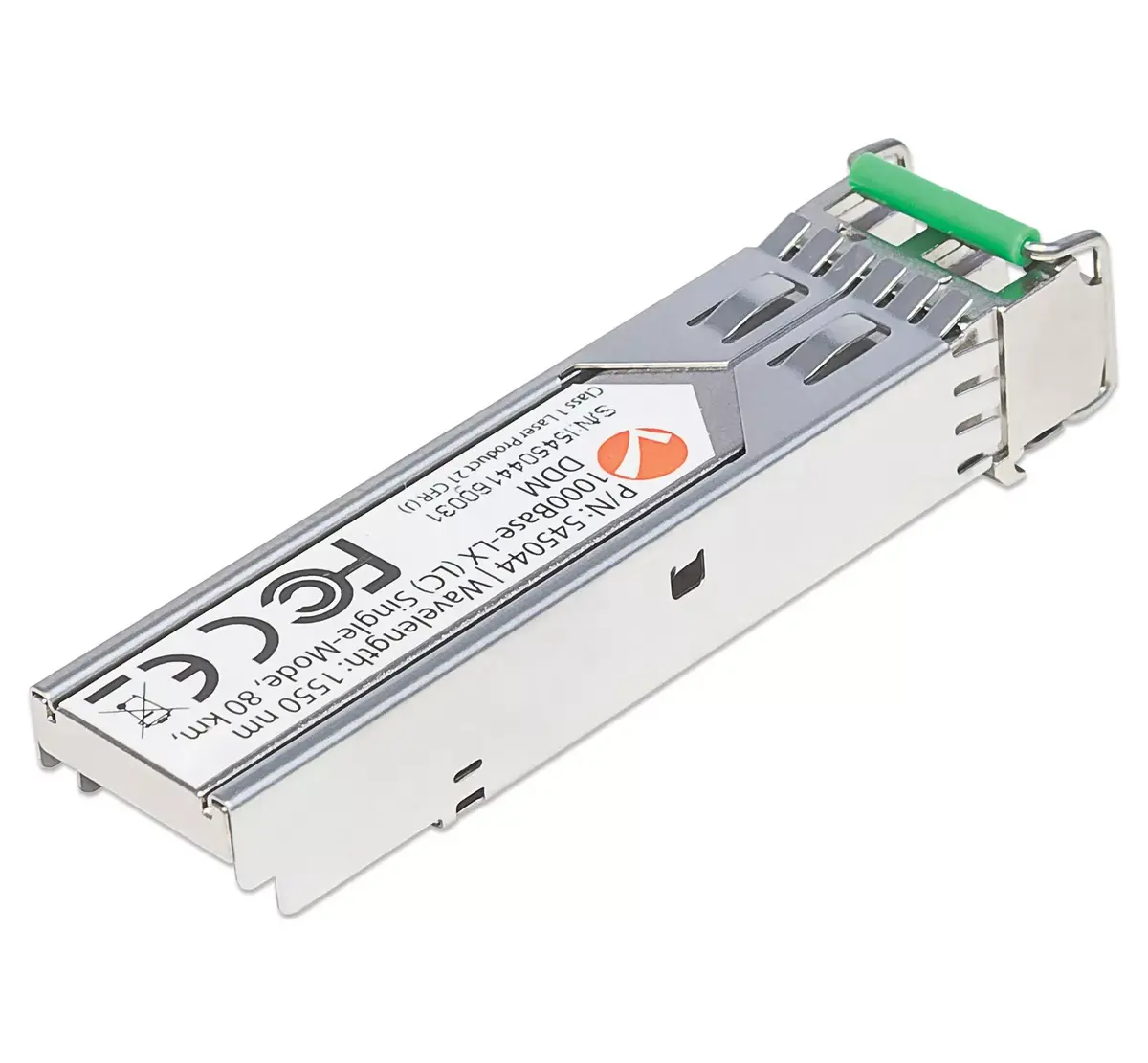

SFP Transceiver Module Intellinet GLC-ZX-SMD Photo 3

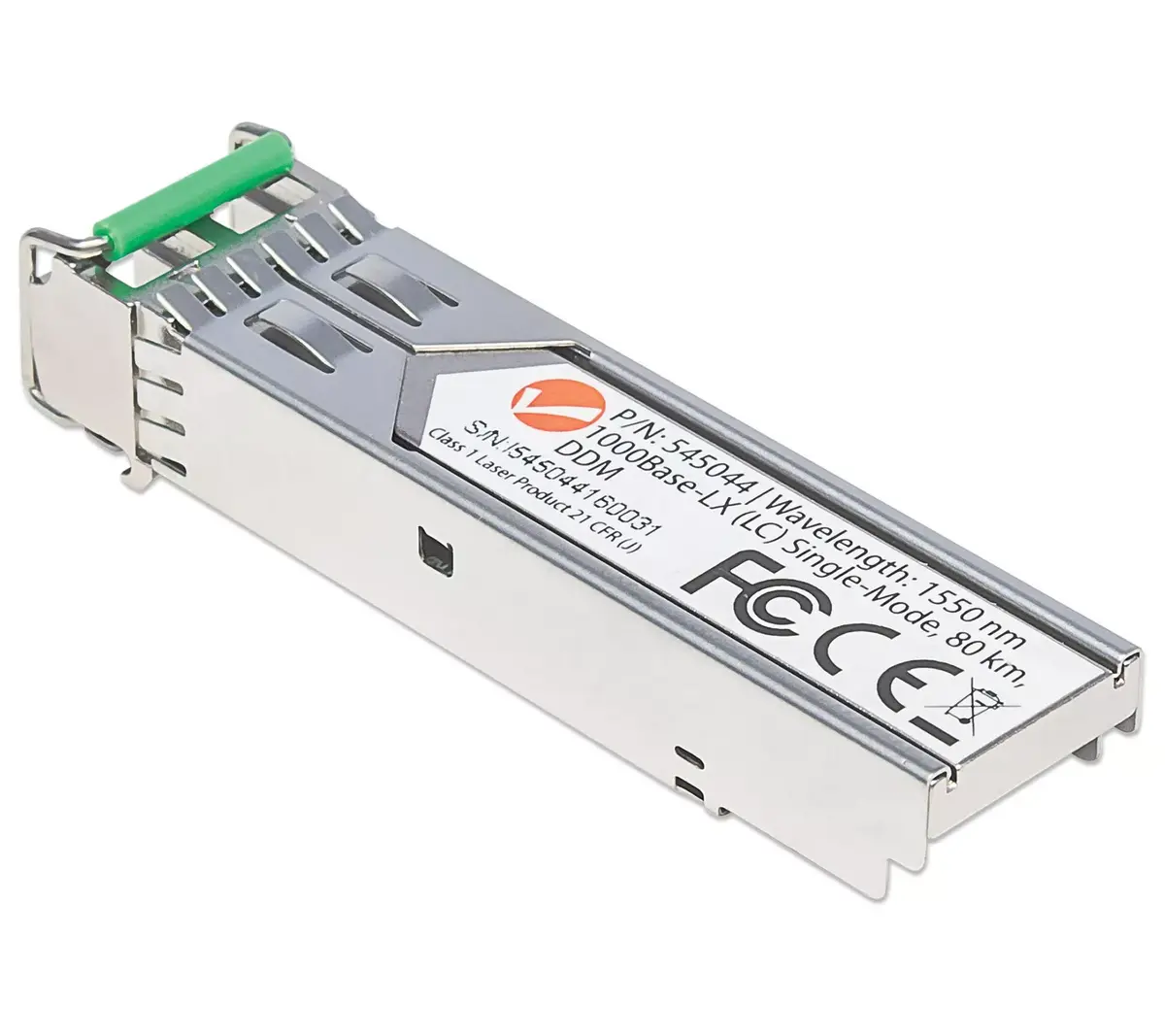

SFP Transceiver Module Intellinet GLC-ZX-SMD Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The Intellinet SFP Transceiver Module is a Gigabit Fiber SFP with a 1000Base-Lx (LC) Single-Mode Port, supporting distances up to 80km. It is MSA compliant and equivalent to Cisco GLC-ZX-SMD. This module features a maximum data transfer rate of 1000 Mbit/s, operates at 3.3 V with a typical power consumption of 1 W. Compact dimensions (14mm x 57mm x 12mm) and a three-year warranty make it a reliable choice for high-speed networking.

Available at price 68.99 €: 13 pcs.

Total available for order: 26 pcs.

Warranty: 2 Years

SKU: 218913

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

14.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

17.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The SFP Transceiver Module Intellinet GLC-ZX-SMD is a Gigabit fibre SFP transceiver with a 1000Base-LX (LC) single‑mode port designed for long‑reach fibre links up to 80 km. Housed in a metal mini‑GBIC enclosure, the module is MSA compliant and vendor‑pn compatible with Cisco GLC‑ZX‑SMD. It supports a 1000 Mbit/s data rate, operates at 3.3 V with typical power consumption around 1 W, and has compact dimensions for high‑density installations.

Advantages

The metal housing reduces electromagnetic interference and improves durability while the mini‑GBIC form factor saves rack space in cabinets and computer rooms. The module is hot‑pluggable to allow installation or replacement without rebooting network switches. Built‑in Digital Diagnostics Monitoring (DDM/DOM) provides real‑time monitoring of optical output/input power, temperature, laser bias current and supply voltage for easier management and troubleshooting.

Suitable for

Long‑distance single‑mode fibre links (up to 80 km)
High‑density switch and patch‑panel installations
MSA‑compliant SFP ports and Cisco GLC‑ZX‑SMD compatible equipment

Key specifications

Interface type: SFP (mini‑GBIC)
Standard: 1000Base‑LX (LC connector)
Maximum data transfer rate: 1000 Mbit/s
Reach: up to 80 km (single‑mode)
Operating voltage: 3.3 V
Typical power consumption: ~1 W
Dimensions: 14 mm x 57 mm x 12 mm
Weight: 0.018 kg
Colour: Silver
MSA compliant; vendor‑pn: GLC‑ZX‑SMD (Cisco equivalent)

How to use

Insert the SFP Transceiver Module into an appropriate SFP slot on a switch or media converter until it clicks into place. Connect the single‑mode LC optical patch cable to the module’s LC port and route the cable according to site standards. Because the module is hot‑pluggable, it can be installed or removed while the switch is powered on. Use network management tools or the switch CLI to verify link status and DDM parameters.

Usage recommendations

Use single‑mode LC patch cables and ensure connector cleanliness before mating. Verify that connected devices support MSA‑compliant SFP modules or are compatible with vendor‑pn GLC‑ZX‑SMD. Monitor DDM readings after installation to confirm correct optical levels and operating temperature.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Weight:: 0.018 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 1000 Mbit/s
Networking standards:: IEEE 802.3z
Ethernet interface type:: Gigabit Ethernet
Duplex system:: Full
Ethernet LAN:: Yes
Wavelength:: 1550 nm
Fiber optic connector:: LC
Link budget:: 22 dB
Maximum transfer distance:: 80000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: 5 dBmW
Tx power (min):: -2 dBmW
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Logistics data

Harmonized System (HS) code:: 85369010

Operational conditions

Operating relative humidity (H-H):: 10 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W
Input voltage:: 3.3

Certificates

Certification:: FCC Class A, CE Mark

Features

Product colour:: Silver
Hot-Plug support:: Yes

Packaging data

Number of products included:: 1 pc(s)

Weight & dimensions

Weight:: 0.018 kg
Height:: 12 mm
Width:: 14 mm
Depth:: 57 mm

Sustainability

Sustainability certificates:: RoHS
