PoE+ splitter INTELLINET 560443

Name: PoE+ splitter INTELLINET 560443, IEEE 560443
Brand: INTELLINET
SKU: 185993
Price: 44.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

PoE+ splitter INTELLINET 560443, IEEE 802.3at, 25.4 W output, 12 V DC, 2x RJ-45, metal housing, black

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

INTELLINET PoE+ splitter 560443 accepts PoE power via IEEE 802.3at and provides 25.4 W output at 12 V DC to power non-PoE devices. It features two RJ-45 ports, Cat5-compatible cabling (10Base-T/100Base-TX), metal housing and included AC cable. Compact and durable, it is suitable for powering cameras, access points or other network equipment where separate DC power is required. Avoid liquid contact.

Available at price 44.49 €: 9 pcs.

Total available for order: 550 pcs.

Warranty: 2 Years

SKU: 185993

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.03 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

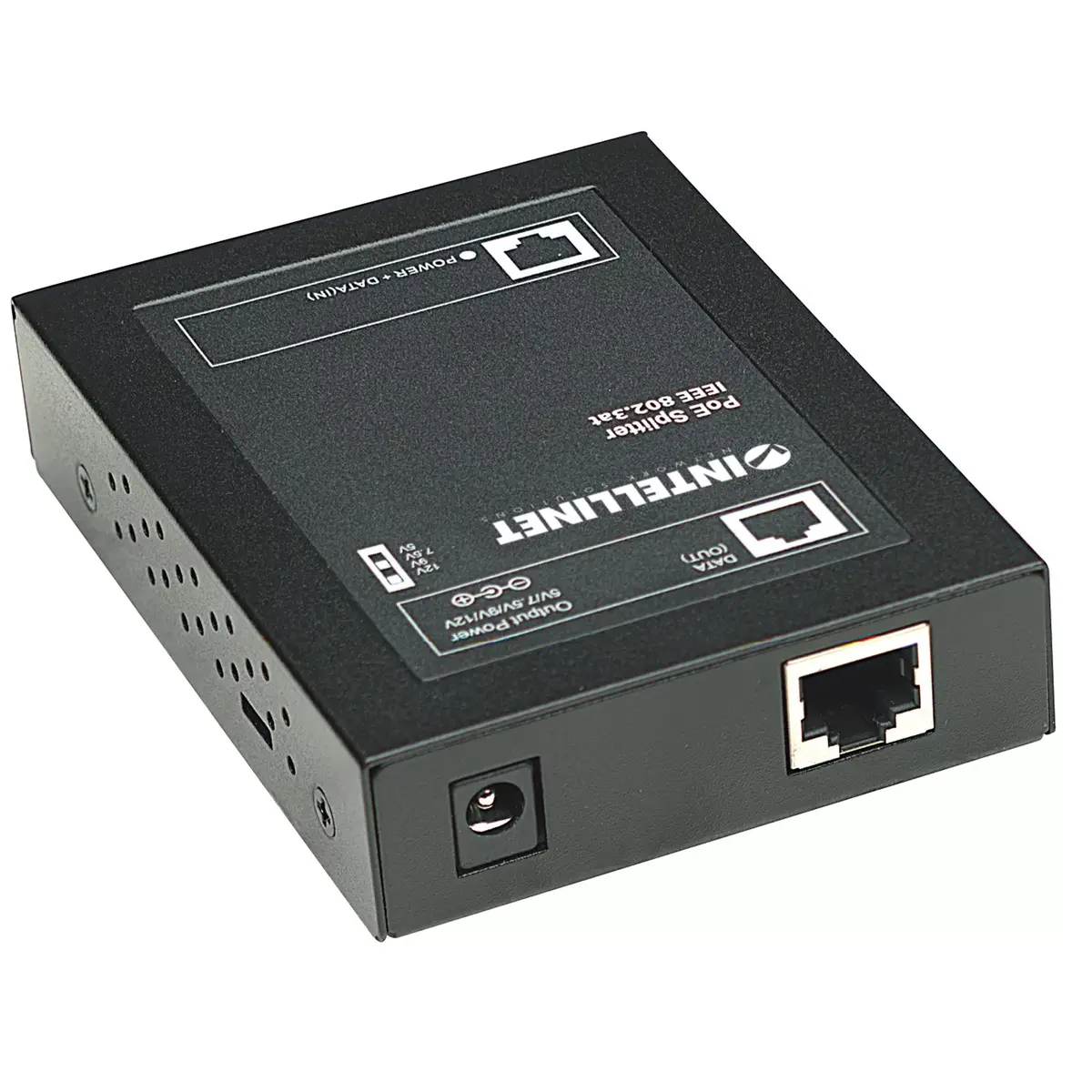

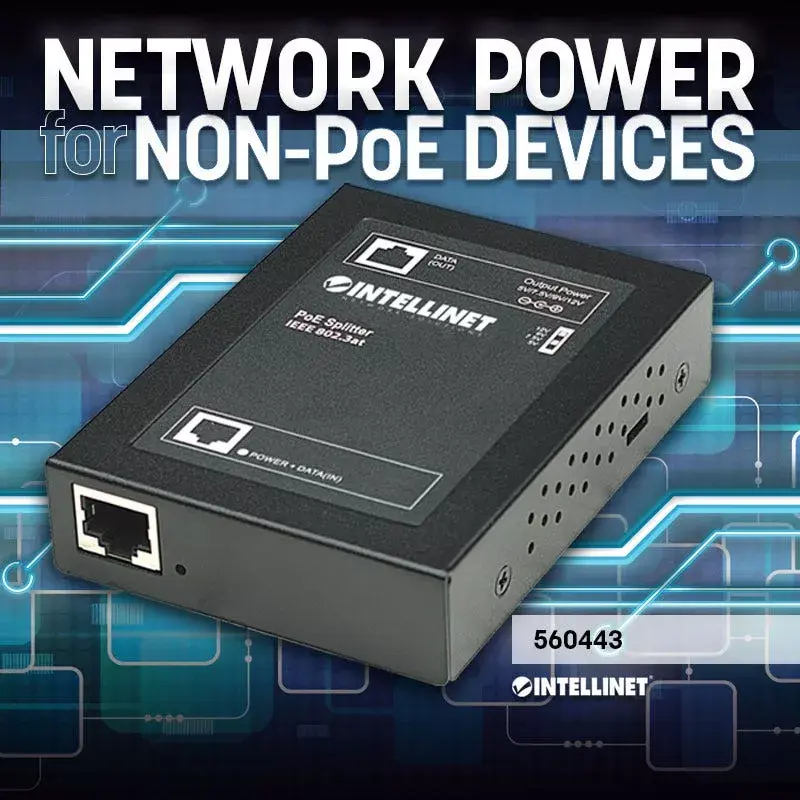

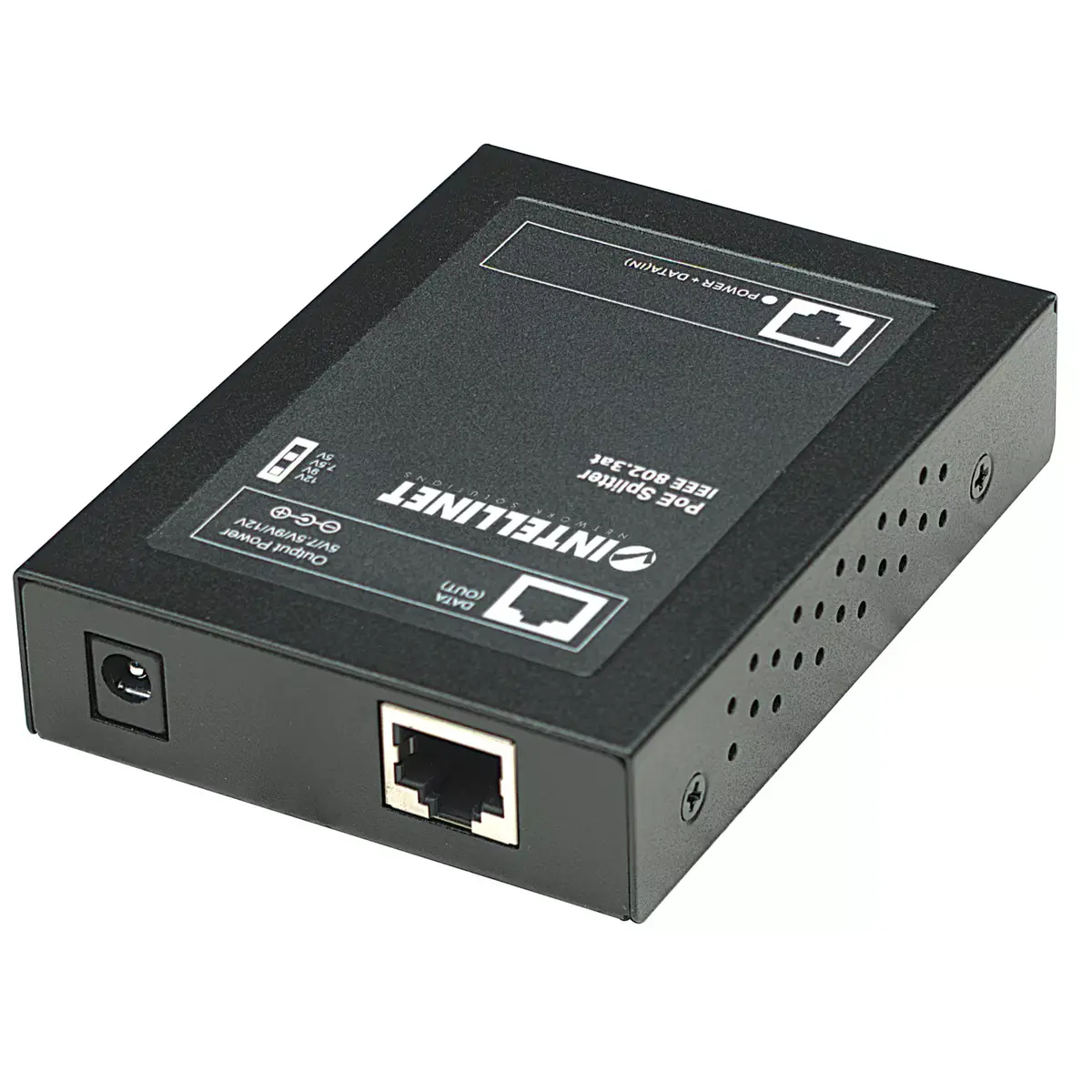

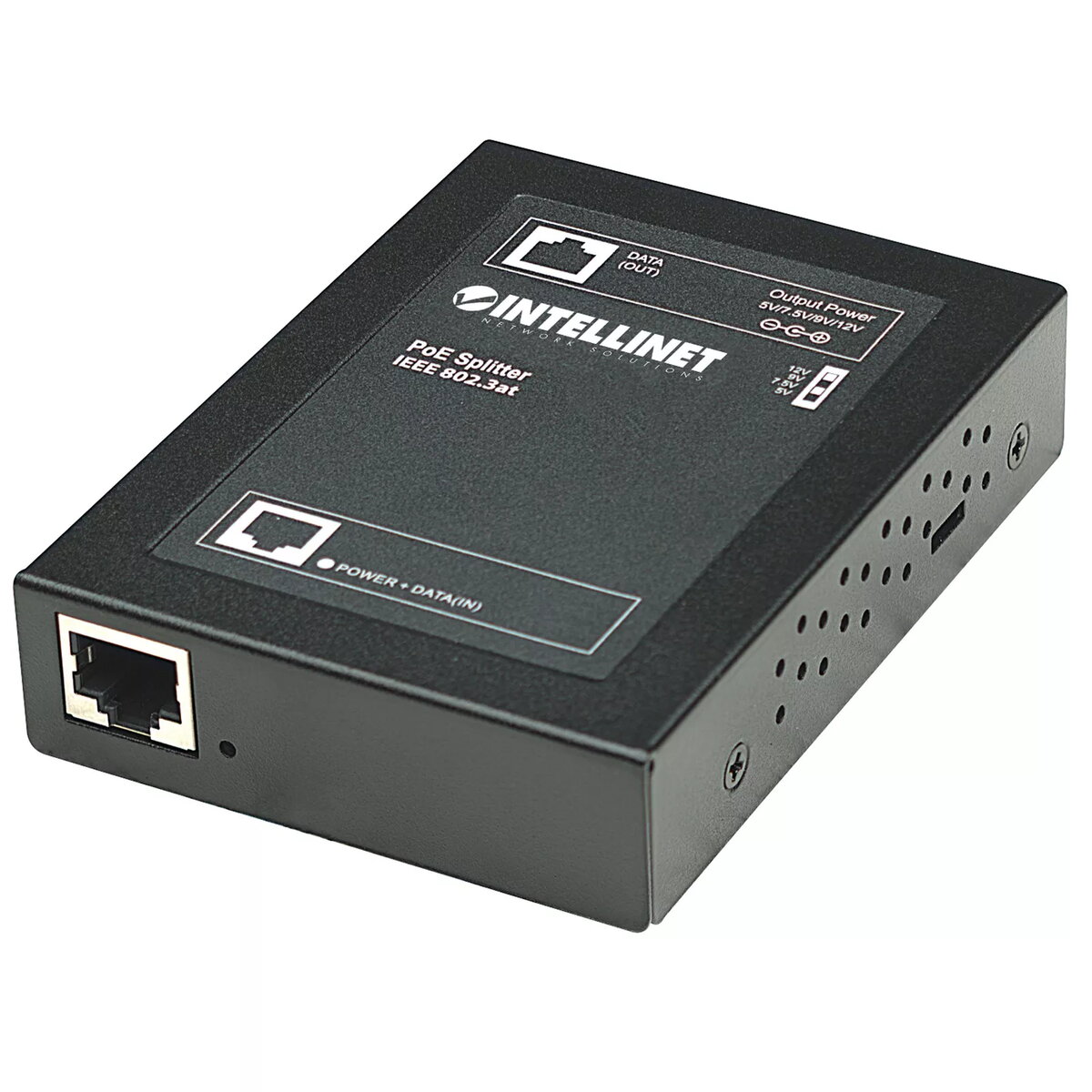

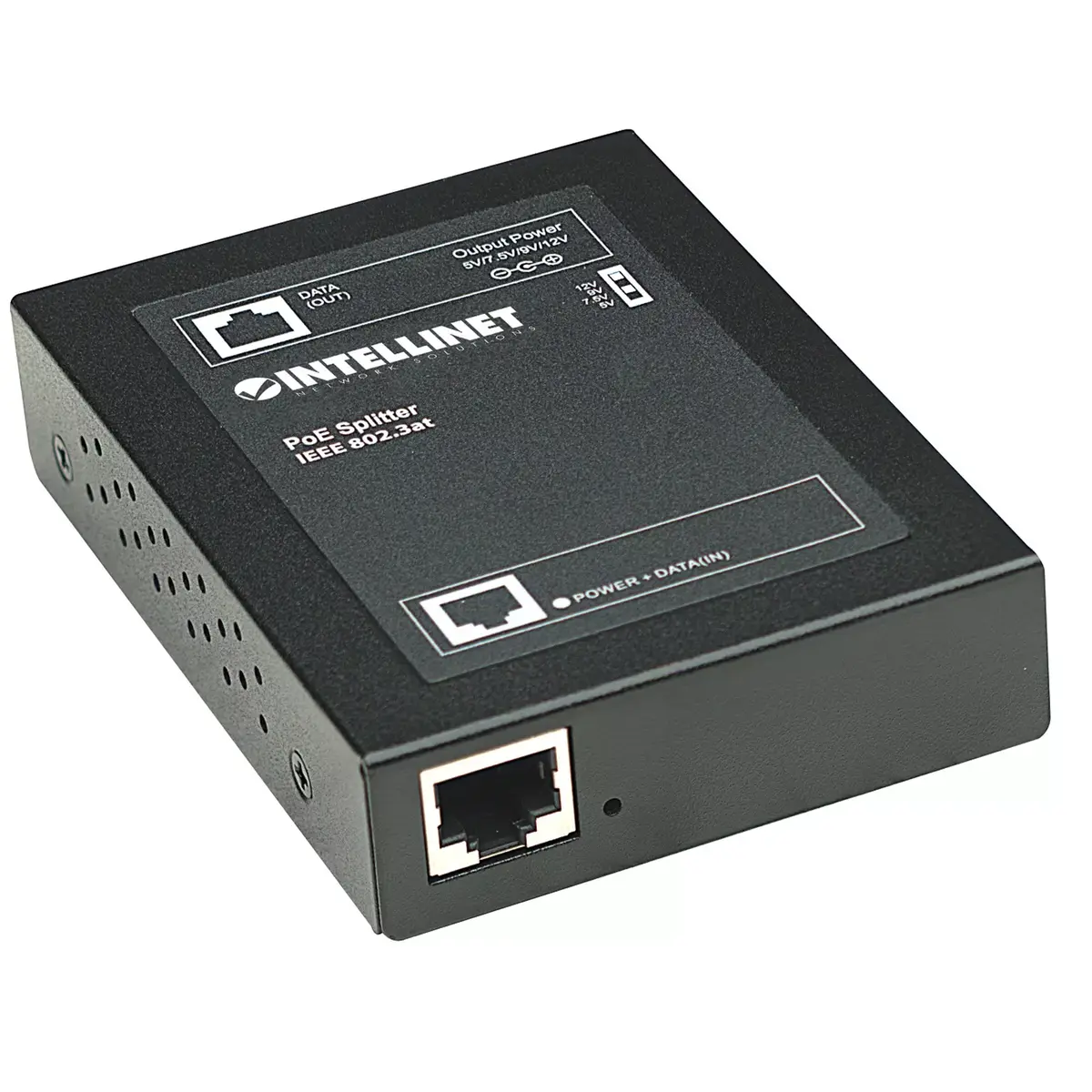

The Intellinet PoE+ Splitter 560443 delivers data and DC power over a single Cat5 Ethernet cable to devices that do not natively support Power over Ethernet. It enables placement of Ethernet-enabled equipment such as network cameras and wireless access points where AC power outlets are not available, extending installation options up to 100 m (328 ft) from the power source when used according to cable distance guidelines. The unit features a metal housing, compact dimensions (74 × 102 × 22 mm) and supports IEEE 802.3af/802.3at standards, providing up to 25.4 W of power output.

Advantages

The PoE+ Splitter simplifies installations by requiring only an Ethernet cable for both data and power, reducing cabling complexity and enabling ceiling or outdoor mounting without a local power outlet. It is compatible with PoE injectors and midspan PSE switches that follow 802.3af/at standards. A side-mounted voltage selector allows selecting 5 V, 7.5 V, 9 V or 12 V DC output to match the powered device. The compact, metal-bodied design and regulatory certifications (FCC Class A, CE) support reliable, professional installations.

Suitable for

Network cameras (that require 5–12 V DC)
Wireless access points without native PoE support
Small Ethernet devices located far from AC power outlets (up to 100 m)
Installations using PoE injectors or midspan PSE switches (802.3af/at)

Key specifications

Model: PoE+ Splitter Intellinet 560443
Standards: IEEE 802.3af / 802.3at compatible
Selectable DC output: 5 V / 7.5 V / 9 V / 12 V
Maximum power delivery: up to 25.4 W
Ethernet ports: 2 × RJ-45
Dimensions: 74 × 102 × 22 mm
Weight: 0.445 kg
Colour: Black
Housing: metal
Certifications: FCC Class A, CE

How to use

Connect the incoming PoE-enabled Ethernet cable from a compatible PoE injector or PSE switch to the splitter's RJ-45 input. Set the side-mounted voltage selector to the DC output required by your device (5 V, 7.5 V, 9 V or 12 V). Connect the splitter's DC output lead and data output to the powered device using the appropriate connector or cable. Ensure the supplying PoE source and the powered device are within the supported power budget and keep the cabling run within standard Ethernet distance limits (up to 100 m). No additional software or tools are required for installation.

Usage recommendations

Verify the device's required input voltage and power consumption before selecting the splitter output. Use a PoE injector or midspan switch that conforms to 802.3af/at and can supply sufficient wattage. For outdoor or ceiling installations, use appropriate conduit or protective housings and follow local electrical and installation codes.

Specifications

Ethernet LAN (RJ-45) ports:: 2
Weight:: 0.445 kg
Product colour:: Black

All features

Output voltage:: 12
Quantity:: 1
Connector gender:: Female

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -20 - 90
Operating temperature (T-T):: 0 - 60

Certificates

Certification:: FCC Class A, CE

Network

Networking standards:: IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3
Power over Ethernet (PoE):: Yes
Cable standard:: Cat5

Ports & interfaces

Ethernet LAN (RJ-45) ports:: 2

Weight & dimensions

Weight:: 0.445 kg
Height:: 22 mm
Width:: 74 mm
Depth:: 102 mm

Power

Output power:: 25.4 W

Packaging content

Cables included:: AC

Features

Product colour:: Black
Housing material:: Metal

Hide Show all

Instructions

mmo_8992297_1655027085_6763_14380.pdf

Description

Instructions

mmo_8992297_1655027085_6763_14380.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
EU3	9	30.06.2026 Best delivery	44.49 € Best price
WH94	16	30.06.2026 Best delivery	45.49 €
WH354	9	07.07.2026	50.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU4	500	14.07.2026	44.49 €
WH109	16	14.07.2026	46.49 €

44.49 €

Stock: 9

Delivery Date: 30.06.2026 Best delivery

Warehouse: EU3

45.49 €

Stock: 16

Delivery Date: 30.06.2026 Best delivery

Warehouse: WH94

50.49 €

Stock: 9

Delivery Date: 07.07.2026

Warehouse: WH354

Available only for legal entities

44.49 €

Stock: 500

Delivery Date: 14.07.2026

Warehouse: EU4

46.49 €

Stock: 16

Delivery Date: 14.07.2026

Warehouse: WH109

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the PoE+ splitter INTELLINET 560443 cost, and is it available for purchase?

The price is 44.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 550 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 30.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All INTELLINET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized INTELLINET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: ethernet lan (rj-45) ports, weight, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for PoE+ splitter INTELLINET 560443?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
