header-product Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, 1.6 Gbit/s
102.99 €

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, 1.6 Gbit/s

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 1

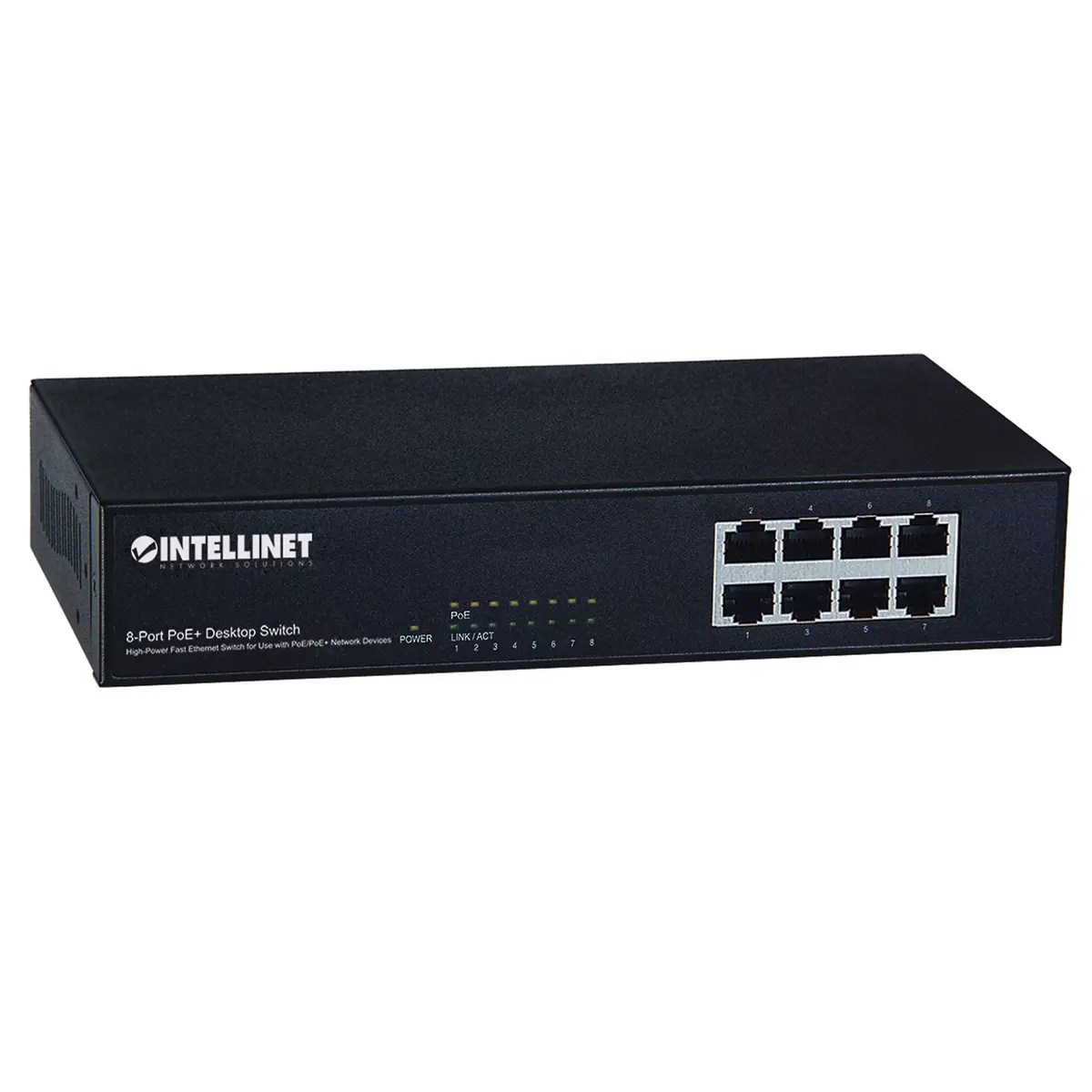

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 2

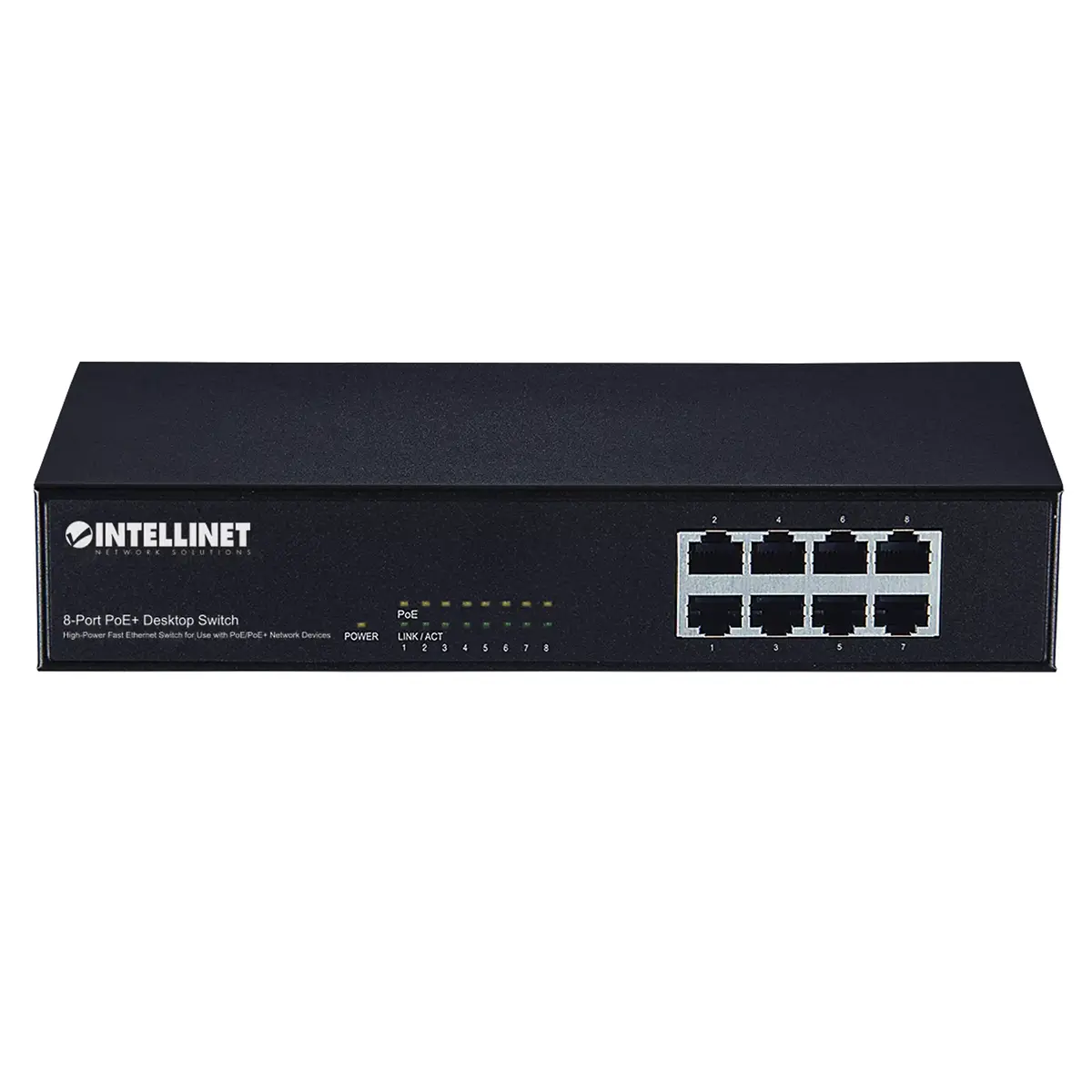

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 3

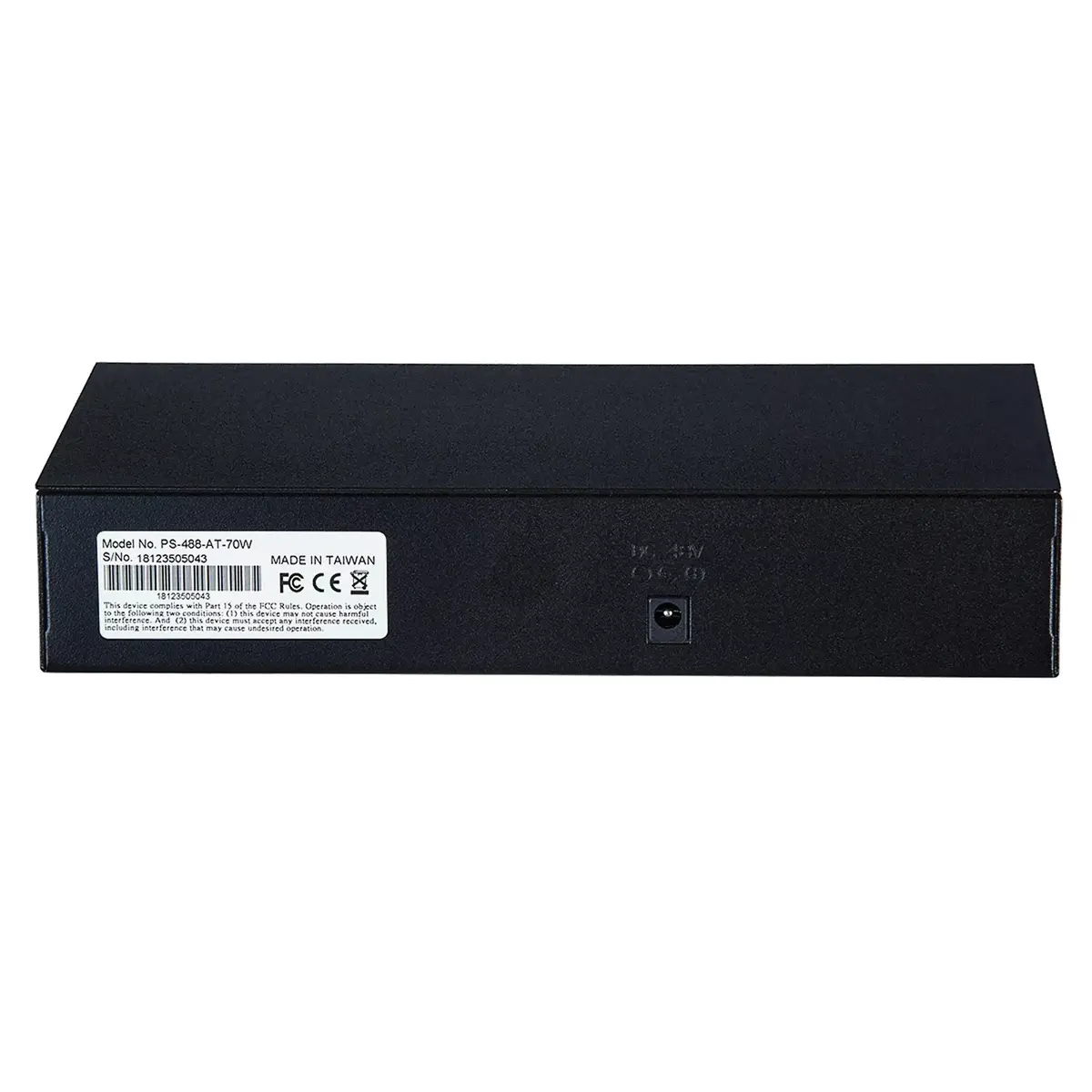

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 4
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 5
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 1
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 2
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 3
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 4
Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 560764 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, 1.6 Gbit/s

{{email}}
You keep track of price changes

Switch, Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, 1.6 Gbit/s

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Intellinet 8-Port Fast Ethernet PoE+ Switch features 8 PoE ports with IEEE 802.3at/af support, providing power and data over a single cable. With a switching capacity of 1.6 Gbit/s and a MAC address table of 2048 entries, it ensures efficient data handling. Ideal for desktop use, this switch is perfect for connecting multiple devices in a network while simplifying installation with Power over Ethernet capabilities.
Available at price 102.99 €: 12 pcs.
Total available for order: 24 pcs.
Warranty: 3 Years
SKU: 20250
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.12.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.12.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.50 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
15.12.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

Esto — pay in 6 equal parts

today

0 €

afterward

6 mth. × 17.17 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.86 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) supplies both data and electrical power over standard Cat5e/Cat6 cables to PoE-compatible devices. With eight Fast Ethernet ports supporting IEEE 802.3at/af, the switch delivers network speeds up to 100 Mbps while powering wireless access points, VoIP phones, IP cameras and other devices. The total PoE budget is 140 watts, with average per-port distribution of 17.5 W and a maximum of 30 W per port.

Advantages

This PoE+ switch reduces installation time and wiring costs by delivering power and data over a single cable. It supports mixed deployments of PoE and non-PoE devices and includes short-circuit, overload and high-voltage protection to safeguard connected equipment. For legacy devices that do not comply with IEEE 802.3at/af, a compatible PoE/PoE+ splitter can be used.

Key specifications

  • Model: Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764)
  • Ports: 8 x Fast Ethernet ports
  • PoE standard: IEEE 802.3at/af
  • Data speed: up to 100 Mbps per port
  • Total PoE budget: 140 W
  • Average per-port power distribution: 17.5 W
  • Maximum per-port power: 30 W
  • Supported cable: Cat5e / Cat6
  • Protections: short-circuit, overload, high-voltage protection

How to use

Install the switch in a suitable location and connect network devices using Cat5e or Cat6 cables. Devices that support IEEE 802.3at/af will receive both power and data automatically through the connected port; non-PoE devices can be connected without receiving power. Monitor power consumption to ensure the total does not exceed the 140 W PoE budget, and use a PoE/PoE+ splitter for legacy devices that require separate power inputs.

Recommendations

Ensure connected devices are compatible with IEEE 802.3at/af when expecting PoE power. Distribute high-power devices across ports to avoid exceeding the total PoE budget and consider using a PoE splitter for legacy or noncompliant equipment.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Switching capacity: The data transfer capacity of the switch per second.
1.6 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2048 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
8
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3, IEEE 802.1af
All features

Logistics data

Harmonized System (HS) code:
85176990

Certificates

Certification:
FCC Class A, CE

Packaging content

Manual:
Yes
Cables included:
AC

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.5 kg
Height: The measurement of the product from head to foot or from base to top.
44 mm
Depth: The distance from the front to the back of something.
179 mm
Width: The measurement or extent of something from side to side.
280 mm

Operational conditions

Operating relative humidity (H-H):
10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 40

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes

Power

Power consumption (max): The maximum amount of power used by the device.
150 W
AC input frequency:
50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240

Design

LED indicators:
Power, PoE, Link, Activity
Housing material: What the casing of the product is made of.
Metal
Product colour: The colour e.g. red, blue, green, black, white.
Black

Data transmission

Store-and-forward:
Yes
Forwarding rate:
0.1488 Mpps
Switching capacity: The data transfer capacity of the switch per second.
1.6 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2048 entries

Network

Flow control support:
Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3, IEEE 802.1af

Ports & interfaces

Power connector:
DC-in jack
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
8
